JZX105-ATPQF (1996)
Toyota Mark 2
Production
Sep 1996
-
Oct 2000
Engine
1JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )GX105,JZX105

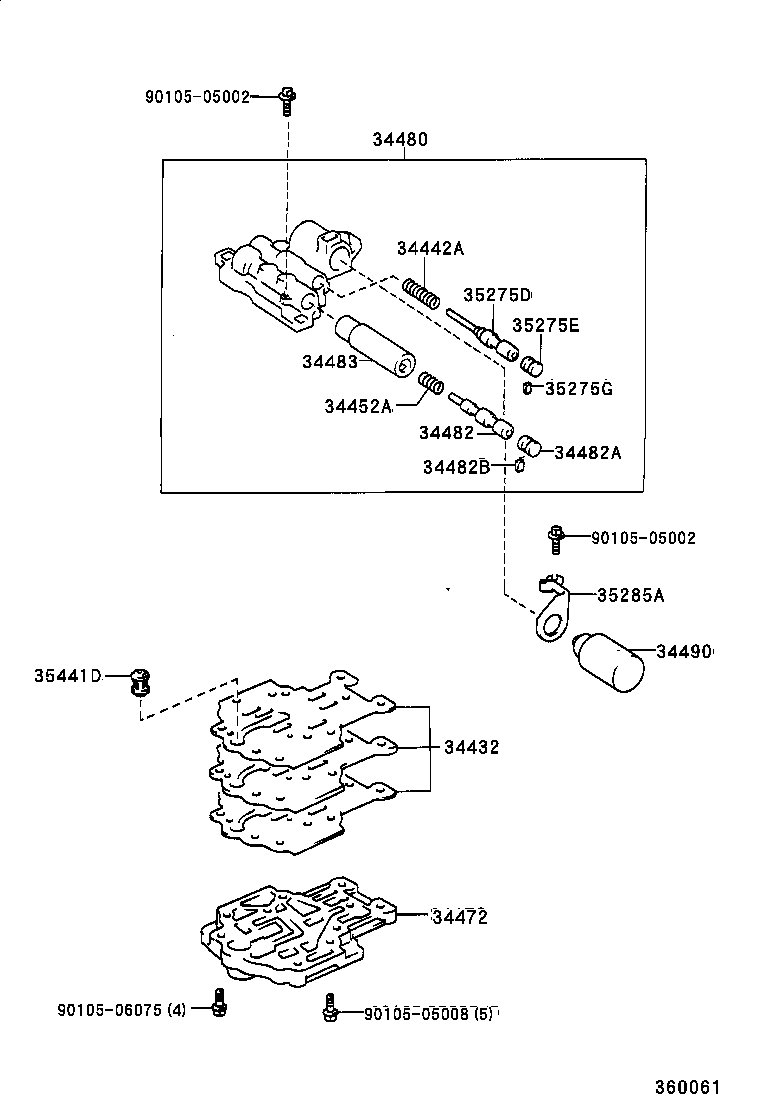

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34432 - PLATE, TRANSFER VALVE BODY, UPPER | ||||
| 34403-30010 |
GX105,JZX105 |
1 | ||
| 34442A - SPRING, COMPRESSION(FOR LOW-HIGH SHIFT VALVE) | ||||
| 90501-12143 |
GX105,JZX105 |
1 | ||
| 34452A - SPRING (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE) | ||||
| 90501-06079 |
GX105,JZX105 |
1 | ||
| 34472 - COVER, TRANSFER VALVE BODY | ||||
| 34472-30010 |
GX105,JZX105 |
1 | ||
| 34480 - BODY ASSY, TRANSFER UPPER VALVE | ||||
| 34480-30010 |
GX105,JZX105 |
1 | ||
| 34482 - VALVE, CENTER DIFFERENTIAL CLUTCH CONTROL | ||||
| 34482-30010 |
GX105,JZX105 |
1 | ||
| 34482A - SPRING(FOR CENTER DIFFERENTIAL CONTROL VALVE) | ||||
| 90339-04003 |
GX105,JZX105 |
1 | ||
| 34482B - SEAT(FOR CENTER DIFFERENTIAL CLUTCH CONTROL VALVE PLUG) | ||||
| 35493-30030 |
GX105,JZX105 |
1 | ||
| 34483 - SLEEVE, CENTER DIFFERENTIAL CLUTCH CONTROL VALVE | ||||
| 34483-30010 |
GX105,JZX105 |
1 | ||
| 34490 - SOLENOID ASSY, TRANSFER CONTROL | ||||
| 34490-30020 |
GX105,JZX105 |
1 | ||
| 35275D - VALVE, TRANSFER SOLENOID MODULATOR | ||||
| 35275-30010 |
GX105,JZX105 |
1 | ||
| 35275E - PLUG (FOR TRANSFER SOLENOID MODULATOR VALVE) | ||||
| 90339-04030 |
GX105,JZX105 |
1 | ||
| 35275G - SEAT (FOR TRANSFER SOLENOID MODULATOR VALVE PLUG) | ||||
| 35493-30110 |
GX105,JZX105 |
1 | ||
| 35285A - PLATE, SOLENOID LOCK | ||||
| 35285-30050 |
GX105,JZX105 |
1 | ||
| 35441D - STRAINER, CENTER DIFFERENTIAL LOCK CLUTCH CONTROL OIL | ||||
| 35441-50030 |
GX105,JZX105 |
1 | ||
| Common parts | ||||
| 90105-05002 | ||||
| 90105-05008 | ||||
| 90105-06075 | ||||
