JZX101-ATPZF (1996)
Toyota Mark 2
Production
Sep 1996
-
Oct 2000
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )JZX101

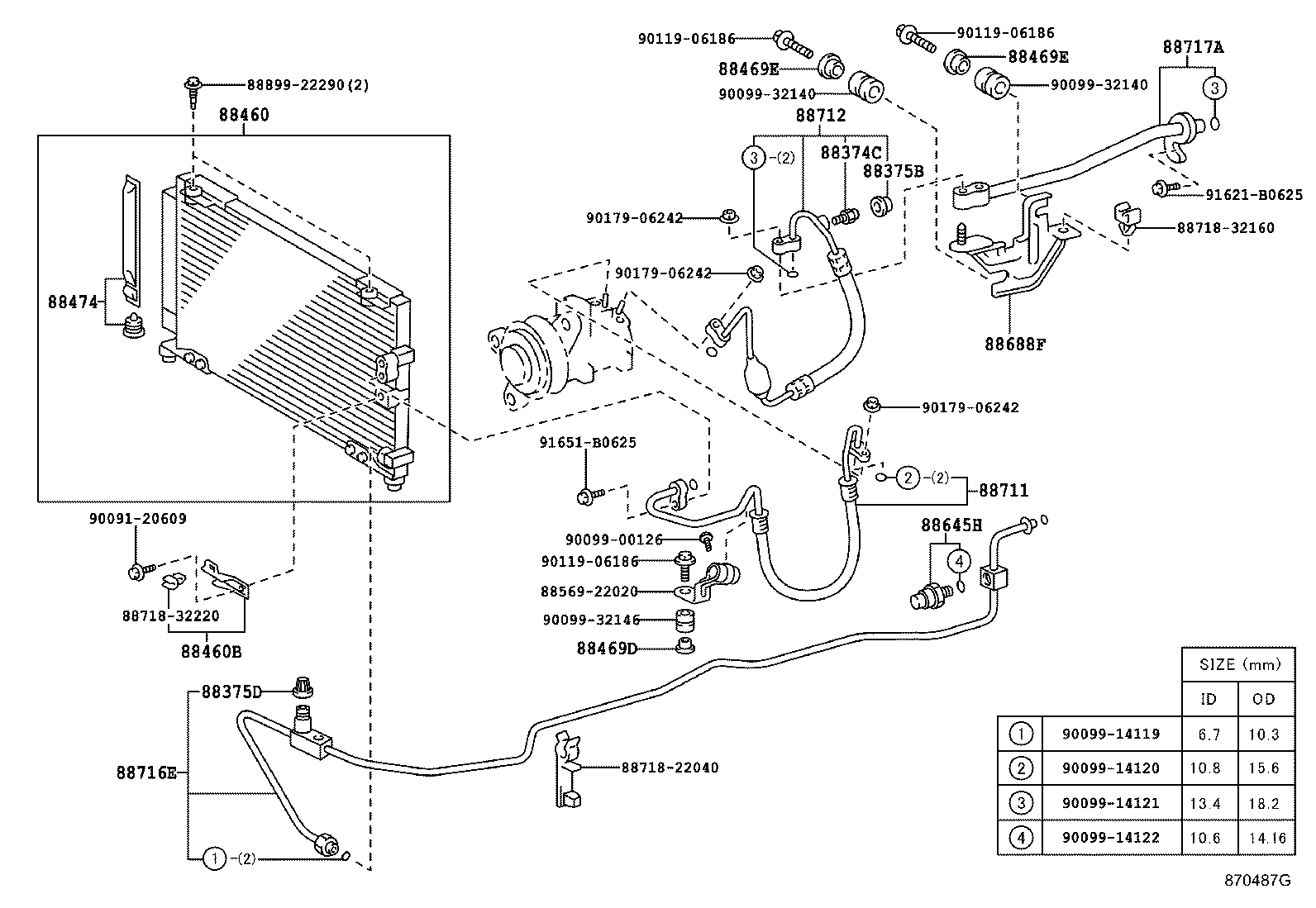

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GX10#,JZX10# |
1 | ||
| 88374-30010 |
JZX10# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
JZX10# |
1 | ||
| 88375-30290 |
GX10#,JZX10# |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
JZX101;JZX100..TOUV |
1 | ||
| 88375-30280 |
GX10#,JZX10# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22560 |
GX10#,JZX10# |
1 | ||
| 88460-22560 |
JZX101;JZX100..TOUV |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-22690 |
JZX101;JZX100..TOUV |
1 | ||
| 88688-22690 |
GX10#,JZX10# |
1 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-28010 |
GX10#,JZX10#,LX100 |
1 | ||
| 88469E - COLLAR, CONDENSER BRACKET, NO.2 | ||||
| 88469-28010 |
GX100,JZX10#,LX100 |
2 | ||
| 88469-28010 |
JZX10#,LX100 |
2 | ||
| 88469E - COLLAR, CONDENSER BRACKET, NO.2 | ||||
| 88469-28010 |
GX100,JZX10#,LX100 |
2 | ||
| 88469-28010 |
JZX10#,LX100 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
GX10#,JZX10# |
1 | ||
| 88474-22010 |
JZX101;JZX100..TOUV |
1 | ||
| 88474-22010 |
GX10#,JZX10# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-22070 |
JZX101;JZX100..TOUV |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-22520 |
GX100,JZX10#,LX100 |
1 | ||
| 88688-22520 |
JZX10#,LX100 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22810 |
JZX10#..GD,GDG,TOUS |
1 | ||
| 88711-22860 |
JZX100,101..GD,GDG,TOUS |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2A200 |
JZX100,101..GD,GDG,TOUS |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-22590 |
GX100,JZX100,101 |
1 | ||
| 88716-22590 |
JZX101;JZX100..TOUV |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-22570 |
JZX10#,LX100 |
1 | ||
| 88717-22570 |
GX100,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 88569-22020 | ||||
| 88718-22040 | ||||
| 88718-32160 | ||||
| 88718-32220 | ||||
| 88899-22290 | ||||
| 90091-20609 | ||||
| 90099-00126 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-32140 | ||||
| 90099-32146 | ||||
| 90119-06186 | ||||
| 90179-06242 | ||||
| 91621-B0625 | ||||
| 91651-B0625 | ||||
