JZX100-ATPZF (1996)
Toyota Mark 2

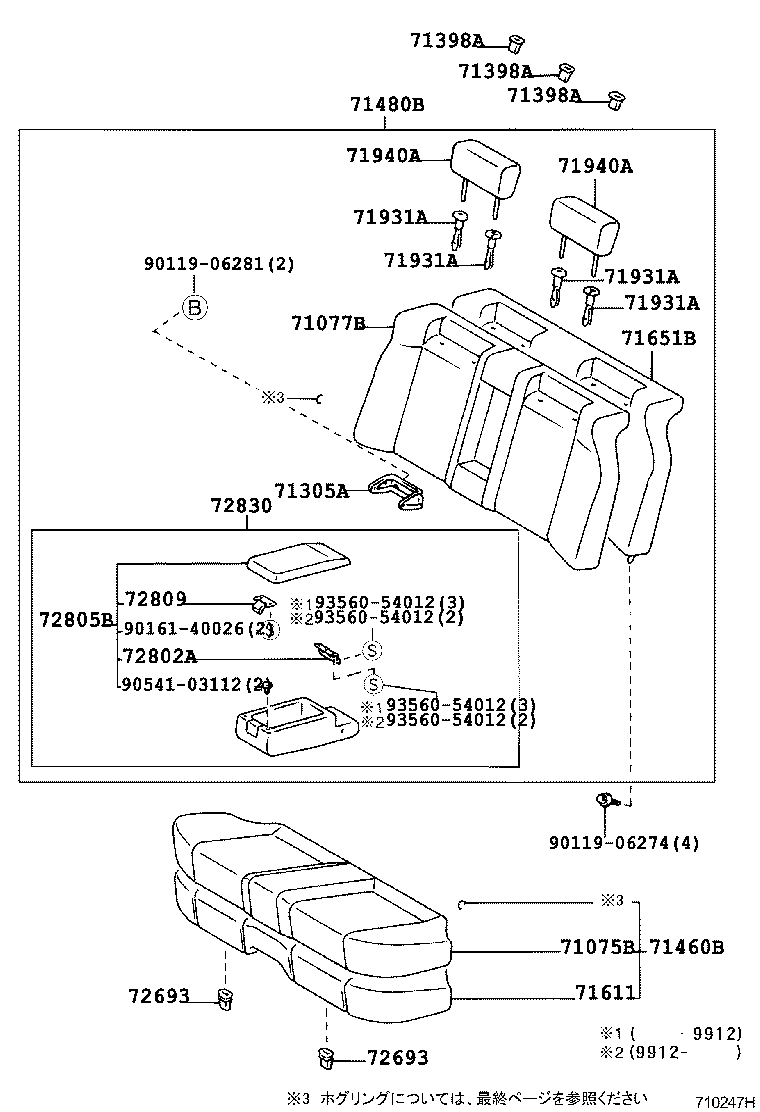

(9609- )GD,GDG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-22500E0 |
JZX100,101..GDG ORCHID,TRIM4# |
1 | ||
| 71065-22500G0 |
JZX100,101..GDG SAGE,TRIM6# |
1 | ||
| 71065-22490G0 |
GX100,JZX100,105,LX100..GD SAGE,TRIM6# |
1 | ||
| 71065-22490E0 |
GX100,JZX100,105,LX100..GD ORCHID,TRIM4# |
1 | ||
| 71065-22630E0 |
JZX105;JZX100,101..GDG ｼ-ﾄ = TYPE A-*104,ORCHID,TRIM4# |
1 | ||
| 71065-22640E0 |
GX10#,JZX100..4FC..GD ﾚｶﾞﾘｱ *(E),(V),ORCHID,TRIM40 |
1 | ||
| 71065-22630G0 |
JZX105;JZX100,101..GDG ｼ-ﾄ = TYPE A-*104,SAGE,TRIM6# |
1 | ||
| 71065-22630E0 |
GX10#,JZX100..4FC..GD ﾚｶﾞﾘｱ Gｴﾃﾞｲｼﾖﾝ *(C),ORCHID,TRIM40 |
1 | ||
| 71065-22560E0 |
GX10#,JZX100,105,LX100..GD ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71065-22620G0 |
GX100,JZX100..4FC..GD ｼ-ﾄ = TYPE D-*104,DK.SAGE,TRIM6# |
1 | ||
| 71065-22560G0 |
GX10#,JZX100,105,LX100..GD ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-2A670E0 |
GX100,JZX100,105,LX100..GD ORCHID,TRIM4# |
1 | ||
| 71077-2A820E0 |
GX10#,JZX100..4FC..GD ﾚｶﾞﾘｱ Gｴﾃﾞｲｼﾖﾝ *(C),ORCHID,TRIM40 |
1 | ||
| 71077-2A670G0 |
GX100,JZX100,105,LX100..GD SAGE,TRIM6# |
1 | ||
| 71077-2A800G0 |
GX100,JZX100..4FC..GD ｼ-ﾄ = TYPE D-*104,DK.SAGE,TRIM6# |
1 | ||
| 71077-2A810E0 |
GX10#,JZX100..4FC..GD ﾚｶﾞﾘｱ *(E),(V),ORCHID,TRIM40 |
1 | ||
| 71077-2A740E0 |
GX10#,JZX100,105,LX100..GD ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71077-2A680G0 |
JZX100,101..GDG SAGE,TRIM6# |
1 | ||
| 71077-2A740G0 |
GX10#,JZX100,105,LX100..GD ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6# |
1 | ||
| 71077-2A680E0 |
JZX100,101..GDG ORCHID,TRIM4# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71281-22080 |
GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV |
1 | ||
| 71305-22020 |
GX10#,JZX10#,LX100..4FC |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-22010 |
GX10#,JZX10#,LX100 |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-22010 |
GX10#,JZX10#,LX100 |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-22010 |
GX10#,JZX10#,LX100 |
3 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-22720G0 |
GX100,JZX100,105,LX100..GD ***,SAGE,TRIM6# |
1 | ||
| 71560-22720E0 |
GX100,JZX100,105,LX100..GD ***,ORCHID,TRIM4# |
1 | ||
| 71560-22830E0 |
GX10#,JZX100..4FC..GD ***,ﾚｶﾞﾘｱ *(E),(V),ORCHID,TRIM40 |
1 | ||
| 71560-22730G0 |
JZX100,101..GDG ***,SAGE,TRIM6# |
1 | ||
| 71560-22730E0 |
GX10#,JZX100..4FC..GD ***,ﾚｶﾞﾘｱ Gｴﾃﾞｲｼﾖﾝ *(C),ORCHID,TRIM40 |
1 | ||
| 71560-22730E0 |
JZX100,101..GDG ***,ORCHID,TRIM4# |
1 | ||
| 71560-22810G0 |
GX100,JZX100..4FC..GD ***,ｼ-ﾄ = TYPE D-*104,DK.SAGE,TRIM6# |
1 | ||
| 71560-22700E0 |
GX10#,JZX100,105,LX100..GD ***,ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71560-22700G0 |
GX10#,JZX100,105,LX100..GD ***,ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-2A790E0 |
GX100,JZX100,105,LX100..GD ***,ORCHID,TRIM4# |
1 | ||
| 71480-2C010G0 |
GX100,JZX100..4FC..GD ***,ｼ-ﾄ = TYPE D-*104,DK.SAGE,TRIM6# |
1 | ||
| 71480-2A800E0 |
JZX100,101..GDG ***,ORCHID,TRIM4# |
1 | ||
| 71480-2A800G0 |
JZX100,101..GDG ***,SAGE,TRIM6# |
1 | ||
| 71480-2A760E0 |
GX100,JZX100..4FC..GD ﾚｶﾞﾘｱ ｵ-ﾃﾞｲｵﾚｽ *(V),ORCHID,TRIM4# |
1 | ||
| 71480-2A790G0 |
GX100,JZX100,105,LX100..GD ***,SAGE,TRIM6# |
1 | ||
| 71480-2A860E0 |
GX10#,JZX100,105,LX100..GD ***,ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71480-2C040E0 |
GX10#,JZX100..4FC..GD ***,ﾚｶﾞﾘｱ Gｴﾃﾞｲｼﾖﾝ *(C),ORCHID,TRIM40 |
1 | ||
| 71480-2A760E0 |
GX100,JZX100..4FC..GD ***,ｸﾞﾗﾝﾃﾞ ﾚｶﾞﾘｱ *(E),ORCHID,TRIM4# |
1 | ||
| 71480-2A860G0 |
GX10#,JZX100,105,LX100..GD ***,ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6# |
1 | ||
| 71480-2C030E0 |
GX10#,JZX100..4FC..GD ***,ﾚｶﾞﾘｱ *(E),(V),ORCHID,TRIM40 |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-22070 |
GX10#,JZX10#,LX100..GD,GDG |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-22430 |
GX10#,JZX100,105,LX100..GD |
1 | ||
| 71507-22440 |
GX100,JZX100..4FC..GD ﾅｼ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 71507-22440 |
JZX100,101..GDG |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-10070L4 |
JZX105;JZX100,101..GDG ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71930-44010G0 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-44010E2 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71930-44010E2 |
JZX105;JZX100,101..GDG ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71931-32020E8 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71931-10020G3 |
JZX105;JZX100,101..GDG ﾛｯｸ無,DK. SAGE,TRIM6# |
2 | ||
| 71931-32020G2 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71930-44010G0 |
JZX105;JZX100,101..GDG ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71931-10020L3 |
JZX105;JZX100,101..GDG ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71931-32020E8 |
JZX105;JZX100,101..GDG ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71930-10070G4 |
JZX105;JZX100,101..GDG ﾛｯｸ付,DK. SAGE,TRIM6# |
2 | ||
| 71931-32020G2 |
JZX105;JZX100,101..GDG ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-10070L4 |
JZX105;JZX100,101..GDG ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71930-44010G0 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-44010E2 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71930-44010E2 |
JZX105;JZX100,101..GDG ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71931-32020E8 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71931-10020G3 |
JZX105;JZX100,101..GDG ﾛｯｸ無,DK. SAGE,TRIM6# |
2 | ||
| 71931-32020G2 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71930-44010G0 |
JZX105;JZX100,101..GDG ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71931-10020L3 |
JZX105;JZX100,101..GDG ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71931-32020E8 |
JZX105;JZX100,101..GDG ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71930-10070G4 |
JZX105;JZX100,101..GDG ﾛｯｸ付,DK. SAGE,TRIM6# |
2 | ||
| 71931-32020G2 |
JZX105;JZX100,101..GDG ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-10070L4 |
JZX105;JZX100,101..GDG ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71930-44010G0 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-44010E2 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71930-44010E2 |
JZX105;JZX100,101..GDG ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71931-32020E8 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71931-10020G3 |
JZX105;JZX100,101..GDG ﾛｯｸ無,DK. SAGE,TRIM6# |
2 | ||
| 71931-32020G2 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71930-44010G0 |
JZX105;JZX100,101..GDG ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71931-10020L3 |
JZX105;JZX100,101..GDG ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71931-32020E8 |
JZX105;JZX100,101..GDG ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71930-10070G4 |
JZX105;JZX100,101..GDG ﾛｯｸ付,DK. SAGE,TRIM6# |
2 | ||
| 71931-32020G2 |
JZX105;JZX100,101..GDG ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-10070L4 |
JZX105;JZX100,101..GDG ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71930-44010G0 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-44010E2 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71930-44010E2 |
JZX105;JZX100,101..GDG ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71931-32020E8 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71931-10020G3 |
JZX105;JZX100,101..GDG ﾛｯｸ無,DK. SAGE,TRIM6# |
2 | ||
| 71931-32020G2 |
GX100,JZX10#..4FC..(GD,GDG) ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71930-44010G0 |
JZX105;JZX100,101..GDG ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71931-10020L3 |
JZX105;JZX100,101..GDG ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71931-32020E8 |
JZX105;JZX100,101..GDG ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71930-10070G4 |
JZX105;JZX100,101..GDG ﾛｯｸ付,DK. SAGE,TRIM6# |
2 | ||
| 71931-32020G2 |
JZX105;JZX100,101..GDG ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-22490G0 |
JZX105;JZX100,101..GDG SAGE,TRIM6# |
2 | ||
| 71940-22520G0 |
GX100,JZX100..4FC..GD DK.SAGE,TRIM6# |
1 | ||
| 71940-22490E0 |
JZX105;JZX100,101..GDG ORCHID,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-22490G0 |
JZX105;JZX100,101..GDG SAGE,TRIM6# |
2 | ||
| 71940-22520G0 |
GX100,JZX100..4FC..GD DK.SAGE,TRIM6# |
1 | ||
| 71940-22490E0 |
JZX105;JZX100,101..GDG ORCHID,TRIM4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
GX10#,JZX10#,LX100 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
GX10#,JZX10#,LX100 |
2 | ||
| 72802A - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-50020 |
JZX105;JZX100,101..GDG |
1 | ||
| 72802-50020 |
JZX105;JZX100,101..GDG |
1 | ||
| 72802-50020 |
GX100,JZX10#..4FC..(GD,GDG) |
1 | ||
| 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72805-22020E0 |
JZX105;JZX100,101..GDG ORCHID,TRIM4# |
1 | ||
| 72805-22080G0 |
GX100,JZX100..4FC..GD DK.SAGE,TRIM6# |
1 | ||
| 72805-22020G0 |
JZX105;JZX100,101..GDG SAGE,TRIM6# |
1 | ||
| 72809 - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-50020G1 |
JZX105;JZX100,101..GDG DK.SAGE,TRIM6# |
1 | ||
| 72809-50020G1 |
JZX105;JZX100,101..GDG DK.SAGE,TRIM6# |
1 | ||
| 72809-50020G1 |
GX100,JZX10#..4FC..(GD,GDG) DK.SAGE,TRIM6# |
1 | ||
| 72809-50020E1 |
JZX105;JZX100,101..GDG ORCHID BROWN,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-22450E0 |
GX100,JZX100..4FC..GD ｸﾞﾗﾝﾃﾞ ﾚｶﾞﾘｱ *(E),ORCHID,TRIM4# |
1 | ||
| 72830-22470E0 |
GX100,JZX100,105,LX100..GD ORCHID,TRIM4# |
1 | ||
| 72830-22450E0 |
GX100,JZX100..4FC..GD ﾚｶﾞﾘｱ ｵ-ﾃﾞｲｵﾚｽ *(V),ORCHID,TRIM4# |
1 | ||
| 72830-22590E0 |
GX10#,JZX100..4FC..GD ﾚｶﾞﾘｱ *(E),(V),ORCHID,TRIM40 |
1 | ||
| 72830-22550E0 |
GX10#,JZX100,105,LX100..GD ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 72830-22550G0 |
GX10#,JZX100,105,LX100..GD ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6# |
1 | ||
| 72830-22580G0 |
GX100,JZX100..4FC..GD ｼ-ﾄ = TYPE D-*104,DK.SAGE,TRIM6# |
1 | ||
| 72830-22480E0 |
JZX100,101..GDG ORCHID,TRIM4# |
1 | ||
| 72830-22470G0 |
GX100,JZX100,105,LX100..GD SAGE,TRIM6# |
1 | ||
| 72830-22620E0 |
GX10#,JZX100..4FC..GD ﾚｶﾞﾘｱ Gｴﾃﾞｲｼﾖﾝ *(C),ORCHID,TRIM40 |
1 | ||
| 72830-22480G0 |
JZX100,101..GDG SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90119-06274 | ||||
| 90119-06281 | ||||
| 90161-40026 | ||||
| 90541-03112 | ||||
| 93560-54012 | ||||

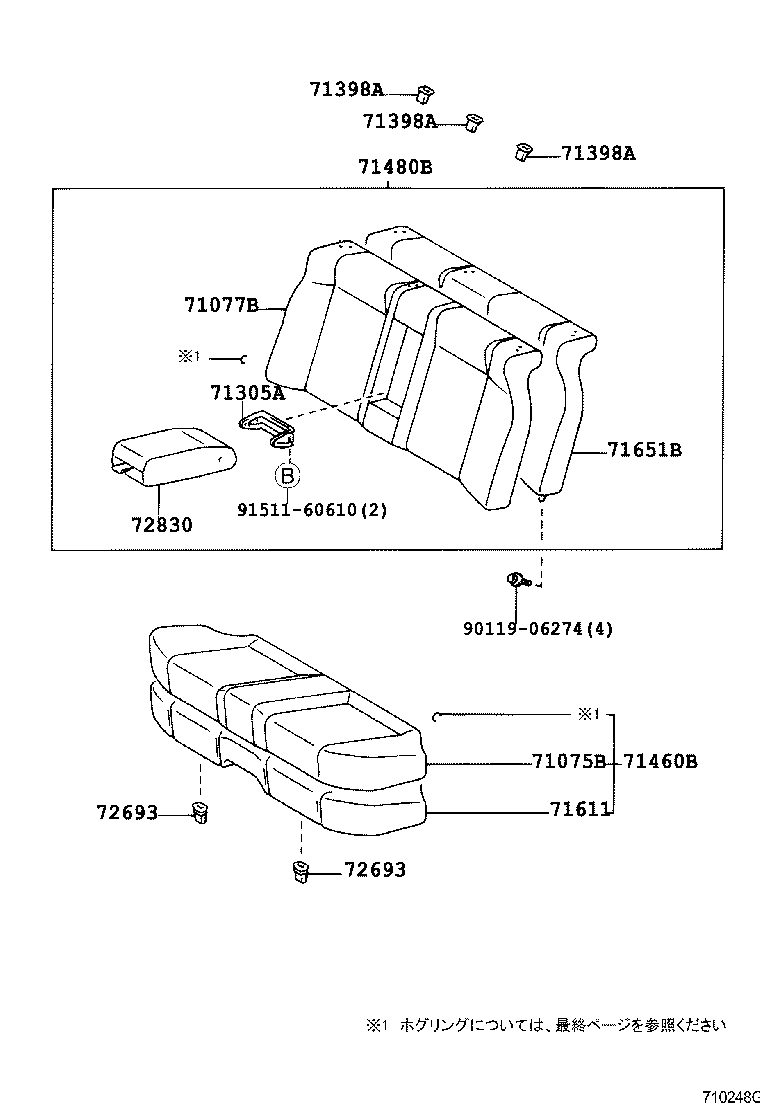

(9609- )GD,GL,TOU,TOUS,TOUV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-22500E0 |
JZX100,101..GDG ORCHID,TRIM4# |
1 | ||
| 71065-22500G0 |
JZX100,101..GDG SAGE,TRIM6# |
1 | ||
| 71065-22490G0 |
GX100,JZX100,105,LX100..GD SAGE,TRIM6# |
1 | ||
| 71065-22490E0 |
GX100,JZX100,105,LX100..GD ORCHID,TRIM4# |
1 | ||
| 71065-22630E0 |
JZX105;JZX100,101..GDG ｼ-ﾄ = TYPE A-*104,ORCHID,TRIM4# |
1 | ||
| 71065-22640E0 |
GX10#,JZX100..4FC..GD ﾚｶﾞﾘｱ *(E),(V),ORCHID,TRIM40 |
1 | ||
| 71065-22630G0 |
JZX105;JZX100,101..GDG ｼ-ﾄ = TYPE A-*104,SAGE,TRIM6# |
1 | ||
| 71065-22630E0 |
GX10#,JZX100..4FC..GD ﾚｶﾞﾘｱ Gｴﾃﾞｲｼﾖﾝ *(C),ORCHID,TRIM40 |
1 | ||
| 71065-22560E0 |
GX10#,JZX100,105,LX100..GD ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71065-22620G0 |
GX100,JZX100..4FC..GD ｼ-ﾄ = TYPE D-*104,DK.SAGE,TRIM6# |
1 | ||
| 71065-22560G0 |
GX10#,JZX100,105,LX100..GD ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-2A670E0 |
GX100,JZX100,105,LX100..GD ORCHID,TRIM4# |
1 | ||
| 71077-2A820E0 |
GX10#,JZX100..4FC..GD ﾚｶﾞﾘｱ Gｴﾃﾞｲｼﾖﾝ *(C),ORCHID,TRIM40 |
1 | ||
| 71077-2A670G0 |
GX100,JZX100,105,LX100..GD SAGE,TRIM6# |
1 | ||
| 71077-2A800G0 |
GX100,JZX100..4FC..GD ｼ-ﾄ = TYPE D-*104,DK.SAGE,TRIM6# |
1 | ||
| 71077-2A810E0 |
GX10#,JZX100..4FC..GD ﾚｶﾞﾘｱ *(E),(V),ORCHID,TRIM40 |
1 | ||
| 71077-2A740E0 |
GX10#,JZX100,105,LX100..GD ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71077-2A680G0 |
JZX100,101..GDG SAGE,TRIM6# |
1 | ||
| 71077-2A740G0 |
GX10#,JZX100,105,LX100..GD ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6# |
1 | ||
| 71077-2A680E0 |
JZX100,101..GDG ORCHID,TRIM4# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71281-22080 |
GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV |
1 | ||
| 71305-22020 |
GX10#,JZX10#,LX100..4FC |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-22010 |
GX10#,JZX10#,LX100 |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-22010 |
GX10#,JZX10#,LX100 |
3 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-22010 |
GX10#,JZX10#,LX100 |
3 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-22720G0 |
GX100,JZX100,105,LX100..GD ***,SAGE,TRIM6# |
1 | ||
| 71560-22720E0 |
GX100,JZX100,105,LX100..GD ***,ORCHID,TRIM4# |
1 | ||
| 71560-22830E0 |
GX10#,JZX100..4FC..GD ***,ﾚｶﾞﾘｱ *(E),(V),ORCHID,TRIM40 |
1 | ||
| 71560-22730G0 |
JZX100,101..GDG ***,SAGE,TRIM6# |
1 | ||
| 71560-22730E0 |
GX10#,JZX100..4FC..GD ***,ﾚｶﾞﾘｱ Gｴﾃﾞｲｼﾖﾝ *(C),ORCHID,TRIM40 |
1 | ||
| 71560-22730E0 |
JZX100,101..GDG ***,ORCHID,TRIM4# |
1 | ||
| 71560-22810G0 |
GX100,JZX100..4FC..GD ***,ｼ-ﾄ = TYPE D-*104,DK.SAGE,TRIM6# |
1 | ||
| 71560-22700E0 |
GX10#,JZX100,105,LX100..GD ***,ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71560-22700G0 |
GX10#,JZX100,105,LX100..GD ***,ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-2A790E0 |
GX100,JZX100,105,LX100..GD ***,ORCHID,TRIM4# |
1 | ||
| 71480-2C010G0 |
GX100,JZX100..4FC..GD ***,ｼ-ﾄ = TYPE D-*104,DK.SAGE,TRIM6# |
1 | ||
| 71480-2A800E0 |
JZX100,101..GDG ***,ORCHID,TRIM4# |
1 | ||
| 71480-2A800G0 |
JZX100,101..GDG ***,SAGE,TRIM6# |
1 | ||
| 71480-2A760E0 |
GX100,JZX100..4FC..GD ﾚｶﾞﾘｱ ｵ-ﾃﾞｲｵﾚｽ *(V),ORCHID,TRIM4# |
1 | ||
| 71480-2A790G0 |
GX100,JZX100,105,LX100..GD ***,SAGE,TRIM6# |
1 | ||
| 71480-2A860E0 |
GX10#,JZX100,105,LX100..GD ***,ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71480-2C040E0 |
GX10#,JZX100..4FC..GD ***,ﾚｶﾞﾘｱ Gｴﾃﾞｲｼﾖﾝ *(C),ORCHID,TRIM40 |
1 | ||
| 71480-2A760E0 |
GX100,JZX100..4FC..GD ***,ｸﾞﾗﾝﾃﾞ ﾚｶﾞﾘｱ *(E),ORCHID,TRIM4# |
1 | ||
| 71480-2A860G0 |
GX10#,JZX100,105,LX100..GD ***,ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6# |
1 | ||
| 71480-2C030E0 |
GX10#,JZX100..4FC..GD ***,ﾚｶﾞﾘｱ *(E),(V),ORCHID,TRIM40 |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-22070 |
GX10#,JZX10#,LX100..GD,GDG |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-22430 |
GX10#,JZX100,105,LX100..GD |
1 | ||
| 71507-22440 |
GX100,JZX100..4FC..GD ﾅｼ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 71507-22440 |
JZX100,101..GDG |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
GX10#,JZX10#,LX100 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
GX10#,JZX10#,LX100 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-22450E0 |
GX100,JZX100..4FC..GD ｸﾞﾗﾝﾃﾞ ﾚｶﾞﾘｱ *(E),ORCHID,TRIM4# |
1 | ||
| 72830-22470E0 |
GX100,JZX100,105,LX100..GD ORCHID,TRIM4# |
1 | ||
| 72830-22450E0 |
GX100,JZX100..4FC..GD ﾚｶﾞﾘｱ ｵ-ﾃﾞｲｵﾚｽ *(V),ORCHID,TRIM4# |
1 | ||
| 72830-22590E0 |
GX10#,JZX100..4FC..GD ﾚｶﾞﾘｱ *(E),(V),ORCHID,TRIM40 |
1 | ||
| 72830-22550E0 |
GX10#,JZX100,105,LX100..GD ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 72830-22550G0 |
GX10#,JZX100,105,LX100..GD ｼ-ﾄ = TYPE C-*104,DK.SAGE,TRIM6# |
1 | ||
| 72830-22580G0 |
GX100,JZX100..4FC..GD ｼ-ﾄ = TYPE D-*104,DK.SAGE,TRIM6# |
1 | ||
| 72830-22480E0 |
JZX100,101..GDG ORCHID,TRIM4# |
1 | ||
| 72830-22470G0 |
GX100,JZX100,105,LX100..GD SAGE,TRIM6# |
1 | ||
| 72830-22620E0 |
GX10#,JZX100..4FC..GD ﾚｶﾞﾘｱ Gｴﾃﾞｲｼﾖﾝ *(C),ORCHID,TRIM40 |
1 | ||
| 72830-22480G0 |
JZX100,101..GDG SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90119-06274 | ||||
| 91511-60610 | ||||
(9609- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
