JZX100-ATPVZ (1996)

Toyota Mark 2

Production Sep 1996 - Oct 2000
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

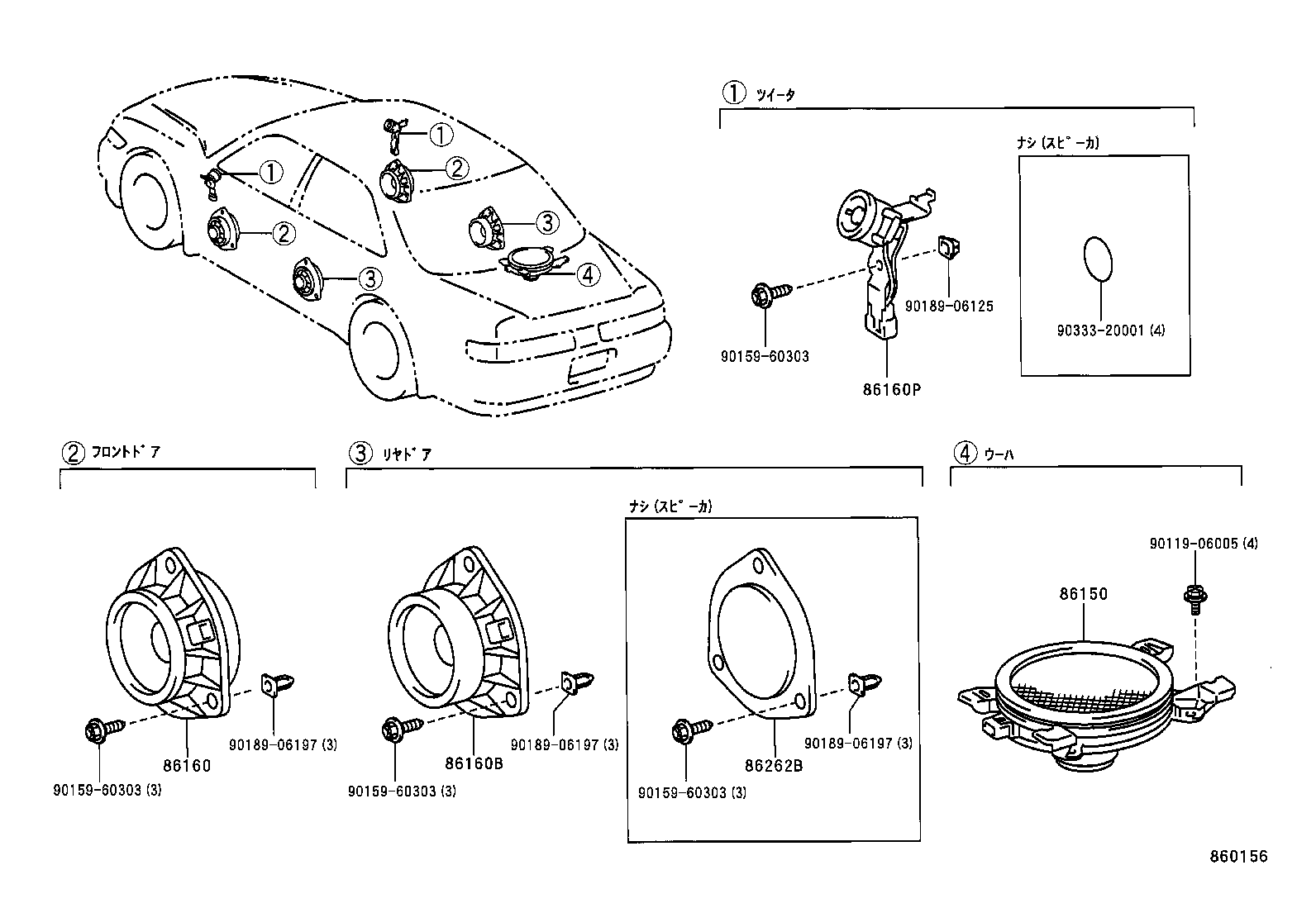

Click highlighted areas on diagram

diagram 86150 86160 86160B 86160P 86262B 9011906005 9015960303 9015960303 9015960303 9015960303 9018906125 9018906197 9018906197 9018906197 9033320001
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86160-22850

GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-22790

GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

ｱﾘ(7 ｽﾋﾟ-ｶ)

 2
86160-22781

GX100,JZX100,105,LX100..GD,GDG,TOU,TOUS

ｱﾘ(6 ｽﾋﾟ-ｶ)

 2
86160-22781

GX10#,JZX10#,LX100

ｱﾘ(6 ｽﾋﾟ-ｶ)

 2
86160-22780

GX100,JZX100,105,LX100..GD,GDG,TOU,TOUS

ｱﾘ(6 ｽﾋﾟ-ｶ)

 2
86160B - SPEAKER ASSY, REAR
86160-22810

GX10#,JZX10#,LX100

ｱﾘ(6 ｽﾋﾟ-ｶ)

 2
86160-22820

GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

ｱﾘ(7 ｽﾋﾟ-ｶ)

 2
86160-22810

GX100,JZX100,105,LX100..GD,GDG,TOU,TOUS

ｱﾘ(6 ｽﾋﾟ-ｶ)

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-22830

GX100,JZX100,105,LX100..GD,GDG,TOU,TOUS

ｱﾘ(6 ｽﾋﾟ-ｶ)

 2
86160-22840

GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

ｱﾘ(7 ｽﾋﾟ-ｶ)

 2
86160-22830

GX10#,JZX10#,LX100

ｱﾘ(6 ｽﾋﾟ-ｶ)

 2
Common parts
90119-06005
90159-60303
90189-06125
90189-06197
90333-20001
