JZX100-ATPVZ (1996)
Toyota Mark 2
(9609- )

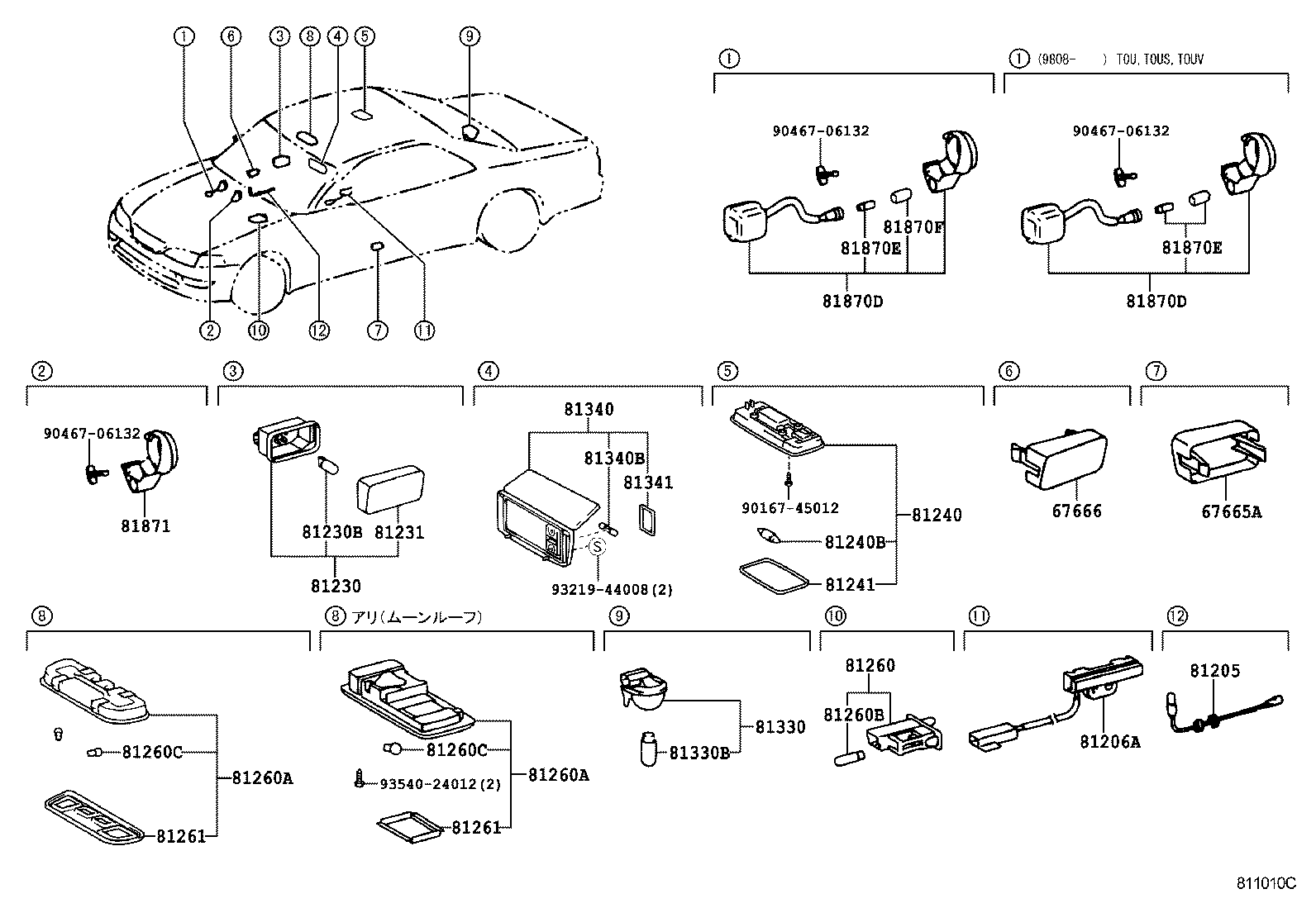

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205 - LAMP SUB-ASSY, ASH RECEPTACLE | ||||
| 81205-22010 |
GX10#,JZX10#,LX100 |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-22010 |
GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV 左側 |
1 | ||
| 81310-22010 |
GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV 右側 |
1 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-11020 |
GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV 12V 3.8W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-22010 |
GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV 左側 |
1 | ||
| 81311-22010 |
GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV 右側 |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-22120B1 |
GX100,JZX100..TOU,TOUS,TOUV BLUE GRAY,TRIM1# |
1 | ||
| 81240-22120B1 |
GX100,JZX100..TOU,TOUS,TOUV BLUE GRAY,TRIM2# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14004 |
GX10#,JZX10#,LX100 12V 8W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-32031 |
GX10#,JZX10#,LX100 |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-22160 |
GX10#,JZX10#,LX100 |
1 | ||
| 81260-33030 |
GX100,JZX10#,LX100 |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-32090B1 |
GX100,JZX100..TOU,TOUS,TOUV ｱﾘ(ﾑ-ﾝﾙ-ﾌ),BLUE GRAY,TRIM1# |
1 | ||
| 81260-22180B0 |
GX100,JZX100..TOU,TOUS,TOUV BLUE GRAY,TRIM2# |
1 | ||
| 81260-32090B1 |
GX100,JZX100..TOU,TOUS,TOUV ｱﾘ(ﾑ-ﾝﾙ-ﾌ),BLUE GRAY,TRIM2# |
1 | ||
| 81260-22141B1 |
GX100,JZX100..TOU,TOUS,TOUV BLUE GRAY,TRIM1# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-32090B1 |
GX100,JZX100..TOU,TOUS,TOUV ｱﾘ(ﾑ-ﾝﾙ-ﾌ),BLUE GRAY,TRIM1# |
1 | ||
| 81260-22180B0 |
GX100,JZX100..TOU,TOUS,TOUV BLUE GRAY,TRIM2# |
1 | ||
| 81260-32090B1 |
GX100,JZX100..TOU,TOUS,TOUV ｱﾘ(ﾑ-ﾝﾙ-ﾌ),BLUE GRAY,TRIM2# |
1 | ||
| 81260-22141B1 |
GX100,JZX100..TOU,TOUS,TOUV BLUE GRAY,TRIM1# |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
GX10#,JZX10#,LX100 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 90981-12020 |
GX10#,JZX10#,LX100 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 90981-12020 |
GX10#,JZX10#,LX100 12V 8W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-32081B4 |
GX100,JZX100..TOU,TOUS,TOUV BLUE GRAY,TRIM1# |
1 | ||
| 81261-32081B4 |
GX100,JZX100..TOU,TOUS,TOUV BLUE GRAY,TRIM2# |
1 | ||
| 81261-32090B2 |
GX100,JZX100..TOU,TOUS,TOUV ｱﾘ(ﾑ-ﾝﾙ-ﾌ),BLUE GRAY,TRIM2# |
1 | ||
| 81261-32090B2 |
GX100,JZX100..TOU,TOUS,TOUV ｱﾘ(ﾑ-ﾝﾙ-ﾌ),BLUE GRAY,TRIM1# |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-32081B4 |
GX100,JZX100..TOU,TOUS,TOUV BLUE GRAY,TRIM1# |
1 | ||
| 81261-32081B4 |
GX100,JZX100..TOU,TOUS,TOUV BLUE GRAY,TRIM2# |
1 | ||
| 81261-32090B2 |
GX100,JZX100..TOU,TOUS,TOUV ｱﾘ(ﾑ-ﾝﾙ-ﾌ),BLUE GRAY,TRIM2# |
1 | ||
| 81261-32090B2 |
GX100,JZX100..TOU,TOUS,TOUV ｱﾘ(ﾑ-ﾝﾙ-ﾌ),BLUE GRAY,TRIM1# |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-30090 |
GX10#,JZX10#,LX100 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
GX10#,JZX10#,LX100 12V 3.8W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-50070B0 |
GX100,JZX100..TOU,TOUS,TOUV BLUE GRAY,TRIM1# |
1 | ||
| 81340-50070B0 |
GX100,JZX100..TOU,TOUS,TOUV BLUE GRAY,TRIM2# |
1 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14007 |
JZX100..TOUS,TOUV;GX10#,JZX105,LX100..GD,TOU 12V 3W |
1 | ||
| 81341 - LENS, VANITY LAMP | ||||
| 81341-50060 |
JZX100..TOUS,TOUV;GX10#,JZX105,LX100..GD,TOU |
1 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-22070 |
GX100,JZX100..TOU,TOUS,TOUV |
1 | ||
| 81870-22060 |
GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV |
1 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-22070 |
GX100,JZX100..TOU,TOUS,TOUV |
1 | ||
| 81870-22060 |
GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11014 |
GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV 14V 1.4W |
1 | ||
| 90010-01044 |
GX100,JZX100..TOU,TOUS,TOUV 12V 1.2W |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11014 |
GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV 14V 1.4W |
1 | ||
| 90010-01044 |
GX100,JZX100..TOU,TOUS,TOUV 12V 1.2W |
1 | ||
| 81870F - CAP, KEY CYLINDER LAMP BULB | ||||
| 84998-10070 |
GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV |
1 | ||
| Common parts | ||||
| 90167-45012 | ||||
| 90467-06132 | ||||
| 93219-44008 | ||||
| 93540-24012 | ||||
