JZX100-ATPVZ (1996)

Toyota Mark 2

Production Sep 1996 - Oct 2000
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

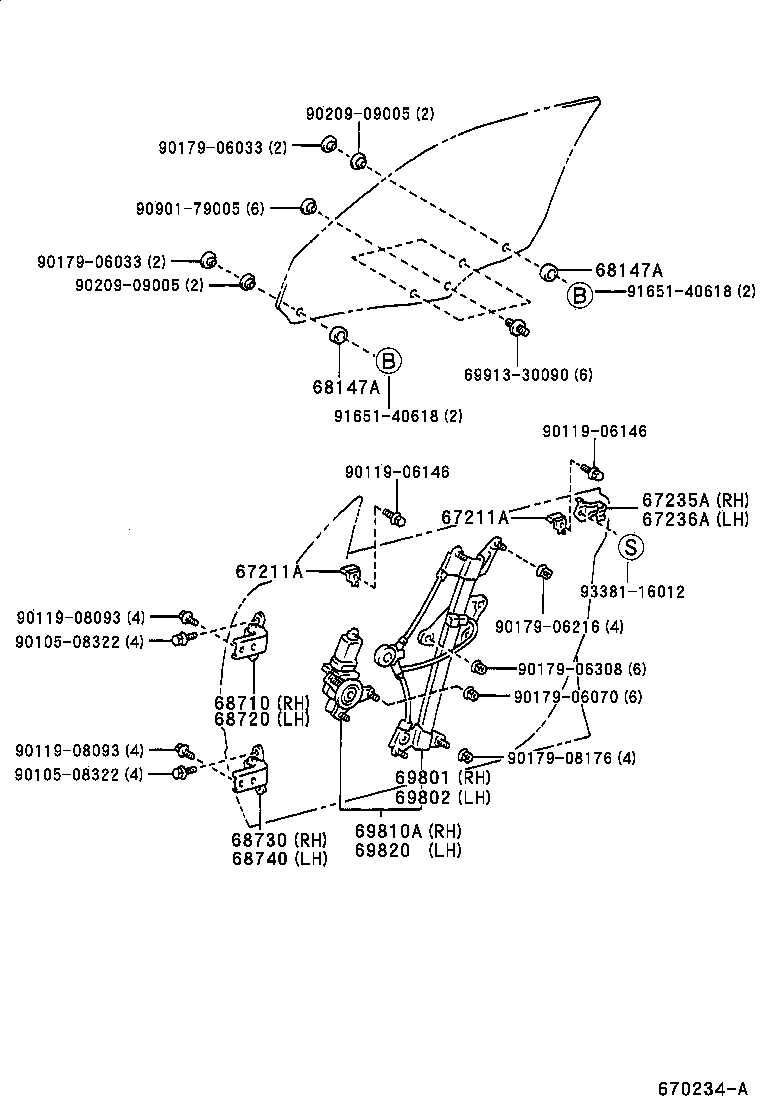

Click highlighted areas on diagram

diagram 67211A 67211A 67235A 67236A 68147A 68147A 68710 68720 68730 68740 69801 69802 69810A 69820 6991330090 9010508322 9010508322 9011906146 9011906146 9011908093 9011908093 9017906033 9017906033 9017906070 9017906216 9017906308 9017908176 9020909005 9020909005 9090179005 9165140618 9165140618 9338116012
Part # Description Qty Price
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-22050

GX10#,JZX10#,LX100

 4
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-22050

GX10#,JZX10#,LX100

 4
67235A - STABILIZER, DOOR GLASS FEMALE, RH
67235-22080

GX10#,JZX10#,LX100

 1
67235-22070

GX100,JZX10#,LX100

 1
67236A - STABILIZER, DOOR GLASS FEMALE, LH
67236-22030

GX100,JZX10#,LX100

 1
67236-22040

GX10#,JZX10#,LX100

 1
68147A - STOP, FRONT DOOR GLASS, UPPER
68147-22010

GX10#,JZX10#,LX100

 4
68147A - STOP, FRONT DOOR GLASS, UPPER
68147-22010

GX10#,JZX10#,LX100

 4
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12150

GX10#,JZX10#,LX100

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12150

GX10#,JZX10#,LX100

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12110

GX10#,JZX10#,LX100

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12110

GX10#,JZX10#,LX100

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-22160

GX10#,JZX10#,LX100

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-22160

GX10#,JZX10#,LX100

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-22310

GX10#,JZX10#,LX100

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-22280

GX10#,JZX10#,LX100

 1
Common parts
69913-30090
90105-08322
90119-06146
90119-08093
90179-06033
90179-06070
90179-06216
90179-06308
90179-08176
90209-09005
90901-79005
91651-40618
93381-16012
