JZX100-ATPSF (1996)

Toyota Mark 2

Production Sep 1996 - Aug 1998
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

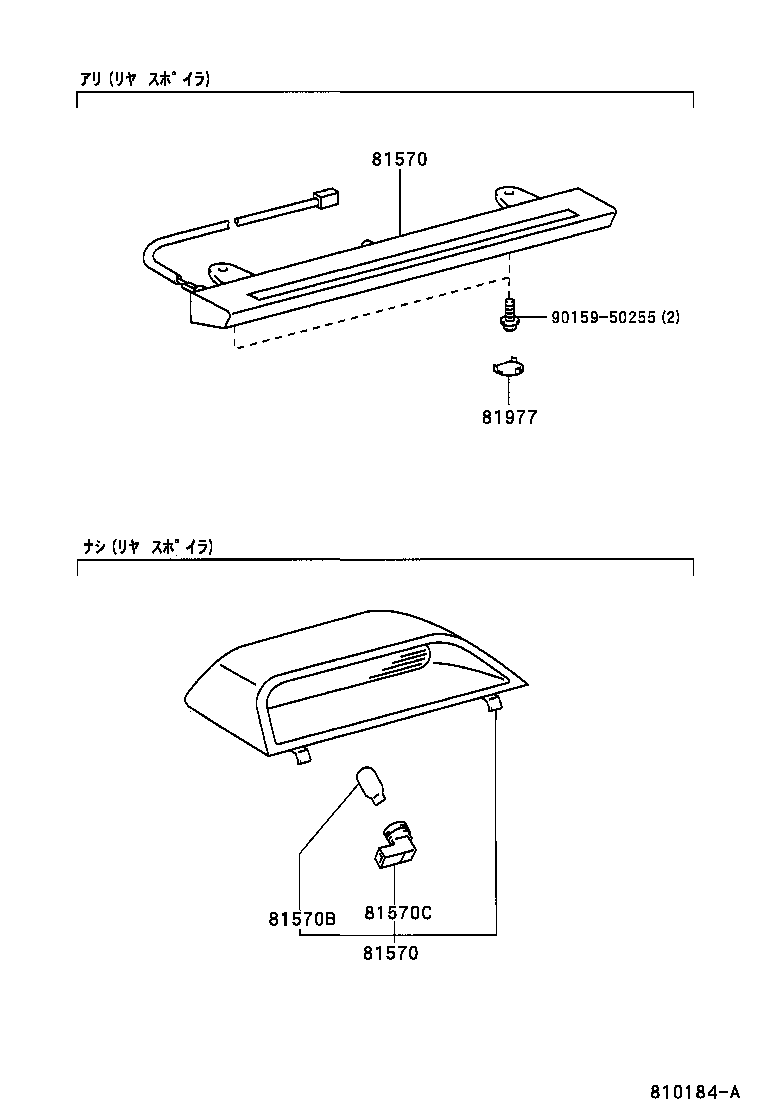

Click highlighted areas on diagram

diagram 81570 81570 81570B 81570C 81977 9015950255
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-22130B0

GX100,JZX100..TOU,TOUS,TOUV

DK.BLUE GRAY,TRIM1#

 1
81570-22120

GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570-22140B0

GX100,JZX100..TOU,TOUS,TOUV

ｱﾘ(ﾘﾔﾜｲﾊﾟ),DK.BLUE GRAY,TRIM1#

 1
81570 - LAMP ASSY, CENTER STOP
81570-22130B0

GX100,JZX100..TOU,TOUS,TOUV

DK.BLUE GRAY,TRIM1#

 1
81570-22120

GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570-22140B0

GX100,JZX100..TOU,TOUS,TOUV

ｱﾘ(ﾘﾔﾜｲﾊﾟ),DK.BLUE GRAY,TRIM1#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11039

GX10#,JZX10#,LX100

12V 16W

 1
81570C - SOCKET, CENTER STOP LAMP
90075-99005

GX10#,JZX10#,LX100

 1
81977 - COVER, CENTER STOP LAMP
81977-22040

GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 2
Common parts
90159-50255
