JZX100-ATPSF (1996)

Toyota Mark 2

Production Sep 1996 - Aug 1998
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

Click highlighted areas on diagram

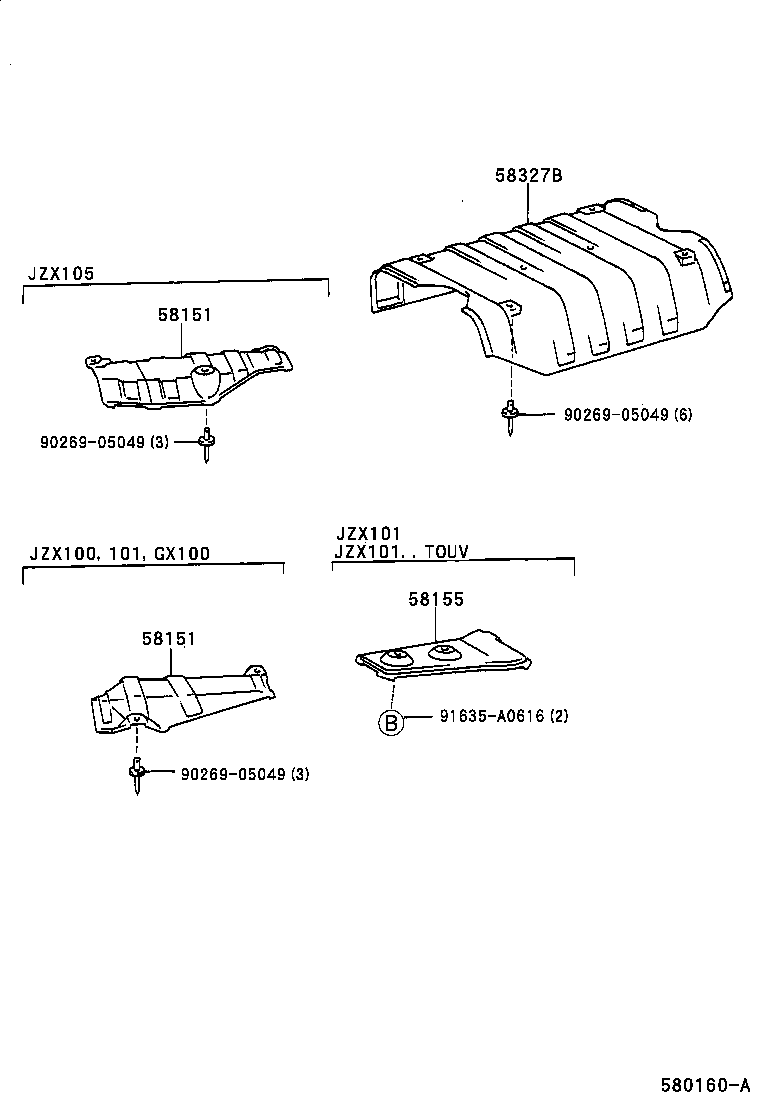

diagram 58151 58151 58155 58327B 9026905049 9026905049 9026905049 91635A0616
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-22090

GX100,JZX100,101

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-22090

GX100,JZX100,101

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-22070

GX10#,JZX10#,LX100

 1
Common parts
90269-05049
91635-A0616
