JZX100-ATPSF (1996)

Toyota Mark 2

Production Sep 1996 - Aug 1998
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

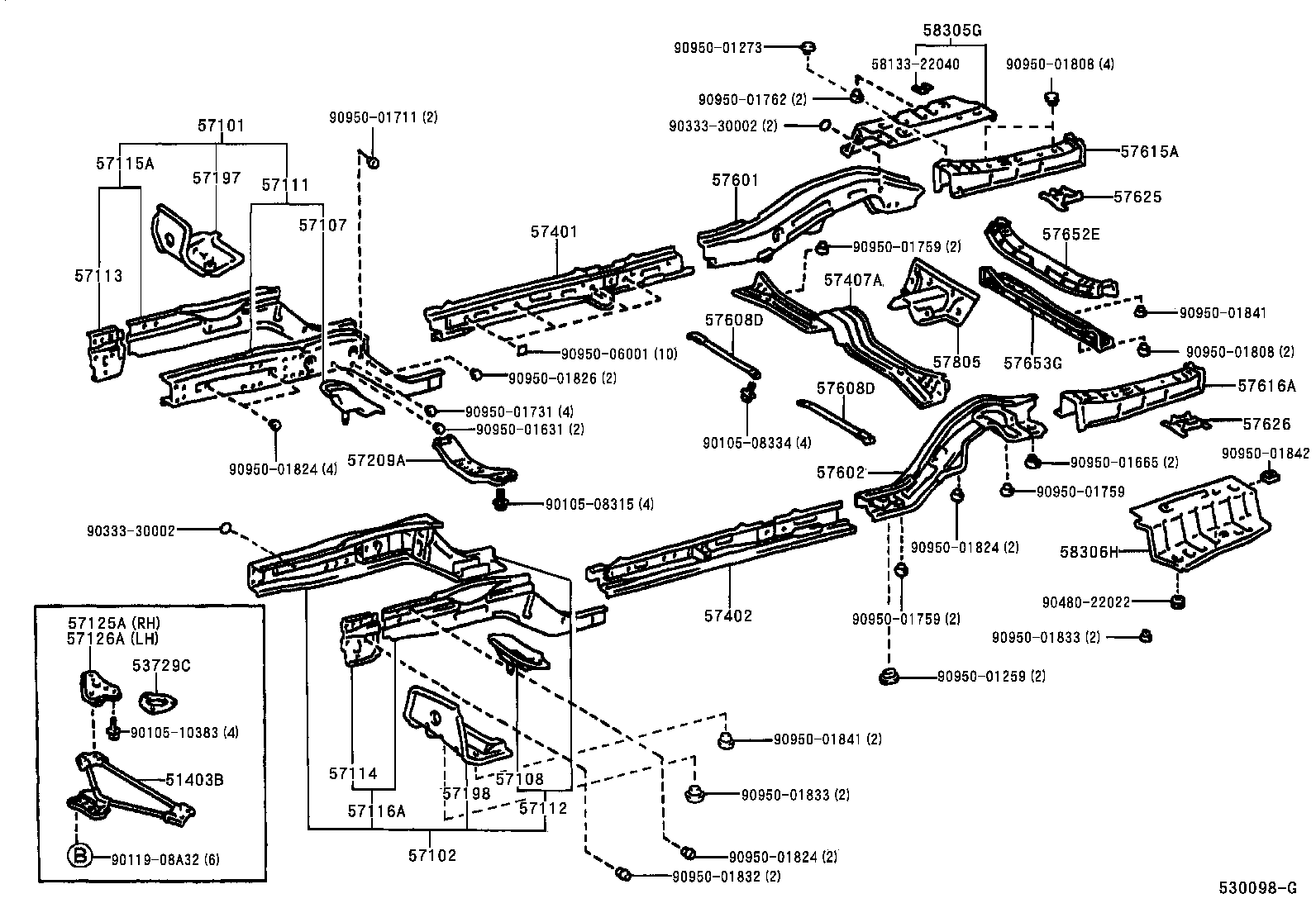

Click highlighted areas on diagram

diagram 51403B 53729C 57101 57102 57107 57108 57111 57112 57113 57114 57115A 57116A 57125A 57126A 57197 57198 57209A 57401 57402 57407A 57601 57602 57608D 57608D 57615A 57616A 57625 57626 57652E 57653G 57805 5813322040 58305G 58306H 9010508315 9010508334 9010510383 9011908A32 9033330002 9033330002 9048022022 9095001259 9095001273 9095001631 9095001665 9095001711 9095001731 9095001759 9095001759 9095001759 9095001762 9095001808 9095001808 9095001824 9095001824 9095001824 9095001826 9095001832 9095001833 9095001833 9095001841 9095001841 9095001842 9095006001
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-22360

GX100,JZX100,101,LX100

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-22400

GX100,JZX100,101,LX100

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-22110

GX100,JZX100,101,LX100

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-22170

GX100,JZX100,101,LX100

 1
57111 - MEMBER, FRONT SIDE, RH
57027-22030

GX100,JZX100,101,LX100

 1
57112 - MEMBER, FRONT SIDE, LH
57028-22030

GX100,JZX100,101,LX100

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-22080

GX10#,JZX10#,LX100

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-22080

GX10#,JZX10#,LX100

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-22900

GX10#,JZX10#,LX100

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-22900

GX10#,JZX10#,LX100

 1
57125A - PLATE, STRUT BAR BRACKET, RH
57125-22070

GX100,JZX100,101,LX100..GD,GDG,GL,TOU,TOUS

 1
57126A - PLATE, STRUT BAR BRACKET, LH
57126-22050

GX100,JZX100,101,LX100..GD,GDG,GL,TOU,TOUS

 1
57197 - BOX, TORQUE, FRONT RH
57197-22060

GX10#,JZX10#,LX100

 1
57198 - BOX, TORQUE, FRONT LH
57198-22060

GX10#,JZX10#,LX100

 1
57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57255-22300

GX100,JZX100,101,LX100

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-22200

GX100,JZX10#,LX100

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-22200

GX100,JZX10#,LX100

 1
57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57461-22070

GX10#,JZX10#,LX100

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57611-22903

GX10#,JZX10#,LX100

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57612-22905

GX10#,JZX10#,LX100

 1
57608D - BRACE SUB-ASSY, SIDE MEMBER TO FLOOR
57608-22030

GX10#,JZX10#,LX100

 2
57608D - BRACE SUB-ASSY, SIDE MEMBER TO FLOOR
57608-22030

GX10#,JZX10#,LX100

 2
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-22130

GX10#,JZX10#,LX100

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-22100

GX10#,JZX10#,LX100

 1
57625 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH
57625-22070

GX10#,JZX10#,LX100

 1
57626 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH
57626-22030

GX10#,JZX10#,LX100

 1
57652E - MEMBER, REAR FLOOR CROSS, NO.1
57652-22900

GX10#,JZX10#,LX100

 1
57653G - MEMBER, REAR FLOOR CROSS, NO.2
57653-22901

GX10#,JZX10#,LX100

 1
57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR
57805-22020

GX10#,JZX10#,LX100

 1
58305G - EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58305-22070

GX10#,JZX10#,LX100

 1
58306H - EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58314-22110

GX10#,JZX10#,LX100

 1
Common parts
58133-22040
90105-08315
90105-08334
90105-10383
90119-08A32
90333-30002
90480-22022
90950-01259
90950-01273
90950-01631
90950-01665
90950-01711
90950-01731
90950-01759
90950-01762
90950-01808
90950-01824
90950-01826
90950-01832
90950-01833
90950-01841
90950-01842
90950-06001
