JZX100-ATPSF (1996)
Toyota Mark 2
Production
Sep 1996
-
Aug 1998
Engine
1JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )JZX100,101..4FC

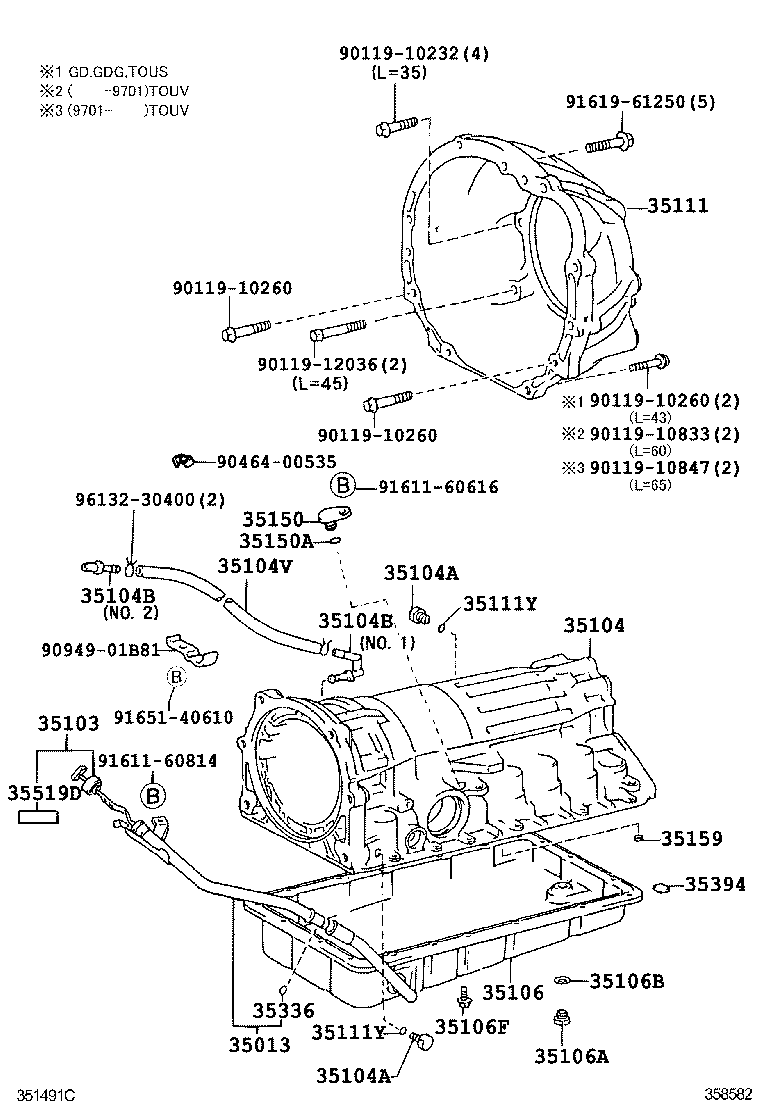

Click highlighted areas on diagram
A340E,A341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-22350 |
JZX100..GD,GDG,TOUS |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-22380 |
JZX100..GD,GDG,TOUS |
1 | ||
| 35103-22381 |
JZX100..4FC..(GD,GDG,TOUS) |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30170 |
JZX100,101..4FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GX100,JZX100,101,LX100..4FC |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GX100,JZX100,101,LX100..4FC |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
JZX10#..4FC NO.1 |
1 | ||
| 90930-03099 |
GX105,JZX10#..ATM NO.2 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
JZX10#..4FC NO.1 |
1 | ||
| 90930-03099 |
GX105,JZX10#..ATM NO.2 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-10020 |
GX105,JZX10#..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30180 |
JZX100..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10018 |
JZX10#..4FC |
1 | ||
| 90341-10017 |
JZX10#..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-50010 |
JZX10#..4FC |
1 | ||
| 35178-30010 |
GX100,JZX100,101,LX100..4FC |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
GX105,JZX10#..4FC |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-22081 |
JZX10#..4FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GX10#,JZX10#,LX100..4FC |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GX10#,JZX10#,LX100..4FC |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
GX105,JZX10#..4FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
GX10#,JZX10#,LX100..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
JZX100,101..ATM |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20020 |
JZX10#..4FC |
1 | ||
| 35519-30010 |
JZX10#..4FC |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-10260 | ||||
| 90119-10833 | ||||
| 90119-10847 | ||||
| 90119-12036 | ||||
| 90464-00535 | ||||
| 90949-01B81 | ||||
| 91611-60616 | ||||
| 91611-60814 | ||||
| 91619-61250 | ||||
| 91651-40610 | ||||
| 96132-30400 | ||||
