JZX100-ATPSF (1996)

Toyota Mark 2

Production Sep 1996 - Aug 1998
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )1JZ#,2JZGE

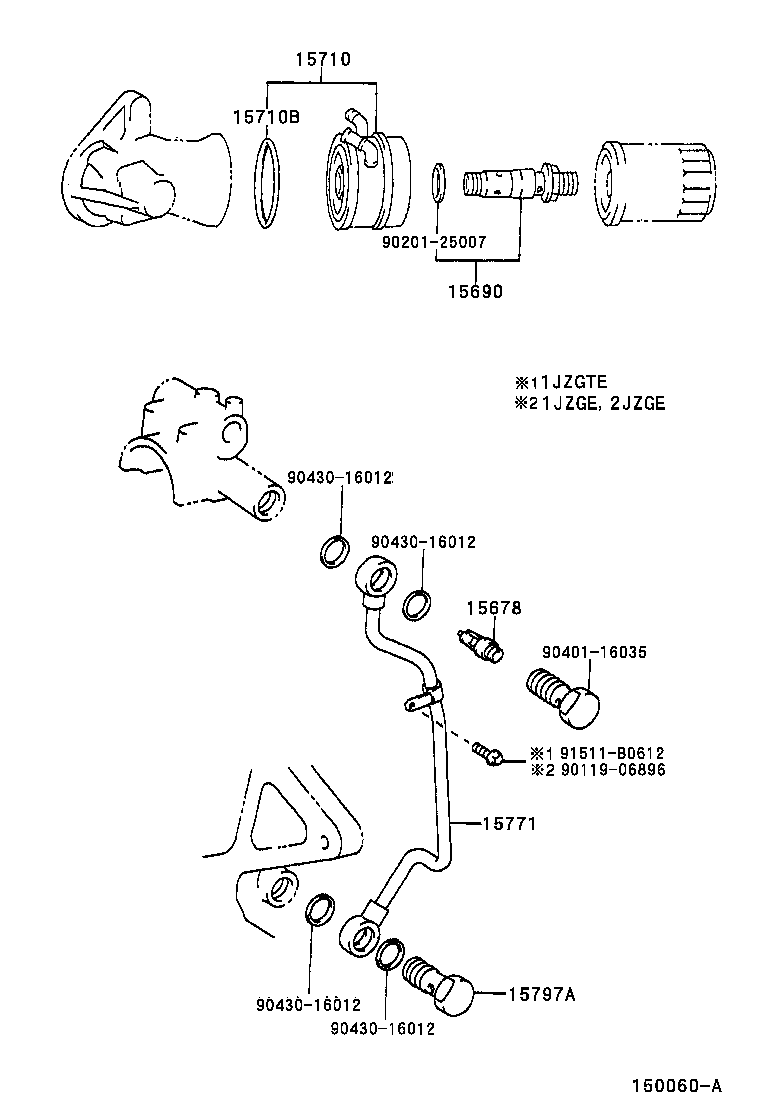

Click highlighted areas on diagram

diagram 15678 15690 15710 15710B 15771 15797A 9011906896 9020125007 9040116035 9043016012 9043016012 9043016012 9043016012 91511B0612
Part # Description Qty Price
15678 - FILTER, OIL CONTROL VALVE
15678-46010

1JZ#,2JZGE..JZX10#

 1
15771 - PIPE, OIL, NO.1
15771-46020

1JZGE..JZX100,105

 1
15797A - BOLT, OIL CHECK VALVE
15797-46010

1JZ#,2JZGE..JZX10#

 1
Common parts
90119-06896
90201-25007
90401-16035
90430-16012
91511-B0612
