JZX100-ATPQF (1996)
Toyota Mark 2

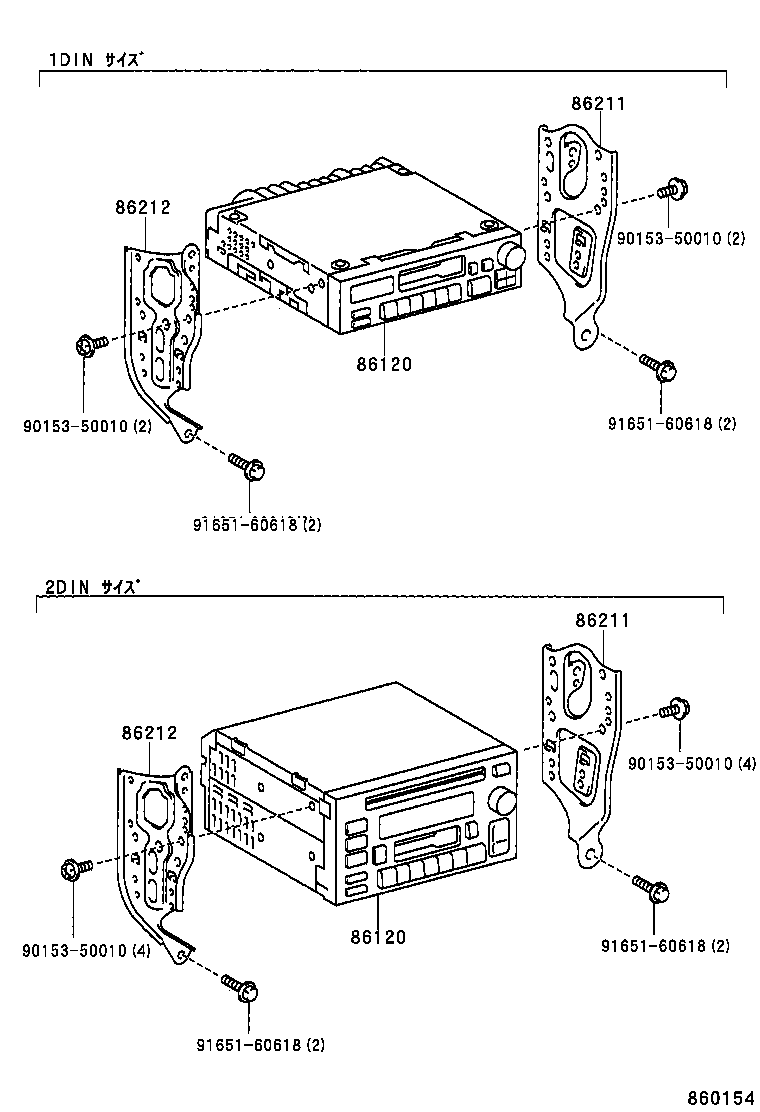

ILLUST NO. 1 OF 2(9609- )
ﾗｼﾞｵﾚｼ-ﾊﾞ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2A340 |
GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV MATSUSHITA,ID=55823,AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- ｶｾﾂﾄ CD 7 ｽﾋﾟ-ｶ |
1 | ||
| 86120-2A300 |
GX100,JZX100,105,LX100..GD,GDG,TOU,TOUS PIONEER,ID=P0517,AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- ｶｾﾂﾄ CD 6 ｽﾋﾟ-ｶ |
1 | ||
| 86120-2A380 |
GX10#,JZX100,105,LX100..GD,GDG PIONEER,ID=P0620,AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ ｶｾﾂﾄ CD MD 6 ｽﾋﾟ-ｶ,ﾃﾞｲｽﾌﾟﾚｲ:ｸﾞﾘ-ﾝ |
1 | ||
| 86120-2A350 |
GX10#,JZX100,105,LX100..GD,GDG MATSUSHITA,ID=56809,AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ ｶｾﾂﾄ CDｵ-ﾄﾁｴﾝｼﾞﾔ 6 ｽﾋﾟ-ｶ,ﾃﾞｲｽﾌﾟﾚｲ:ｸﾞﾘﾆﾂｼﾕ |
1 | ||
| 86120-2A300 |
GX10#,JZX100,105,LX100..GD,GDG PIONEER,ID=P0517,AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- ｶｾﾂﾄ CD 6 ｽﾋﾟ-ｶ |
1 | ||
| 86120-2A381 |
GX10#,JZX100,105,LX100..GD,GDG PIONEER,ID=P0622,AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ ｶｾﾂﾄ CD MD 6 ｽﾋﾟ-ｶ,ﾃﾞｲｽﾌﾟﾚｲ:ｸﾞﾘ-ﾝ |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2A340 |
GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV MATSUSHITA,ID=55823,AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- ｶｾﾂﾄ CD 7 ｽﾋﾟ-ｶ |
1 | ||
| 86120-2A300 |
GX100,JZX100,105,LX100..GD,GDG,TOU,TOUS PIONEER,ID=P0517,AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- ｶｾﾂﾄ CD 6 ｽﾋﾟ-ｶ |
1 | ||
| 86120-2A380 |
GX10#,JZX100,105,LX100..GD,GDG PIONEER,ID=P0620,AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ ｶｾﾂﾄ CD MD 6 ｽﾋﾟ-ｶ,ﾃﾞｲｽﾌﾟﾚｲ:ｸﾞﾘ-ﾝ |
1 | ||
| 86120-2A350 |
GX10#,JZX100,105,LX100..GD,GDG MATSUSHITA,ID=56809,AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ ｶｾﾂﾄ CDｵ-ﾄﾁｴﾝｼﾞﾔ 6 ｽﾋﾟ-ｶ,ﾃﾞｲｽﾌﾟﾚｲ:ｸﾞﾘﾆﾂｼﾕ |
1 | ||
| 86120-2A300 |
GX10#,JZX100,105,LX100..GD,GDG PIONEER,ID=P0517,AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ- ｶｾﾂﾄ CD 6 ｽﾋﾟ-ｶ |
1 | ||
| 86120-2A381 |
GX10#,JZX100,105,LX100..GD,GDG PIONEER,ID=P0622,AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ ｶｾﾂﾄ CD MD 6 ｽﾋﾟ-ｶ,ﾃﾞｲｽﾌﾟﾚｲ:ｸﾞﾘ-ﾝ |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-22180 |
GX100,JZX10#,LX100 |
1 | ||
| 86211-22180 |
GX10#,JZX100,105,LX100 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-22180 |
GX100,JZX10#,LX100 |
1 | ||
| 86211-22180 |
GX10#,JZX100,105,LX100 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-22160 |
GX10#,JZX100,105,LX100 |
1 | ||
| 86212-22160 |
GX100,JZX10#,LX100 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-22160 |
GX10#,JZX100,105,LX100 |
1 | ||
| 86212-22160 |
GX100,JZX10#,LX100 |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 91651-60618 | ||||

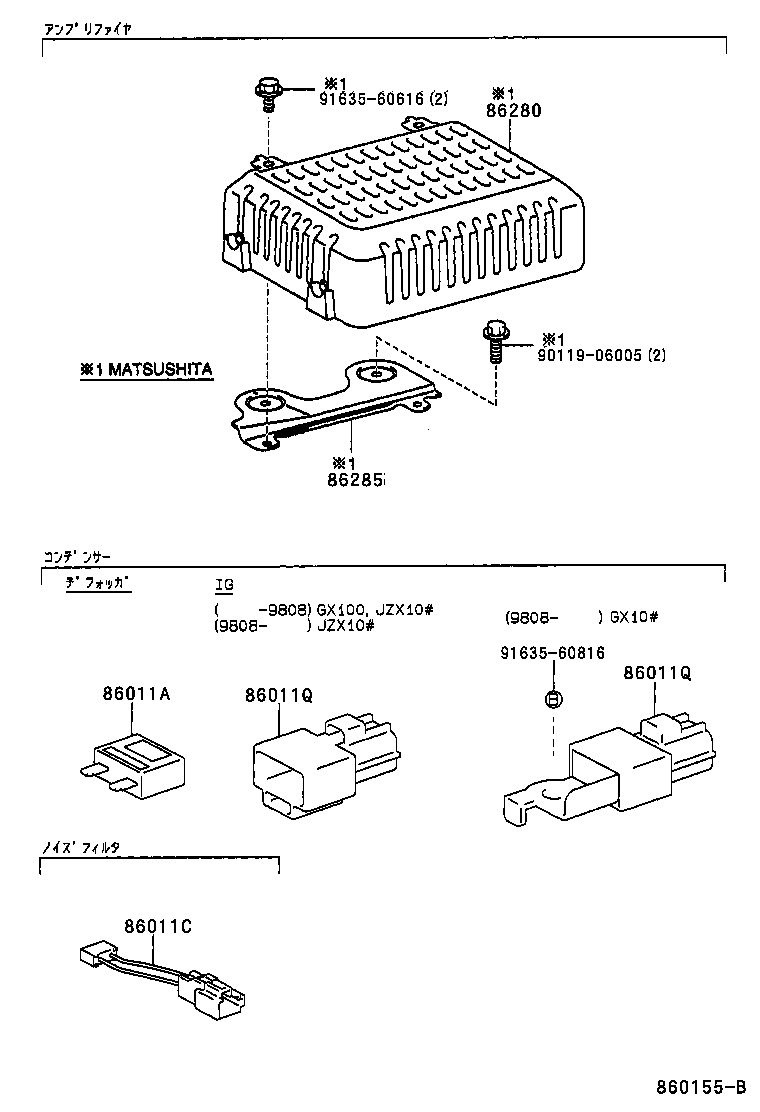

ILLUST NO. 2 OF 2(9609- )
ｱﾝﾌﾟﾘﾌｱｲｱ & ｺﾝﾃﾞﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GX10#,JZX10#,LX100 |
2 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-04116 |
GX10#,JZX10#,LX100 |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
JZX10# |
1 | ||
| 90980-04083 |
GX100,JZX10# |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
JZX10# |
1 | ||
| 90980-04083 |
GX100,JZX10# |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-22180 |
GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV ｱﾘ(7 ｽﾋﾟ-ｶ),MATSUSHITA |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-22010 |
GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV ｱﾘ(7 ｽﾋﾟ-ｶ) |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91635-60616 | ||||
| 91635-60816 | ||||
