JZX100-ATPQF (1996)

Toyota Mark 2

Production Sep 1996 - Oct 2000
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

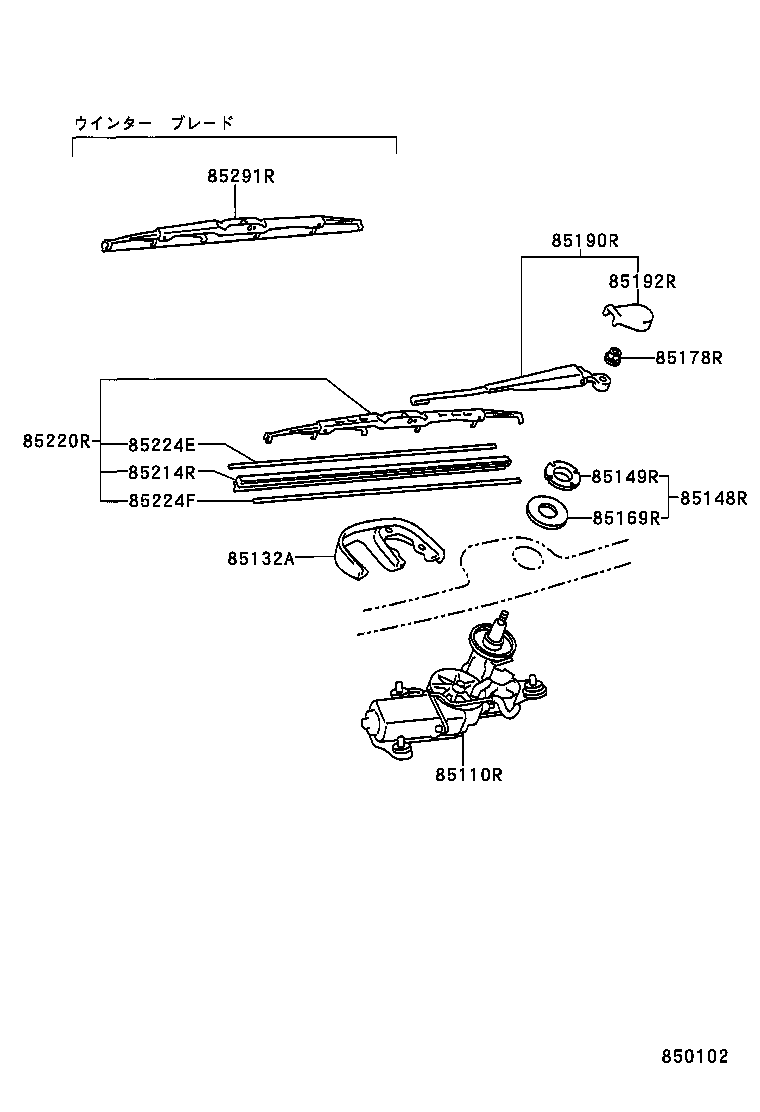

Click highlighted areas on diagram

diagram 85110R 85132A 85148R 85149R 85169R 85178R 85190R 85192R 85214R 85220R 85224E 85224F 85291R
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-22560

GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 1
85132A - COVER, REAR WIPER SHAFT
85132-22520E0

GX10#,JZX10#,LX100..GD,GDG

ORCHID BROWN,TRIM4#

 1
85132-22520G0

GX10#,JZX10#,LX100..GD,GDG

DK.SAGE,TRIM6#

 1
85148R - NUT, W/WASHER PACKING, REAR WIPER LINK PIVOT
85148-12020

GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 1
85149R - NUT, WIPER MOTOR
90179-22013

GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
90210-28002

GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 1
85190R - ARM ASSY, REAR WIPER
85241-22050

GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 1
85192R - COVER, REAR WIPER ARM
85192-13060

GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 1
85214R - RUBBER, REAR WIPER
85214-22400

GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 1
85220R - BLADE ASSY, REAR WIPER
85242-22050

GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-35040

GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-35040

GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 1
85291R - BLADE,REAR WIPER, WINTER
85291-60020

GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

 1
