JZX100-ATPQF (1996)

Toyota Mark 2

Production Sep 1996 - Oct 2000
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

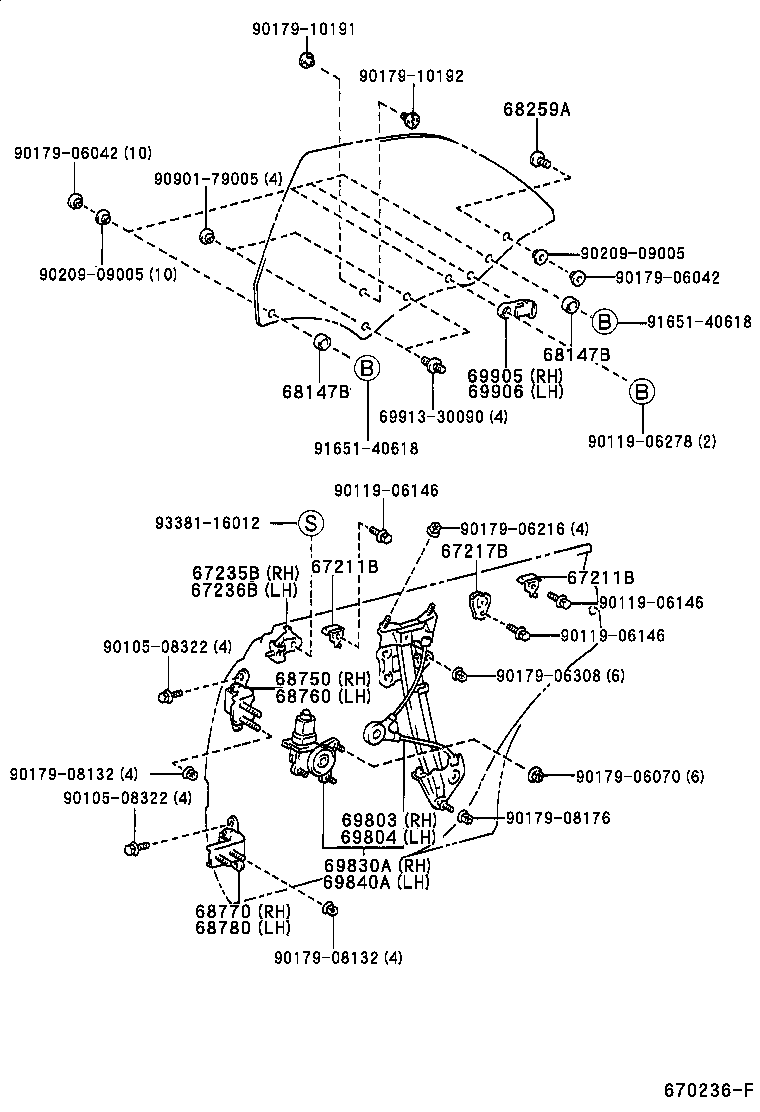

Click highlighted areas on diagram

diagram 67211B 67211B 67217B 67235B 67236B 68147B 68147B 68259A 68750 68760 68770 68780 69803 69804 69830A 69840A 69905 69906 6991330090 9010508322 9010508322 9011906146 9011906146 9011906146 9011906278 9017906042 9017906042 9017906070 9017906216 9017906308 9017908132 9017908132 9017908176 9017910191 9017910192 9020909005 9020909005 9090179005 9165140618 9165140618 9338116012
Part # Description Qty Price
67211B - STOP, REAR DOOR WINDOW, UPPER
67211-22050

GX10#,JZX10#,LX100

 4
67211B - STOP, REAR DOOR WINDOW, UPPER
67211-22050

GX10#,JZX10#,LX100

 4
67217B - STOPPER, REAR DOOR GLASS
67217-22020

GX10#,JZX10#,LX100

 2
67235B - STABILIZER, DOOR GLASS FEMALE, RH
67235-22070

GX100,JZX10#,LX100

 1
67235-22080

GX10#,JZX10#,LX100

 1
67236B - STABILIZER, DOOR GLASS FEMALE, LH
67236-22040

GX10#,JZX10#,LX100

 1
67236-22030

GX100,JZX10#,LX100

 1
68147B - STOP, REAR DOOR GLASS, UPPER
68147-22010

GX10#,JZX10#,LX100

 4
68147B - STOP, REAR DOOR GLASS, UPPER
68147-22010

GX10#,JZX10#,LX100

 4
68259A - CLIP, REAR DOOR WINDOW
68259-22010

GX10#,JZX10#,LX100

 2
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-22050

GX10#,JZX10#,LX100

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-22040

GX10#,JZX10#,LX100

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-33010

GX10#,JZX10#,LX100

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-33010

GX10#,JZX10#,LX100

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-22180

GX10#,JZX10#,LX100

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-22180

GX10#,JZX10#,LX100

 1
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-22350

GX10#,JZX10#,LX100

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-22350

GX10#,JZX10#,LX100

 1
69905 - BRACKET SUB-ASSY, REAR DOOR GLASS, RH
69905-33010

GX10#,JZX10#,LX100

 1
69906 - BRACKET SUB-ASSY, REAR DOOR GLASS, LH
69906-33010

GX10#,JZX10#,LX100

 1
Common parts
69913-30090
90105-08322
90119-06146
90119-06278
90179-06042
90179-06070
90179-06216
90179-06308
90179-08132
90179-08176
90179-10191
90179-10192
90209-09005
90901-79005
91651-40618
93381-16012
