JZX100-ATPQF (1996)

Toyota Mark 2

Production Sep 1996 - Oct 2000
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

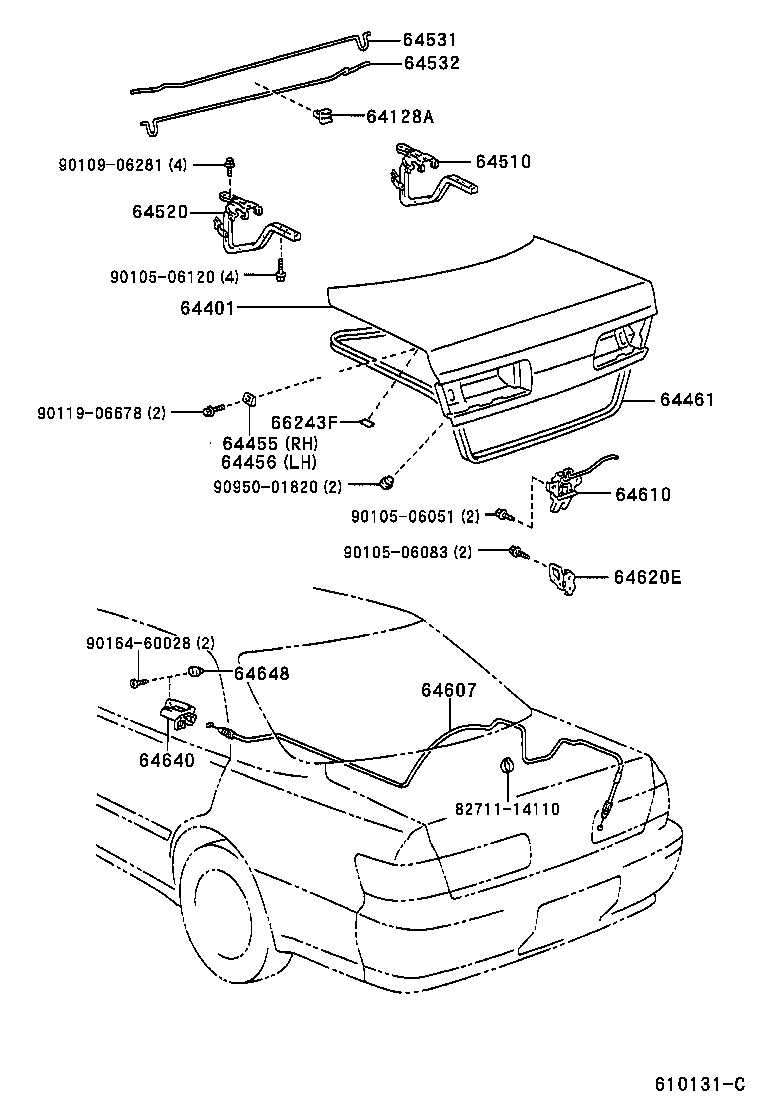

Click highlighted areas on diagram

diagram 64128A 64401 64455 64456 64461 64510 64520 64531 64532 64607 64610 64620E 64640 64648 66243F 8271114110 9010506051 9010506083 9010506120 9010906281 9011906678 9016460028 9095001820
Part # Description Qty Price
64128A - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2
64128-22030

GX10#,JZX10#,LX100

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-22670

GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64401-22720

GX10#,JZX10#,LX100

 1
64401-22660

GX100,JZX10#,LX100

 1
64455 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64455-22010

GX10#,JZX10#,LX100

 1
64456 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH
64456-22010

GX10#,JZX10#,LX100

 1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-22220

GX10#,JZX10#,LX100

 1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-22150

GX10#,JZX10#,LX100

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64510-22150

GX10#,JZX10#,LX100

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-22310

GX10#,JZX10#,LX100

 1
64531-22320

GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-22320

GX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64532-22310

GX10#,JZX10#,LX100

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-22380

GX10#,JZX10#,LX100

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-22010

GX100,JZX10#,LX100..GD,GDG,TOUV

 1
64600-22040

GX10#,JZX10#,LX100..GD,GDG,TOUV

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64621-22040

GX10#,JZX10#,LX100

 1
64640 - OPENER ASSY, LUGGAGE DOOR LOCK
64640-22250E0

GX10#,JZX10#,LX100..GD,GDG

ORCHID,TRIM4#

 1
64640-22250G0

GX10#,JZX10#,LX100..GD,GDG,GL

SAGE,TRIM6#

 1
64648 - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-32010

GX10#,JZX10#,LX100

 2
66243F - PROTECTOR, REAR BODY, NO.1
66244-22010

GX10#,JZX10#,LX100

 2
Common parts
82711-14110
90105-06051
90105-06083
90105-06120
90109-06281
90119-06678
90164-60028
90950-01820
