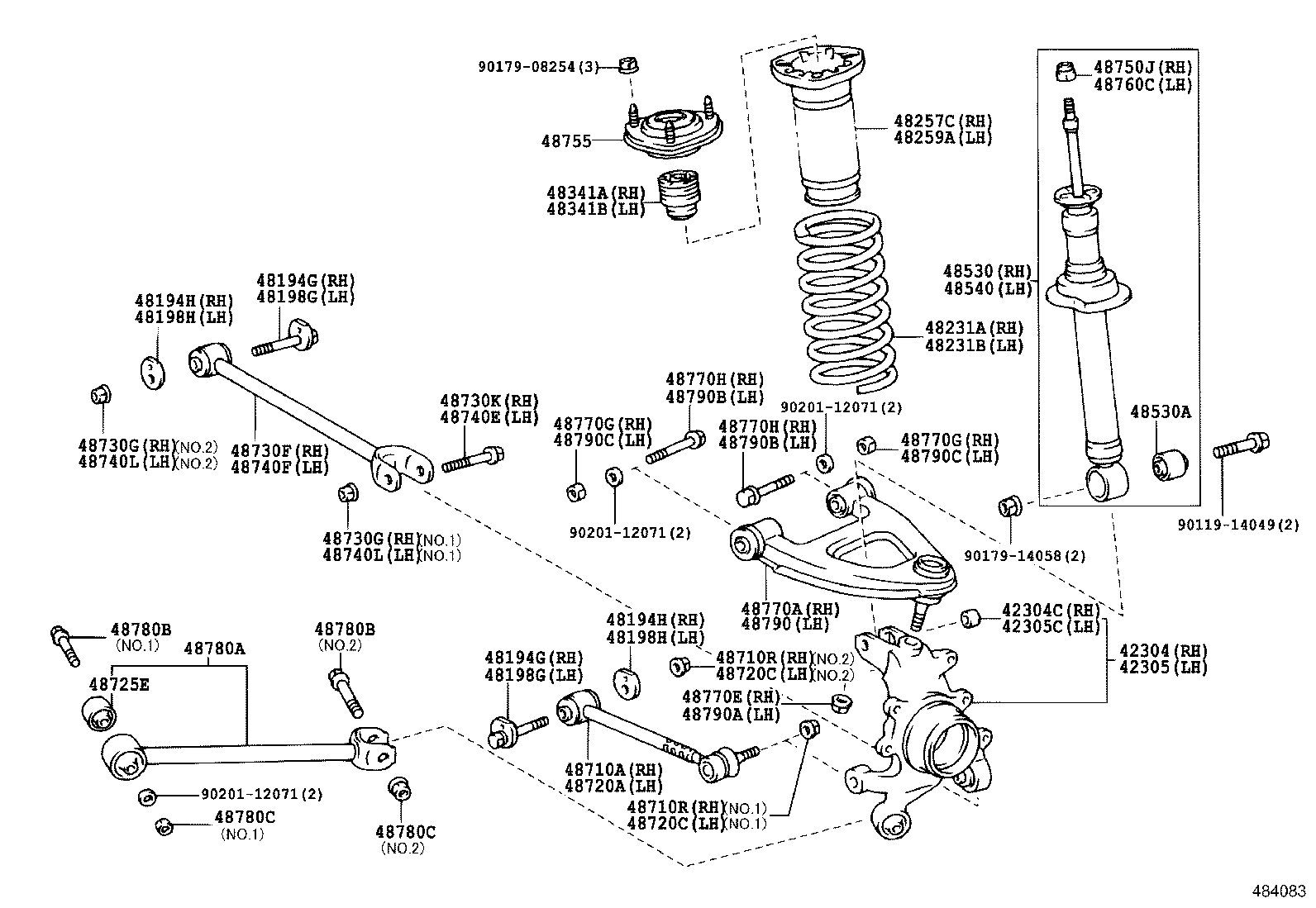

JZX100-ATPQF (1996)
Toyota Mark 2
(9609- )GX100,JZX100,LX100..GD,GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-30040 |
GX100..5F;GX105,JZX10#,LX100 |
1 | ||
| 42304C - SPACER (FOR REAR AXLE CARRIER) | ||||
| 90560-14009 |
GX10#,JZX10#,LX100 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-30040 |
GX100..5F;GX105,JZX10#,LX100 |
1 | ||
| 42305C - SPACER(FOR REAR AXLE CARRIER LH) | ||||
| 90560-14009 |
GX10#,JZX10#,LX100 |
1 | ||
| 48194G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH | ||||
| 48190-22030 |
GX10#,JZX10#,LX100 |
2 | ||
| 48194G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH | ||||
| 48190-22030 |
GX10#,JZX10#,LX100 |
2 | ||
| 48194H - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 RH | ||||
| 48198-22020 |
GX10#,JZX10#,LX100 |
2 | ||
| 48194H - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 RH | ||||
| 48198-22020 |
GX10#,JZX10#,LX100 |
2 | ||
| 48198G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH | ||||
| 48190-22030 |
GX10#,JZX10#,LX100 |
2 | ||
| 48198G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH | ||||
| 48190-22030 |
GX10#,JZX10#,LX100 |
2 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-22020 |
GX10#,JZX10#,LX100 |
2 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-22020 |
GX10#,JZX10#,LX100 |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-2A370 |
JZX100,LX100..GD,GL |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-2A370 |
JZX100,LX100..GD,GL |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-22070 |
GX10#,JZX10#,LX100 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-22070 |
GX10#,JZX10#,LX100 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-30060 |
GX10#,JZX10#,LX100 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-30060 |
GX10#,JZX10#,LX100 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-29685 |
GX100,JZX100,LX100..GD,GL MARK 48530-22410 OR 48530-22420 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 48537-22010 |
GX100,JZX100,LX100..GD,GL |
2 | ||
| 48537-22010 |
GX10#,JZX10#,LX100 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-29685 |
GX100,JZX100,LX100..GD,GL MARK 48530-22410 OR 48530-22420 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-22300 |
GX10#,JZX10#,LX100 |
1 | ||
| 48710R - NUT(FOR REAR SUSPENSION ARM NO.1 RH) | ||||
| 90179-12127 |
GX10#,JZX10#,LX100 NO.2 |
1 | ||
| 90179-12027 |
GX10#,JZX10#,LX100 NO.1 |
1 | ||
| 48710R - NUT(FOR REAR SUSPENSION ARM NO.1 RH) | ||||
| 90179-12127 |
GX10#,JZX10#,LX100 NO.2 |
1 | ||
| 90179-12027 |
GX10#,JZX10#,LX100 NO.1 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-22300 |
GX10#,JZX10#,LX100 |
1 | ||
| 48720C - NUT(FOR REAR SUSPENSION ARM NO.1 LH) | ||||
| 90179-12127 |
GX10#,JZX10#,LX100 NO.2 |
1 | ||
| 90179-12027 |
GX10#,JZX10#,LX100 NO.1 |
1 | ||
| 48720C - NUT(FOR REAR SUSPENSION ARM NO.1 LH) | ||||
| 90179-12127 |
GX10#,JZX10#,LX100 NO.2 |
1 | ||
| 90179-12027 |
GX10#,JZX10#,LX100 NO.1 |
1 | ||
| 48725E - BUSH, REAR STRUT ROD | ||||
| 48725-22150 |
GX100,JZX10#,LX100..GD,GDG,GL |
2 | ||
| 48725-22150 |
GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS |
2 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-22041 |
GX10#,JZX10#,LX100..GD,GDG,GL |
1 | ||
| 48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90179-12121 |
GX10#,JZX10#,LX100 NO.1 |
1 | ||
| 90179-12127 |
GX10#,JZX10#,LX100 NO.2 |
1 | ||
| 48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90179-12121 |
GX10#,JZX10#,LX100 NO.1 |
1 | ||
| 90179-12127 |
GX10#,JZX10#,LX100 NO.2 |
1 | ||
| 48730K - BOLT(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90119-12260 |
GX10#,JZX10#,LX100 |
1 | ||
| 48740E - BOLT(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90119-12260 |
GX10#,JZX10#,LX100 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-22041 |
GX10#,JZX10#,LX100..GD,GDG,GL |
1 | ||
| 48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90179-12121 |
GX10#,JZX10#,LX100 NO.1 |
1 | ||
| 90179-12127 |
GX10#,JZX10#,LX100 NO.2 |
1 | ||
| 48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90179-12121 |
GX10#,JZX10#,LX100 NO.1 |
1 | ||
| 90179-12127 |
GX10#,JZX10#,LX100 NO.2 |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-12140 |
GX10#,JZX10#,LX100 |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-30040 |
GX100,JZX100,101,LX100..GD,GDG,GL |
2 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90179-12140 |
GX10#,JZX10#,LX100 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-30010 |
GX10#,JZX10#,LX100..GD,GDG,GL |
1 | ||
| 48770E - NUT, NO.1(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90179-14015 |
GX10#,JZX10#,LX100 |
1 | ||
| 48770G - NUT, NO.2(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90170-12042 |
GX10#,JZX10#,LX100 |
2 | ||
| 48770G - NUT, NO.2(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90170-12042 |
GX10#,JZX10#,LX100 |
2 | ||
| 48770H - BOLT(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90105-12290 |
GX10#,JZX10#,LX100 |
2 | ||
| 48770H - BOLT(FOR REAR UPPER CONTROL ARM RH) | ||||
| 90105-12290 |
GX10#,JZX10#,LX100 |
2 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-22030 |
GX100,JZX10#,LX100..GD,GDG,GL |
2 | ||
| 48780-22030 |
GX10#,JZX10#,LX100..GD,GDG,TOU,TOUS |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-14035 |
GX10#,JZX10#,LX100 NO.2 |
2 | ||
| 90105-12289 |
GX10#,JZX10#,LX100 NO.1 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-14035 |
GX10#,JZX10#,LX100 NO.2 |
2 | ||
| 90105-12289 |
GX10#,JZX10#,LX100 NO.1 |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-14058 |
GX10#,JZX10#,LX100 NO.2 |
2 | ||
| 90170-12042 |
GX10#,JZX10#,LX100 NO.1 |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-14058 |
GX10#,JZX10#,LX100 NO.2 |
2 | ||
| 90170-12042 |
GX10#,JZX10#,LX100 NO.1 |
2 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-30010 |
GX10#,JZX10#,LX100..GD,GDG,GL |
1 | ||
| 48790A - NUT, NO.1(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90179-14015 |
GX10#,JZX10#,LX100 |
1 | ||
| 48790B - BOLT(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90105-12290 |
GX10#,JZX10#,LX100 |
2 | ||
| 48790B - BOLT(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90105-12290 |
GX10#,JZX10#,LX100 |
2 | ||
| 48790C - NUT, NO.2(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90170-12042 |
GX10#,JZX10#,LX100 |
2 | ||
| 48790C - NUT, NO.2(FOR REAR UPPER CONTROL ARM LH) | ||||
| 90170-12042 |
GX10#,JZX10#,LX100 |
2 | ||
| Common parts | ||||
| 90119-14049 | ||||
| 90179-08254 | ||||
| 90179-14058 | ||||
| 90201-12071 | ||||
