JZX100-ATPQF (1996)

Toyota Mark 2

Production Sep 1996 - Oct 2000
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

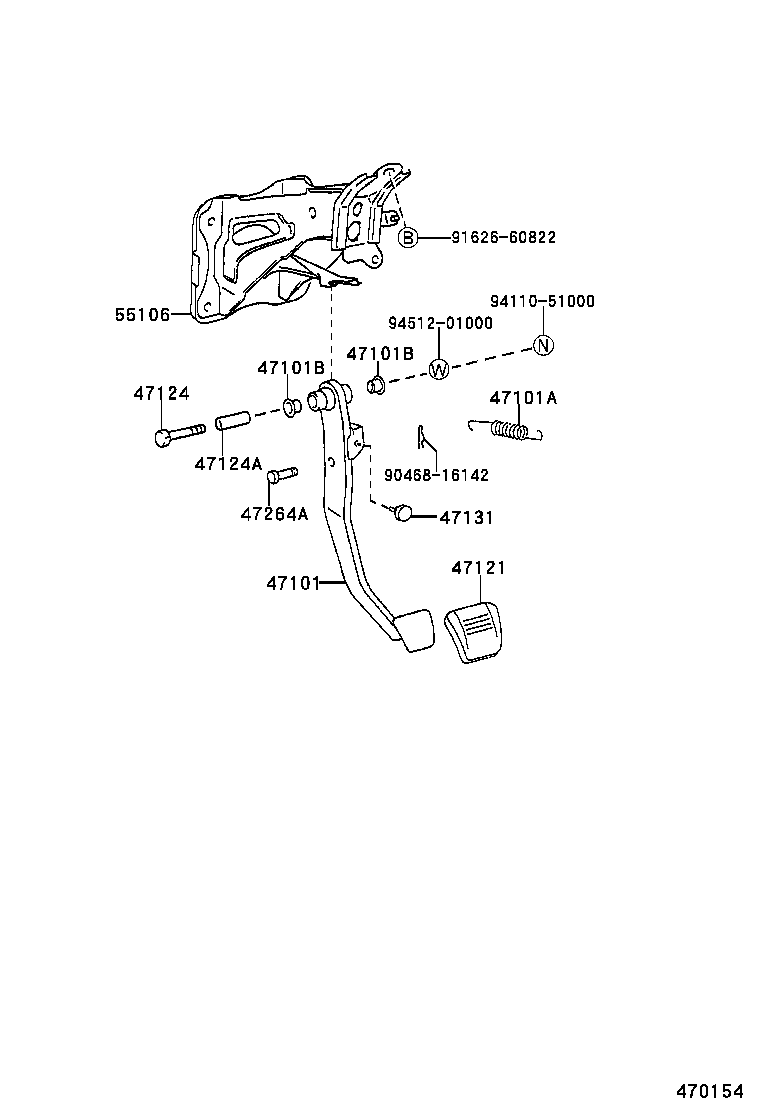

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 9046816142 9162660822 9411051000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-22400

GX100,JZX10#,LX100..4FC

 1
47101-22400

GX100,JZX101..GDG,TOU;GX105,JZX100,105,LX100..ATM

ｱﾘ(VSC)

 1
47101-22420

GX100,JZX100..4FC..(GD,GDG)

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-13005

GX10#,JZX10#,LX100

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

GX10#,JZX10#,LX100

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

GX10#,JZX10#,LX100

 2
47121 - PAD, BRAKE PEDAL
47121-50010

GX10#,JZX10#,LX100..ATM

 1
47124 - SHAFT, BRAKE PEDAL
90101-10015

GX10#,JZX10#,LX100

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

GX10#,JZX10#,LX100

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

GX10#,JZX10#,LX100

 1
47264A - PIN(FOR PUSH ROD)
90249-10064

GX10#,JZX10#,LX100

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-22220

GX100,JZX100..GD,GDG

 1
55106-22190

GX100,JZX10#,LX100

 1
55106-22190

GX100,JZX101..GDG,TOU;GX105,JZX100,105,LX100

ｱﾘ(VSC)

 1
Common parts
90468-16142
91626-60822
94110-51000
94512-01000
