JZX100-ATMVZ (1996)

Toyota Mark 2

Production Sep 1996 - Oct 2000
Engine 1JZGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )JZX100..5F

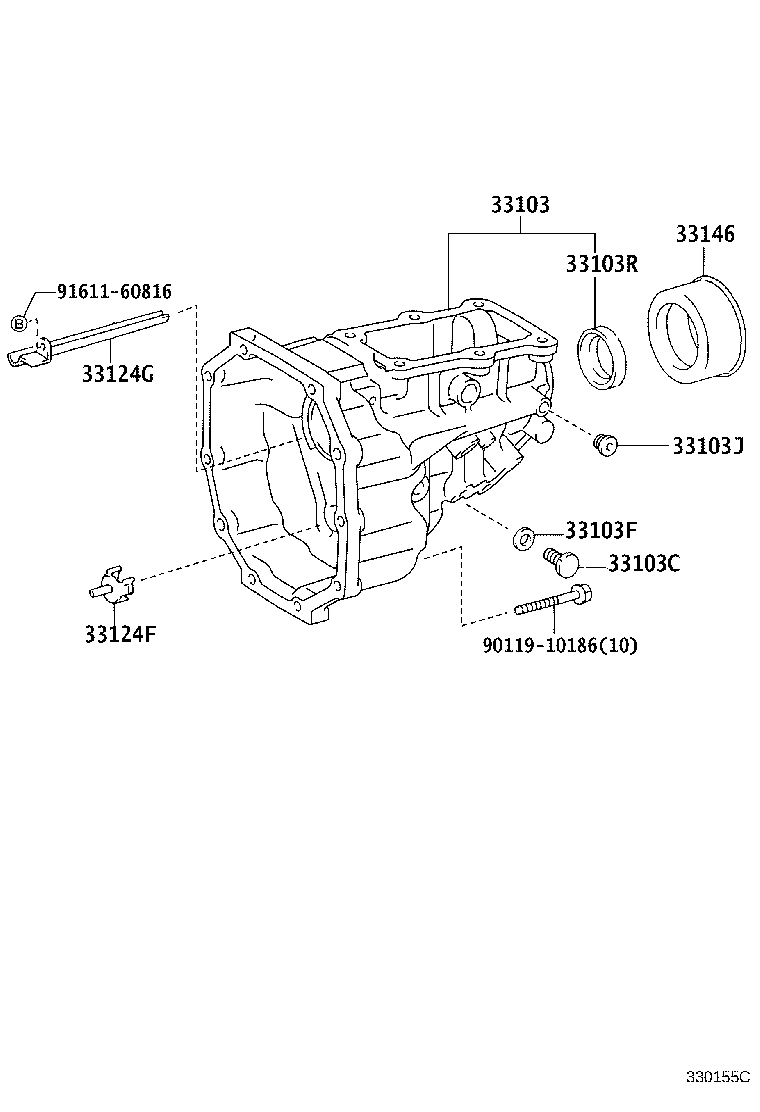

Click highlighted areas on diagram

R154

diagram 33103 33103C 33103F 33103J 33103R 33124F 33124G 33146 9011910186 9161160816
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-35170

JZX100..5F

 1
33103C - PLUG, NO.1(FOR EXTENSION HOUSING)
90341-18006

JZX100..5F

 1
33103F - GASKET(FOR EXTENSION HOUSING PLUG NO.1)
90430-18008

JZX100..5F

 1
33103J - PLUG, TIGHT(FOR EXTENSION HOUSING)
90341-10065

JZX100..5F

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-40001

JZX100..5F

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-35100

JZX100..5F

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33124-35090

JZX100..5F

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30020

GX100,JZX100..5F

 1
Common parts
90119-10186
91611-60816
