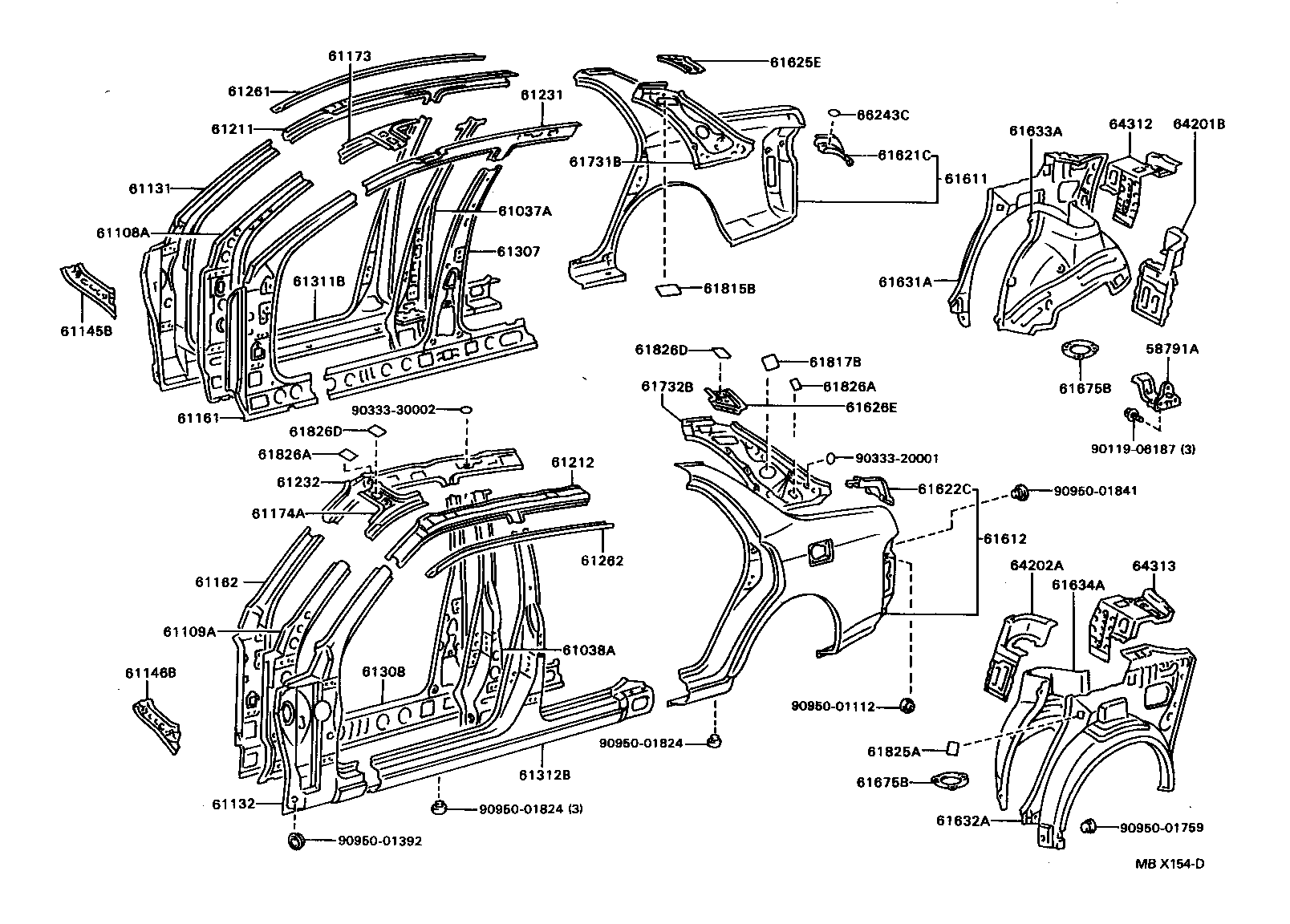

GX90-ATPQK (1992)
Toyota Mark 2
(9210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58791A - CARRIER, JACK | ||||
| 58791-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-22080 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-22070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-22180 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-22180 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-22071 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61145-22070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-22070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61146-22071 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-22180 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-22170 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-22100 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-22090 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-22120 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-22120 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-22250 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-22230 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-22110 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-22110 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61341-22140 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61342-22160 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-22230 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-22290 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-22975 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-22943 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-22110 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-22110 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-22030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-22030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-22130 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-22120 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-22918 |
GX90,JZX90,LX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| 61607-22917 |
GX90,SX90;LX90..MTM ｱﾘ(*66) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-22916 |
GX90,JZX90,LX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| 61608-22915 |
GX90,SX90;LX90..MTM ｱﾘ(*66) |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-22110 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-22110 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61815B - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61815-22060 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61815-22050 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61817B - COVER, ROOF SIDE, INNER LOWER RH | ||||
| 61817-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-22030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 61825-22050 |
GX90 ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 61825-22050 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-22010 |
GX90,JZX9#,LX90,SX90 ﾅｼ(ﾑ-ﾝﾙ-ﾌ) |
4 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-22010 |
GX90,JZX9#,LX90,SX90 ﾅｼ(ﾑ-ﾝﾙ-ﾌ) |
4 | ||
| 61826D - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-22020 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 61826D - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-22020 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 64201B - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH | ||||
| 64201-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 64202A - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, LH | ||||
| 64202-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64301-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64302-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-13010 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 66243-20010 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| Common parts | ||||
| 90119-06187 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90950-01112 | ||||
| 90950-01392 | ||||
| 90950-01759 | ||||
| 90950-01824 | ||||
| 90950-01841 | ||||
