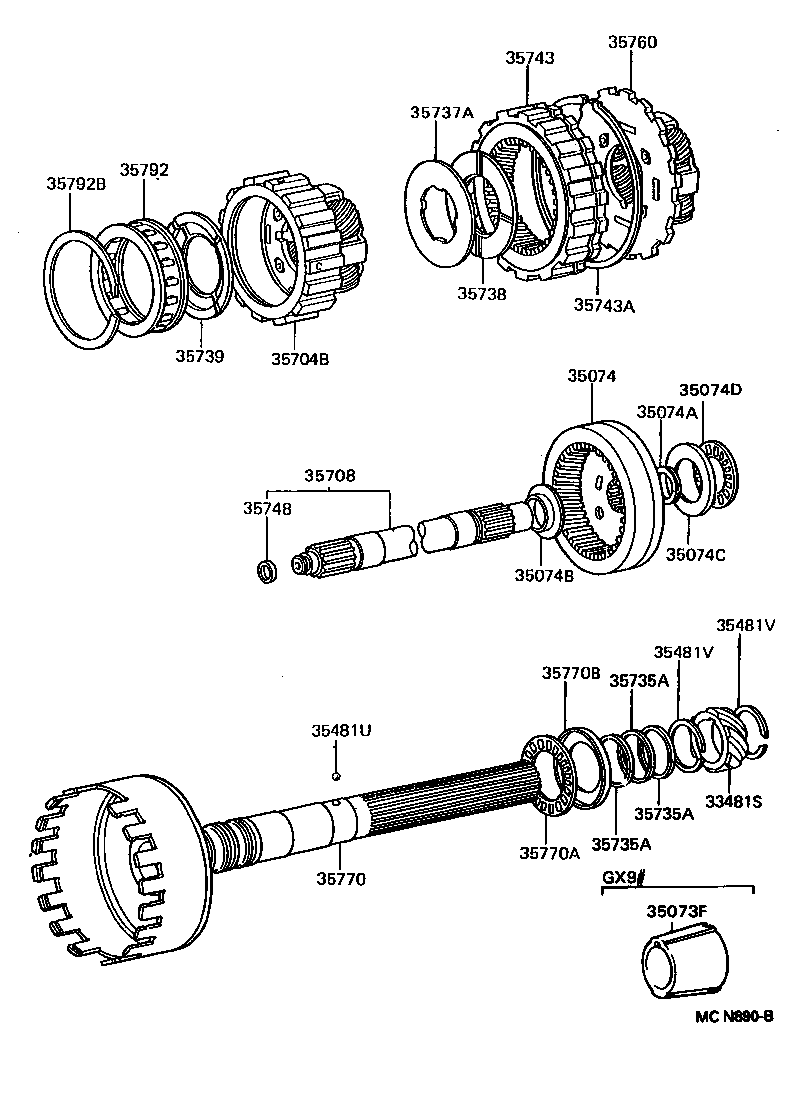

Toyota Mark 2 GX90 PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

Part #	Description	Period	Qty
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-26011	GX90,LX90,SX90..ATM	10/1992 - 09/1996	1
35073F - SPACER, NO.1 (FOR OUTPUT SHAFT REAR BEARING)
35775-22010	GX90..ATM	10/1992 - 09/1996	1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-30010	GX90,SX90..ATM	10/1992 - 09/1996	1
35074A - RING, SET (FOR REAR PLANETARY RING GEAR)
90522-20037	GX90,LX90,SX90..ATM	10/1992 - 09/1996	1
35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON
35789-22050	GX90,SX90..ATM	10/1992 - 09/1996	1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-22020	GX90,LX90,SX90..ATM	10/1992 - 09/1996	1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-28014	GX90,LX90,SX90..ATM	10/1992 - 09/1996	1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90360-06004	GX90,JZX9#,LX90,SX90..ATM	10/1992 - 09/1996	1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009	GX90,JZX9#..ATM 厚さ=1.50,外径=33.8	10/1992 - 09/1996	1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009	GX90,JZX9#..ATM 厚さ=1.50,外径=33.8	10/1992 - 09/1996	1
35704B - GEAR SUB-ASSY, FRONT PLANETARY
35704-22030	GX90,SX90..ATM	10/1992 - 09/1996	1
35708 - SHAFT SUB-ASSY, INTERMEDIATE
35708-30031	GX90,SX90..ATM	10/1992 - 09/1996	1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010	GX90,LX90,SX90..ATM	10/1992 - 09/1996	3
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010	GX90,LX90,SX90..ATM	10/1992 - 09/1996	3
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010	GX90,LX90,SX90..ATM	10/1992 - 09/1996	3
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-22010	GX90,SX90..ATM	10/1992 - 09/1996	1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-22010	GX90,SX90..ATM	10/1992 - 09/1996	1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-14010	GX90..ATM	10/1992 - 08/1995	1
35739-14010	GX90,SX90..ATM	08/1995 - 09/1996	1
35743 - GEAR, FRONT PLANETARY RING
35743-22010	GX90,SX90..ATM	10/1992 - 09/1996	1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99121	GX90,LX90,SX90..ATM	10/1992 - 09/1996	1
35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL
35748-30010	GX90,LX90,SX90..ATM	10/1992 - 09/1996	1
35760 - GEAR ASSY, REAR PLANETARY
35760-30020	GX90,SX90..ATM	10/1992 - 09/1996	1
35770 - SHAFT ASSY, OUTPUT
35770-30030	GX90..ATM	10/1992 - 09/1996	1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-38013	GX90,LX90,SX90..ATM	10/1992 - 09/1996	1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22040	GX90,LX90,SX90..ATM	10/1992 - 09/1996	1
35792 - CLUTCH, 1 WAY, NO.2
35792-30011	GX90,LX90..ATM	10/1992 - 08/1995	1
35792-30011	GX90,LX90,SX90..ATM	08/1995 - 09/1996	1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148	GX90,LX90,SX90..ATM	10/1992 - 09/1996	1

GX90-ATPQK (1992)

(9210- )GX90,LX90,SX90..ATM
