GX90-ATMQK (1992)
Toyota Mark 2
(9210- )LX90..ATM ; (9210- )GX90,JZX90,91,SX90
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

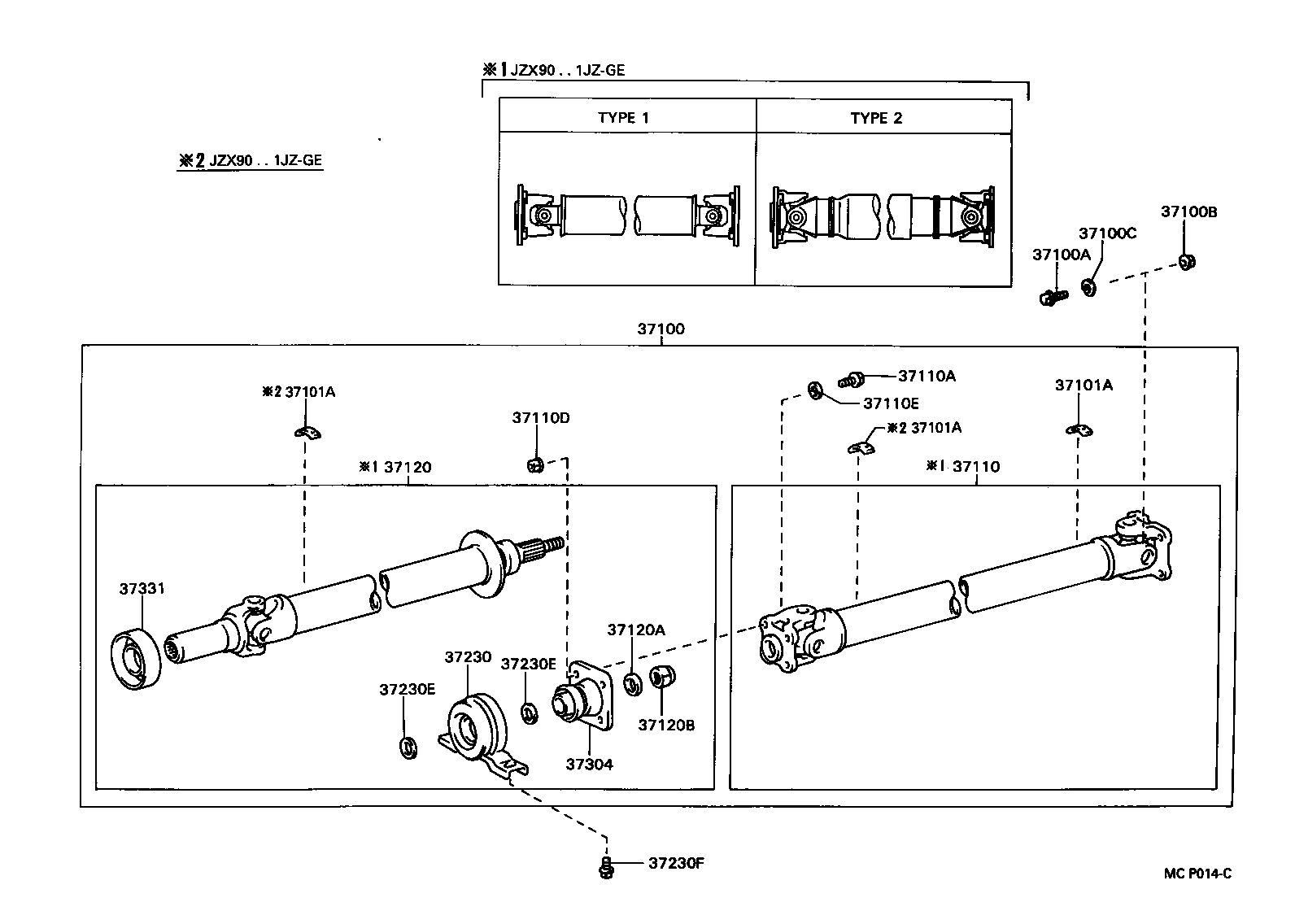

| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-2A100 |
GX90..MTM |
1 | ||
| 37100-2A090 |
GX90..ATM |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90101-08082 |
GX90,SX90;LX90..ATM |
4 | ||
| 90105-08244 |
GX90,SX90;LX90..ATM |
4 | ||
| 90101-08082 |
LX90..ATM;GX90,JZX93,SX90 |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-08197 |
GX90,SX90;LX90..ATM |
4 | ||
| 90179-08197 |
LX90..ATM;GX90,JZX93,SX90 |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 94512-00800 |
LX90..ATM;GX90,JZX93,SX90 |
4 | ||
| 94512-00800 |
GX90,SX90;LX90..ATM |
4 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01149 |
GX90,LX90,SX90 6G,長さ=12.4 |
1 | ||
| 90937-01132 |
GX90,LX90,SX90 10G,長さ=20.7 |
1 | ||
| 90937-01140 |
GX90,LX90,SX90 30G,長さ=62.2 |
1 | ||
| 90937-01152 |
GX90,LX90,SX90 14G,長さ=29.0 |
1 | ||
| 90937-01158 |
GX90,LX90,SX90 28G,長さ=58.1 |
1 | ||
| 90937-01312 |
GX90,LX90,SX90 5G |
1 | ||
| 90937-01148 |
GX90,LX90,SX90 4G,厚さ=2.0 |
1 | ||
| 90937-01157 |
GX90,LX90,SX90 26G,長さ=53.9 |
1 | ||
| 90937-01156 |
GX90,LX90,SX90 24G,長さ=49.7 |
1 | ||
| 90937-01150 |
GX90,LX90,SX90 8G,長さ=16.6 |
1 | ||
| 90937-01313 |
GX90,LX90,SX90 7G,長さ=14.4 |
1 | ||
| 90937-01147 |
GX90,LX90,SX90 2G,厚さ=2.0 |
1 | ||
| 90937-01153 |
GX90,LX90,SX90 16G,長さ=33.2 |
1 | ||
| 90937-01151 |
GX90,LX90,SX90 12G,長さ=24.9 |
1 | ||
| 90937-01154 |
GX90,LX90,SX90 18G,長さ=37.3 |
1 | ||
| 90937-01155 |
GX90,LX90,SX90 22G,長さ=45.6 |
1 | ||
| 90937-01136 |
GX90,LX90,SX90 20G,長さ=41.4 |
1 | ||
| 90937-01311 |
GX90,LX90,SX90 3G |
1 | ||
| 90937-01314 |
GX90,LX90,SX90 9G,長さ=18.5 |
1 | ||
| 90937-01136 |
GX90,JZX93,LX90,SX90 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
GX90,JZX93,LX90,SX90 10G,長さ=20.7 |
1 | ||
| 90937-01148 |
GX90,JZX93,LX90,SX90 4G,厚さ=2.0 |
1 | ||
| 90937-01140 |
GX90,JZX93,LX90,SX90 30G,長さ=62.2 |
1 | ||
| 90937-01147 |
GX90,JZX93,LX90,SX90 2G,厚さ=2.0 |
1 | ||
| 90937-01151 |
GX90,JZX93,LX90,SX90 12G,長さ=24.9 |
1 | ||
| 90937-01150 |
GX90,JZX93,LX90,SX90 8G,長さ=16.6 |
1 | ||
| 90937-01152 |
GX90,JZX93,LX90,SX90 14G,長さ=29.0 |
1 | ||
| 90937-01154 |
GX90,JZX93,LX90,SX90 18G,長さ=37.3 |
1 | ||
| 90937-01149 |
GX90,JZX93,LX90,SX90 6G,長さ=12.4 |
1 | ||
| 90937-01155 |
GX90,JZX93,LX90,SX90 22G,長さ=45.6 |
1 | ||
| 90937-01157 |
GX90,JZX93,LX90,SX90 26G,長さ=53.9 |
1 | ||
| 90937-01153 |
GX90,JZX93,LX90,SX90 16G,長さ=33.2 |
1 | ||
| 90937-01312 |
GX90,JZX93,LX90,SX90 5G |
1 | ||
| 90937-01313 |
GX90,JZX93,LX90,SX90 7G,長さ=14.4 |
1 | ||
| 90937-01158 |
GX90,JZX93,LX90,SX90 28G,長さ=58.1 |
1 | ||
| 90937-01311 |
GX90,JZX93,LX90,SX90 3G |
1 | ||
| 90937-01156 |
GX90,JZX93,LX90,SX90 24G,長さ=49.7 |
1 | ||
| 90937-01314 |
GX90,JZX93,LX90,SX90 9G,長さ=18.5 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01149 |
GX90,LX90,SX90 6G,長さ=12.4 |
1 | ||
| 90937-01132 |
GX90,LX90,SX90 10G,長さ=20.7 |
1 | ||
| 90937-01140 |
GX90,LX90,SX90 30G,長さ=62.2 |
1 | ||
| 90937-01152 |
GX90,LX90,SX90 14G,長さ=29.0 |
1 | ||
| 90937-01158 |
GX90,LX90,SX90 28G,長さ=58.1 |
1 | ||
| 90937-01312 |
GX90,LX90,SX90 5G |
1 | ||
| 90937-01148 |
GX90,LX90,SX90 4G,厚さ=2.0 |
1 | ||
| 90937-01157 |
GX90,LX90,SX90 26G,長さ=53.9 |
1 | ||
| 90937-01156 |
GX90,LX90,SX90 24G,長さ=49.7 |
1 | ||
| 90937-01150 |
GX90,LX90,SX90 8G,長さ=16.6 |
1 | ||
| 90937-01313 |
GX90,LX90,SX90 7G,長さ=14.4 |
1 | ||
| 90937-01147 |
GX90,LX90,SX90 2G,厚さ=2.0 |
1 | ||
| 90937-01153 |
GX90,LX90,SX90 16G,長さ=33.2 |
1 | ||
| 90937-01151 |
GX90,LX90,SX90 12G,長さ=24.9 |
1 | ||
| 90937-01154 |
GX90,LX90,SX90 18G,長さ=37.3 |
1 | ||
| 90937-01155 |
GX90,LX90,SX90 22G,長さ=45.6 |
1 | ||
| 90937-01136 |
GX90,LX90,SX90 20G,長さ=41.4 |
1 | ||
| 90937-01311 |
GX90,LX90,SX90 3G |
1 | ||
| 90937-01314 |
GX90,LX90,SX90 9G,長さ=18.5 |
1 | ||
| 90937-01136 |
GX90,JZX93,LX90,SX90 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
GX90,JZX93,LX90,SX90 10G,長さ=20.7 |
1 | ||
| 90937-01148 |
GX90,JZX93,LX90,SX90 4G,厚さ=2.0 |
1 | ||
| 90937-01140 |
GX90,JZX93,LX90,SX90 30G,長さ=62.2 |
1 | ||
| 90937-01147 |
GX90,JZX93,LX90,SX90 2G,厚さ=2.0 |
1 | ||
| 90937-01151 |
GX90,JZX93,LX90,SX90 12G,長さ=24.9 |
1 | ||
| 90937-01150 |
GX90,JZX93,LX90,SX90 8G,長さ=16.6 |
1 | ||
| 90937-01152 |
GX90,JZX93,LX90,SX90 14G,長さ=29.0 |
1 | ||
| 90937-01154 |
GX90,JZX93,LX90,SX90 18G,長さ=37.3 |
1 | ||
| 90937-01149 |
GX90,JZX93,LX90,SX90 6G,長さ=12.4 |
1 | ||
| 90937-01155 |
GX90,JZX93,LX90,SX90 22G,長さ=45.6 |
1 | ||
| 90937-01157 |
GX90,JZX93,LX90,SX90 26G,長さ=53.9 |
1 | ||
| 90937-01153 |
GX90,JZX93,LX90,SX90 16G,長さ=33.2 |
1 | ||
| 90937-01312 |
GX90,JZX93,LX90,SX90 5G |
1 | ||
| 90937-01313 |
GX90,JZX93,LX90,SX90 7G,長さ=14.4 |
1 | ||
| 90937-01158 |
GX90,JZX93,LX90,SX90 28G,長さ=58.1 |
1 | ||
| 90937-01311 |
GX90,JZX93,LX90,SX90 3G |
1 | ||
| 90937-01156 |
GX90,JZX93,LX90,SX90 24G,長さ=49.7 |
1 | ||
| 90937-01314 |
GX90,JZX93,LX90,SX90 9G,長さ=18.5 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01149 |
GX90,LX90,SX90 6G,長さ=12.4 |
1 | ||
| 90937-01132 |
GX90,LX90,SX90 10G,長さ=20.7 |
1 | ||
| 90937-01140 |
GX90,LX90,SX90 30G,長さ=62.2 |
1 | ||
| 90937-01152 |
GX90,LX90,SX90 14G,長さ=29.0 |
1 | ||
| 90937-01158 |
GX90,LX90,SX90 28G,長さ=58.1 |
1 | ||
| 90937-01312 |
GX90,LX90,SX90 5G |
1 | ||
| 90937-01148 |
GX90,LX90,SX90 4G,厚さ=2.0 |
1 | ||
| 90937-01157 |
GX90,LX90,SX90 26G,長さ=53.9 |
1 | ||
| 90937-01156 |
GX90,LX90,SX90 24G,長さ=49.7 |
1 | ||
| 90937-01150 |
GX90,LX90,SX90 8G,長さ=16.6 |
1 | ||
| 90937-01313 |
GX90,LX90,SX90 7G,長さ=14.4 |
1 | ||
| 90937-01147 |
GX90,LX90,SX90 2G,厚さ=2.0 |
1 | ||
| 90937-01153 |
GX90,LX90,SX90 16G,長さ=33.2 |
1 | ||
| 90937-01151 |
GX90,LX90,SX90 12G,長さ=24.9 |
1 | ||
| 90937-01154 |
GX90,LX90,SX90 18G,長さ=37.3 |
1 | ||
| 90937-01155 |
GX90,LX90,SX90 22G,長さ=45.6 |
1 | ||
| 90937-01136 |
GX90,LX90,SX90 20G,長さ=41.4 |
1 | ||
| 90937-01311 |
GX90,LX90,SX90 3G |
1 | ||
| 90937-01314 |
GX90,LX90,SX90 9G,長さ=18.5 |
1 | ||
| 90937-01136 |
GX90,JZX93,LX90,SX90 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
GX90,JZX93,LX90,SX90 10G,長さ=20.7 |
1 | ||
| 90937-01148 |
GX90,JZX93,LX90,SX90 4G,厚さ=2.0 |
1 | ||
| 90937-01140 |
GX90,JZX93,LX90,SX90 30G,長さ=62.2 |
1 | ||
| 90937-01147 |
GX90,JZX93,LX90,SX90 2G,厚さ=2.0 |
1 | ||
| 90937-01151 |
GX90,JZX93,LX90,SX90 12G,長さ=24.9 |
1 | ||
| 90937-01150 |
GX90,JZX93,LX90,SX90 8G,長さ=16.6 |
1 | ||
| 90937-01152 |
GX90,JZX93,LX90,SX90 14G,長さ=29.0 |
1 | ||
| 90937-01154 |
GX90,JZX93,LX90,SX90 18G,長さ=37.3 |
1 | ||
| 90937-01149 |
GX90,JZX93,LX90,SX90 6G,長さ=12.4 |
1 | ||
| 90937-01155 |
GX90,JZX93,LX90,SX90 22G,長さ=45.6 |
1 | ||
| 90937-01157 |
GX90,JZX93,LX90,SX90 26G,長さ=53.9 |
1 | ||
| 90937-01153 |
GX90,JZX93,LX90,SX90 16G,長さ=33.2 |
1 | ||
| 90937-01312 |
GX90,JZX93,LX90,SX90 5G |
1 | ||
| 90937-01313 |
GX90,JZX93,LX90,SX90 7G,長さ=14.4 |
1 | ||
| 90937-01158 |
GX90,JZX93,LX90,SX90 28G,長さ=58.1 |
1 | ||
| 90937-01311 |
GX90,JZX93,LX90,SX90 3G |
1 | ||
| 90937-01156 |
GX90,JZX93,LX90,SX90 24G,長さ=49.7 |
1 | ||
| 90937-01314 |
GX90,JZX93,LX90,SX90 9G,長さ=18.5 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-22380 |
GX90,SX90;LX90..ATM |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-08244 |
GX90,SX90;LX90..ATM *8−1.25PX26−13 |
4 | ||
| 90101-08082 |
GX90,SX90;LX90..ATM *8−1.25PX25−12 |
4 | ||
| 90101-08082 |
LX90..ATM;GX90,JZX93,SX90 *8−1.25PX25−12 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-08015 |
LX90..ATM;GX90,JZX93,SX90 |
4 | ||
| 90170-08015 |
GX90,SX90;LX90..ATM |
4 | ||
| 90179-08197 |
GX90,SX90;LX90..ATM |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-00800 |
LX90..ATM;GX90,JZX93,SX90 |
4 | ||
| 94512-00800 |
GX90,SX90;LX90..ATM |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-22770 |
GX90..MTM |
1 | ||
| 37120-22760 |
GX90..ATM |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
GX90,JZX90,91,LX90,SX90 外径=33.5,厚さ=4.0 |
1 | ||
| 90201-18182 |
GX90,JZX9#,LX90,SX90 外径=33.5,厚さ=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 90179-18009 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-22190 |
GX90,JZX90,91 |
1 | ||
| 37230-22190 |
GX90,JZX9# |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-26005 |
GX90,SX90;LX90..ATM |
1 | ||
| 90201-26005 |
GX90,JZX93,LX90,SX90 |
1 | ||
| 90201-26005 |
GX90,LX90,SX90 |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-26005 |
GX90,SX90;LX90..ATM |
1 | ||
| 90201-26005 |
GX90,JZX93,LX90,SX90 |
1 | ||
| 90201-26005 |
GX90,LX90,SX90 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10756 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22013 |
LX90..ATM;GX90,JZX93,SX90 |
1 | ||
| 37304-22013 |
GX90,SX90;LX90..ATM |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
GX90,LX90,SX90 |
1 | ||
