GX81-ATPZR (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1990
Engine 1GGZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )GX81..4FC..SPC,TWC

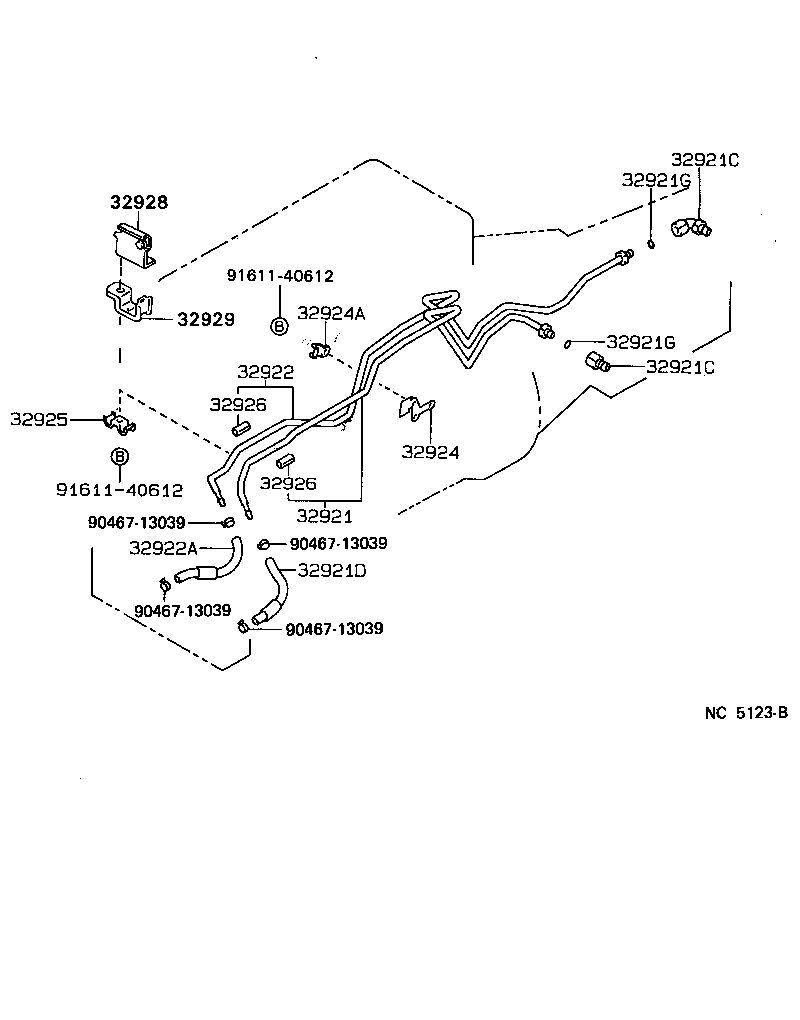

Click highlighted areas on diagram

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32924 32924A 32925 32926 32926 32928 32929 9046713039 9046713039 9046713039 9046713039 9161140612 9161140612
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-22550

GX81..SPC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16020

GX81,MX83..4FC..(SPC,TWC,TWT)

ﾌﾛﾝﾄ

 1
90404-16029

GX81..SPC

ﾅｼ(ESC) OR ﾅｼ(*66),ﾌﾛﾝﾄ

 1
90407-16009

GX81,MX83..4FC..(SPC,TWC,TWT)

ﾘﾔ

 1
90407-16009

GX81..SPC

ﾅｼ(ESC) OR ﾅｼ(*66),ﾘﾔ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16020

GX81,MX83..4FC..(SPC,TWC,TWT)

ﾌﾛﾝﾄ

 1
90404-16029

GX81..SPC

ﾅｼ(ESC) OR ﾅｼ(*66),ﾌﾛﾝﾄ

 1
90407-16009

GX81,MX83..4FC..(SPC,TWC,TWT)

ﾘﾔ

 1
90407-16009

GX81..SPC

ﾅｼ(ESC) OR ﾅｼ(*66),ﾘﾔ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17075

GX81..SPC

 1
90445-17106

GX81..SPC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-22580

GX81..SPC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17103

GX81..SPC

 1
90445-17085

GX81..SPC

 1
32942-22200

GX81..SPC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-30100

GX81..4FC..(SPC,TWC)

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
32929-30120

GX81..4FC..(SPC,TWC)

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

GX81,MX83,YX80..ATM..(LPG,SPC,TWC)

長さ=35,内径=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

GX81,MX83,YX80..ATM..(LPG,SPC,TWC)

長さ=35,内径=10

 2
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-30080

GX81..SPC

 1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-22050

JZX81;GX81..SPC

 1
Common parts
90467-13039
91611-40612
