GX81-ATPVZ (1988)
Toyota Mark 2

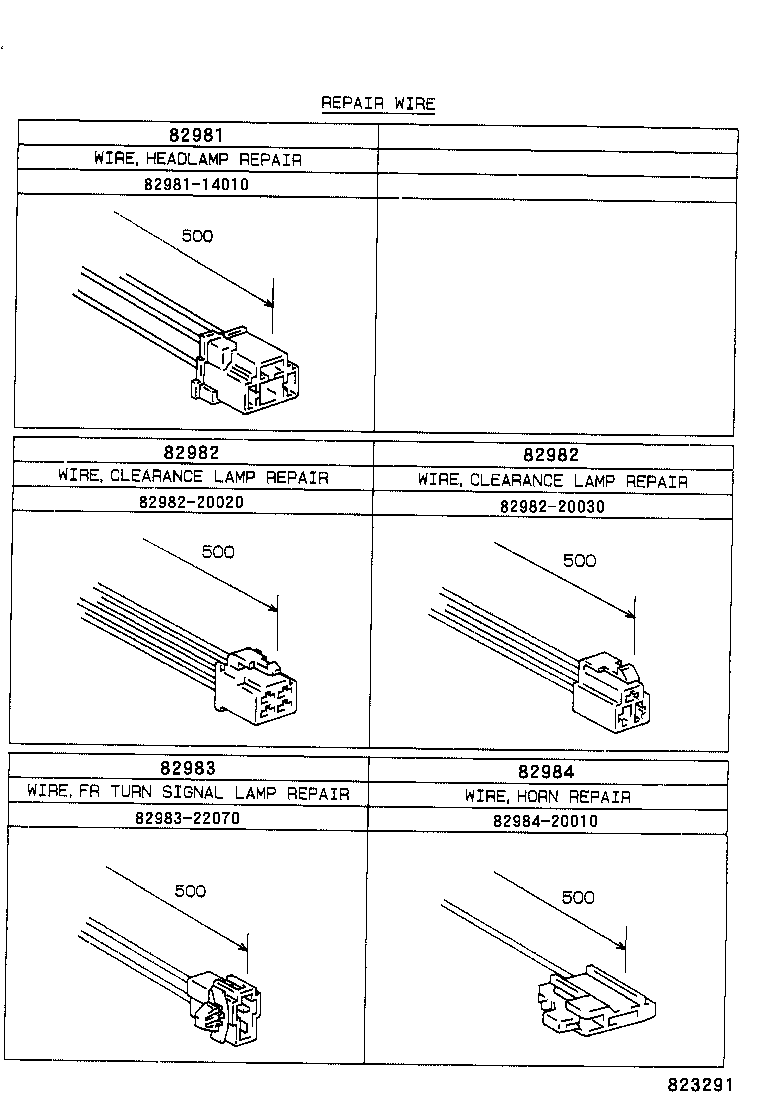

ILLUST NO.11 OF12(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-14010 |
YX80..3FC,5F;GX81,LX80,MX83,SX80 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20030 |
YX80..3FC,5F;GX81,LX80,MX83,SX80 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20030 |
YX80..3FC,5F;GX81,LX80,MX83,SX80 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22070 |
YX80..3FC,5F;GX81,LX80,MX83,SX80 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
YX80..3FC,5F;GX81,LX80,MX83,SX80 |
1 | ||
| Common parts | ||||
| 82981-14010 | ||||
| 82982-20020 | ||||
| 82982-20030 | ||||
| 82983-22070 | ||||
| 82984-20010 | ||||

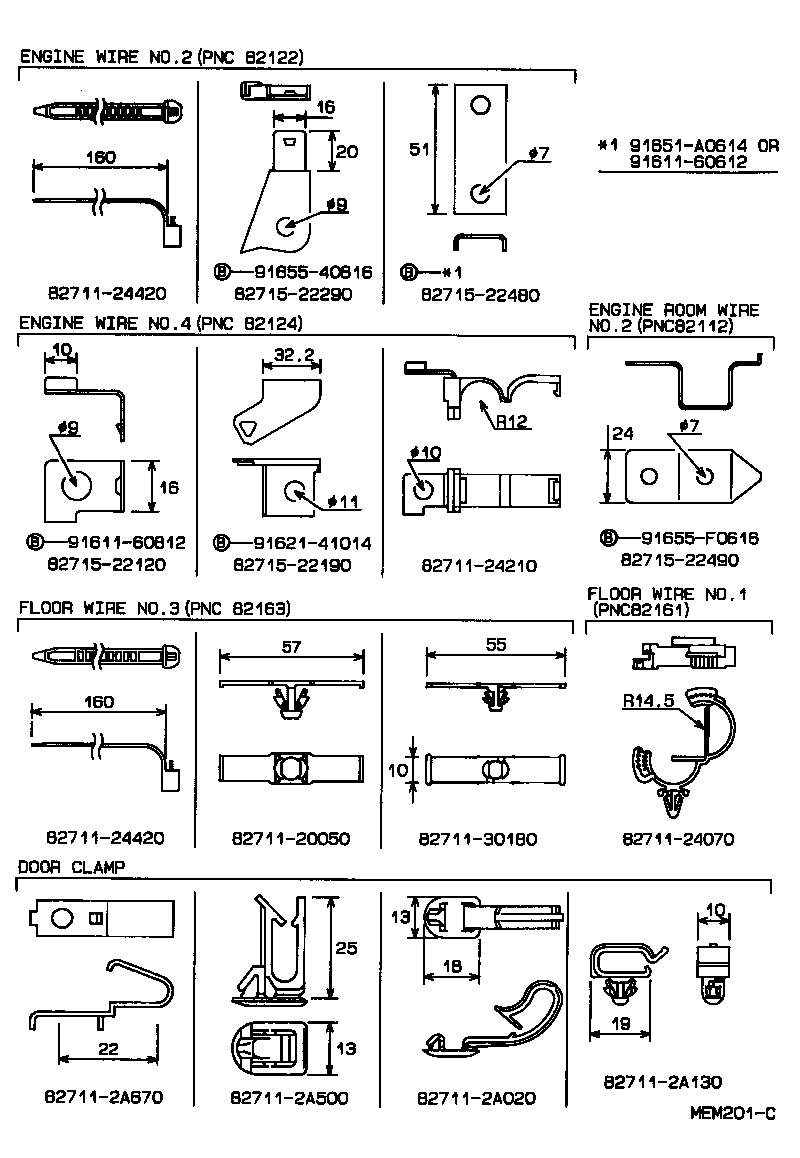

ILLUST NO.10 OF12(8808- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-22090 |
GX81 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-22600 |
GX81..HT..(GD,GT) ｱﾘ(*66) |
1 | ||
| 82161-22590 |
GX81..HT..(GD,GT) ｱﾘ(*66 & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82161-22630 |
GX81..HT..(TWC,TWT) |
1 | ||
| 82161-22610 |
GX81..HT..(GD,GT) ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82161-22620 |
GX81..HT..(GD,GT) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)---ﾉｿﾞｸ(*66,ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82161-22600 |
GX81..HT..(GD,GDG,GT) ｱﾘ(*66) |
1 | ||
| 82161-22610 |
GX81..HT..(GD,GT) ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82161-22590 |
GX81..HT..(GD,GDG,GT) ｱﾘ(*66 & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-22030 |
GX81,MX83..GD,GDG,GT |
1 | ||
| Common parts | ||||
| 82711-20050 | ||||
| 82711-24070 | ||||
| 82711-24210 | ||||
| 82711-24420 | ||||
| 82711-2A020 | ||||
| 82711-2A130 | ||||
| 82711-2A500 | ||||
| 82711-2A670 | ||||
| 82711-30180 | ||||
| 82715-22120 | ||||
| 82715-22190 | ||||
| 82715-22290 | ||||
| 82715-22480 | ||||
| 82715-22490 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91621-41014 | ||||
| 91651-A0614 | ||||
| 91655-40816 | ||||
| 91655-F0616 | ||||

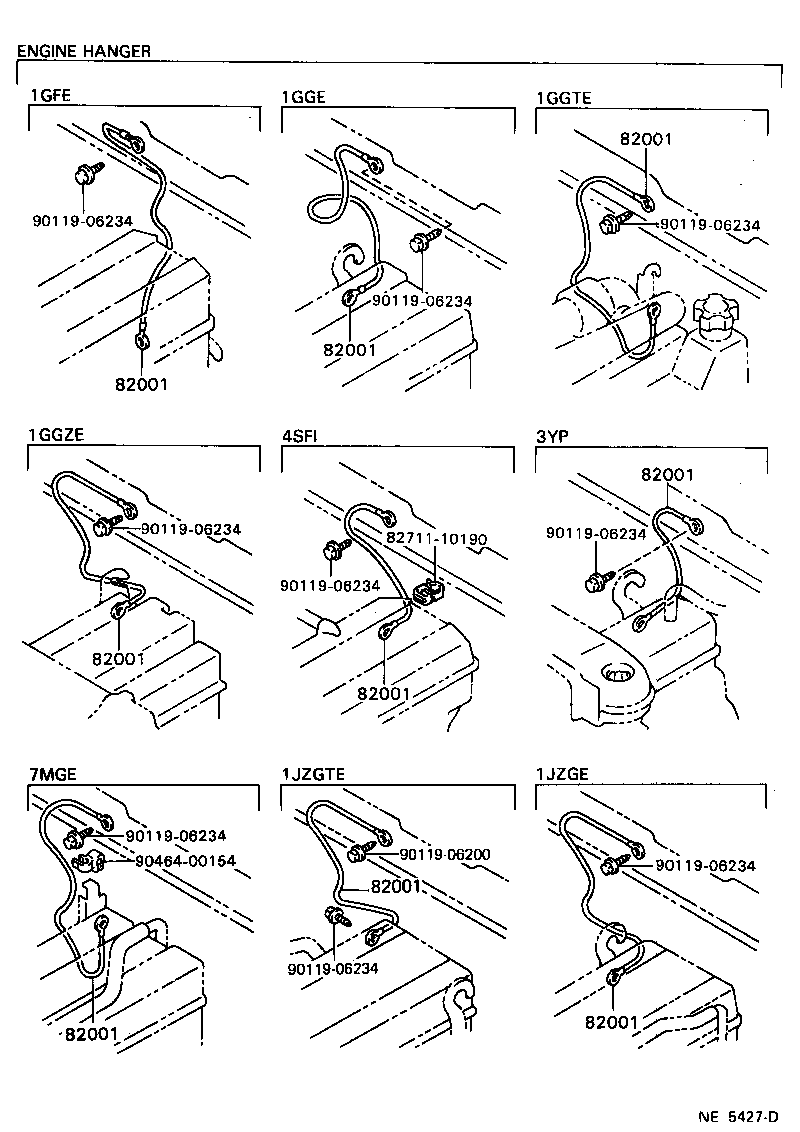

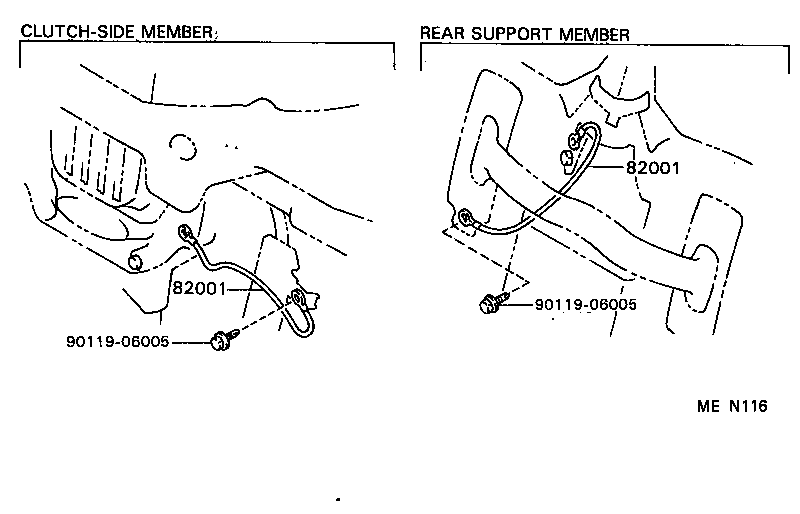

ILLUST NO. 4 OF12(8808- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07156 |
GX81,JZX81,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG C/L SIDE M.RR SUP M. |
2 | ||
| 90980-07290 |
GX81..TWT ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07156 |
GX81,JZX81,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG C/L SIDE M.RR SUP M. |
2 | ||
| 90980-07290 |
GX81..TWT ENGINE HANGER |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||

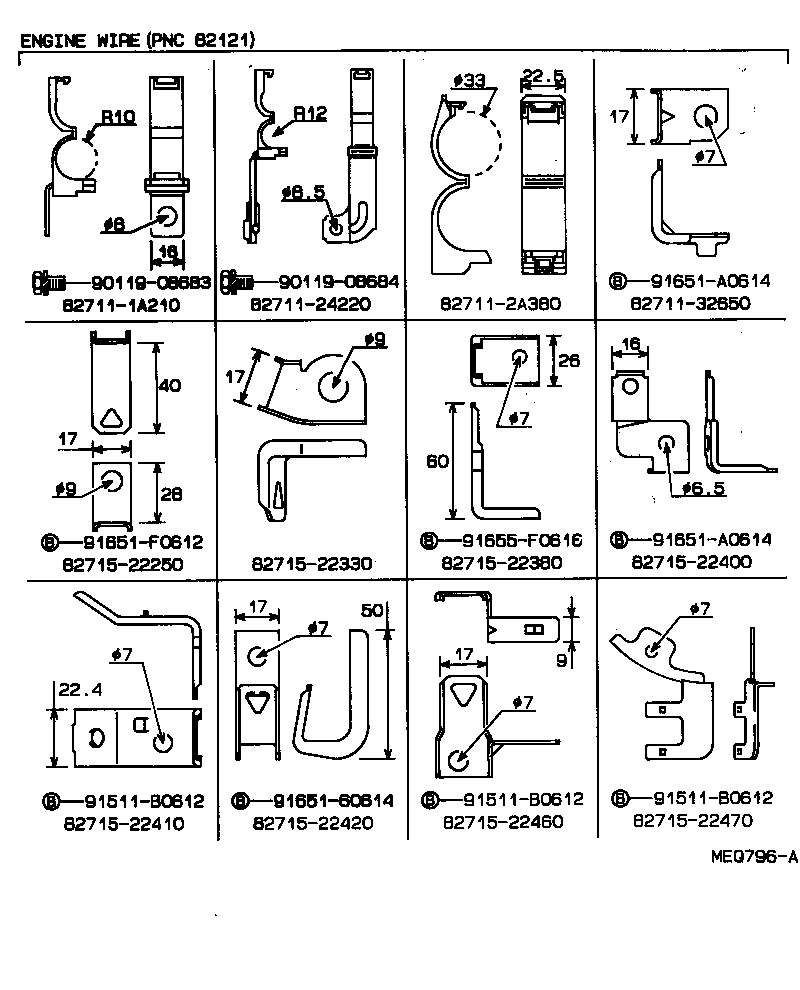

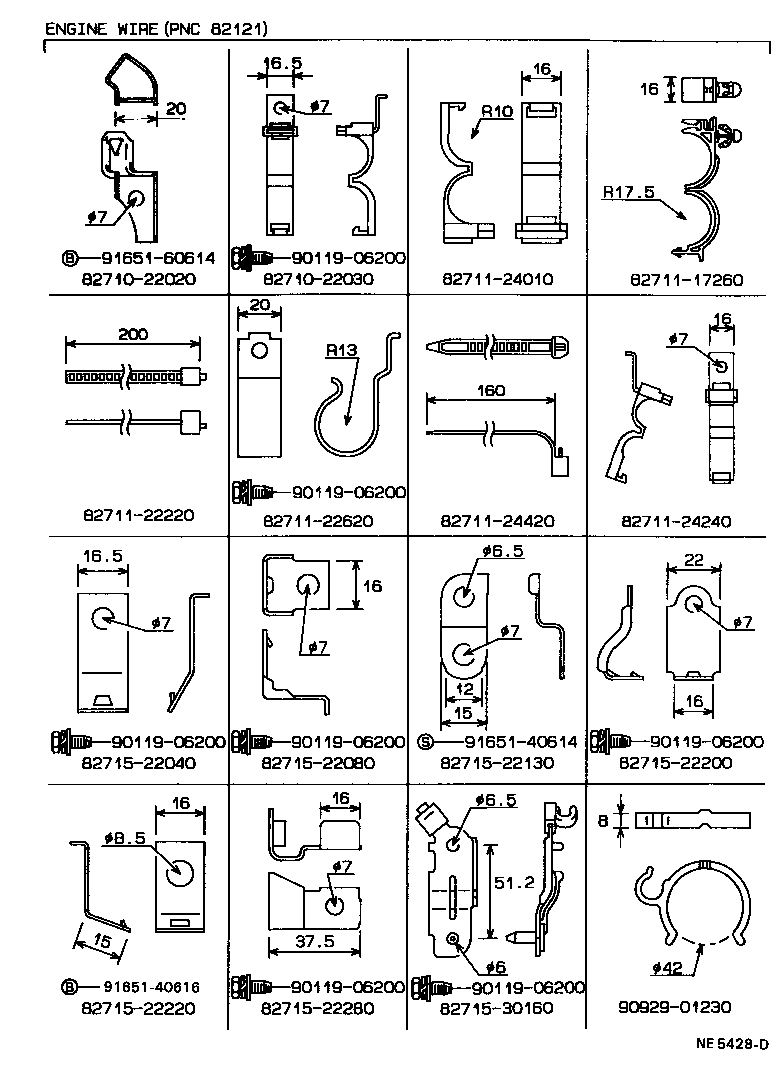

ILLUST NO. 7 OF12(8808- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-22450 |
GX81..4FC..TWT |
1 | ||
| Common parts | ||||
| 82711-1A210 | ||||
| 82711-24220 | ||||
| 82711-2A380 | ||||
| 82711-32650 | ||||
| 82715-22250 | ||||
| 82715-22330 | ||||
| 82715-22380 | ||||
| 82715-22400 | ||||
| 82715-22410 | ||||
| 82715-22420 | ||||
| 82715-22460 | ||||
| 82715-22470 | ||||
| 90119-08683 | ||||
| 90119-08684 | ||||
| 91511-B0612 | ||||
| 91651-60614 | ||||
| 91651-A0614 | ||||
| 91651-F0612 | ||||
| 91655-F0616 | ||||

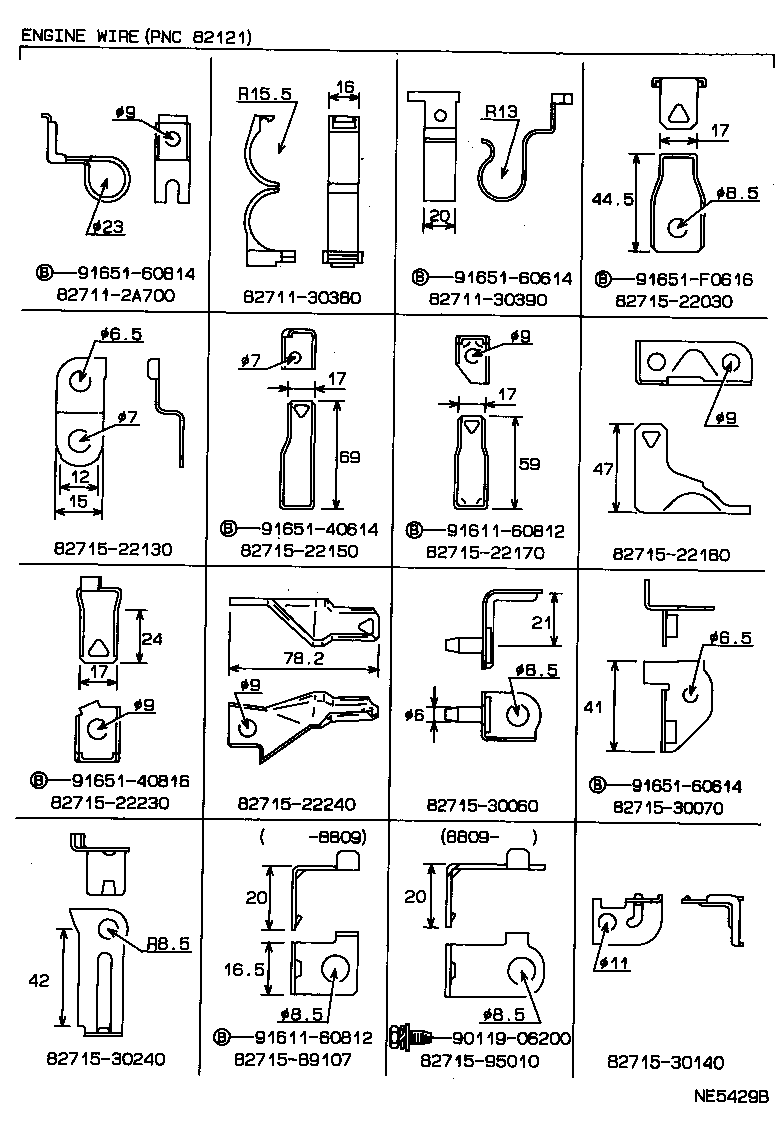

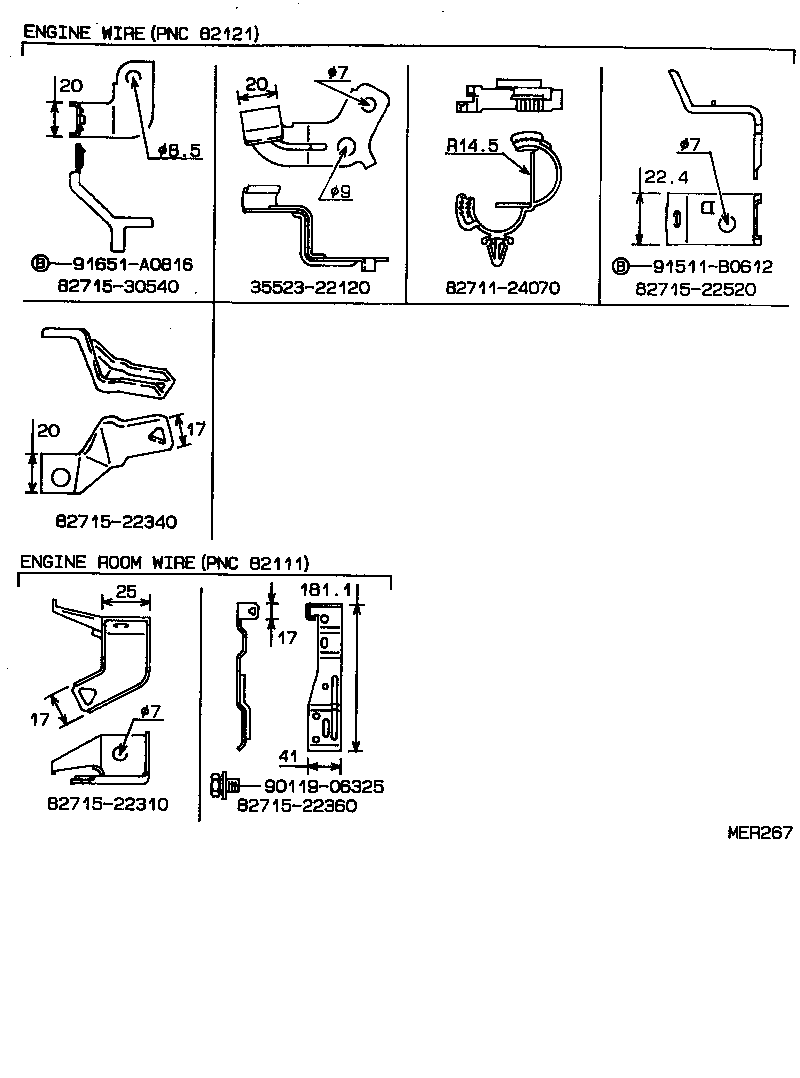

ILLUST NO. 8 OF12(8808- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-22760 |
GX81..4FC..TWT |
1 | ||
| 82111-22850 |
GX81..4FC..TWT ｱﾘ(*66) & ﾅｼ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82111-22851 |
GX81..4FC..TWT ｱﾘ(*66) & ﾅｼ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82111-22761 |
GX81..4FC..TWT |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-22450 |
GX81..4FC..TWT |
1 | ||
| Common parts | ||||
| 35523-22120 | ||||
| 82711-24070 | ||||
| 82715-22310 | ||||
| 82715-22340 | ||||
| 82715-22360 | ||||
| 82715-22520 | ||||
| 82715-30540 | ||||
| 90119-06325 | ||||
| 91511-B0612 | ||||
| 91651-A0816 | ||||

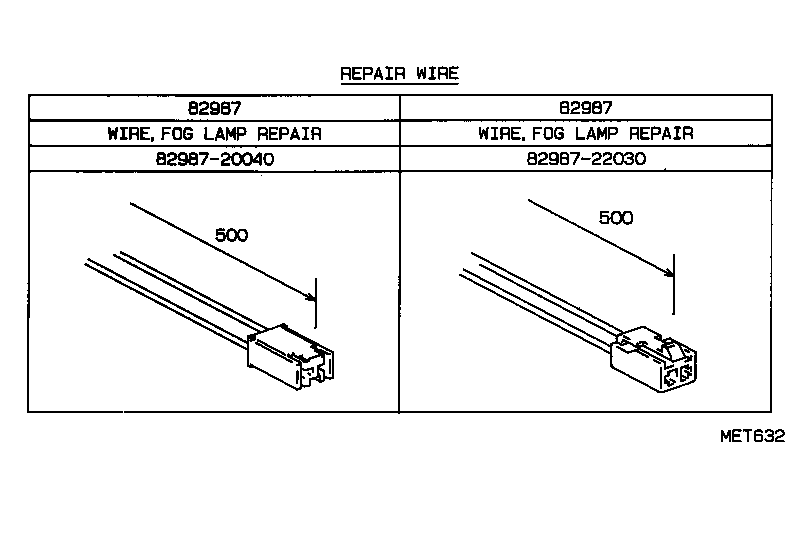

ILLUST NO.12 OF12(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-20040 |
YX80..3FC,5F;GX81,LX80,MX83,SX80 |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-20040 |
YX80..3FC,5F;GX81,LX80,MX83,SX80 |
1 | ||
| Common parts | ||||
| 82987-20040 | ||||
| 82987-22030 | ||||

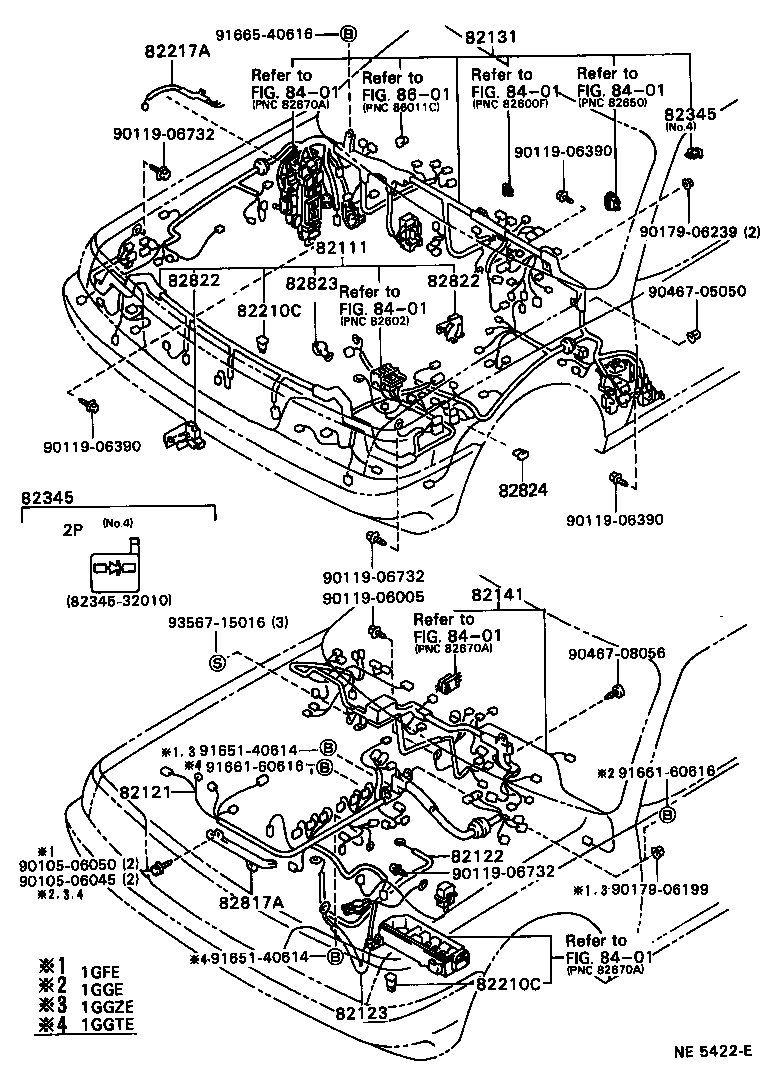

ILLUST NO. 1 OF12(8808- )GX81
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-22760 |
GX81..4FC..TWT |
1 | ||
| 82111-22850 |
GX81..4FC..TWT ｱﾘ(*66) & ﾅｼ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82111-22851 |
GX81..4FC..TWT ｱﾘ(*66) & ﾅｼ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82111-22761 |
GX81..4FC..TWT |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-22450 |
GX81..4FC..TWT |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-22090 |
GX81 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-22070 |
GX81..5F..TWT;JZX81,MX83,SX80,YX80;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-2A690 |
GX81..TWT ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) OR ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-)---ﾉｿﾞｸ(*66) |
1 | ||
| 82131-2A700 |
GX81..TWT |
1 | ||
| 82131-2A680 |
GX81..TWT ｱﾘ(*66) |
1 | ||
| 82131-2A691 |
GX81..TWT ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) OR ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-)---ﾉｿﾞｸ(*66) |
1 | ||
| 82131-2A681 |
GX81..TWT ｱﾘ(*66) |
1 | ||
| 82131-2A701 |
GX81..TWT |
1 | ||
| 82131-2A682 |
GX81..TWT ｱﾘ(*66) |
1 | ||
| 82131-2A702 |
GX81..TWT |
1 | ||
| 82131-2A692 |
GX81..TWT ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) OR ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-)---ﾉｿﾞｸ(*66) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-22360 |
GX81..SPC,TWC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82141-22350 |
GX81..SPC,TWC,TWT |
1 | ||
| 82141-22340 |
GX81..SPC,TWC,TWT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82141-22370 |
GX81..SPC,TWC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 82141-22360 |
GX81..TWC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82141-22370 |
GX81..TWC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 82141-22340 |
GX81..TWC,TWT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82141-22350 |
GX81..TWC,TWT |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
LX80,SX80;GX81..4FC;GX81..5F..TWT 30A,ﾒｽ端子,ﾋﾟﾝｸ,E/G ROOM F/L BLOCK |
1 | ||
| 90982-08189 |
GX81,LX80,SX80 40A,ﾒｽ端子,緑,E/G ROOM J/B |
1 | ||
| 90982-08188 |
GX81,LX80,MX83,SX80 30A,ﾒｽ端子,ﾋﾟﾝｸ,E/G ROOM J/B |
1 | ||
| 90982-08188 |
GX81..4FC;GX81..5F..TWT;LX80,MX83,SX80,YX80 30A,ﾒｽ端子,ﾋﾟﾝｸ,E/G ROOM F/L BLOCK |
1 | ||
| 90982-08202 |
GX81..GD,GT 60A,ｵｽ端子,黄,E/G ROOM F/L BLOCK |
1 | ||
| 90982-08246 |
GX81..4FC;GX81..5F..TWT;LX80,MX83,SX80 100A,ｵｽ端子,青,E/G ROOM F/L BLOCK |
1 | ||
| 90982-08189 |
GX81,MX83,SX80 40A,ﾒｽ端子,緑,E/G ROOM J/B |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
LX80,SX80;GX81..4FC;GX81..5F..TWT 30A,ﾒｽ端子,ﾋﾟﾝｸ,E/G ROOM F/L BLOCK |
1 | ||
| 90982-08189 |
GX81,LX80,SX80 40A,ﾒｽ端子,緑,E/G ROOM J/B |
1 | ||
| 90982-08188 |
GX81,LX80,MX83,SX80 30A,ﾒｽ端子,ﾋﾟﾝｸ,E/G ROOM J/B |
1 | ||
| 90982-08188 |
GX81..4FC;GX81..5F..TWT;LX80,MX83,SX80,YX80 30A,ﾒｽ端子,ﾋﾟﾝｸ,E/G ROOM F/L BLOCK |
1 | ||
| 90982-08202 |
GX81..GD,GT 60A,ｵｽ端子,黄,E/G ROOM F/L BLOCK |
1 | ||
| 90982-08246 |
GX81..4FC;GX81..5F..TWT;LX80,MX83,SX80 100A,ｵｽ端子,青,E/G ROOM F/L BLOCK |
1 | ||
| 90982-08189 |
GX81,MX83,SX80 40A,ﾒｽ端子,緑,E/G ROOM J/B |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
GX81..GD,GDG,GT |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
GX81..GD,GDG,GT |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-22350 |
GX81..TWC,TWT |
1 | ||
| 82822 - BRACKET,CONNECTOR BLOCK | ||||
| 82822-22120 |
GX81,LX80,SX80,YX80 左側 |
1 | ||
| 82822-22130 |
GX81..GD,GT ｱﾘ(*66),右側 |
1 | ||
| 82822-22110 |
GX81,SX80..GD,GDG,GL,GR,GT,LG,STD 右側 |
1 | ||
| 82822-22120 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT 左側 |
1 | ||
| 82822-22110 |
GX81,SX80..GD,GL,GR,GT,LG,STD 右側 |
1 | ||
| 82822 - BRACKET,CONNECTOR BLOCK | ||||
| 82822-22120 |
GX81,LX80,SX80,YX80 左側 |
1 | ||
| 82822-22130 |
GX81..GD,GT ｱﾘ(*66),右側 |
1 | ||
| 82822-22110 |
GX81,SX80..GD,GDG,GL,GR,GT,LG,STD 右側 |
1 | ||
| 82822-22120 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT 左側 |
1 | ||
| 82822-22110 |
GX81,SX80..GD,GL,GR,GT,LG,STD 右側 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22080 |
GX81..4FC;GX81..5F..TWT;LX80,MX83,SX80 |
1 | ||
| Common parts | ||||
| 82345-32010 | ||||
| 90105-06045 | ||||
| 90105-06050 | ||||
| 90119-06005 | ||||
| 90119-06390 | ||||
| 90119-06732 | ||||
| 90179-06199 | ||||
| 90179-06239 | ||||
| 90467-05050 | ||||
| 90467-08056 | ||||
| 91651-40614 | ||||
| 91661-60616 | ||||
| 91665-40616 | ||||
| 93567-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

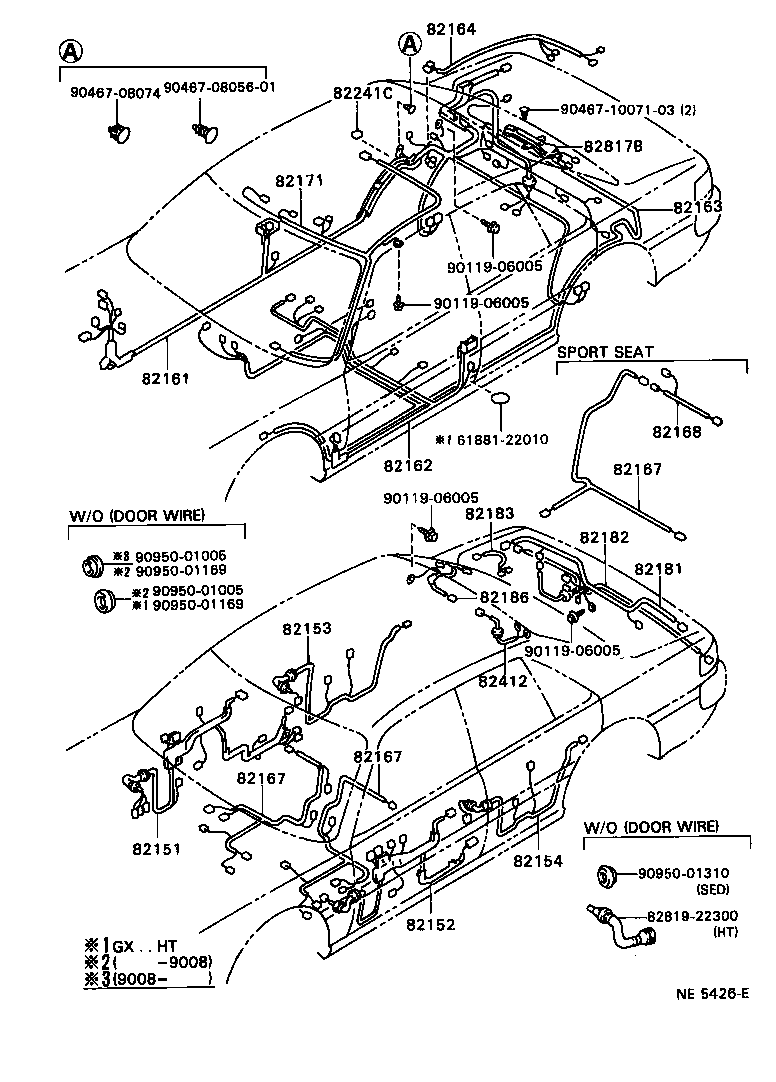

ILLUST NO. 2 OF12(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-22300 |
GX81,MX83..HT..(SPC,TWC,TWT) |
1 | ||
| 82151-22290 |
GX81,MX83..HT..(SPC,TWC,TWT) ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-22260 |
GX81,MX83..HT..(SPC,TWC,TWT) ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) |
1 | ||
| 82152-22270 |
GX81,MX83..HT..(SPC,TWC,TWT) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-22080 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-22050 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-22600 |
GX81..HT..(GD,GT) ｱﾘ(*66) |
1 | ||
| 82161-22590 |
GX81..HT..(GD,GT) ｱﾘ(*66 & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82161-22630 |
GX81..HT..(TWC,TWT) |
1 | ||
| 82161-22610 |
GX81..HT..(GD,GT) ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82161-22620 |
GX81..HT..(GD,GT) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)---ﾉｿﾞｸ(*66,ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82161-22600 |
GX81..HT..(GD,GDG,GT) ｱﾘ(*66) |
1 | ||
| 82161-22610 |
GX81..HT..(GD,GT) ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82161-22590 |
GX81..HT..(GD,GDG,GT) ｱﾘ(*66 & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-22380 |
GX81..HT..(TWC,TWT) |
1 | ||
| 82162-22380 |
GX81..HT..(SPC,TWC,TWT) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-22030 |
GX81,MX83..GD,GDG,GT |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-22070 |
GX81..TWT 右側 |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-22070 |
GX81..TWT 右側 |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-22070 |
GX81..TWT 右側 |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-22010 |
GX81,JZX81..TWT |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-22240 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82171-22340 |
GX81,MX83..HT..(SPC,TWC,TWT) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-22170 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82181-22120 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-22010 |
GX81,JZX81,MX83..GD,GDG,GT |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-22600 |
GX81,LX80,MX83,SX80 |
1 | ||
| Common parts | ||||
| 61881-22010 | ||||
| 82819-22300 | ||||
| 90119-06005 | ||||
| 90467-0805601 | ||||
| 90467-08074 | ||||
| 90467-1007103 | ||||
| 90950-01005 | ||||
| 90950-01169 | ||||
| 90950-01310 | ||||
ILLUST NO. 3 OF12(8808- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07156 |
GX81,JZX81,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG C/L SIDE M.RR SUP M. |
2 | ||
| 90980-07290 |
GX81..TWT ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07156 |
GX81,JZX81,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG C/L SIDE M.RR SUP M. |
2 | ||
| 90980-07290 |
GX81..TWT ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07156 |
GX81,JZX81,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG C/L SIDE M.RR SUP M. |
2 | ||
| 90980-07290 |
GX81..TWT ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07156 |
GX81,JZX81,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG C/L SIDE M.RR SUP M. |
2 | ||
| 90980-07290 |
GX81..TWT ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07156 |
GX81,JZX81,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG C/L SIDE M.RR SUP M. |
2 | ||
| 90980-07290 |
GX81..TWT ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07156 |
GX81,JZX81,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG C/L SIDE M.RR SUP M. |
2 | ||
| 90980-07290 |
GX81..TWT ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07156 |
GX81,JZX81,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG C/L SIDE M.RR SUP M. |
2 | ||
| 90980-07290 |
GX81..TWT ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07156 |
GX81,JZX81,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG C/L SIDE M.RR SUP M. |
2 | ||
| 90980-07290 |
GX81..TWT ENGINE HANGER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07156 |
GX81,JZX81,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG C/L SIDE M.RR SUP M. |
2 | ||
| 90980-07290 |
GX81..TWT ENGINE HANGER |
1 | ||
| Common parts | ||||
| 82711-10190 | ||||
| 90119-06200 | ||||
| 90119-06234 | ||||
| 90464-00154 | ||||
ILLUST NO. 5 OF12(8808- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-22450 |
GX81..4FC..TWT |
1 | ||
| Common parts | ||||
| 82710-22020 | ||||
| 82710-22030 | ||||
| 82711-17260 | ||||
| 82711-22220 | ||||
| 82711-22620 | ||||
| 82711-24010 | ||||
| 82711-24240 | ||||
| 82711-24420 | ||||
| 82715-22040 | ||||
| 82715-22080 | ||||
| 82715-22130 | ||||
| 82715-22200 | ||||
| 82715-22220 | ||||
| 82715-22280 | ||||
| 82715-30160 | ||||
| 90119-06200 | ||||
| 90929-01230 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||
ILLUST NO. 6 OF12(8808- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2A700 | ||||
| 82711-30380 | ||||
| 82711-30390 | ||||
| 82715-22030 | ||||
| 82715-22130 | ||||
| 82715-22150 | ||||
| 82715-22170 | ||||
| 82715-22180 | ||||
| 82715-22230 | ||||
| 82715-22240 | ||||
| 82715-30060 | ||||
| 82715-30070 | ||||
| 82715-30140 | ||||
| 82715-30240 | ||||
| 82715-89107 | ||||
| 82715-95010 | ||||
| 90119-06200 | ||||
| 91611-60812 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91651-60814 | ||||
| 91651-F0616 | ||||

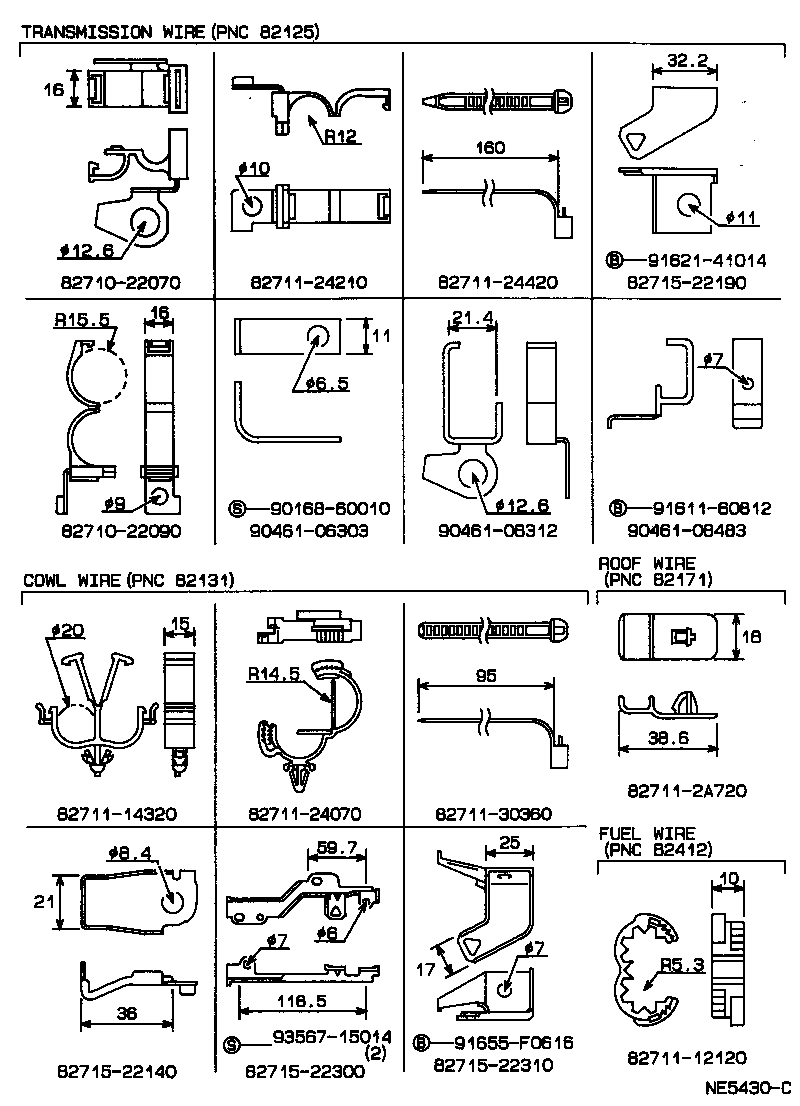

ILLUST NO. 9 OF12(8808- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-2A690 |
GX81..TWT ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) OR ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-)---ﾉｿﾞｸ(*66) |
1 | ||
| 82131-2A700 |
GX81..TWT |
1 | ||
| 82131-2A680 |
GX81..TWT ｱﾘ(*66) |
1 | ||
| 82131-2A691 |
GX81..TWT ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) OR ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-)---ﾉｿﾞｸ(*66) |
1 | ||
| 82131-2A681 |
GX81..TWT ｱﾘ(*66) |
1 | ||
| 82131-2A701 |
GX81..TWT |
1 | ||
| 82131-2A682 |
GX81..TWT ｱﾘ(*66) |
1 | ||
| 82131-2A702 |
GX81..TWT |
1 | ||
| 82131-2A692 |
GX81..TWT ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) OR ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-)---ﾉｿﾞｸ(*66) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-22240 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82171-22340 |
GX81,MX83..HT..(SPC,TWC,TWT) |
1 | ||
| Common parts | ||||
| 82710-22070 | ||||
| 82710-22090 | ||||
| 82711-12120 | ||||
| 82711-14320 | ||||
| 82711-24070 | ||||
| 82711-24210 | ||||
| 82711-24420 | ||||
| 82711-2A720 | ||||
| 82711-30360 | ||||
| 82715-22140 | ||||
| 82715-22190 | ||||
| 82715-22300 | ||||
| 82715-22310 | ||||
| 90168-60010 | ||||
| 90461-06303 | ||||
| 90461-08312 | ||||
| 90461-08483 | ||||
| 91611-60812 | ||||
| 91621-41014 | ||||
| 91655-F0616 | ||||
| 93567-15014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
