GX81-ATPVZ (1988)
Toyota Mark 2
Production
Aug 1988
-
Aug 1990
Engine
1GGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

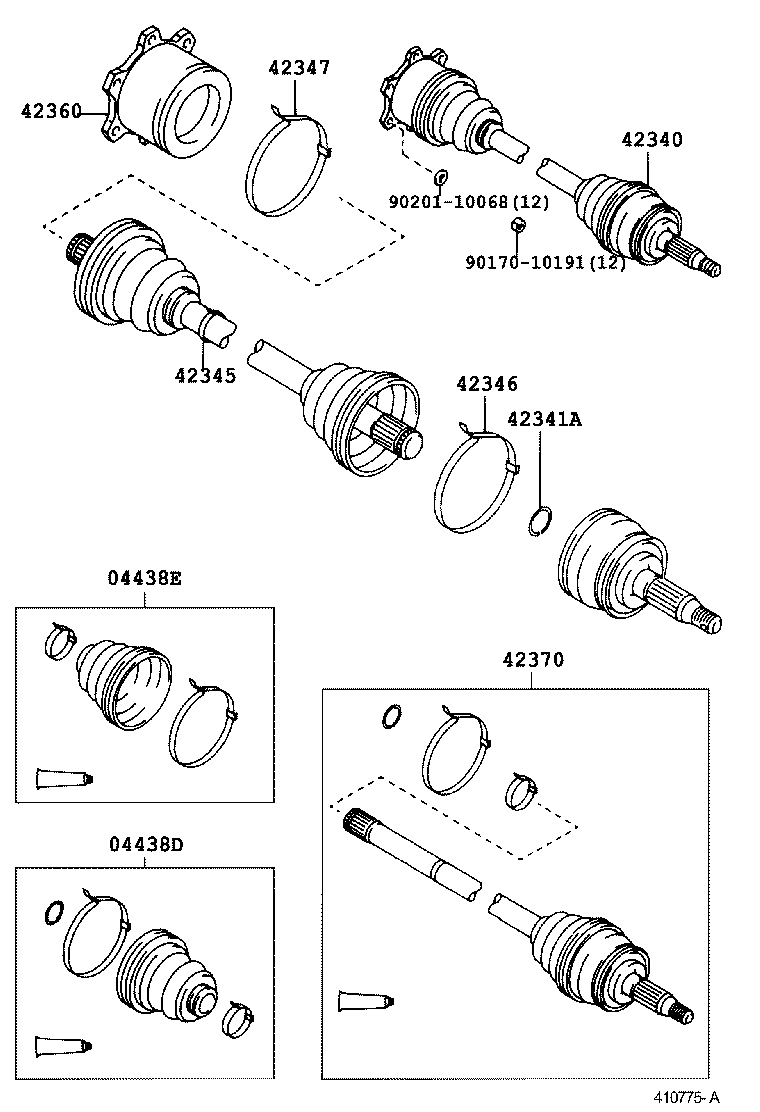

ILLUST NO. 1 OF 2(8808- )4FC..TWC ; (8808- )GX81..HTWC,SPC,TWT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT | ||||
| 04437-22110 |
GX81..SPC,TWT |
2 | ||
| 04438E - BOOT KIT, REAR DRIVE SHAFT OUTBOARD JOINT | ||||
| 04437-30030 |
GX81..SPC,TWT |
2 | ||
| 42340 - SHAFT ASSY, REAR DRIVE | ||||
| 42340-22040 |
GX81..SPC,TWT |
2 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-29028 |
GX81..SPC,TWT 内側 |
2 | ||
| 90521-34005 |
GX81..SPC,TWT 外側 |
2 | ||
| 42345 - CLAMP, REAR DRIVE SHAFT BOOT | ||||
| 90949-01221 |
GX81..SPC,TWT |
2 | ||
| 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 90949-01290 |
GX81..SPC,TWT |
2 | ||
| 42347 - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 90949-01222 |
GX81..SPC,TWT |
2 | ||
| 42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD | ||||
| 42360-22030 |
GX81..SPC,TWT |
2 | ||
| 42370 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT | ||||
| 42370-19035 |
GX81..SPC,TWT |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90201-10068 | ||||
ILLUST NO. 2 OF 2(8808- )GX81,JZX81,MX83
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-22120 |
GX81,MX83 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-63001 |
GX81,MX83 |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90369-43005 |
GX81,JZX81,MX83 |
2 | ||
| 42311D - RING, SNAP (FOR REAR AXLE SHAFT) | ||||
| 90521-85002 |
GX81,MX83 |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90311-57001 |
GX81,MX83 |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-24007 |
GX81,JZX81,MX83 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-22010 |
GX81,JZX81,MX83 |
2 | ||
| 42431 - DISC, REAR | ||||
| 42431-22090 |
GX81..SPC,TWC,TWT |
2 | ||
| 42451 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 | ||||
| 42451-14010 |
GX81,MX83 |
2 | ||
| 42452 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.2 | ||||
| 42452-14010 |
GX81..HTWC,SPC,TWT;GX81,MX83..4FC..TWC |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
GX81,JZX81,MX83 |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02049 |
GX81,MX83 |
10 | ||
| Common parts | ||||
| 90252-04004 | ||||
