GX81-ATPQK (1988)
Toyota Mark 2
(8808- )ATM..CI,HTWC,LPG,TD
A41,A42D,A42DL,A43D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-24020 |
JZX81..TWC;GX81..4FC..(TWC,TWT) 歯数=6 |
1 | ||
| 33481-26011 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35074 - GEAR SUB-ASSY, REAR PLANETARY RING | ||||
| 35074-30010 |
YX80..3FC;GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35074A - RING, SET (FOR REAR PLANETARY RING GEAR) | ||||
| 90522-20037 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON | ||||
| 35789-22050 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR | ||||
| 35789-22020 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-28014 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM) | ||||
| 90360-06004 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) 厚さ=1.50,外径=33.8 |
1 | ||
| 90520-28009 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) 厚さ=1.50,外径=33.8 |
2 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) 厚さ=1.50,外径=33.8 |
1 | ||
| 90520-28009 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) 厚さ=1.50,外径=33.8 |
2 | ||
| 35704B - GEAR SUB-ASSY, FRONT PLANETARY | ||||
| 35704-22030 |
GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35708 - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-30031 |
GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
3 | ||
| 35735-30020 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
3 | ||
| 35735-30020 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
3 | ||
| 35735-30020 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-30030 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35737-22010 |
YX80..3FC;GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-22010 |
YX80..3FC;GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35739-30030 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-22011 |
GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35739-14010 |
GX81..4FC..GD..HTWC ｱﾘ(*66) |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-22010 |
GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90520-99121 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL | ||||
| 35748-30010 |
GX81,LX80,SX80..4FC..(CI,HTWC,TD) |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-30020 |
YX80..3FC;GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35705-30010 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35770 - SHAFT ASSY, OUTPUT | ||||
| 35770-22040 |
GX81..4FC..GD..HTWC ｱﾘ(*66) |
1 | ||
| 35770-14020 |
YX80..3FC;GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) | ||||
| 90374-38013 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) | ||||
| 35789-22040 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-30042 |
GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35792-30011 |
GX81..4FC..GD..HTWC ｱﾘ(*66) |
1 | ||
| 35792-20010 |
GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-87001 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 90521-79148 |
YX80..3FC;GX81,LX80,SX80..4FC..(CI,HTWC,TD) |
1 | ||

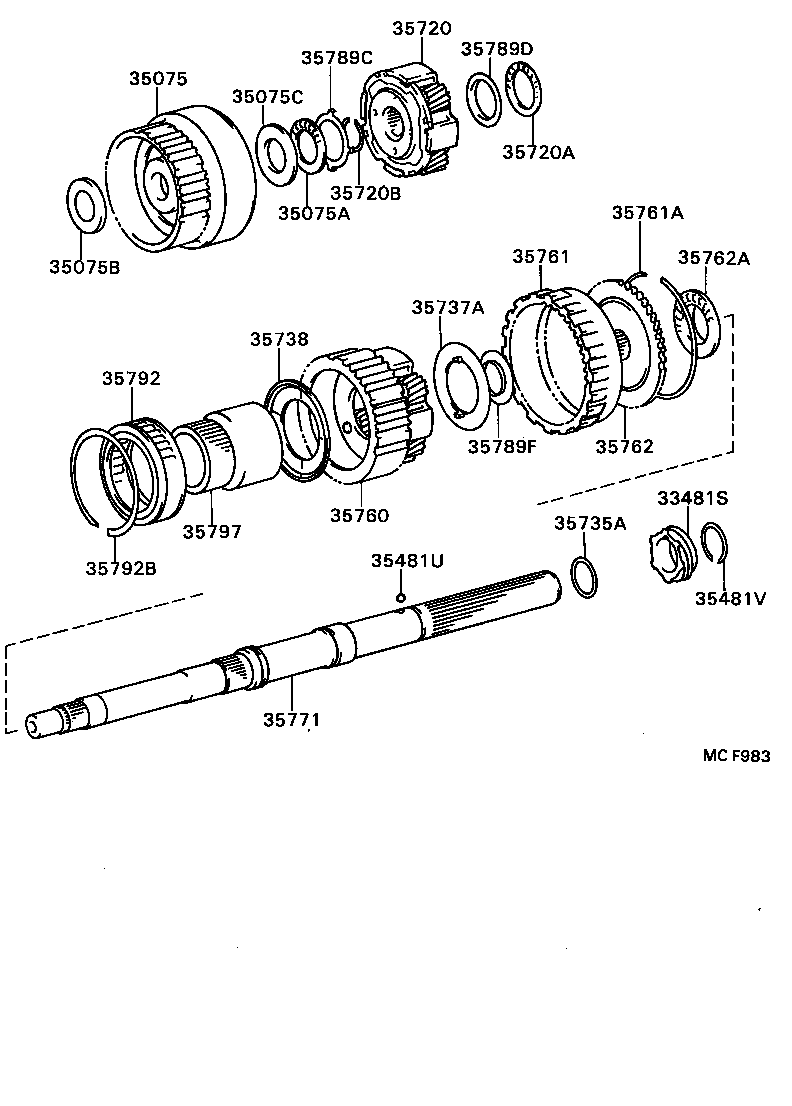

(8808- )GX81..4FC..SPC,TWC,TWT ; (8908- )MX83 ; (9008- )JZX81
A340E,A341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-24020 |
JZX81..TWC;GX81..4FC..(TWC,TWT) 歯数=6 |
1 | ||
| 33481-26011 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35075 - GEAR SUB-ASSY, FRONT PLANETARY RING | ||||
| 35075-30011 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35075A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING | ||||
| 90374-32004 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35075B - RACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRO | ||||
| 35789-30120 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35075C - RACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR RR) | ||||
| 35789-30080 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM) | ||||
| 90360-06004 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) 厚さ=1.50,外径=33.8 |
1 | ||
| 90520-28009 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) 厚さ=1.50,外径=33.8 |
2 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-30080 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90374-35001 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR) | ||||
| 90520-24026 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
3 | ||
| 35735-30020 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-30030 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35737-22010 |
YX80..3FC;GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-22010 |
YX80..3FC;GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35739-30030 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-30020 |
YX80..3FC;GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35705-30010 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-30020 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR) | ||||
| 90521-99024 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35762 - FLANGE, REAR PLANETARY RING GEAR | ||||
| 35762-30040 |
GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-39001 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35771 - SHAFT, OUTPUT | ||||
| 35771-30040 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT) | ||||
| 35789-30130 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35789D - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR) | ||||
| 35789-30100 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35789F - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE) | ||||
| 35789-30160 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-30042 |
GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35792-30011 |
GX81..4FC..GD..HTWC ｱﾘ(*66) |
1 | ||
| 35792-20010 |
GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-87001 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 90521-79148 |
YX80..3FC;GX81,LX80,SX80..4FC..(CI,HTWC,TD) |
1 | ||
| 35797 - RACE, 1 WAY CLUTCH INNER | ||||
| 35797-30031 |
GX81..4FC..(SPC,TWC,TWT) |
1 | ||
