GX81-ATPQK (1988)
Toyota Mark 2

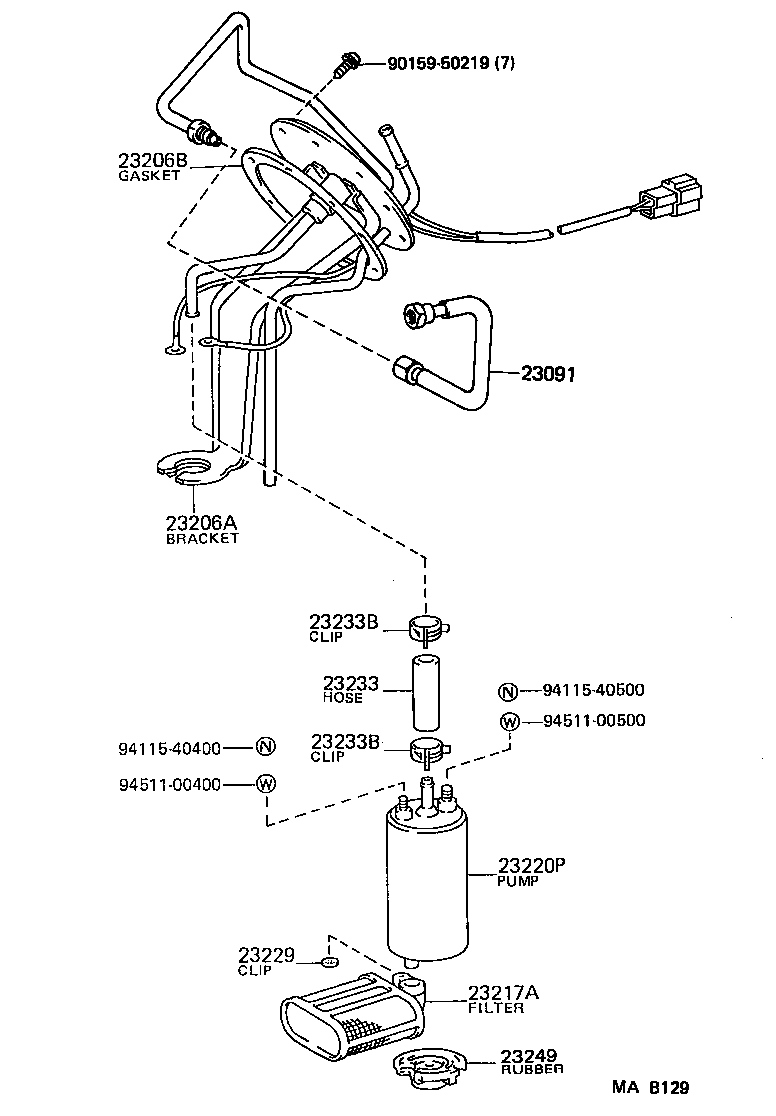

ILLUST NO. 3 OF 3(8808- )1GFE,1GG#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-70040 |
1GFE,1GG#..GX81 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-42100 |
1GFE,1GGE..GX81 |
1 | ||
| 23206-46050 |
1G#..GX81 |
1 | ||
| 23206-70320 |
1GFE,1GGE,1GGTE..GX81 |
1 | ||
| 23206-70380 |
1GFE,1GGE..GX81 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
1GFE,1GGE,1GGZE..GX81 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16030 |
1GFE,1GGE..GX81 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23217-46010 |
1G#..GX81 |
1 | ||
| 23217-16030 |
1GFE,1GG#..GX81 NIPPONDENSO |
1 | ||
| 23217-16043 |
1GFE,1GG#..GX81 AISAN |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16084 |
1GFE,1GGE..GX81 AISAN |
1 | ||
| 23220-43070 |
1GFE,1GGE..GX81 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23220-43070 |
1GFE..GX81 NIPPONDENSO |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1GFE,1GG#..GX81 |
2 | ||
| 23229-16010 |
1GFE,1GGE..GX81 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
1GFE,1GGTE..GX81 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
1GFE,1GG#..GX81 |
2 | ||
| 90467-13001 |
1GFE,1GGE..GX81 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
1GFE,1GG#..GX81 |
2 | ||
| 90467-13001 |
1GFE,1GGE..GX81 ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
1GFE,1GGTE..GX81 |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||

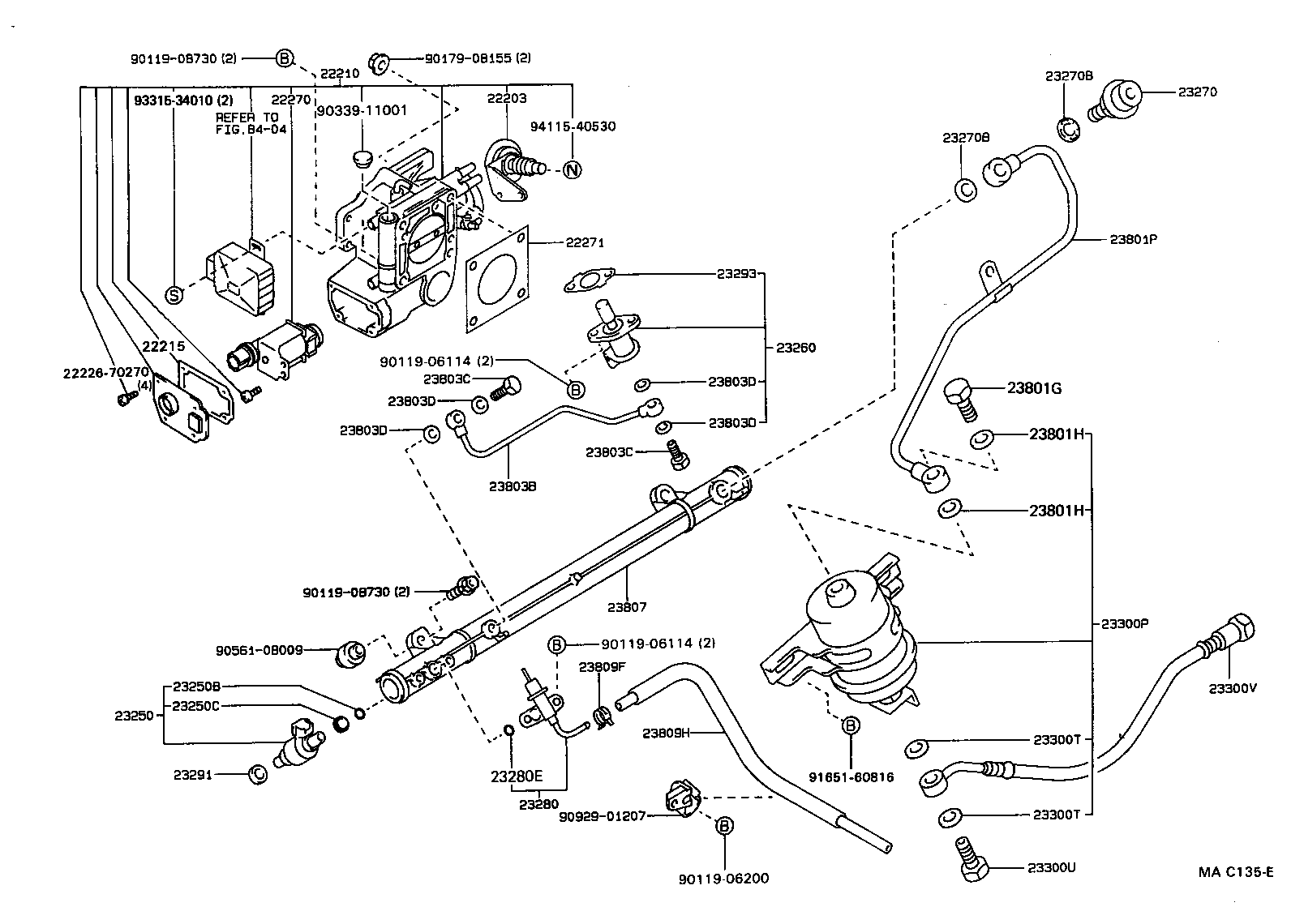

ILLUST NO. 1 OF 3(8808-9008)1GFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-70080 |
1GFE..GX81 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-70270 |
1GFE..GX81..4FC |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-70270 |
1GFE..GX81 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 17630-70030 |
1GFE..GX81 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-70020 |
1GFE..GX81 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-70070 |
1GFE..GX81 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1GFE,1GG#..GX81 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1GFE,1GG#..GX81 |
6 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-79146 |
1GFE..GX81 |
1 | ||
| 23260-79145 |
1GFE..GX81 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-28030 |
1GFE,1GGTE..GX81 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12005 |
1GFE,1GG#..GX81 DERIVERY PIPE SIDE |
1 | ||
| 90430-12005 |
1GFE,1GGE..GX81 DELIVERY PIPE SIDE |
1 | ||
| 23232-28010 |
1GFE,1GG#..GX81 DAMPER SIDE |
1 | ||
| 90430-12005 |
1GFE,1GGE,1GGZE..GX81 DELIVERY PIPE SIDE |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12005 |
1GFE,1GG#..GX81 DERIVERY PIPE SIDE |
1 | ||
| 90430-12005 |
1GFE,1GGE..GX81 DELIVERY PIPE SIDE |
1 | ||
| 23232-28010 |
1GFE,1GG#..GX81 DAMPER SIDE |
1 | ||
| 90430-12005 |
1GFE,1GGE,1GGZE..GX81 DELIVERY PIPE SIDE |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-70070 |
1GFE..GX81 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
1GFE..GX81 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
1GFE,1GG#..GX81 |
6 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-70020 |
1GFE..GX81 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79145 |
1GFE..GX81 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GFE,1GG#..GX81 |
2 | ||
| 90430-12026 |
1G#..GX81 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GFE,1GG#..GX81 |
2 | ||
| 90430-12026 |
1G#..GX81 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1GFE,1GG#..GX81 |
1 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01328 |
1GFE,1GG#..GX81 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12097 |
1GFE,1GG#..GX81 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
1GFE,1GGE,1GGZE..GX81 *53 |
2 | ||
| 90430-12005 |
1GFE,1GG#..GX81 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
1GFE,1GGE,1GGZE..GX81 *53 |
2 | ||
| 90430-12005 |
1GFE,1GG#..GX81 |
2 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-70060 |
1GFE..GX81 |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-70050 |
1GFE..GX81 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08006 |
1GFE,1GG#..GX81 |
2 | ||
| 90401-08003 |
1GFE,1GG#..GX81 |
2 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08006 |
1GFE,1GG#..GX81 |
2 | ||
| 90401-08003 |
1GFE,1GG#..GX81 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GFE,1GG#..GX81 |
4 | ||
| 90430-08012 |
1GFE,1GGE,1GGZE..GX81 *53 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GFE,1GG#..GX81 |
4 | ||
| 90430-08012 |
1GFE,1GGE,1GGZE..GX81 *53 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GFE,1GG#..GX81 |
4 | ||
| 90430-08012 |
1GFE,1GGE,1GGZE..GX81 *53 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1GFE,1GG#..GX81 |
4 | ||
| 90430-08012 |
1GFE,1GGE,1GGZE..GX81 *53 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-70040 |
1GFE..GX81 |
1 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13051 |
1GFE,1GG#..GX81 |
1 | ||
| 23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR | ||||
| 90447-15025 |
1GFE..GX81 |
1 | ||
| Common parts | ||||
| 22226-70270 | ||||
| 90119-06114 | ||||
| 90119-06200 | ||||
| 90119-08730 | ||||
| 90179-08155 | ||||
| 90339-11001 | ||||
| 90561-08009 | ||||
| 90929-01207 | ||||
| 91651-60816 | ||||
| 93315-34010 | ||||
| 94115-40530 | ||||
| Linked diagrams | ||||
| 8404 | ||||

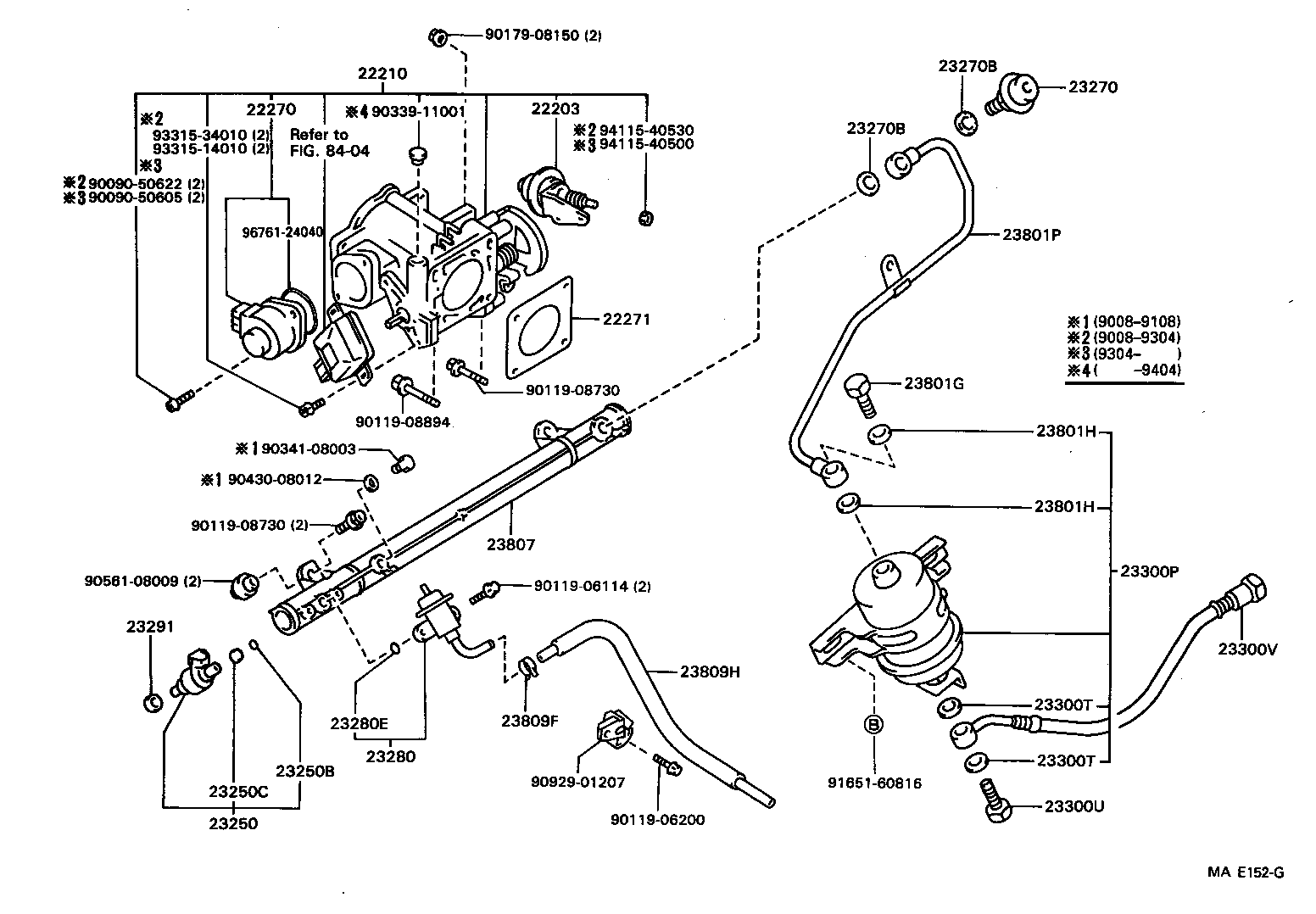

ILLUST NO. 1 OF 3(9008- )1GFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-70080 |
1GFE..GX81 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-70270 |
1GFE..GX81..4FC |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 17630-70030 |
1GFE..GX81 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-70020 |
1GFE..GX81 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-70070 |
1GFE..GX81 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1GFE,1GG#..GX81 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1GFE,1GG#..GX81 |
6 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-28030 |
1GFE,1GGTE..GX81 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12005 |
1GFE,1GG#..GX81 DERIVERY PIPE SIDE |
1 | ||
| 90430-12005 |
1GFE,1GGE..GX81 DELIVERY PIPE SIDE |
1 | ||
| 23232-28010 |
1GFE,1GG#..GX81 DAMPER SIDE |
1 | ||
| 90430-12005 |
1GFE,1GGE,1GGZE..GX81 DELIVERY PIPE SIDE |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12005 |
1GFE,1GG#..GX81 DERIVERY PIPE SIDE |
1 | ||
| 90430-12005 |
1GFE,1GGE..GX81 DELIVERY PIPE SIDE |
1 | ||
| 23232-28010 |
1GFE,1GG#..GX81 DAMPER SIDE |
1 | ||
| 90430-12005 |
1GFE,1GGE,1GGZE..GX81 DELIVERY PIPE SIDE |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-70070 |
1GFE..GX81 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
1GFE..GX81 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
1GFE,1GG#..GX81 |
6 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79145 |
1GFE..GX81 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GFE,1GG#..GX81 |
2 | ||
| 90430-12026 |
1G#..GX81 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1GFE,1GG#..GX81 |
2 | ||
| 90430-12026 |
1G#..GX81 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1GFE,1GG#..GX81 |
1 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01328 |
1GFE,1GG#..GX81 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12097 |
1GFE,1GG#..GX81 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
1GFE,1GGE,1GGZE..GX81 *53 |
2 | ||
| 90430-12005 |
1GFE,1GG#..GX81 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
1GFE,1GGE,1GGZE..GX81 *53 |
2 | ||
| 90430-12005 |
1GFE,1GG#..GX81 |
2 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-70060 |
1GFE..GX81 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-70040 |
1GFE..GX81 |
1 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13051 |
1GFE,1GG#..GX81 |
1 | ||
| 23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR | ||||
| 90447-15025 |
1GFE..GX81 |
1 | ||
| Common parts | ||||
| 90090-50605 | ||||
| 90090-50622 | ||||
| 90119-06114 | ||||
| 90119-06200 | ||||
| 90119-08730 | ||||
| 90119-08894 | ||||
| 90179-08150 | ||||
| 90339-11001 | ||||
| 90341-08003 | ||||
| 90430-08012 | ||||
| 90561-08009 | ||||
| 90929-01207 | ||||
| 91651-60816 | ||||
| 93315-14010 | ||||
| 93315-34010 | ||||
| 94115-40500 | ||||
| 94115-40530 | ||||
| 96761-24040 | ||||
| Linked diagrams | ||||
| 8404 | ||||
