GX81-ATPQK (1988)

Toyota Mark 2

Production Aug 1988 - Oct 1992
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )1GFE

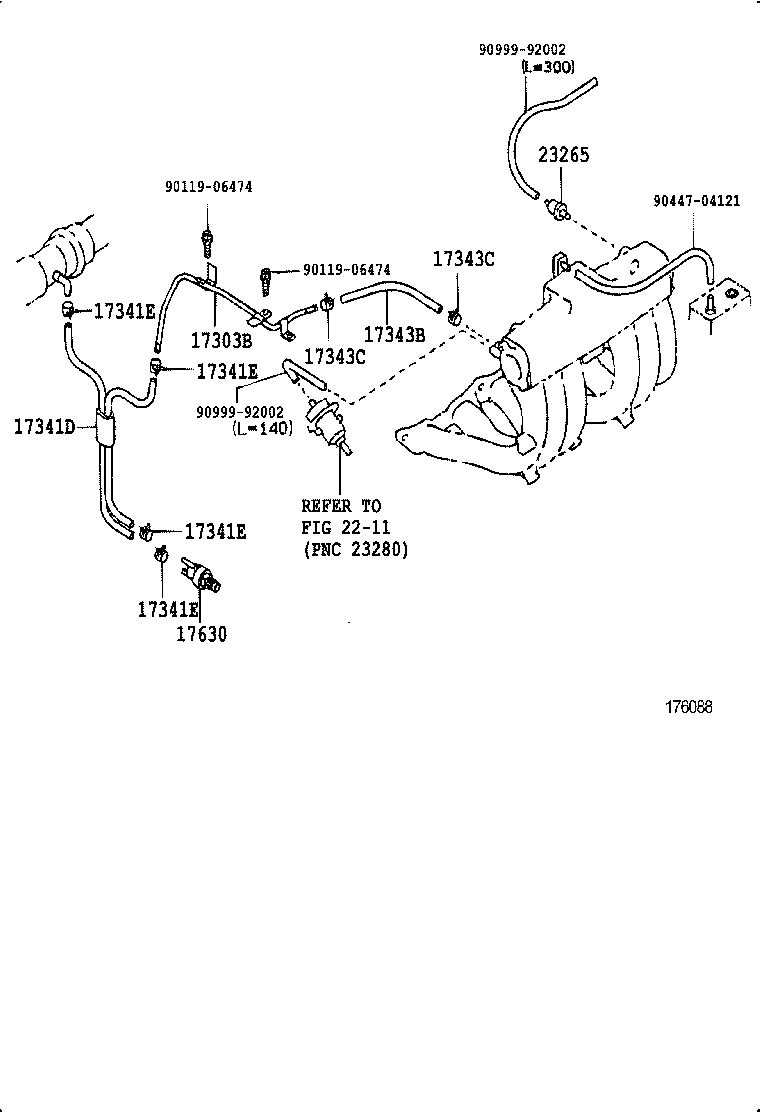

Click highlighted areas on diagram

diagram 17303B 17341D 17341E 17341E 17341E 17341E 17343B 17343C 17343C 17630 2211 23265 9011906474 9011906474 9044704121 9099992002 9099992002
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-70050

1GFE..GX81

 1
17303-70051

1GFE..GX81

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-70170

1GFE..GX81

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

1GFE,1GG#..GX81

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

1GFE,1GG#..GX81

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

1GFE,1GG#..GX81

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

1GFE,1GG#..GX81

 4
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-70050

1GFE..GX81

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10106

1GFE,1GG#..GX81

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10106

1GFE,1GG#..GX81

 2
17630 - VALVE ASSY, AIR CONTROL
17630-70010

1GFE..GX81

 1
23265 - FILTER, GAS, NO.1
90917-11031

1GFE,1GGE..GX81

*53 & (8905-9302)*54

 1
Common parts
90119-06474
90447-04121
90999-92002
Linked diagrams
2211

(8808- )1GFE,1GG#

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008
