Toyota Mark 2 GX81 SPEAKER - JDM Part Detective

Part #	Description	Period	Qty

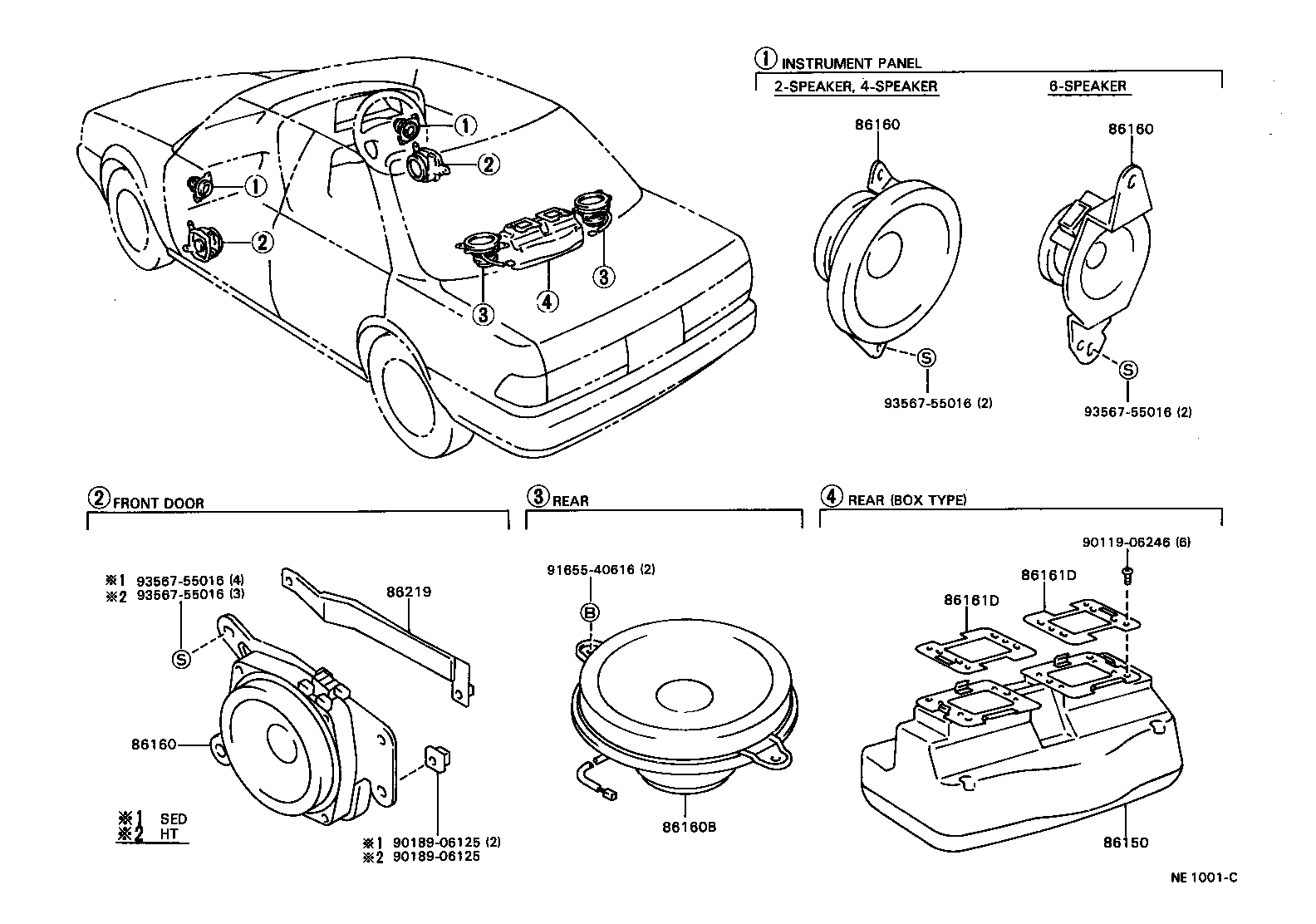

86150 - SPEAKER ASSY, W/BOX, NO.1
86150-22020	GX81,JZX81,MX83..HT..(GD,GDG,GT)	08/1990 - 10/1992	1
86160 - SPEAKER ASSY, FRONT NO.1
86160-22510	GX81,MX83..HT..(SPC,TWC,TWT) DOOR,RH	08/1988 - 08/1990	1
86160-22520	GX81,MX83..HT..(SPC,TWC,TWT) DOOR,LH	08/1988 - 08/1990	1
86160-22501	GX81,JZX81,MX83..HT..(TWC,TWT)	08/1990 - 10/1992	2
86160-22511	GX81,JZX81,MX83..HT..(TWC,TWT) DOOR,RH	08/1990 - 10/1992	1
86160-22500	GX81,MX83..HT..(SPC,TWC,TWT) INSTRUMENT PANEL	08/1988 - 08/1990	2
86160-22521	GX81,JZX81,MX83..HT..(TWC,TWT) DOOR,LH	08/1990 - 10/1992	1
86160-22520	GX81..HT..GD ﾂｲﾝｶﾑ2.4ﾘﾐﾃﾂﾄﾞ,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,ﾄﾞｱｽﾋﾟ-ｶ,左側	10/1989 - 12/2999	1
86160-22510	GX81..HT..GD ﾂｲﾝｶﾑ2.4ﾘﾐﾃﾂﾄﾞ,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,ﾄﾞｱｽﾋﾟ-ｶ,右側	10/1989 - 12/2999	1
86160-22500	GX81..HT..GD ﾂｲﾝｶﾑ2.4ﾘﾐﾃﾂﾄﾞ,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ	10/1989 - 12/2999	1
86160 - SPEAKER ASSY, FRONT NO.1
86160-22510	GX81,MX83..HT..(SPC,TWC,TWT) DOOR,RH	08/1988 - 08/1990	1
86160-22520	GX81,MX83..HT..(SPC,TWC,TWT) DOOR,LH	08/1988 - 08/1990	1
86160-22501	GX81,JZX81,MX83..HT..(TWC,TWT)	08/1990 - 10/1992	2
86160-22511	GX81,JZX81,MX83..HT..(TWC,TWT) DOOR,RH	08/1990 - 10/1992	1
86160-22500	GX81,MX83..HT..(SPC,TWC,TWT) INSTRUMENT PANEL	08/1988 - 08/1990	2
86160-22521	GX81,JZX81,MX83..HT..(TWC,TWT) DOOR,LH	08/1990 - 10/1992	1
86160-22520	GX81..HT..GD ﾂｲﾝｶﾑ2.4ﾘﾐﾃﾂﾄﾞ,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,ﾄﾞｱｽﾋﾟ-ｶ,左側	10/1989 - 12/2999	1
86160-22510	GX81..HT..GD ﾂｲﾝｶﾑ2.4ﾘﾐﾃﾂﾄﾞ,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,ﾄﾞｱｽﾋﾟ-ｶ,右側	10/1989 - 12/2999	1
86160-22500	GX81..HT..GD ﾂｲﾝｶﾑ2.4ﾘﾐﾃﾂﾄﾞ,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ	10/1989 - 12/2999	1
86160 - SPEAKER ASSY, FRONT NO.1
86160-22510	GX81,MX83..HT..(SPC,TWC,TWT) DOOR,RH	08/1988 - 08/1990	1
86160-22520	GX81,MX83..HT..(SPC,TWC,TWT) DOOR,LH	08/1988 - 08/1990	1
86160-22501	GX81,JZX81,MX83..HT..(TWC,TWT)	08/1990 - 10/1992	2
86160-22511	GX81,JZX81,MX83..HT..(TWC,TWT) DOOR,RH	08/1990 - 10/1992	1
86160-22500	GX81,MX83..HT..(SPC,TWC,TWT) INSTRUMENT PANEL	08/1988 - 08/1990	2
86160-22521	GX81,JZX81,MX83..HT..(TWC,TWT) DOOR,LH	08/1990 - 10/1992	1
86160-22520	GX81..HT..GD ﾂｲﾝｶﾑ2.4ﾘﾐﾃﾂﾄﾞ,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,ﾄﾞｱｽﾋﾟ-ｶ,左側	10/1989 - 12/2999	1
86160-22510	GX81..HT..GD ﾂｲﾝｶﾑ2.4ﾘﾐﾃﾂﾄﾞ,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,ﾄﾞｱｽﾋﾟ-ｶ,右側	10/1989 - 12/2999	1
86160-22500	GX81..HT..GD ﾂｲﾝｶﾑ2.4ﾘﾐﾃﾂﾄﾞ,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ	10/1989 - 12/2999	1
86160B - SPEAKER ASSY, REAR
86160-22530	GX81,JZX81,MX83..HT..(SPC,TWC,TWT)	08/1988 - 10/1992	2
86160-22530	GX81..HT..GD ﾂｲﾝｶﾑ2.4ﾘﾐﾃﾂﾄﾞ,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ	10/1989 - 12/2999	1
86219 - BRACKET, STEREO COMPONENT SPEAKER, NO.1
86219-22040	GX81,MX83..HT..(GD,GDG,GT) 左側	08/1988 - 10/1989	1
86219-22030	GX81,MX83..HT..(SPC,TWC,TWT) 右側	10/1989 - 08/1990	1
86219-22030	GX81,JZX81,MX83..HT..(GD,GDG,GT) 右側	08/1990 - 10/1992	1
86219-22040	GX81,JZX81,MX83..HT..(GD,GDG,GT) 左側	08/1990 - 10/1992	1
86219-22030	GX81,MX83..HT..(GD,GDG,GT) 右側	08/1988 - 10/1989	1
86219-22040	GX81,MX83..HT..(SPC,TWC,TWT) 左側	10/1989 - 08/1990	1
Common parts
90119-06246
90189-06125
91655-40616
93567-55016

GX81-ATPQF (1988)

(8808- )
