GX81-ATPQF (1988)

Toyota Mark 2

Production Aug 1988 - Oct 1992
Engine 1GGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9302)1GGE,1GGTE

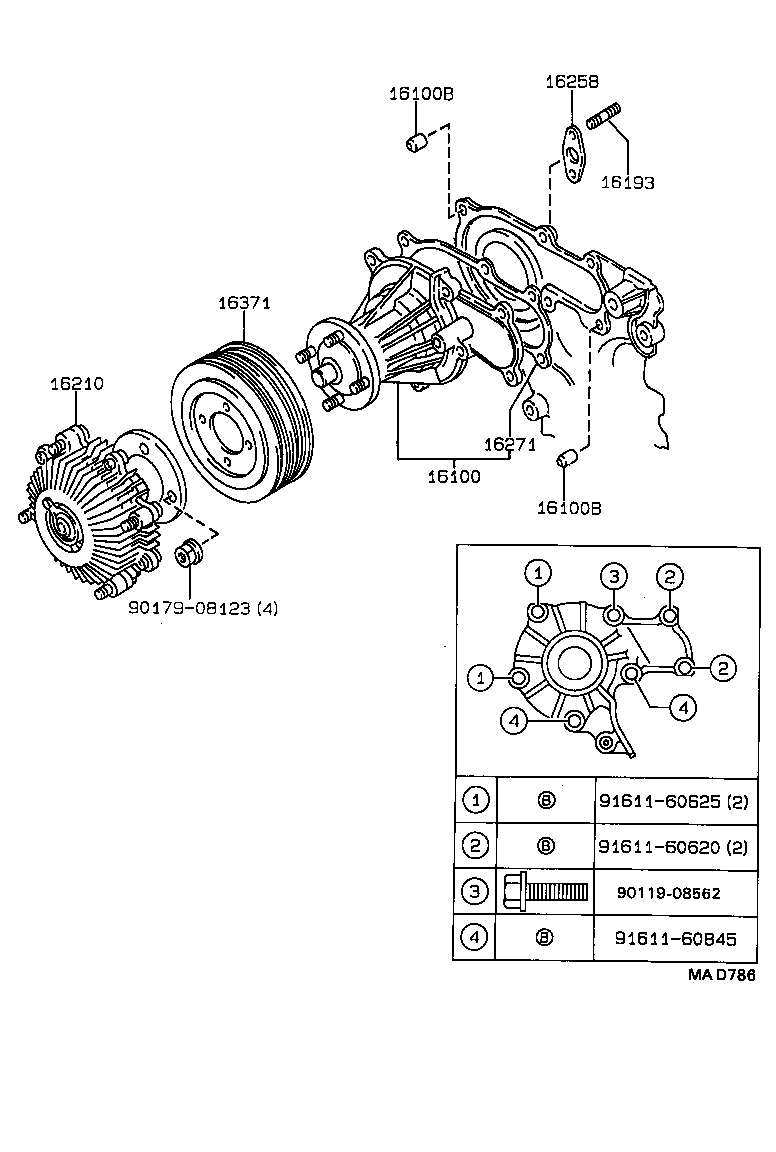

Click highlighted areas on diagram

diagram 16100 16100B 16100B 16193 16210 16258 16271 16371 9011908562 9017908123 9161160620 9161160625 9161160845
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79025

1GGE..GX81

 1
16100B - PIN, RING(FOR WATER PUMP SET)
16185-70010

1GGE,1GGTE..GX81

 2
16100B - PIN, RING(FOR WATER PUMP SET)
16185-70010

1GGE,1GGTE..GX81

 2
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16192-70010

1GFE,1GGE,1GGTE..GX81

 2
16210 - COUPLING ASSY, FLUID
16210-88300

1GGE..GX81

 1
16258 - GASKET(FOR HEATER RETURN)
16258-15011

1GGE..GX81

*54

 1
16258-74020

1GGE..GX81

*54

 1
16258-15011

1GGE..GX81

*53

 1
16258-70010

1GGE..GX81

*53

 1
16258-15011

1G#..GX81

*54

 1
16271 - GASKET, WATER PUMP
16124-88300

1GFE,1GGE,1GGTE..GX81

 1
16371 - PULLEY, FAN
16371-88301

1GGE,1GGTE..GX81

 1
Common parts
90119-08562
90179-08123
91611-60620
91611-60625
91611-60845
