GX81-ATPGK (1988)

Toyota Mark 2

Production Aug 1988 - Oct 1992
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)HTWC

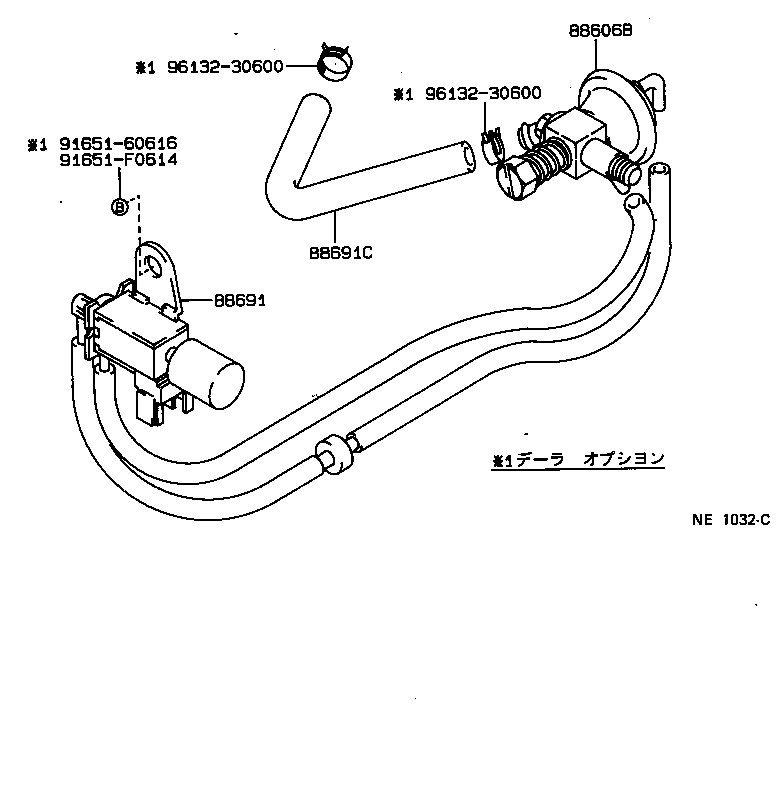

Click highlighted areas on diagram

diagram 88606B 88691 88691C 9165160616 91651F0614 9613230600 9613230600
Part # Description Qty Price
88606B - DIAPHRAGM SUB-ASSY, COOLER
88606-22070

GX81..HTWC

 1
88606-22070

GX81..LG

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22490

GX81..LG

 1
88690-22490

GX81..HTWC

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
88689-22170

GX81..LG

 1
88689-22170

GX81..HTWC

 1
Common parts
91651-60616
91651-F0614
96132-30600
