GX81-ATPGK (1988)
Toyota Mark 2

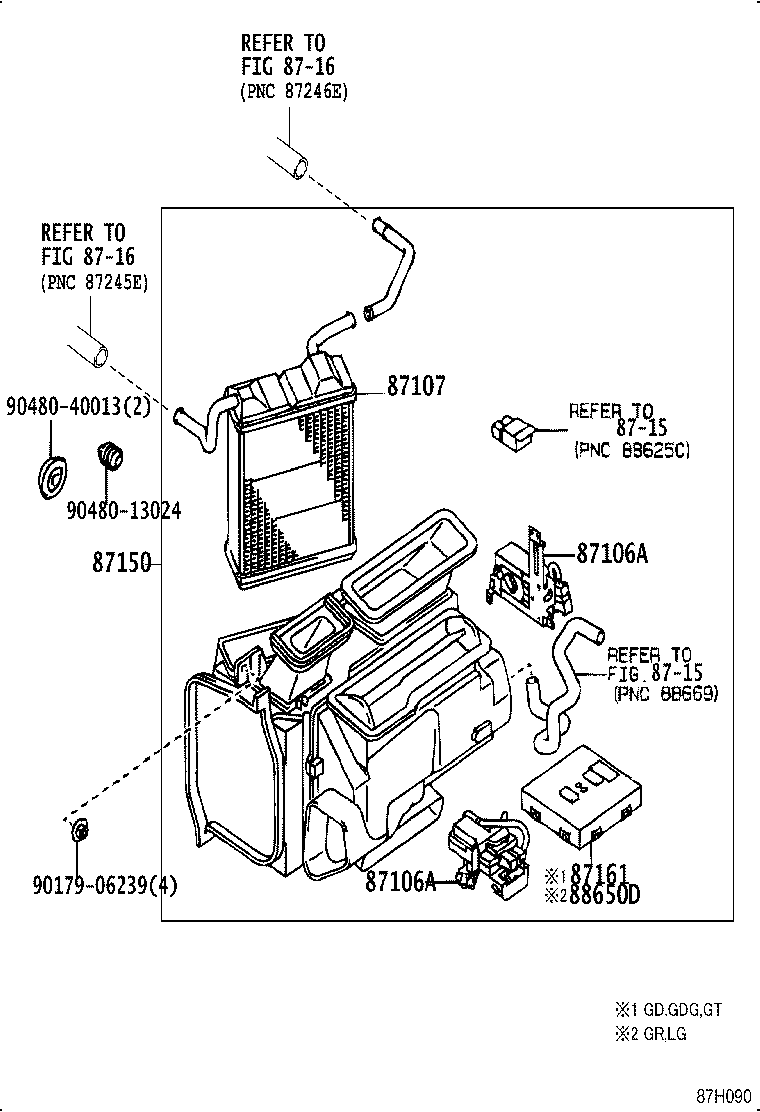

ILLUST NO. 2 OF 3(8808-9008)GD,GDG,GT ; (9008- )GX81,JZX81,MX83,SX80..GD,GDG,GR,GT,LG
ﾋ-ﾀﾗｼﾞｴ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-22020 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG MODE CONTROL |
1 | ||
| 87106-22010 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG AIR INLET CONTROL |
1 | ||
| 87106-22090 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG AIR INLET CONTROL |
1 | ||
| 87106-22070 |
GX81,LX80,SX80..GR,LG ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),AIR MIX CONTROL |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-22020 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG MODE CONTROL |
1 | ||
| 87106-22010 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG AIR INLET CONTROL |
1 | ||
| 87106-22090 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG AIR INLET CONTROL |
1 | ||
| 87106-22070 |
GX81,LX80,SX80..GR,LG ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),AIR MIX CONTROL |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-22170 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG,STD |
1 | ||
| 87107-22230 |
GX81..HTWC,SPC,TWC |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-22600 |
GX81..LG |
1 | ||
| 88650D - AMPLIFIER ASSY | ||||
| 88650-22240 |
GX81,LX80,SX80..GR,LG |
1 | ||
| Common parts | ||||
| 90179-06239 | ||||
| 90480-13024 | ||||
| 90480-40013 | ||||
| Linked diagrams | ||||
| 8715 | ||||
| 8716 | ||||
ILLUST NO. 3 OF 3(8808-9008)GR,LG
ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 88899-22210 |
GX81,LX80,SX80..GR,LG |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-22020 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG MODE CONTROL |
1 | ||
| 87106-22010 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG AIR INLET CONTROL |
1 | ||
| 87106-22090 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG AIR INLET CONTROL |
1 | ||
| 87106-22070 |
GX81,LX80,SX80..GR,LG ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),AIR MIX CONTROL |
1 | ||
| 88585C - SHAFT | ||||
| 88585-22030 |
LX80..4FC..GR;GX81,SX80..GR,LG |
1 | ||
| 88585-22030 |
LX80..4FC..GR;GX81,SX80..GR,LG |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-22700 |
GX81,LX80,SX80..GR,LG |
1 | ||
| 88605-22700 |
GX81,LX80,SX80..GR,LG |
1 | ||
| 88648H - WIRE, AIR CONDITIONER | ||||
| 88648-22180 |
GX81,LX80,SX80..GR,LG |
1 | ||
| 88648-22180 |
GX81,LX80,SX80..GR,LG |
1 | ||
| 88650D - AMPLIFIER ASSY | ||||
| 88650-22240 |
GX81,LX80,SX80..GR,LG |
1 | ||
| 88655B - SWITCH, WATER TEMPERATURE | ||||
| 88790-24040 |
GX81,LX80..GR,LG |
1 | ||
| 88790-24040 |
GX81,LX80..GR,LG |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88569-22250 | ||||
| 88569-22270 | ||||
| 88569-3A220 | ||||
| 88718-2A140 | ||||
| 88899-22120 | ||||
| 93510-55012 | ||||
ILLUST NO. 1 OF 3(8808- )
ﾋ-ﾀﾌﾞﾛﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-22010 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG,STD |
1 | ||
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-22010 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG,STD |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20100 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-22020 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG MODE CONTROL |
1 | ||
| 87106-22010 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG AIR INLET CONTROL |
1 | ||
| 87106-22090 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG AIR INLET CONTROL |
1 | ||
| 87106-22070 |
GX81,LX80,SX80..GR,LG ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),AIR MIX CONTROL |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-22181 |
GX81,LX80,MX83,SX80..(GD,GDG,GR,GT,LG)..(CI,HTWC,TD,TWC,TWT) |
1 | ||
| 87130-22181 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-22181 |
GX81,LX80,MX83,SX80..(GD,GDG,GR,GT,LG)..(CI,HTWC,TD,TWC,TWT) |
1 | ||
| 87130-22181 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 90119-06403 | ||||
| 90179-06239 | ||||
| 91665-40616 | ||||
| 93510-55012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(8808-9008)GL,GR,KYO,LG,STD ; (9008- )LX80,YX80 ; (9008- )SX80..GL,KYO,STD
ﾋ-ﾀﾗｼﾞｴ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-22020 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG MODE CONTROL |
1 | ||
| 87106-22010 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG AIR INLET CONTROL |
1 | ||
| 87106-22090 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG AIR INLET CONTROL |
1 | ||
| 87106-22070 |
GX81,LX80,SX80..GR,LG ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),AIR MIX CONTROL |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-22170 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG,STD |
1 | ||
| 87107-22230 |
GX81..HTWC,SPC,TWC |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-22170 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG,STD |
1 | ||
| 87107-22230 |
GX81..HTWC,SPC,TWC |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-22600 |
GX81..LG |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-22600 |
GX81..LG |
1 | ||
| Common parts | ||||
| 90179-06239 | ||||
| 90480-13024 | ||||
| 90480-40013 | ||||
