GX81-ATPGK (1988)
Toyota Mark 2
ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price |
|---|

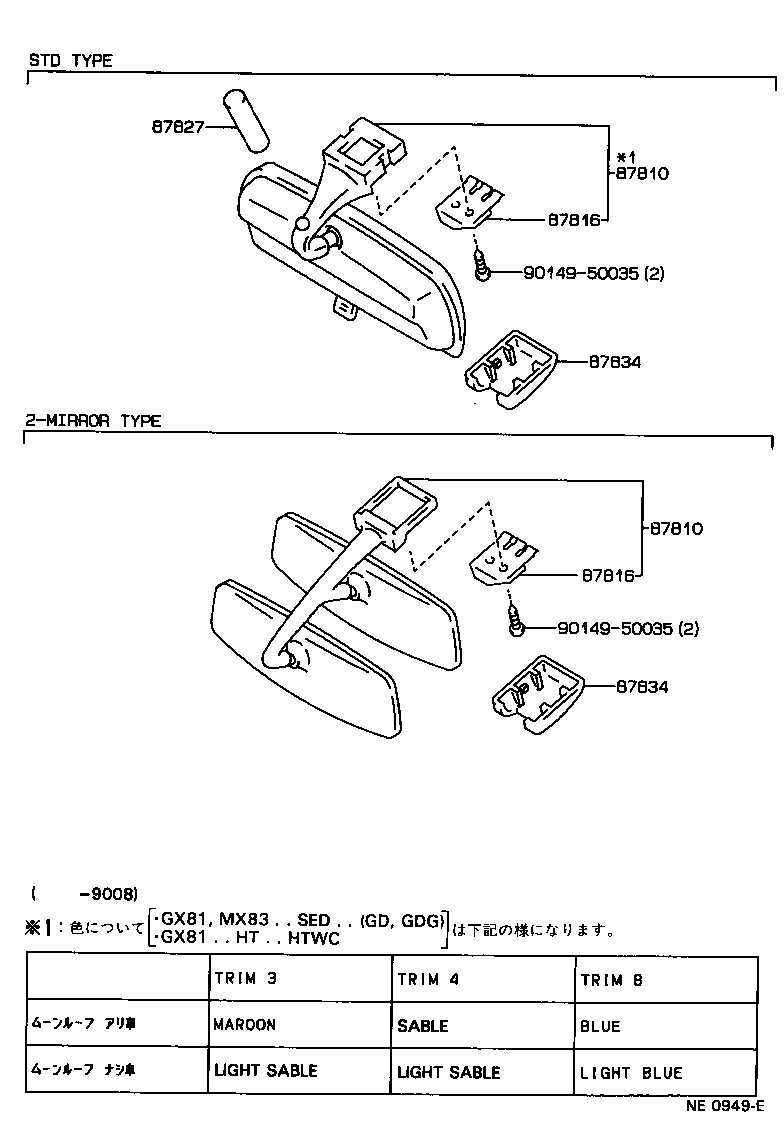

ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-2220014 |
GX81,MX83..SED..(SPC,TWC);GX81,LX80,SX80,YX80..(GD,GL,GR,LG,STD)..(CI,DSL,HTWC,LPG,TD) LIGHT BLUE,TRIM8# |
1 | ||
| 87810-2220016 |
GX81,LX80,SX80..(GD,GR,LG)..(CI,HTWC,TD) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 87810-2220016 |
LX80,YX80..GL..(DSL,LPG);GX81,LX80,SX80..(GD,GR,LG)..(CI,HTWC,TD) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-2220014 |
GX81,MX83..SED..(SPC,TWC);GX81,LX80,SX80,YX80..(GD,GL,GR,LG,STD)..(CI,DSL,HTWC,LPG,TD) LIGHT BLUE,TRIM8# |
1 | ||
| 87810-2220016 |
GX81,LX80,SX80..(GD,GR,LG)..(CI,HTWC,TD) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 87810-2220016 |
LX80,YX80..GL..(DSL,LPG);GX81,LX80,SX80..(GD,GR,LG)..(CI,HTWC,TD) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 87816 - SPRING, INNER REAR VIEW MIRROR | ||||
| 74372-30030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87816 - SPRING, INNER REAR VIEW MIRROR | ||||
| 74372-30030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-22050 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG,STD |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-2205006 |
GX81,LX80,SX80..(GD,GR,LG)..(CI,HTWC,TD) SABLE,TRIM3#,4# |
1 | ||
| 87834-2205002 |
GX81,MX83..SPC,TWC,TWT MAROON,TRIM3# |
1 | ||
| 87834-2205016 |
GX81..SPC,TWC,TWT SABLE,TRIM4# |
1 | ||
| 87834-2205004 |
GX81,LX80,SX80,YX80..(GD,GL,GR,LG,STD)..(CI,DSL,HTWC,LPG,TD) BLUE,TRIM8# |
1 | ||
| 87834-2205006 |
LX80,YX80..GL..(DSL,LPG);GX81,LX80,SX80..(GD,GR,LG)..(CI,HTWC,TD) SABLE,TRIM3#,4# |
1 | ||
| 87834-2205014 |
GX81,MX83..SPC,TWC,TWT BLUE,TRIM8# |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-2205006 |
GX81,LX80,SX80..(GD,GR,LG)..(CI,HTWC,TD) SABLE,TRIM3#,4# |
1 | ||
| 87834-2205002 |
GX81,MX83..SPC,TWC,TWT MAROON,TRIM3# |
1 | ||
| 87834-2205016 |
GX81..SPC,TWC,TWT SABLE,TRIM4# |
1 | ||
| 87834-2205004 |
GX81,LX80,SX80,YX80..(GD,GL,GR,LG,STD)..(CI,DSL,HTWC,LPG,TD) BLUE,TRIM8# |
1 | ||
| 87834-2205006 |
LX80,YX80..GL..(DSL,LPG);GX81,LX80,SX80..(GD,GR,LG)..(CI,HTWC,TD) SABLE,TRIM3#,4# |
1 | ||
| 87834-2205014 |
GX81,MX83..SPC,TWC,TWT BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90149-50035 | ||||

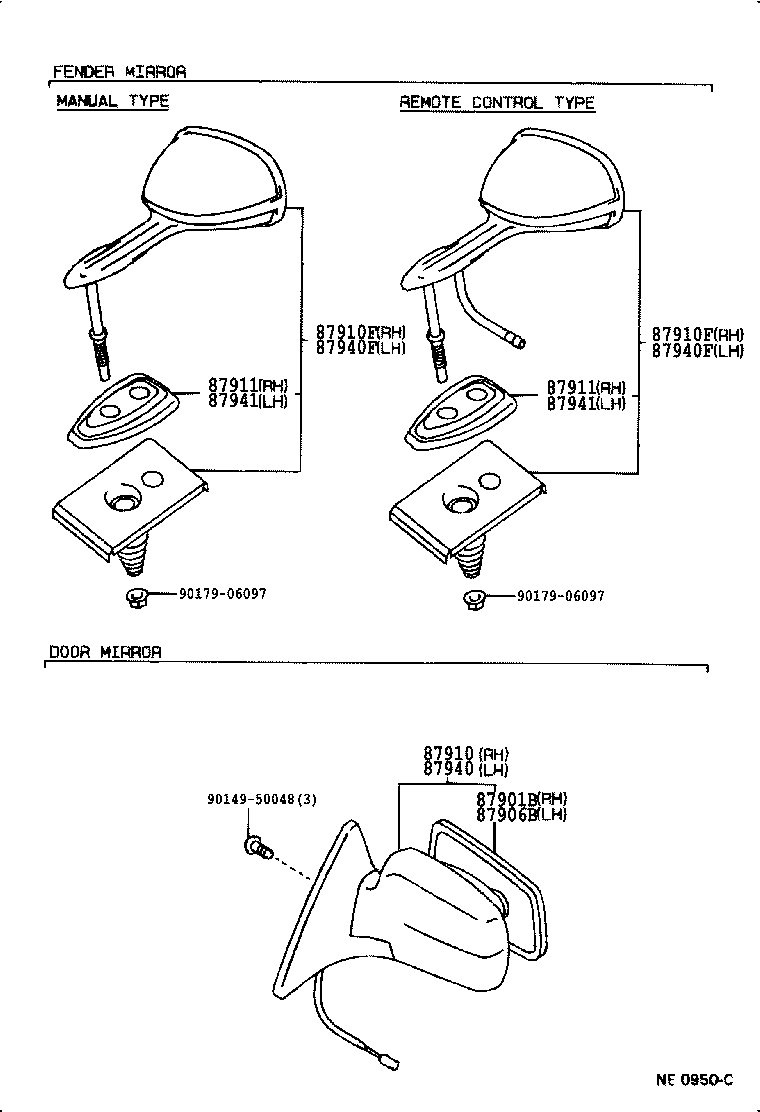

ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-22830 |
YX80..KYO;GX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,KYO,LG |
1 | ||
| 87931-22843 |
GX81,LX80,MX83;SX80,YX80..KYO |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-22890 |
YX80..KYO;GX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,KYO,LG |
1 | ||
| 87961-2A012 |
GX81,LX80,MX83..GD,GDG,GL,GR,GT,LG |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-22880 |
GX81,LX80..HT..(GR,LG) |
1 | ||
| 87910-22881 |
GX81,LX80,SX80..HT..(GR,LG) |
1 | ||
| 87910F - MIRROR ASSY, FENDER, RH | ||||
| 87910-22740 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 87910F - MIRROR ASSY, FENDER, RH | ||||
| 87910-22740 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87911-22190 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87911-22190 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-2A050 |
GX81,LX80..HT..(GR,LG) |
1 | ||
| 87940-2A051 |
GX81,LX80,SX80..HT..(GR,LG) |
1 | ||
| 87940F - MIRROR ASSY, FENDER, LH | ||||
| 87940-22800 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 87940F - MIRROR ASSY, FENDER, LH | ||||
| 87940-22800 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-22200 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-22200 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| Common parts | ||||
| 90149-50048 | ||||
| 90179-06097 | ||||
