GX81-ATPGK (1988)
Toyota Mark 2

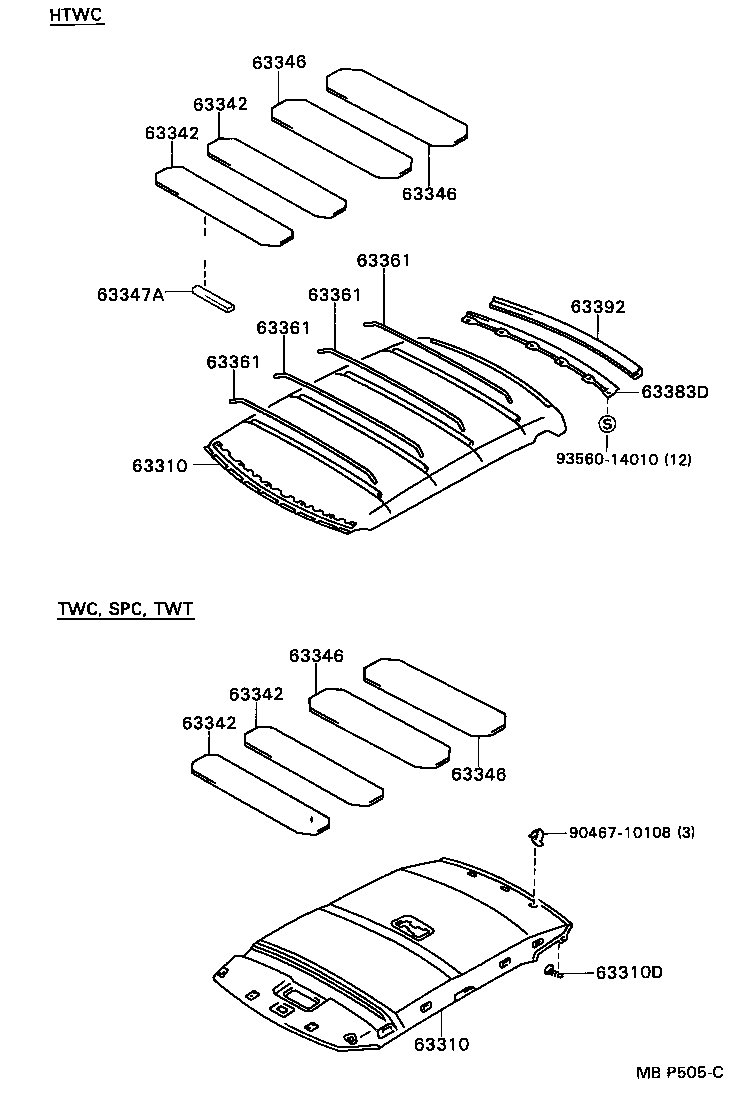

ILLUST NO. 1 OF 2(8808- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-2244006 |
GX81,LX80..HT..(HTWC,TD) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63310-2244004 |
GX81,LX80..HT..(HTWC,TD) LIGHT BLUE,TRIM8# |
1 | ||
| 63310-2245006 |
GX81,MX83..HT..(SPC,TWC,TWT) SABLE,TRIM4# |
1 | ||
| 63310-2245002 |
GX81,MX83..HT..(SPC,TWC,TWT) NEW MAROON,TRIM3# |
1 | ||
| 63310-2245004 |
GX81,MX83..HT..(SPC,TWC,TWT) DARK BLUE,TRIM8# |
1 | ||
| 63310-2245016 |
GX81,JZX81,MX83..HT..(TWC,TWT) SABLE,TRIM4# |
1 | ||
| 63310-2244016 |
GX81,LX80,SX80..HT..(HTWC,TD) SABLE,TRIM4# |
1 | ||
| 63310-2244012 |
GX81,LX80,SX80..HT..(HTWC,TD) NEW MAROON,TRIM3# |
1 | ||
| 63310-2245012 |
GX81,JZX81,MX83..HT..(TWC,TWT) NEW MAROON,TRIM3# |
1 | ||
| 63310-2245003 |
GX81,JZX81,MX83..HT..(TWC,TWT) MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2244003 |
GX81,LX80,SX80..HT..(HTWC,TD) MEDIUM GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-2244006 |
GX81,LX80..HT..(HTWC,TD) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63310-2244004 |
GX81,LX80..HT..(HTWC,TD) LIGHT BLUE,TRIM8# |
1 | ||
| 63310-2245006 |
GX81,MX83..HT..(SPC,TWC,TWT) SABLE,TRIM4# |
1 | ||
| 63310-2245002 |
GX81,MX83..HT..(SPC,TWC,TWT) NEW MAROON,TRIM3# |
1 | ||
| 63310-2245004 |
GX81,MX83..HT..(SPC,TWC,TWT) DARK BLUE,TRIM8# |
1 | ||
| 63310-2245016 |
GX81,JZX81,MX83..HT..(TWC,TWT) SABLE,TRIM4# |
1 | ||
| 63310-2244016 |
GX81,LX80,SX80..HT..(HTWC,TD) SABLE,TRIM4# |
1 | ||
| 63310-2244012 |
GX81,LX80,SX80..HT..(HTWC,TD) NEW MAROON,TRIM3# |
1 | ||
| 63310-2245012 |
GX81,JZX81,MX83..HT..(TWC,TWT) NEW MAROON,TRIM3# |
1 | ||
| 63310-2245003 |
GX81,JZX81,MX83..HT..(TWC,TWT) MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2244003 |
GX81,LX80,SX80..HT..(HTWC,TD) MEDIUM GRAY,TRIM1# |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-22070 |
GX81,JZX81,LX80,MX83,SX80..HT |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-22070 |
GX81,JZX81,LX80,MX83,SX80..HT |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-22070 |
GX81,JZX81,LX80,MX83,SX80..HT |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-22070 |
GX81,JZX81,LX80,MX83,SX80..HT |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-22010 |
GX81,JZX81,LX80,MX83,SX80..HT |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-22010 |
GX81,JZX81,LX80,MX83,SX80..HT |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-22010 |
GX81,JZX81,LX80,MX83,SX80..HT |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-22010 |
GX81,JZX81,LX80,MX83,SX80..HT |
2 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-22020 |
YX80;GX81,LX80,SX80..(GD,GR,KYO,LG)..(CI,DSL,HTWC,TD) |
1 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-22250 |
GX81,LX80,SX80..HT..(HTWC,TD) L=982 |
4 | ||
| 63361-22240 |
GX81,LX80,SX80..HT..(HTWC,TD) 長さ980mm |
4 | ||
| 63361-22270 |
GX81,LX80,SX80..HT..(HTWC,TD) 長さ=986 |
4 | ||
| 63361-22260 |
GX81,LX80,SX80..HT..(HTWC,TD) L=984 |
4 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-22250 |
GX81,LX80,SX80..HT..(HTWC,TD) L=982 |
4 | ||
| 63361-22240 |
GX81,LX80,SX80..HT..(HTWC,TD) 長さ980mm |
4 | ||
| 63361-22270 |
GX81,LX80,SX80..HT..(HTWC,TD) 長さ=986 |
4 | ||
| 63361-22260 |
GX81,LX80,SX80..HT..(HTWC,TD) L=984 |
4 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-22250 |
GX81,LX80,SX80..HT..(HTWC,TD) L=982 |
4 | ||
| 63361-22240 |
GX81,LX80,SX80..HT..(HTWC,TD) 長さ980mm |
4 | ||
| 63361-22270 |
GX81,LX80,SX80..HT..(HTWC,TD) 長さ=986 |
4 | ||
| 63361-22260 |
GX81,LX80,SX80..HT..(HTWC,TD) L=984 |
4 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-22250 |
GX81,LX80,SX80..HT..(HTWC,TD) L=982 |
4 | ||
| 63361-22240 |
GX81,LX80,SX80..HT..(HTWC,TD) 長さ980mm |
4 | ||
| 63361-22270 |
GX81,LX80,SX80..HT..(HTWC,TD) 長さ=986 |
4 | ||
| 63361-22260 |
GX81,LX80,SX80..HT..(HTWC,TD) L=984 |
4 | ||
| 63383D - RETAINER, ROOF HEADLINING, REAR | ||||
| 63383-22080 |
GX81,LX80,SX80..HT..(HTWC,TD) |
1 | ||
| 63392 - TRIM, ROOF HEADLINING, REAR | ||||
| 63392-2216004 |
GX81,LX80..HT..(GR,LG) LIGHT BLUE,TRIM8# |
1 | ||
| 63392-2216002 |
GX81,LX80,SX80..HT..(GR,LG) NEW MAROON,TRIM3# |
1 | ||
| 63392-2216006 |
GX81,LX80..HT..(GR,LG) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63392-2216006 |
GX81,LX80,SX80..HT..(GR,LG) LIGHT SABLE,TRIM4# |
1 | ||
| 63392-2216003 |
GX81,LX80,SX80..HT..(GR,LG) MEDIUM GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-10108 | ||||
| 93560-14010 | ||||

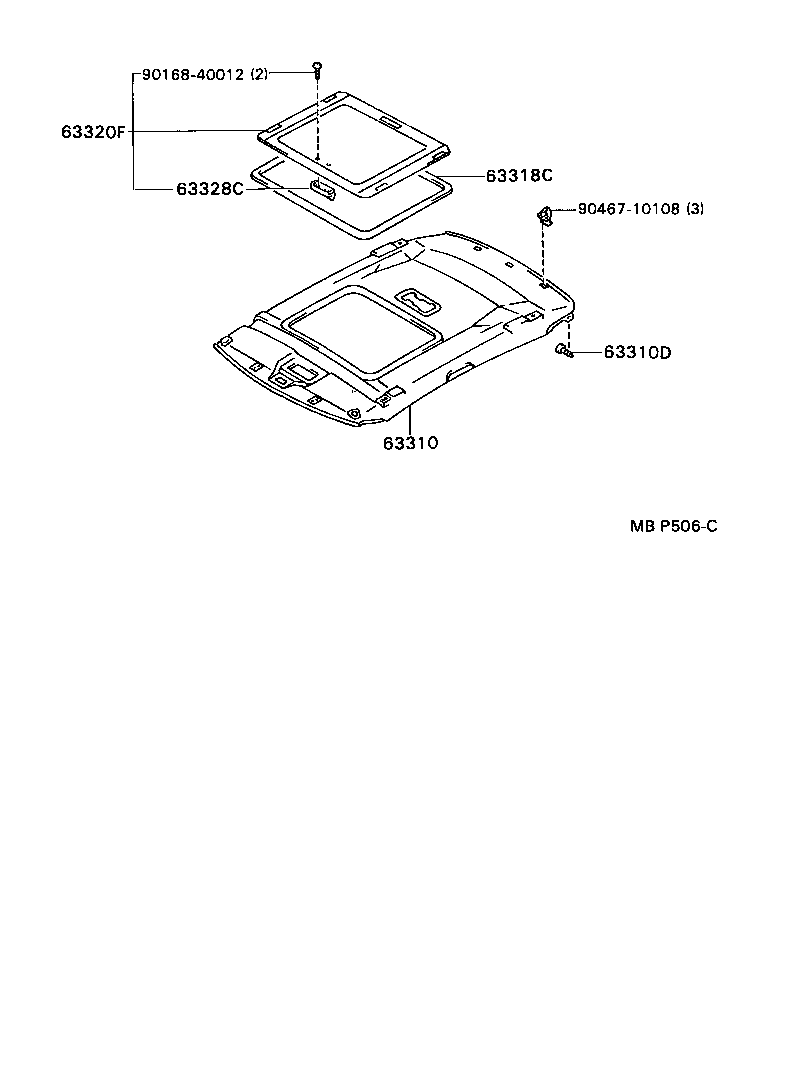

ILLUST NO. 2 OF 2(8808- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-2244006 |
GX81,LX80..HT..(HTWC,TD) LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63310-2244004 |
GX81,LX80..HT..(HTWC,TD) LIGHT BLUE,TRIM8# |
1 | ||
| 63310-2245006 |
GX81,MX83..HT..(SPC,TWC,TWT) SABLE,TRIM4# |
1 | ||
| 63310-2245002 |
GX81,MX83..HT..(SPC,TWC,TWT) NEW MAROON,TRIM3# |
1 | ||
| 63310-2245004 |
GX81,MX83..HT..(SPC,TWC,TWT) DARK BLUE,TRIM8# |
1 | ||
| 63310-2245016 |
GX81,JZX81,MX83..HT..(TWC,TWT) SABLE,TRIM4# |
1 | ||
| 63310-2244016 |
GX81,LX80,SX80..HT..(HTWC,TD) SABLE,TRIM4# |
1 | ||
| 63310-2244012 |
GX81,LX80,SX80..HT..(HTWC,TD) NEW MAROON,TRIM3# |
1 | ||
| 63310-2245012 |
GX81,JZX81,MX83..HT..(TWC,TWT) NEW MAROON,TRIM3# |
1 | ||
| 63310-2245003 |
GX81,JZX81,MX83..HT..(TWC,TWT) MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2244003 |
GX81,LX80,SX80..HT..(HTWC,TD) MEDIUM GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90168-40012 | ||||
| 90467-10108 | ||||
