GX81-ATPGK (1988)
Toyota Mark 2
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-22520 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09029 |
GX81,JZX81,LX80,MX83,SX80,YX80 ﾀｲﾌﾟ B |
2 | ||
| 90541-06041 |
GX81,JZX81,LX80,MX83,SX80,YX80 ﾀｲﾌﾟ A |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-22210 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-22090 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 64503-22090 |
GX81,LX80,MX83..HT |
2 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-22090 |
GX81,LX80,MX83..HT |
2 | ||
| 64503-22090 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-22120 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64512-22120 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-22270 |
GX81,JZX81,LX80,SX80..HT..(GD,GR,GT,LG) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64531-22240 |
GX81,JZX81,LX80,SX80..HT..(GD,GR,GT,LG) |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-22270 |
GX81,JZX81,LX80,SX80..HT..(GD,GR,GT,LG) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64532-22240 |
GX81,JZX81,LX80,SX80..HT..(GD,GR,GT,LG) |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64571-30020 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,KYO,LG,STD |
2 | ||
| 64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64571-30020 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,KYO,LG,STD |
2 | ||
| 64573 - PROTECTOR, LUGGAGE DOOR OPENER CABLE, RH | ||||
| 64573-22020 |
GX81,JZX81,LX80,SX80..GD,GL,GR,GT,LG |
1 | ||
| 64573-22010 |
GX81,JZX81,LX80,SX80..GD,GL,GR,GT,LG ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-22330 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-22110 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,KYO,LG |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-05001 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,KYO,LG ｲｴﾛｰ |
1 | ||
| 90506-05002 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,KYO,LG WHITE |
1 | ||
| 90506-06009 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,KYO,LG GREEN |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-05001 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,KYO,LG ｲｴﾛｰ |
1 | ||
| 90506-05002 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,KYO,LG WHITE |
1 | ||
| 90506-06009 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,KYO,LG GREEN |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-22040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 64640 - OPENER ASSY, LUGGAGE DOOR LOCK | ||||
| 64640-2221004 |
GX81,LX80,MX83,SX80 DARK BLUE,TRIM8# |
1 | ||
| 64640-2221002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 64640-2221006 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 64658 - BRACKET, LUGGAGE CONTROL CABLE, RH | ||||
| 64658-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 82711-22690 | ||||
| 90105-06083 | ||||
| 90105-06103 | ||||
| 90105-06120 | ||||
| 90109-06154 | ||||
| 90164-60022 | ||||
| 90189-06029 | ||||
| 90541-07016 | ||||
| 90950-01640 | ||||
| 90959-01369 | ||||
| 93315-15010 | ||||

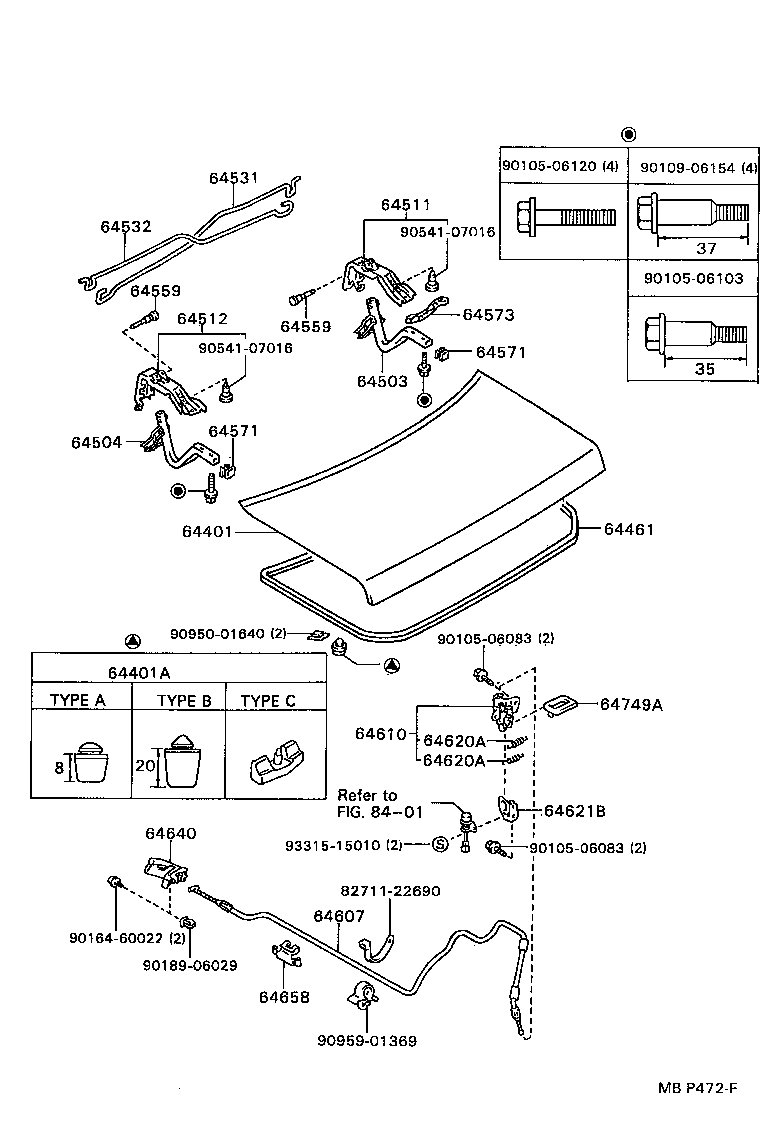

| Linked diagrams | ||||
| 8401 | ||||
