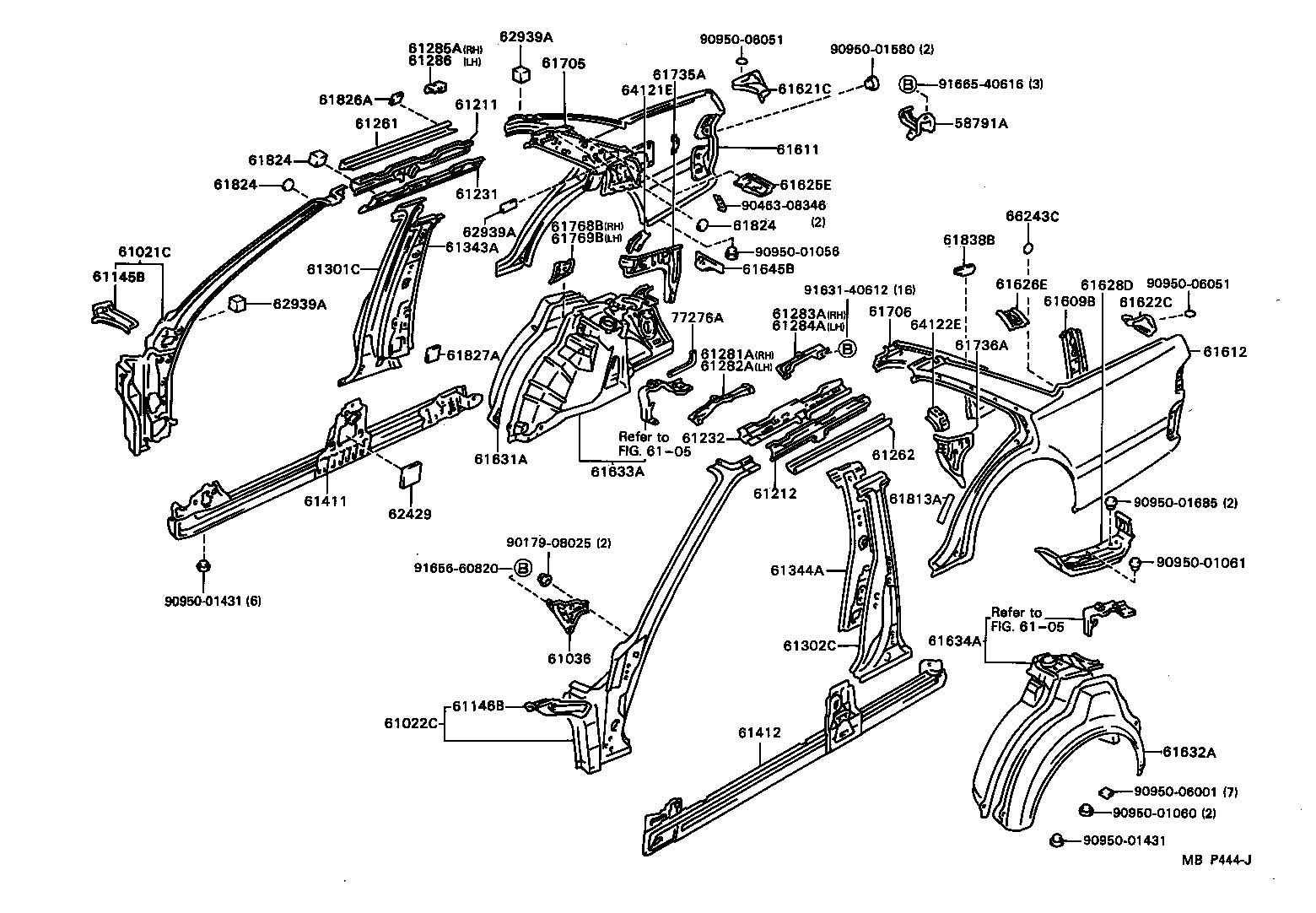

GX81-ATPGK (1988)
Toyota Mark 2
(8808- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58791A - CARRIER, JACK | ||||
| 58791-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-22280 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-22270 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-22110 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-22110 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-22230 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-22210 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-22100 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-22100 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-22912 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-22912 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-22912 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-22912 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-22050 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-22050 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61609B - BRACE SUB-ASSY, QUARTER PANEL | ||||
| 61609-22030 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-22961 |
GX81,LX80,MX83..HT |
1 | ||
| 61601-22973 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-22935 |
GX81,LX80,MX83..HT |
1 | ||
| 61602-22942 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-22100 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-22100 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-22020 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-22020 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61628D - EXTENSION, QUARTER PANEL, REAR LOWER LH | ||||
| 61628-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-22907 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-22250 |
GX81,JZX81,MX83..HT |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-22200 |
GX81,JZX81,MX83..HT |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-22907 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-22907 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-22050 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-22030 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-22040 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-22030 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 61813A - PLATE, DUSTPROOF, NO.1 RH | ||||
| 61813-22040 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-22080 |
GX81,LX80,MX83,SX80,YX80 50X50,T=50 |
1 | ||
| 61824-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 OD=50,T=2.0 |
1 | ||
| 61824-22080 |
GX81,JZX81,LX80,MX83..HT 50 X 50,T=50 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-22080 |
GX81,LX80,MX83,SX80,YX80 50X50,T=50 |
1 | ||
| 61824-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 OD=50,T=2.0 |
1 | ||
| 61824-22080 |
GX81,JZX81,LX80,MX83..HT 50 X 50,T=50 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-22080 |
GX81,LX80,MX83,SX80,YX80 50X50,T=50 |
1 | ||
| 61824-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 OD=50,T=2.0 |
1 | ||
| 61824-22080 |
GX81,JZX81,LX80,MX83..HT 50 X 50,T=50 |
1 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 61838B - PLATE, NOISE CONTROL, NO.5 | ||||
| 61816-22040 |
GX81,JZX81,LX80,MX83,SX80..HT 左側 |
1 | ||
| 61838-22030 |
GX81,JZX81,LX80,MX83,SX80..HT 右側 |
1 | ||
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-22050 |
GX81,JZX81,LX80,MX83,SX80..HT 70 X 175,T=30 |
1 | ||
| 62939-22070 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 62939-22050 |
GX81,LX80,MX83,SX80,YX80 70X175,T=30 |
1 | ||
| 62939-22070 |
GX81,JZX81,LX80,MX83..HT 70 X 70,T=70 |
1 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-22050 |
GX81,JZX81,LX80,MX83,SX80..HT 70 X 175,T=30 |
1 | ||
| 62939-22070 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 62939-22050 |
GX81,LX80,MX83,SX80,YX80 70X175,T=30 |
1 | ||
| 62939-22070 |
GX81,JZX81,LX80,MX83..HT 70 X 70,T=70 |
1 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-22050 |
GX81,JZX81,LX80,MX83,SX80..HT 70 X 175,T=30 |
1 | ||
| 62939-22070 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 62939-22050 |
GX81,LX80,MX83,SX80,YX80 70X175,T=30 |
1 | ||
| 62939-22070 |
GX81,JZX81,LX80,MX83..HT 70 X 70,T=70 |
1 | ||
| 64121E - BRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64121-22060 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 64122E - BRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64122-22070 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 77276A - PROTECTOR, FUEL HOSE | ||||
| 77276-23010 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| Common parts | ||||
| 90179-08025 | ||||
| 90463-08346 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01431 | ||||
| 90950-01580 | ||||
| 90950-01685 | ||||
| 90950-06001 | ||||
| 90950-06051 | ||||
| 91631-40612 | ||||
| 91656-60820 | ||||
| 91665-40616 | ||||
| Linked diagrams | ||||
| 6105 | ||||
