GX81-ATPGK (1988)

Toyota Mark 2

Production Aug 1988 - Oct 1992
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )GX81,JZX81

Click highlighted areas on diagram

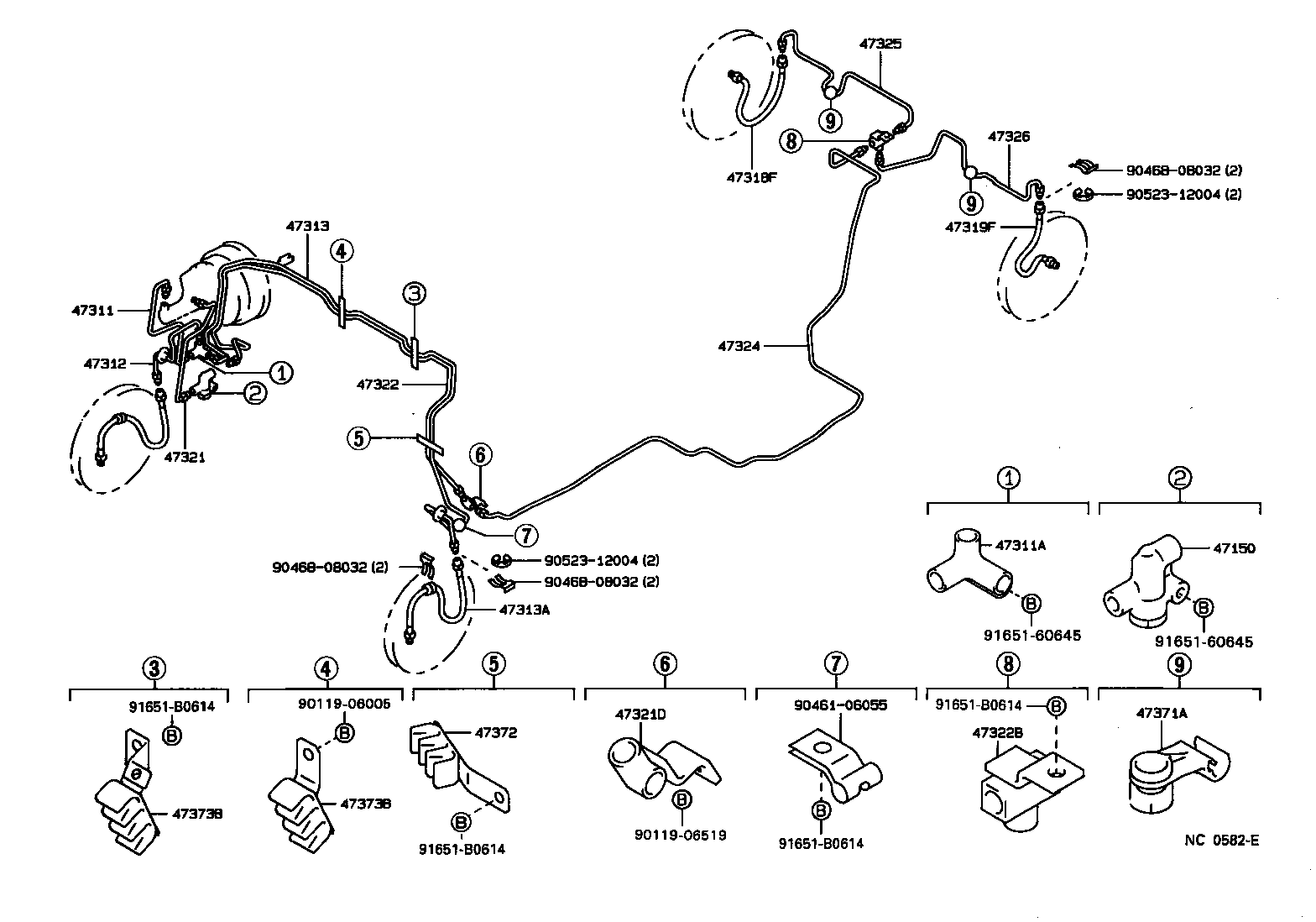

diagram 47150 47311 47311A 47312 47313 47313A 47318F 47319F 47321 47321D 47322 47322B 47324 47325 47326 47371A 47372 47373B 47373B 9011906005 9011906519 9046106055 9046808032 9046808032 9046808032 9052312004 9052312004 9165160645 9165160645 91651B0614 91651B0614 91651B0614 91651B0614
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-22050

GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-22400

GX81,LX80,SX80,YX80..GL,GR,LG,STD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10227

GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-22180

JZX81..GD;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-22300

GX81,JZX81,LX80..GD,GL,GR,LG

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

JZX81..GD;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02568

JZX81..GD;GX81..HTWC,TWC,TWT

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02568

JZX81..GD;GX81..HTWC,TWC,TWT

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-22200

GX81,LX80,SX80,YX80..GL,GR,LG,STD

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10118

GX81,JZX81,LX80,MX83

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-22210

GX81,JZX81,LX80..GD,GL,GR,KYO,LG

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10228

GX81,JZX81,MX83

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-22210

GX81..HTWC,TWC,TWT

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-22060

GX81,JZX81,MX83

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-22070

GX81,JZX81,MX83

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-22310

GX81,JZX81,MX83

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-22130

SX80,YX80;GX81,JZX81,LX80,MX83..GD,GDG,GL,GR,GT,LG

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-22120

GX81,MX83

左側

 1
47371-22240

GX81,MX83

右側

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-22120

GX81,MX83

左側

 1
47371-22240

GX81,MX83

右側

 1
Common parts
90119-06005
90119-06519
90461-06055
90468-08032
90523-12004
91651-60645
91651-B0614

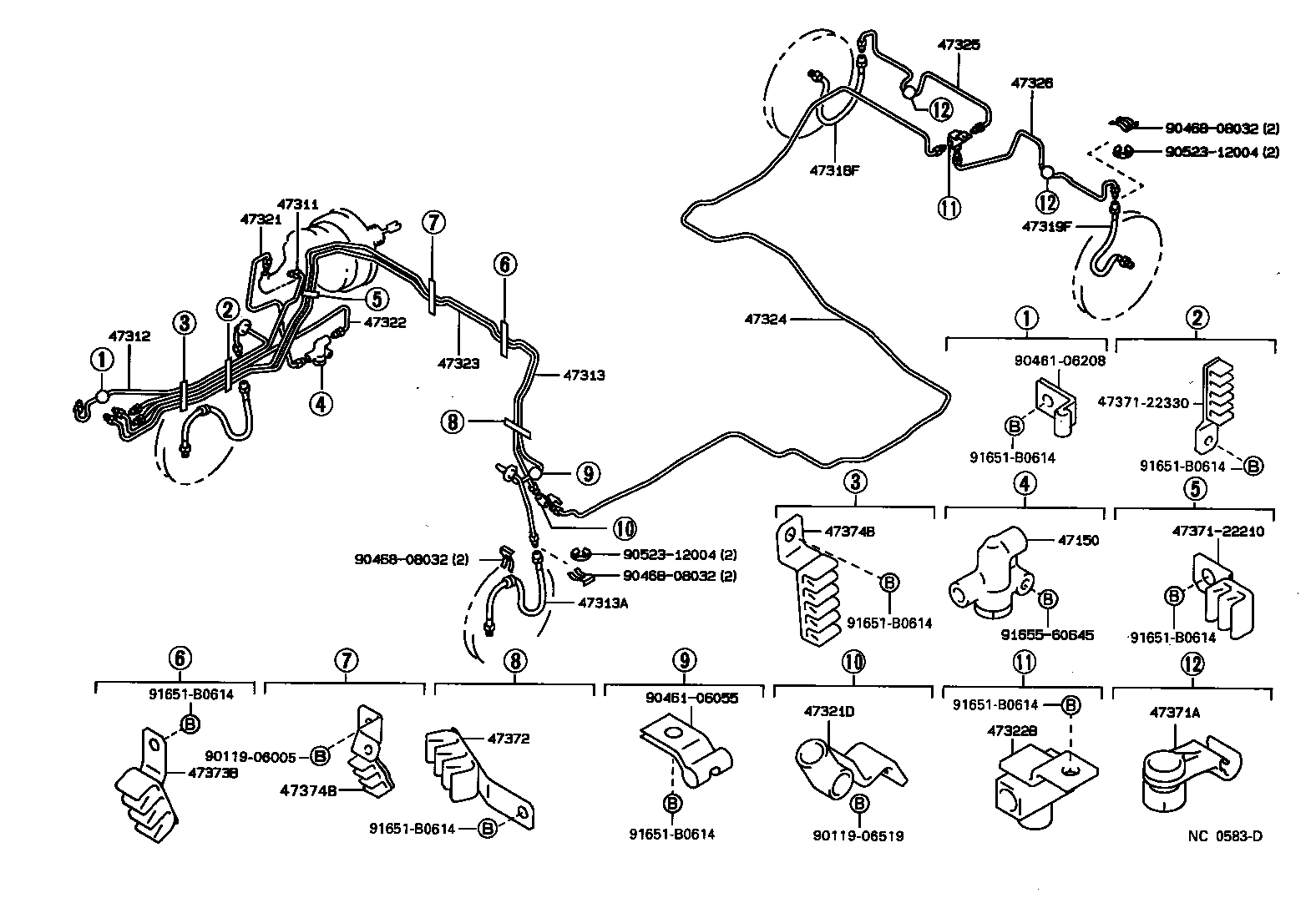

ILLUST NO. 1 OF 2(8808- )GX81,JZX81

Click highlighted areas on diagram

ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)

diagram 47150 47311 47312 47313 47313A 47318F 47319F 47321 47321D 47322 47322B 47323 47324 47325 47326 4737122210 4737122330 47371A 47372 47373B 47374B 47374B 9011906005 9011906519 9046106055 9046106208 9046808032 9046808032 9046808032 9052312004 9052312004 91651B0614 91651B0614 91651B0614 91651B0614 91651B0614 91651B0614 91651B0614 91651B0614 9165560645
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-22050

GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-22400

GX81,LX80,SX80,YX80..GL,GR,LG,STD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-22180

JZX81..GD;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-22300

GX81,JZX81,LX80..GD,GL,GR,LG

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

JZX81..GD;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02568

JZX81..GD;GX81..HTWC,TWC,TWT

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02568

JZX81..GD;GX81..HTWC,TWC,TWT

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-22200

GX81,LX80,SX80,YX80..GL,GR,LG,STD

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10118

GX81,JZX81,LX80,MX83

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-22210

GX81,JZX81,LX80..GD,GL,GR,KYO,LG

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10228

GX81,JZX81,MX83

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-22210

GX81..HTWC,TWC,TWT

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-22060

GX81,JZX81,MX83

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-22070

GX81,JZX81,MX83

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-22310

GX81,JZX81,MX83

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-22130

SX80,YX80;GX81,JZX81,LX80,MX83..GD,GDG,GL,GR,GT,LG

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-22120

GX81,MX83

左側

 1
47371-22240

GX81,MX83

右側

 1
Common parts
47371-22210
47371-22330
90119-06005
90119-06519
90461-06055
90461-06208
90468-08032
90523-12004
91651-B0614
91655-60645

ILLUST NO. 2 OF 2(8808- )GX81,JZX81

Click highlighted areas on diagram

ｱﾘ(ESC OR ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)

diagram 44510 44543 44543 44545 44545 44545 44546 44546 44546 44547 44551 44551A 44552 44590 8414 8414 9011908157 9011908666 9161160814 9331515025 9411040600 9451100800 9461410600
Part # Description Qty Price
Common parts
90119-08157
90119-08666
91611-60814
93315-15025
94110-40600
94511-00800
94614-10600
Linked diagrams
8414

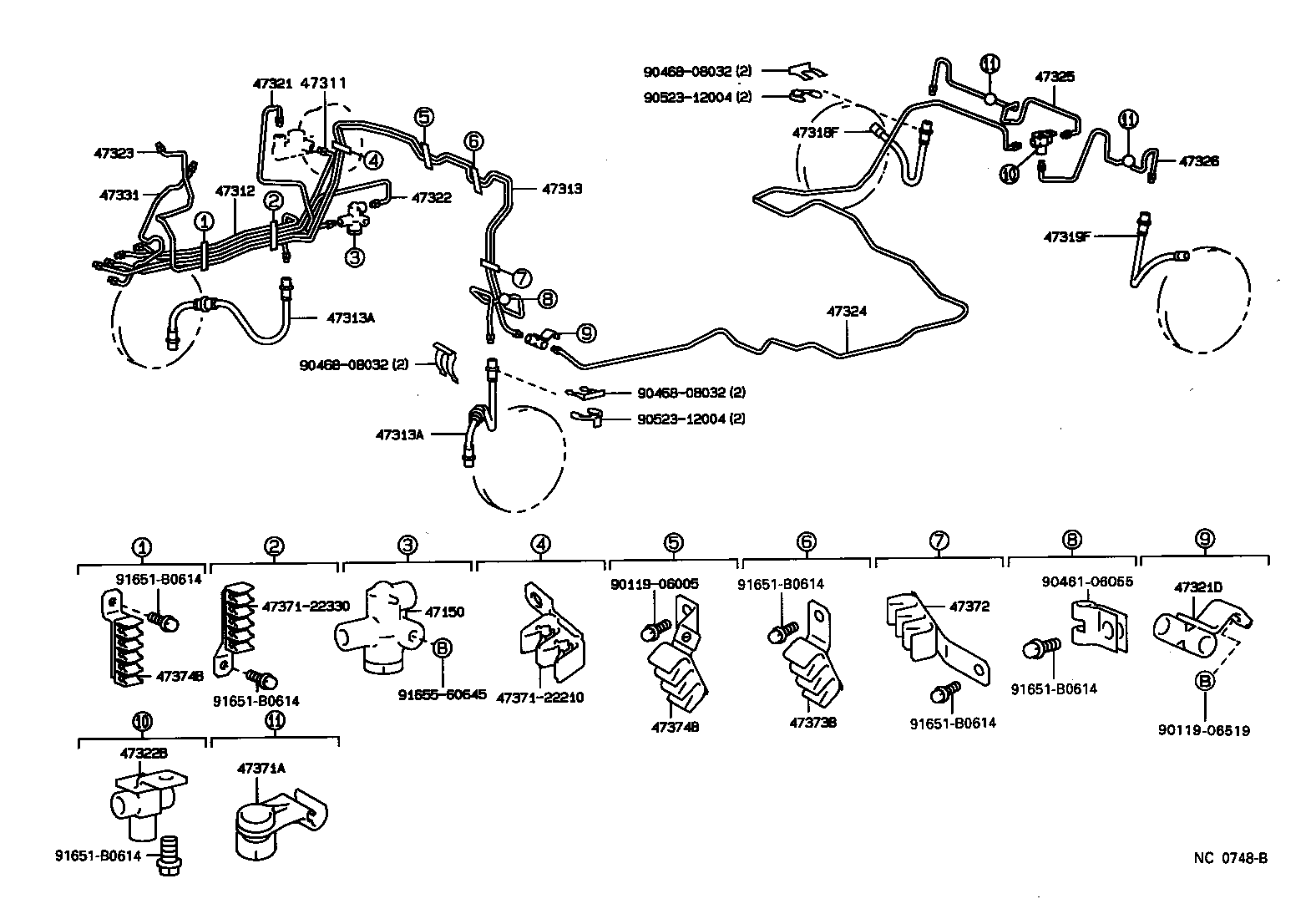

ILLUST NO. 1 OF 2(8908- )GX81,JZX81,MX83

Click highlighted areas on diagram

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

diagram 47150 47311 47312 47313 47313A 47313A 47318F 47319F 47321 47321D 47322 47322B 47323 47324 47325 47326 47331 4737122210 4737122330 47371A 47372 47373B 47374B 47374B 9011906005 9011906519 9046106055 9046808032 9046808032 9046808032 9052312004 9052312004 91651B0614 91651B0614 91651B0614 91651B0614 91651B0614 91651B0614 9166660645
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-22050

GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-22400

GX81,LX80,SX80,YX80..GL,GR,LG,STD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-22180

JZX81..GD;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-22300

GX81,JZX81,LX80..GD,GL,GR,LG

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

JZX81..GD;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

JZX81..GD;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02568

JZX81..GD;GX81..HTWC,TWC,TWT

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02568

JZX81..GD;GX81..HTWC,TWC,TWT

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-22200

GX81,LX80,SX80,YX80..GL,GR,LG,STD

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10118

GX81,JZX81,LX80,MX83

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-22210

GX81,JZX81,LX80..GD,GL,GR,KYO,LG

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10228

GX81,JZX81,MX83

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-22210

GX81..HTWC,TWC,TWT

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-22060

GX81,JZX81,MX83

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-22070

GX81,JZX81,MX83

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-22310

GX81,JZX81,MX83

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-22130

SX80,YX80;GX81,JZX81,LX80,MX83..GD,GDG,GL,GR,GT,LG

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-22120

GX81,MX83

左側

 1
47371-22240

GX81,MX83

右側

 1
Common parts
47371-22210
47371-22330
90119-06005
90119-06519
90461-06055
90468-08032
90523-12004
91651-B0614
91666-60645

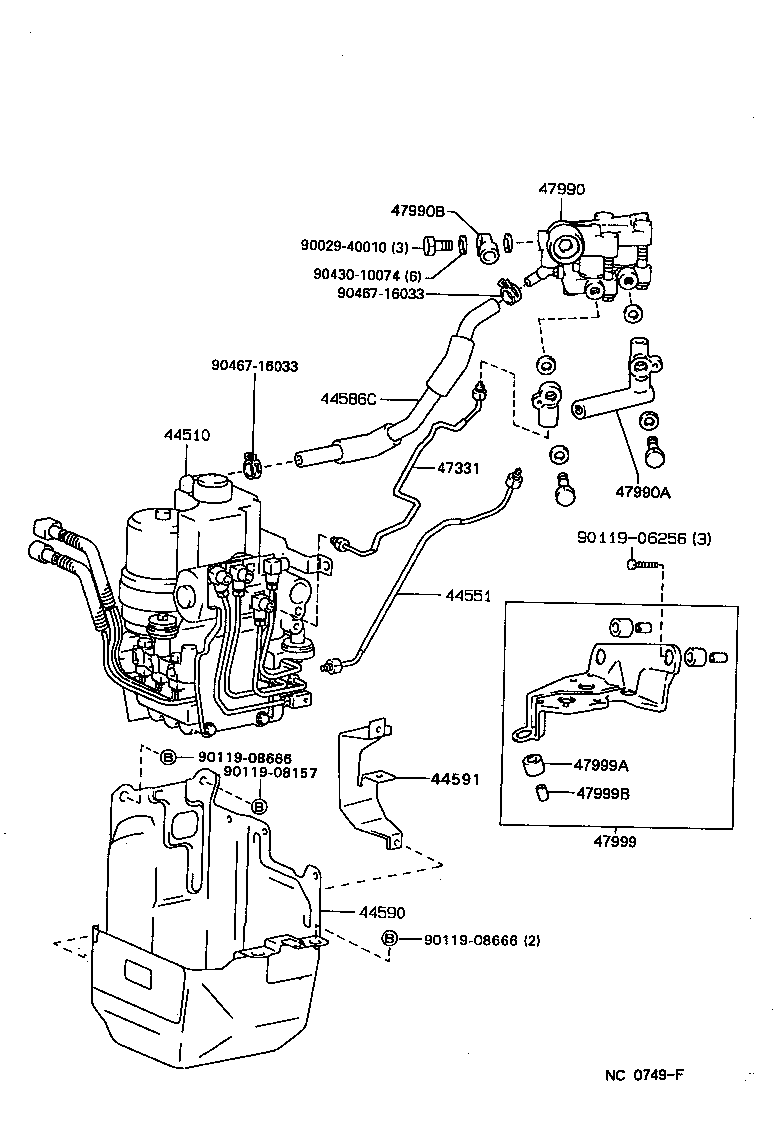

ILLUST NO. 2 OF 2(8908- )GX81,JZX81,MX83

Click highlighted areas on diagram

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

diagram 44510 44551 44586C 44590 44591 47331 47990 47990A 47990B 47999 47999A 47999B 9002940010 9011906256 9011908157 9011908666 9011908666 9043010074 9046716033 9046716033
Part # Description Qty Price
Common parts
90029-40010
90119-06256
90119-08157
90119-08666
90430-10074
90467-16033
