GX81-ATPGK (1988)
Toyota Mark 2
Production
Aug 1988
-
Oct 1992
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )ATM

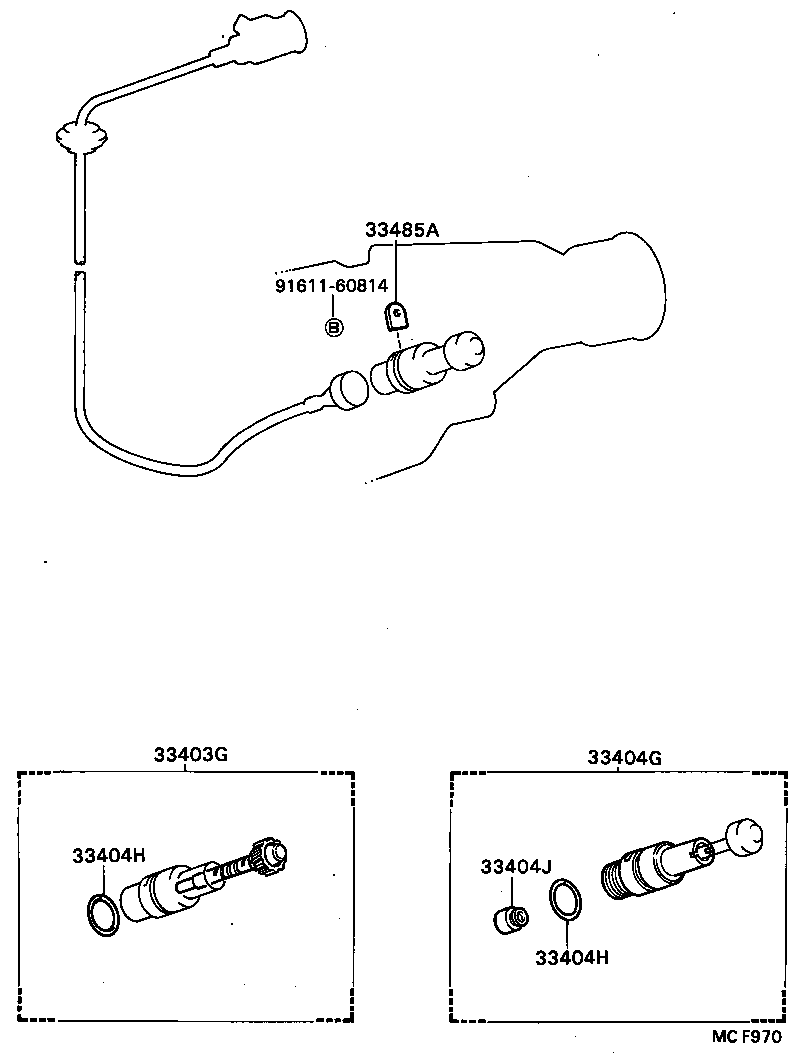

Click highlighted areas on diagram
A41,A42D,A42DL,A43D,A340E,A341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM) | ||||
| 33403-29235 |
MX83;GX81..4FC..HTWC;JZX81,SX80..4FC..(CI,HTWC,TWT) 歯数=20,ﾏｰｸ 20:6 |
1 | ||
| 33482-29105 |
GX81..4FC..(TWC,TWT) 歯数=22,ﾏｰｸ 22:6 |
1 | ||
| 33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM) | ||||
| 33404-30040 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18004 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18004 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM) | ||||
| 33485-30020 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
