GX81-ATPGK (1988)
Toyota Mark 2
Production
Aug 1988
-
Oct 1992
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )4FC..CI,HTWC,TD

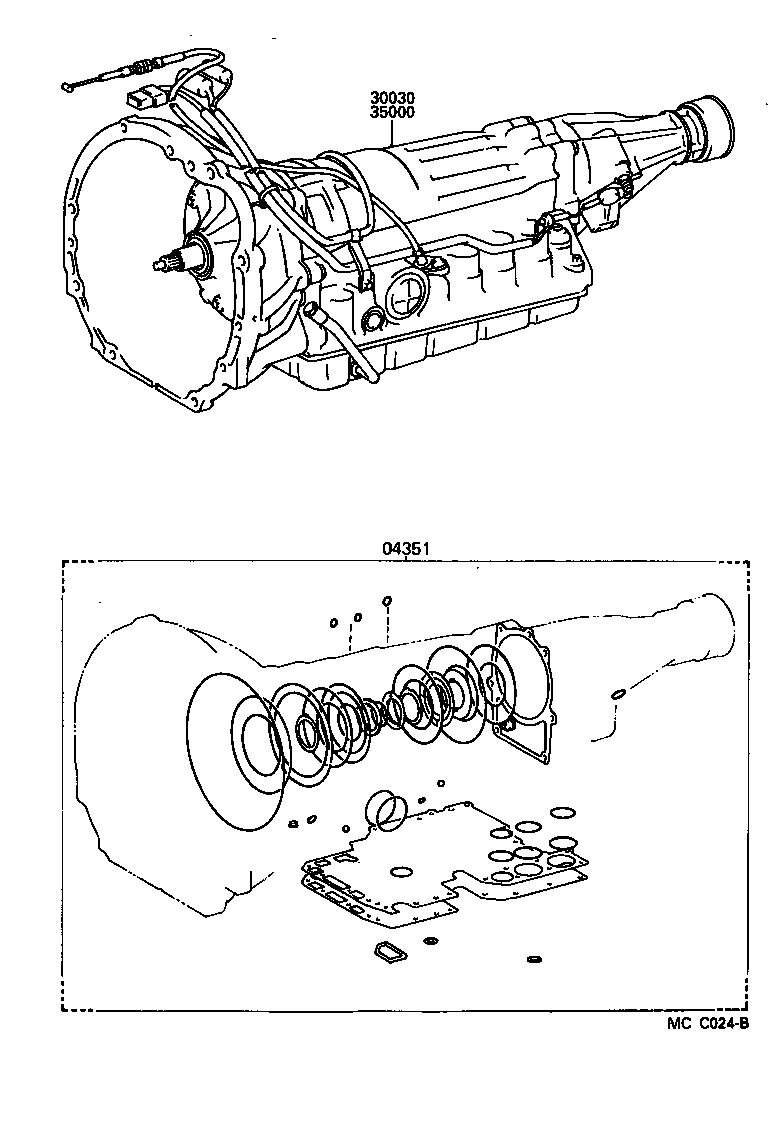

Click highlighted areas on diagram
A42D,A42DL,A43D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL | ||||
| 04351-30093 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 04351-14030 |
GX81,SX80..4FC..HTWC |
1 | ||
| 30030 - TRANSMISSION ASSY, REBUILT | ||||
| 30030-2A600 |
GX81..4FC..TWC |
1 | ||
| 30030-2A720 |
GX81..4FC..HTWC |
1 | ||
| 30030-2A610 |
GX81..4FC..TWC ｱﾘ(*66) |
1 | ||
| 35000 - TRANSMISSION ASSY, AUTOMATIC | ||||
| 35000-2A600 |
GX81..4FC..TWC |
1 | ||
| 35000-2A720 |
GX81..4FC..HTWC A42DL |
1 | ||
| 35000-2A610 |
GX81..4FC..TWC ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
(8808- )GX81,JZX81..4FC..SPC,TWC,TWT
Click highlighted areas on diagram
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL | ||||
| 04351-30093 |
JZX81..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 04351-14030 |
GX81,SX80..4FC..HTWC |
1 | ||
| 30030 - TRANSMISSION ASSY, REBUILT | ||||
| 30030-2A600 |
GX81..4FC..TWC |
1 | ||
| 30030-2A720 |
GX81..4FC..HTWC |
1 | ||
| 30030-2A610 |
GX81..4FC..TWC ｱﾘ(*66) |
1 | ||
| 35000 - TRANSMISSION ASSY, AUTOMATIC | ||||
| 35000-2A600 |
GX81..4FC..TWC |
1 | ||
| 35000-2A720 |
GX81..4FC..HTWC A42DL |
1 | ||
| 35000-2A610 |
GX81..4FC..TWC ｱﾘ(ESC) OR ｱﾘ(*66) |
1 | ||
