GX81-ATPGK (1988)

Toyota Mark 2

Production Aug 1988 - Oct 1992
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8808- )1GFE,1GG#

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16442 16443 16451 16452 16462 16463 16491 16491A 16491B 16491C 16491D 16495
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-70360

1GFE,1GGE..GX81..4FC

 1
16400-70360

1GFE,1GGE..GX81..4FC

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

1GFE,1GG#..GX81

 1
23322-54010

1GFE,1GG#..GX81

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

1GFE,1GG#..GX81

 1
96711-19007

1GFE,1GG#..GX81

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

1GFE,1GG#..GX81

 1
16401-63010

1GFE,1GG#..GX81

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-70360

1GFE,1GGE..GX81..4FC

 1
16403-70360

1GFE,1GGE..GX81..4FC

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-70350

1GFE,1GGE..GX81..4FC

 1
16442-70350

1GFE,1GGE..GX81..4FC

 1
16443 - PLATE, RADIATOR TANK, LOCK, UPPER
16443-70350

1GFE,1GGE..GX81..4FC

 2
16443-70350

1GFE,1GGE..GX81..4FC

 2
16451 - PLATE, RADIATOR CORE, UPPER
16451-70350

1GFE,1GGE..GX81..4FC

 1
16451-70350

1GFE,1GGE..GX81..4FC

 1
16452 - PLATE, RADIATOR CORE, LOWER
16452-70350

1GFE,1GGE..GX81..4FC

 1
16452-70350

1GFE,1GGE..GX81..4FC

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-70350

1GGTE..GX81;1GFE,1GGE,1GGZE..GX81..4FC

 1
16462-70350

1GGTE..GX81;1GFE,1GGE,1GGZE..GX81..4FC

 1
16463 - PLATE, RADIATOR TANK, LOCK, LOWER
16463-70350

1GGTE..GX81;1GFE,1GGE,1GGZE..GX81..4FC

 2
16463-70350

1GGTE..GX81;1GFE,1GGE,1GGZE..GX81..4FC

 2
16491 - COOLER, OIL(FOR ATM)
16491-70360

1GFE,1GGE..GX81..4FC

 1
16491-70360

1GFE,1GGE..GX81..4FC

 1
16491A - RING, O(FOR ATM OIL COOLER)
16492-50020

1GFE,1GG#..GX81..4FC

 2
16492-50020

1GFE,1GG#..GX81..4FC

 2
16491B - WASHER, PLATE(FOR ATM OIL COOLER)
16493-15130

1GFE,1GGE..GX81..4FC

 2
16493-15130

1GFE,1GGE..GX81..4FC

 2
16491C - WASHER, SPRING(FOR ATM OIL COOLER)
16494-15130

1GFE,1GGE..GX81..4FC

 2
16494-15130

1GFE,1GGE..GX81..4FC

 2
16491D - NUT(FOR ATM OIL COOLER)
16496-15130

1GFE,1GGE..GX81..4FC

 2
16496-15130

1GFE,1GGE..GX81..4FC

 2
16495 - NUT, FLARE(FOR ATM OIL COOLER)
16495-15130

1GFE,1GGE..GX81..4FC

 2
16495-15130

1GFE,1GGE..GX81..4FC

 2

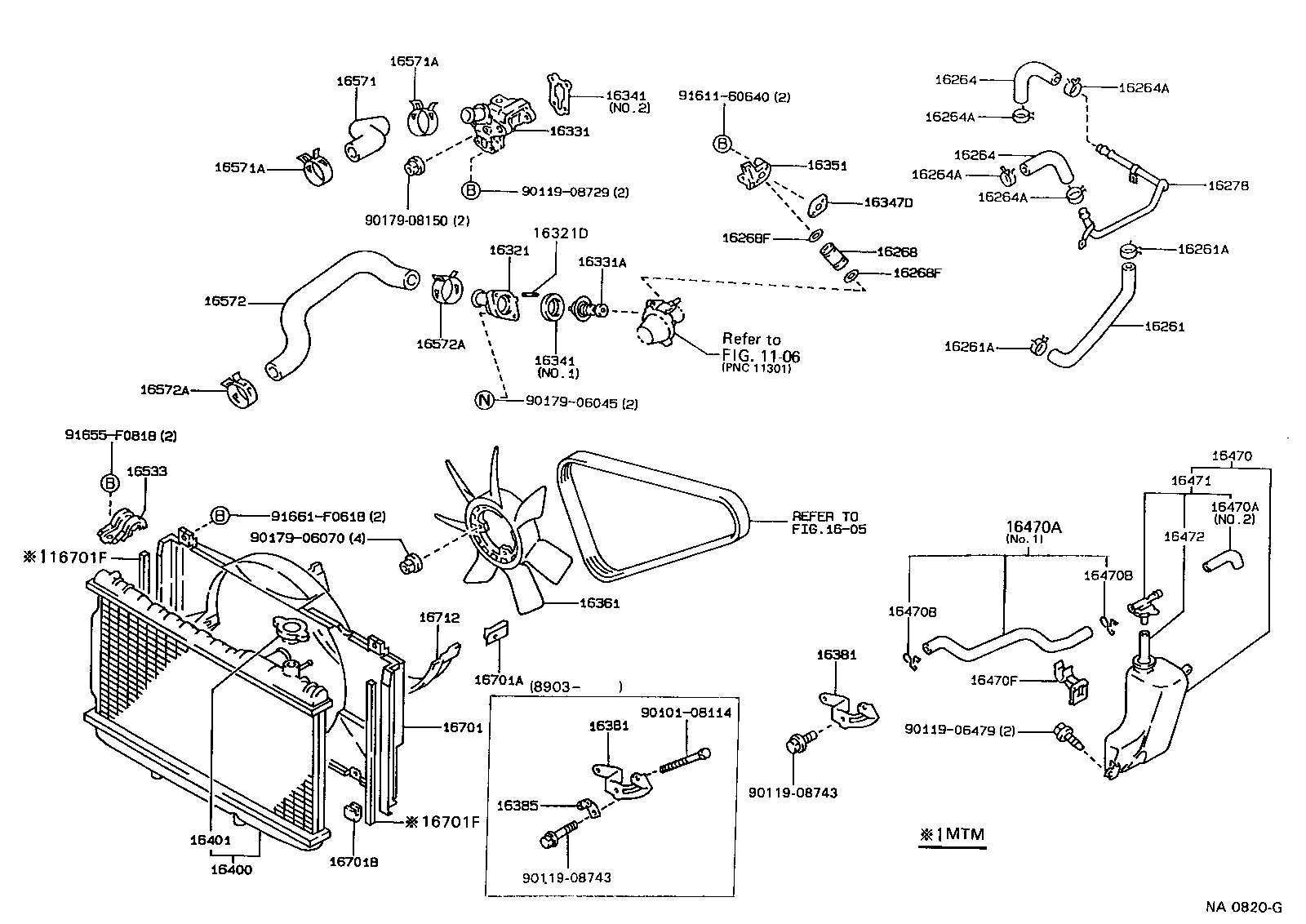

ILLUST NO. 1 OF 2(8808- )1GFE

Click highlighted areas on diagram

diagram 1106 1605 16261 16261A 16261A 16264 16264 16264A 16264A 16264A 16264A 16268 16268F 16268F 16278 16321 16321D 16331 16331A 16341 16341 16347D 16351 16361 16381 16381 16385 16400 16401 16470 16470A 16470A 16470B 16470B 16470F 16471 16472 16533 16571 16571A 16571A 16572 16572A 16572A 16701 16701A 16701B 16701F 16701F 16712 9010108114 9011906479 9011908729 9011908743 9011908743 9017906045 9017906070 9017908150 9161160640 91655F0818 91661F0618
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-70050

1GFE..GX81

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13051

1GFE..GX81

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13051

1GFE..GX81

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-70060

1GFE..GX81

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-70060

1GFE..GX81

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13051

1GFE..GX81

 4
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13051

1GFE..GX81

 4
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13051

1GFE..GX81

 4
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13051

1GFE..GX81

 4
16268 - PIPE, WATER BY-PASS, NO.1
16268-70030

1GFE..GX81

 1
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24018

1GFE,1GGE,1GGTE..GX81

 2
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24018

1GFE,1GGE,1GGTE..GX81

 2
16278 - PIPE, WATER BY-PASS, NO.2
16278-70060

1GFE..GX81

 1
16321 - INLET, WATER
16321-70030

1GFE..GX81

 1
16321D - BOLT, STUD(FOR WATER INLET)
16193-63010

1GFE..GX81

 2
16331 - OUTLET, WATER
16331-70060

1GFE..GX81

 1
16331A - THERMOSTAT
90916-03081

1GFE..GX81

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-70030

1GFE..GX81

NO.2

 1
16341-35010

1GFE..GX81

NO.1

 1
16341 - GASKET, WATER OUTLET
16341-70030

1GFE..GX81

NO.2

 1
16341-35010

1GFE..GX81

NO.1

 1
16347D - GASKET, WATER BY-PASS
16347-70020

1GFE..GX81

 1
16351 - OUTLET, WATER BY-PASS
16351-70010

1GFE..GX81

 1
16361 - FAN
16361-70040

1GFE..GX81

 1
16381 - BAR, FAN BELT ADJUSTING
16381-70050

1GFE..GX81

 1
16381 - BAR, FAN BELT ADJUSTING
16381-70050

1GFE..GX81

 1
16400 - RADIATOR ASSY
16400-70360

1GFE,1GGE..GX81..4FC

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

1GFE,1GG#..GX81

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-70110

1GFE,1GG#..GX81

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16567-70020

1GFE,1GG#..GX81

NO.1

 1
85338-95A01

1GFE,1GG#..GX81

NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16567-70020

1GFE,1GG#..GX81

NO.1

 1
85338-95A01

1GFE,1GG#..GX81

NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1GFE,1GG#..GX81

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1GFE,1GG#..GX81

 2
16470F - CLAMP, RADIATOR RESERVE TANK HOSE
90929-01233

1GFE,1GG#..GX81

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-70080

1GFE,1GG#..GX81

 1
16472 - HOSE, BREATHER
90445-12078

1GFE,1GG#..GX81

長さ=600

 1
16533 - SUPPORT, RADIATOR, UPPER
16505-70020

1GFE,1GG#..GX81

 2
16571 - HOSE, RADIATOR, INLET
16571-70190

1GFE..GX81

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37002

1GFE,1GG#..GX81

 2
90467-37002

1G#..GX81

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37002

1GFE,1GG#..GX81

 2
90467-37002

1G#..GX81

 2
16572 - HOSE, RADIATOR, OUTLET
16572-70160

1GFE..GX81

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

1GFE,1GGE,1GGTE..GX81

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

1GFE,1GGE,1GGTE..GX81

 2
16701 - SHROUD SUB-ASSY, FAN
16711-70110

1GFE,1GGE,1GGZE..GX81..4FC

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06070

1GFE,1GGE,1GGZE..GX81..4FC

 2
16701B - CUSHION, FAN SHROUD
90541-11002

1GFE,1GG#..GX81

 2
16712 - SHROUD, FAN, NO.2
16712-70080

1GFE,1GGE,1GGZE..GX81..4FC

 1
Common parts
90101-08114
90119-06479
90119-08729
90119-08743
90179-06045
90179-06070
90179-08150
91611-60640
91655-F0818
91661-F0618
Linked diagrams
1106
1605
