GX81-ATMVZ (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1990
Engine 1GGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )GX81,MX83..GD,GDG,GT ; (9008- )GX81,JZX81,LX80,MX83..GD,GDG,GR,GT,LG

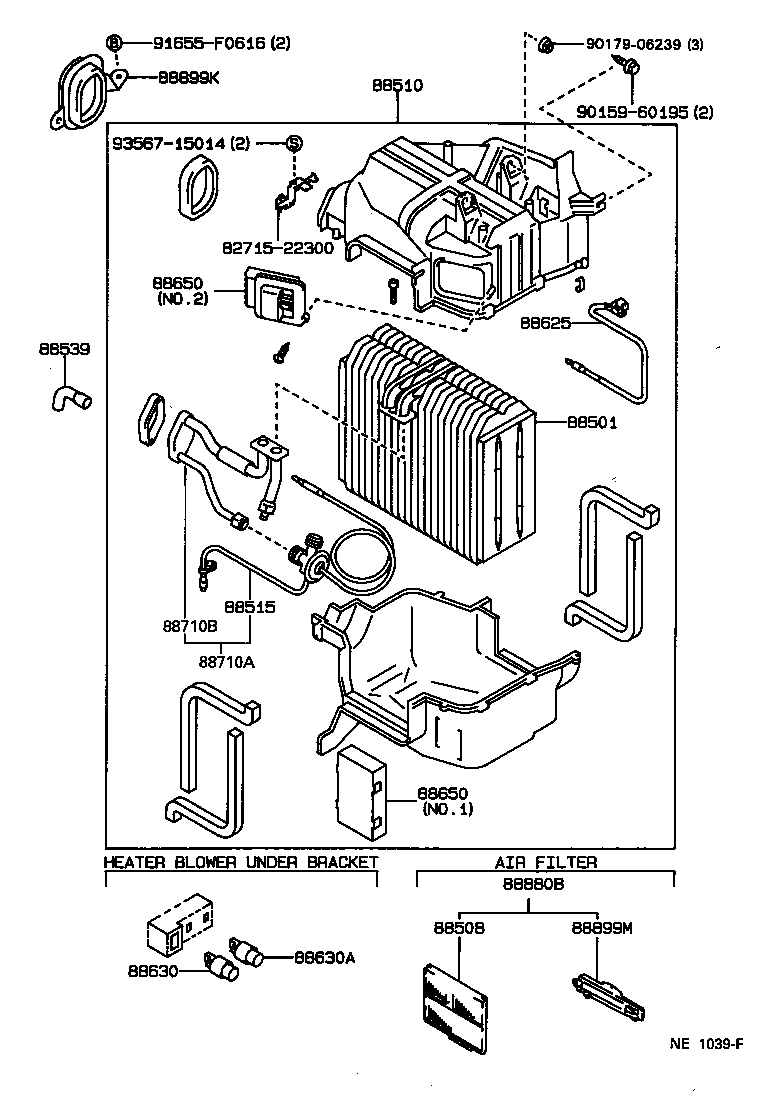

Click highlighted areas on diagram

diagram 8271522300 88501 88508 88510 88515 88539 88625 88630 88630A 88650 88650 88710A 88710B 88880B 88899K 88899M 9015960195 9017906239 91655F0616 9356715014
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-22180

GX81,LX80,SX80..(GD,GDG,GL,GR,GT,LG,STD)..(CI,HTWC,SPC,TD,TWC,TWT)

 1
88501-22210

GX81,MX83..GD,GDG,GT

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88501-22180

GX81,MX83..GD,GDG,GT

 1
88510 - UNIT ASSY, COOLER
88510-22430

GX81,MX83..(GD,GDG,GT)..(HTWC,TWC,TWT)

 1
88510-22610

GX81,MX83..(GD,GDG,GT)..(HTWC,TWC,TWT)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88515 - VALVE, COOLER EXPANSION
88515-22080

GX81,LX80,SX80..(GD,GDG,GL,GR,GT,LG,STD)..(CI,HTWC,SPC,TD,TWC,TWT)

 1
88515-22081

GX81,MX83..GD,GDG,GT

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22130

GX81,LX80,SX80..(GD,GDG,GL,GR,GT,LG,STD)..(CI,HTWC,SPC,TD,TWC,TWT)

 1
88539-22130

GX81,MX83..GD,GDG,GT

 1
88625 - THERMISTOR, COOLER, NO.1
88625-22170

GX81,LX80,SX80..GD,GDG,GR,GT,LG

 1
88625-22170

GX81,MX83..GD,GDG,GT

 1
88630 - RELAY ASSY, COOLER
90987-02004

GX81,MX83..GD,GDG,GT

 1
88630A - RELAY ASSY, COOLER
90987-03001

GX81,MX83,SX80..GD,GDG,GT,KYO

 1
90987-03001

GX81,SX80;LX80..(GL,GR)..TD

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22340

GX81,MX83..GD,GDG,GT

NO.2

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22340

GX81,MX83..GD,GDG,GT

NO.2

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-22420

GX81,LX80,SX80..GD,GDG,GL,GR,GT,LG,STD

 1
88710-22420

GX81,MX83..GD,GDG,GT

 1
88710-22500

GX81,MX83..GD,GDG,GT

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88710B - TUBE ASSY, AIR CONDITIONER
88710-22460

GX81,MX83..GD,GDG,GT

 1
88710-22460

GX81,LX80,SX80..GD,GDG,GL,GR,GT,LG,STD

 1
88710-22510

GX81,MX83..GD,GDG,GT

ｶﾝﾚｲﾁ ｼﾖｳ

 1
88899K - PLATE, COVER
88899-22150

GX81,MX83..GD,GDG,GT

 1
88899-22150

GX81,LX80,SX80..(GD,GDG,GL,GR,GT,LG,STD)..(CI,HTWC,SPC,TD,TWC,TWT)

 1
Common parts
82715-22300
90159-60195
90179-06239
91655-F0616
93567-15014
