GX81-ATMVZ (1988)
Toyota Mark 2
(8808- )GX81,LX80,MX83,SX80,YX80 ; (9008-9302)JZX81..TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85031-22010 |
GX81..GD,GDG,GT |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2227108 |
GX81..HT..(GD,GT) WHITE PEARL MICA,22K |
2 | ||
| 85035-2227001 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,3H3 ,8E3 |
2 | ||
| 85035-2227008 |
GX81..HT..(GD,GT) WHITE PEARL MICA,22K |
2 | ||
| 85035-2227101 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,183 ,8E3 |
2 | ||
| 85035-2227101 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,3H3 ,8E3 |
2 | ||
| 85035-2227113 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG GRAY M. M.,170 |
2 | ||
| 85035-2227013 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG GRAY M. M.,170 |
2 | ||
| 85035-2227018 |
GX81,LX80,SX80,YX80 SUPER WHITE 4,050 |
2 | ||
| 85035-2227118 |
GX81,LX80,MX83,SX80,YX80 SUPER WHITE 4,050 |
2 | ||
| 85035-2225001 |
GX81,LX80..HT..(HTWC,TD,TWC,TWT) BLACK,177 ,183 |
2 | ||
| 85035-2227123 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG GLINISH SILVER METAL,174 |
2 | ||
| 85035-2225033 |
GX81,LX80,MX83..HT GREENISH SILVER M,174 |
2 | ||
| 85035-2225023 |
GX81,LX80,MX83..HT GRAY MICA,170 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2227001 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,3H3 ,8E3 |
2 | ||
| 85035-2227008 |
GX81..HT..(GD,GT) WHITE PEARL MICA,22K |
2 | ||
| 85035-2227101 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,183 ,8E3 |
2 | ||
| 85035-2227101 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,3H3 ,8E3 |
2 | ||
| 85035-2227113 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG GRAY M. M.,170 |
2 | ||
| 85035-2227013 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG GRAY M. M.,170 |
2 | ||
| 85035-2227108 |
GX81..HT..(GD,GT) WHITE PEARL MICA,22K |
2 | ||
| 85035-2227018 |
GX81,LX80,SX80,YX80 SUPER WHITE 4,050 |
2 | ||
| 85035-2227118 |
GX81,LX80,MX83,SX80,YX80 SUPER WHITE 4,050 |
2 | ||
| 85035-2225001 |
GX81,LX80..HT..(HTWC,TD,TWC,TWT) BLACK,177 ,183 |
2 | ||
| 85035-2227123 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG GLINISH SILVER METAL,174 |
2 | ||
| 85035-2225033 |
GX81,LX80,MX83..HT GREENISH SILVER M,174 |
2 | ||
| 85035-2225023 |
GX81,LX80,MX83..HT GRAY MICA,170 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85310-22150 |
JZX81..TWC;GX81,MX83..GD,GDG,GT ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ OR ｱﾘ(*RW) OR ｱﾘ(*SW) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-22370 |
GX81,MX83..GD,GDG,GT 2.5L,ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 85331-22370 |
GX81..GD,GDG,GT ｱﾘ(*SW) |
1 | ||
| 85331-22450 |
JZX81..TWC;GX81,MX83..GD,GDG,GT ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ OR ｱﾘ(*RW) |
1 | ||
| 85331-22440 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-22470 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-22440 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
GX81..GD,GDG,GT 2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 90446-07001 |
GX81..GD,GDG,GT 2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 90446-07001 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 2.5L ｳｵﾂｼﾔ ｼﾞﾔ- |
1 | ||
| 90099-33299 |
GX81..GD,GDG,GT *H,L=230,2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 90099-33299 |
GX81..GD,GDG,GT *H,L=230,2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
GX81..GD,GDG,GT 2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 90446-07001 |
GX81..GD,GDG,GT 2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 90446-07001 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 2.5L ｳｵﾂｼﾔ ｼﾞﾔ- |
1 | ||
| 90099-33299 |
GX81..GD,GDG,GT *H,L=230,2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 90099-33299 |
GX81..GD,GDG,GT *H,L=230,2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
GX81,LX80,MX83,SX80,YX80 長さ=1000 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33087 |
GX81,JZX81,LX80,MX83,SX80,YX80 *H,L=40,左側 |
1 | ||
| 90099-33094 |
GX81,LX80,MX83,SX80,YX80 *H,L=580,右側 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33087 |
GX81,JZX81,LX80,MX83,SX80,YX80 *H,L=40,左側 |
1 | ||
| 90099-33094 |
GX81,LX80,MX83,SX80,YX80 *H,L=580,右側 |
1 | ||
| Common parts | ||||
| 85373-22010 | ||||
| 90119-06450 | ||||
| 90959-01485 | ||||
| 91655-40616 | ||||
(8808- )GX81,MX83..GD,GDG,GT ; (9008-9302)JZX81..TWC
ｱﾘ(ｻｲﾄﾞ ﾜｲﾊﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2227001 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,3H3 ,8E3 |
2 | ||
| 85035-2227008 |
GX81..HT..(GD,GT) WHITE PEARL MICA,22K |
2 | ||
| 85035-2227101 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,183 ,8E3 |
2 | ||
| 85035-2227101 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,3H3 ,8E3 |
2 | ||
| 85035-2227113 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG GRAY M. M.,170 |
2 | ||
| 85035-2227013 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG GRAY M. M.,170 |
2 | ||
| 85035-2227108 |
GX81..HT..(GD,GT) WHITE PEARL MICA,22K |
2 | ||
| 85035-2227018 |
GX81,LX80,SX80,YX80 SUPER WHITE 4,050 |
2 | ||
| 85035-2227118 |
GX81,LX80,MX83,SX80,YX80 SUPER WHITE 4,050 |
2 | ||
| 85035-2225001 |
GX81,LX80..HT..(HTWC,TD,TWC,TWT) BLACK,177 ,183 |
2 | ||
| 85035-2227123 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG GLINISH SILVER METAL,174 |
2 | ||
| 85035-2225033 |
GX81,LX80,MX83..HT GREENISH SILVER M,174 |
2 | ||
| 85035-2225023 |
GX81,LX80,MX83..HT GRAY MICA,170 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2227001 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,3H3 ,8E3 |
2 | ||
| 85035-2227008 |
GX81..HT..(GD,GT) WHITE PEARL MICA,22K |
2 | ||
| 85035-2227101 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,183 ,8E3 |
2 | ||
| 85035-2227101 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,3H3 ,8E3 |
2 | ||
| 85035-2227113 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG GRAY M. M.,170 |
2 | ||
| 85035-2227013 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG GRAY M. M.,170 |
2 | ||
| 85035-2227108 |
GX81..HT..(GD,GT) WHITE PEARL MICA,22K |
2 | ||
| 85035-2227018 |
GX81,LX80,SX80,YX80 SUPER WHITE 4,050 |
2 | ||
| 85035-2227118 |
GX81,LX80,MX83,SX80,YX80 SUPER WHITE 4,050 |
2 | ||
| 85035-2225001 |
GX81,LX80..HT..(HTWC,TD,TWC,TWT) BLACK,177 ,183 |
2 | ||
| 85035-2227123 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG GLINISH SILVER METAL,174 |
2 | ||
| 85035-2225033 |
GX81,LX80,MX83..HT GREENISH SILVER M,174 |
2 | ||
| 85035-2225023 |
GX81,LX80,MX83..HT GRAY MICA,170 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85310-22150 |
JZX81..TWC;GX81,MX83..GD,GDG,GT ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ OR ｱﾘ(*RW) OR ｱﾘ(*SW) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-22440 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85331-22370 |
GX81,MX83..GD,GDG,GT 2.5L,ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 85331-22370 |
GX81..GD,GDG,GT ｱﾘ(*SW) |
1 | ||
| 85331-22450 |
JZX81..TWC;GX81,MX83..GD,GDG,GT ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ OR ｱﾘ(*RW) |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-22470 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-22440 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
GX81..GD,GDG,GT 2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 90446-07001 |
GX81..GD,GDG,GT 2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 90446-07001 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 2.5L ｳｵﾂｼﾔ ｼﾞﾔ- |
1 | ||
| 90099-33299 |
GX81..GD,GDG,GT *H,L=230,2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 90099-33299 |
GX81..GD,GDG,GT *H,L=230,2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
GX81,LX80,MX83,SX80,YX80 長さ=1000 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33087 |
GX81,JZX81,LX80,MX83,SX80,YX80 *H,L=40,左側 |
1 | ||
| 90099-33094 |
GX81,LX80,MX83,SX80,YX80 *H,L=580,右側 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33087 |
GX81,JZX81,LX80,MX83,SX80,YX80 *H,L=40,左側 |
1 | ||
| 90099-33094 |
GX81,LX80,MX83,SX80,YX80 *H,L=580,右側 |
1 | ||
| Common parts | ||||
| 85373-22010 | ||||
| 89689-22020 | ||||
| 90119-06450 | ||||
| 90959-01485 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 8506 | ||||
(8808- )GX81,MX83..GD,GDG,GT ; (9008-9302)JZX81..TWC
ｱﾘ(ｻｲﾄﾞ ﾜｲﾊﾟ & ﾘﾔ ﾜｲﾊﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85031-22010 |
GX81..GD,GDG,GT |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2227001 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,3H3 ,8E3 |
2 | ||
| 85035-2227008 |
GX81..HT..(GD,GT) WHITE PEARL MICA,22K |
2 | ||
| 85035-2227101 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,183 ,8E3 |
2 | ||
| 85035-2227101 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,3H3 ,8E3 |
2 | ||
| 85035-2227113 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG GRAY M. M.,170 |
2 | ||
| 85035-2227013 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG GRAY M. M.,170 |
2 | ||
| 85035-2227108 |
GX81..HT..(GD,GT) WHITE PEARL MICA,22K |
2 | ||
| 85035-2227018 |
GX81,LX80,SX80,YX80 SUPER WHITE 4,050 |
2 | ||
| 85035-2227118 |
GX81,LX80,MX83,SX80,YX80 SUPER WHITE 4,050 |
2 | ||
| 85035-2225001 |
GX81,LX80..HT..(HTWC,TD,TWC,TWT) BLACK,177 ,183 |
2 | ||
| 85035-2227123 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG GLINISH SILVER METAL,174 |
2 | ||
| 85035-2225033 |
GX81,LX80,MX83..HT GREENISH SILVER M,174 |
2 | ||
| 85035-2225023 |
GX81,LX80,MX83..HT GRAY MICA,170 |
2 | ||

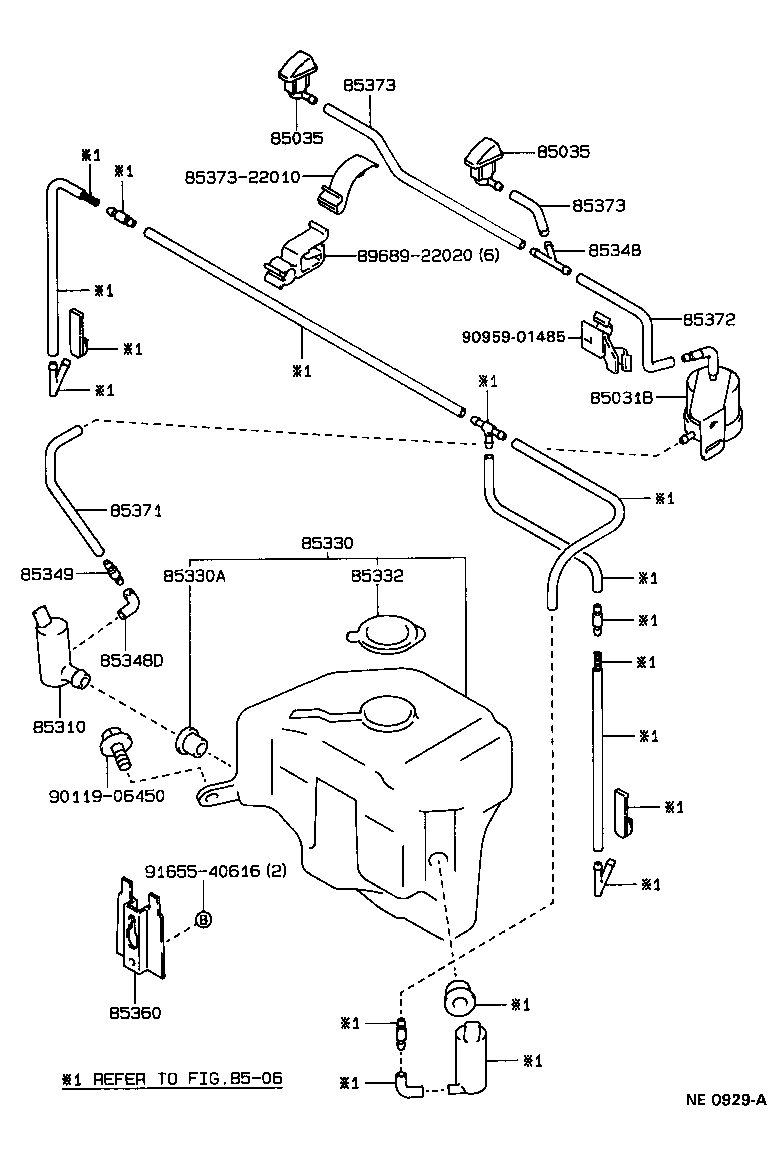

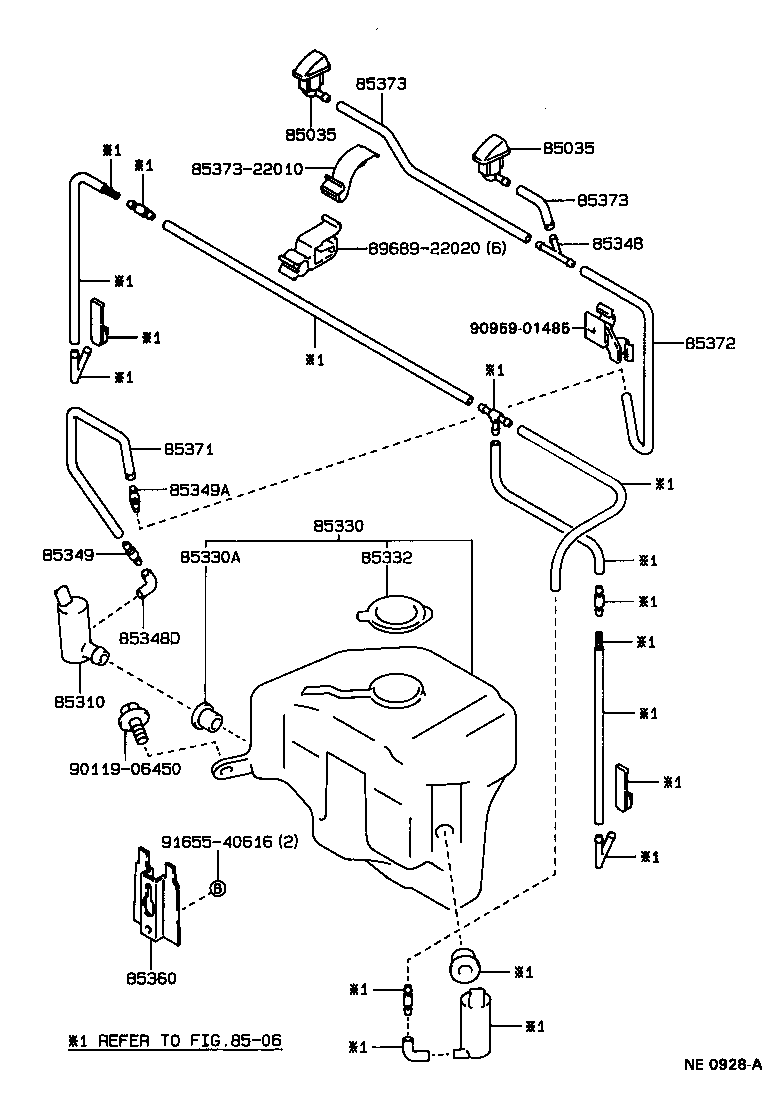

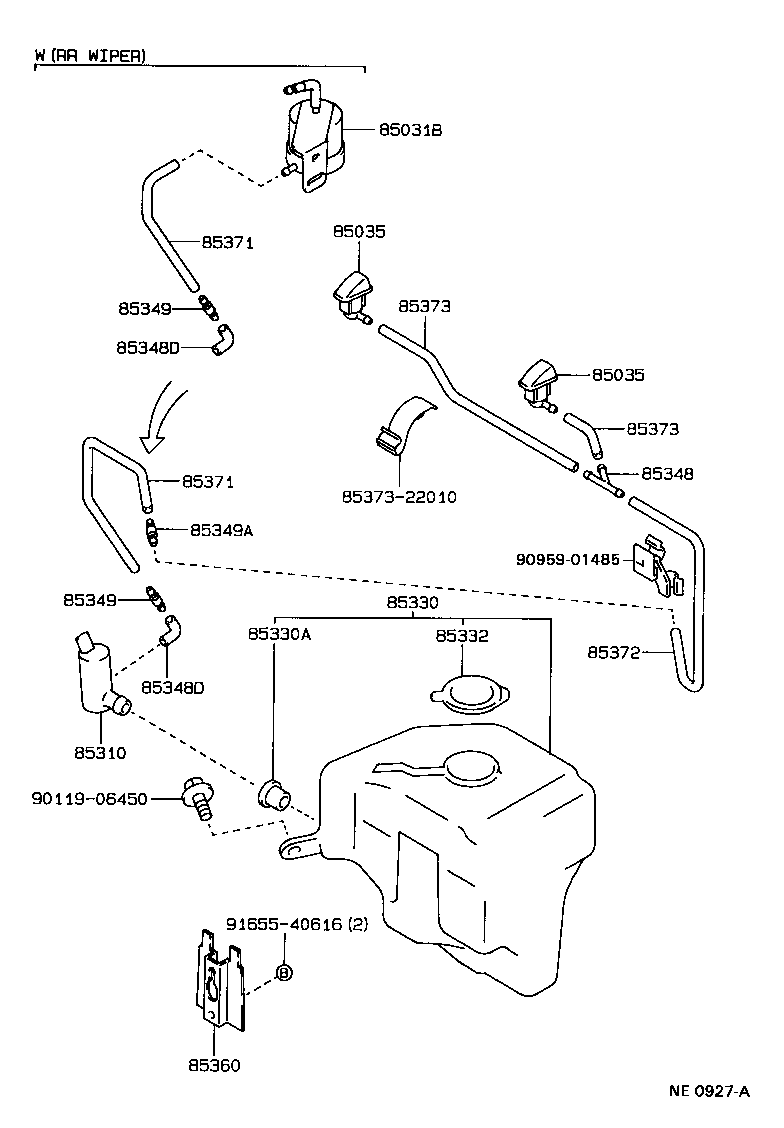

| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2227001 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,3H3 ,8E3 |
2 | ||
| 85035-2227008 |
GX81..HT..(GD,GT) WHITE PEARL MICA,22K |
2 | ||
| 85035-2227101 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,183 ,8E3 |
2 | ||
| 85035-2227101 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG BLACK,177 ,3H3 ,8E3 |
2 | ||
| 85035-2227113 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG GRAY M. M.,170 |
2 | ||
| 85035-2227013 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG GRAY M. M.,170 |
2 | ||
| 85035-2227108 |
GX81..HT..(GD,GT) WHITE PEARL MICA,22K |
2 | ||
| 85035-2227018 |
GX81,LX80,SX80,YX80 SUPER WHITE 4,050 |
2 | ||
| 85035-2227118 |
GX81,LX80,MX83,SX80,YX80 SUPER WHITE 4,050 |
2 | ||
| 85035-2225001 |
GX81,LX80..HT..(HTWC,TD,TWC,TWT) BLACK,177 ,183 |
2 | ||
| 85035-2227123 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG GLINISH SILVER METAL,174 |
2 | ||
| 85035-2225033 |
GX81,LX80,MX83..HT GREENISH SILVER M,174 |
2 | ||
| 85035-2225023 |
GX81,LX80,MX83..HT GRAY MICA,170 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85310-22150 |
JZX81..TWC;GX81,MX83..GD,GDG,GT ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ OR ｱﾘ(*RW) OR ｱﾘ(*SW) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-22440 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85331-22370 |
GX81,MX83..GD,GDG,GT 2.5L,ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 85331-22370 |
GX81..GD,GDG,GT ｱﾘ(*SW) |
1 | ||
| 85331-22450 |
JZX81..TWC;GX81,MX83..GD,GDG,GT ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ OR ｱﾘ(*RW) |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-22470 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-22440 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
GX81..GD,GDG,GT 2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 90446-07001 |
GX81..GD,GDG,GT 2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 90446-07001 |
JZX81..TWC;GX81,LX80,MX83,SX80,YX80 2.5L ｳｵﾂｼﾔ ｼﾞﾔ- |
1 | ||
| 90099-33299 |
GX81..GD,GDG,GT *H,L=230,2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 90099-33299 |
GX81..GD,GDG,GT *H,L=230,2.5L ｳｵﾂｼﾔ ｼﾞﾔ-,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
GX81,LX80,MX83,SX80,YX80 長さ=1000 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33087 |
GX81,JZX81,LX80,MX83,SX80,YX80 *H,L=40,左側 |
1 | ||
| 90099-33094 |
GX81,LX80,MX83,SX80,YX80 *H,L=580,右側 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33087 |
GX81,JZX81,LX80,MX83,SX80,YX80 *H,L=40,左側 |
1 | ||
| 90099-33094 |
GX81,LX80,MX83,SX80,YX80 *H,L=580,右側 |
1 | ||
| Common parts | ||||
| 85373-22010 | ||||
| 89689-22020 | ||||
| 90119-06450 | ||||
| 90959-01485 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 8506 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
