GX81-ATMVZ (1988)
Toyota Mark 2

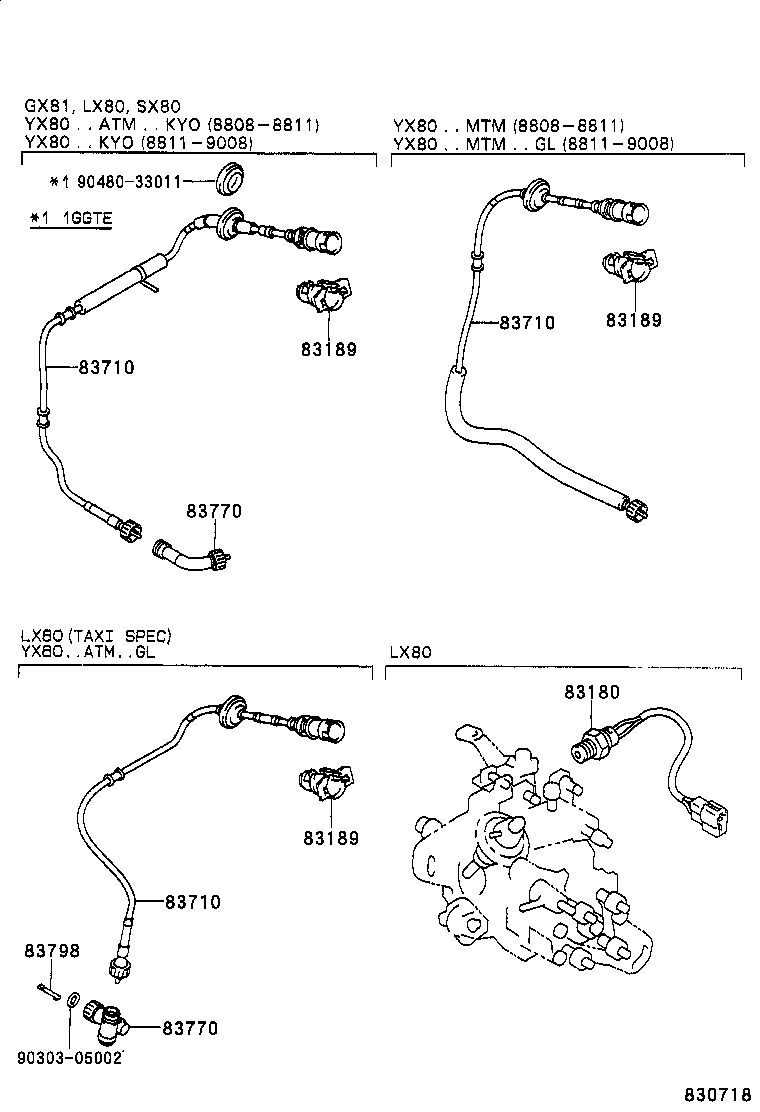

ILLUST NO. 2 OF 3(8808-9008)
ｽﾋﾟ-ﾄﾞﾒ-ﾀ ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-2A190 |
GX81..5F..TWT |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-2A190 |
GX81..5F..TWT |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-2A190 |
GX81..5F..TWT |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22110 |
YX80..KYO;GX81,LX80,MX83,SX80 |
1 | ||
| 83770-22110 |
GX81,LX80,SX80;YX80..3FC..KYO |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22110 |
YX80..KYO;GX81,LX80,MX83,SX80 |
1 | ||
| 83770-22110 |
GX81,LX80,SX80;YX80..3FC..KYO |
1 | ||
| Common parts | ||||
| 90303-05002 | ||||
| 90480-33011 | ||||
ILLUST NO. 2 OF 3(8808- )
ｽﾋﾟ-ﾄﾞﾒ-ﾀ ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||

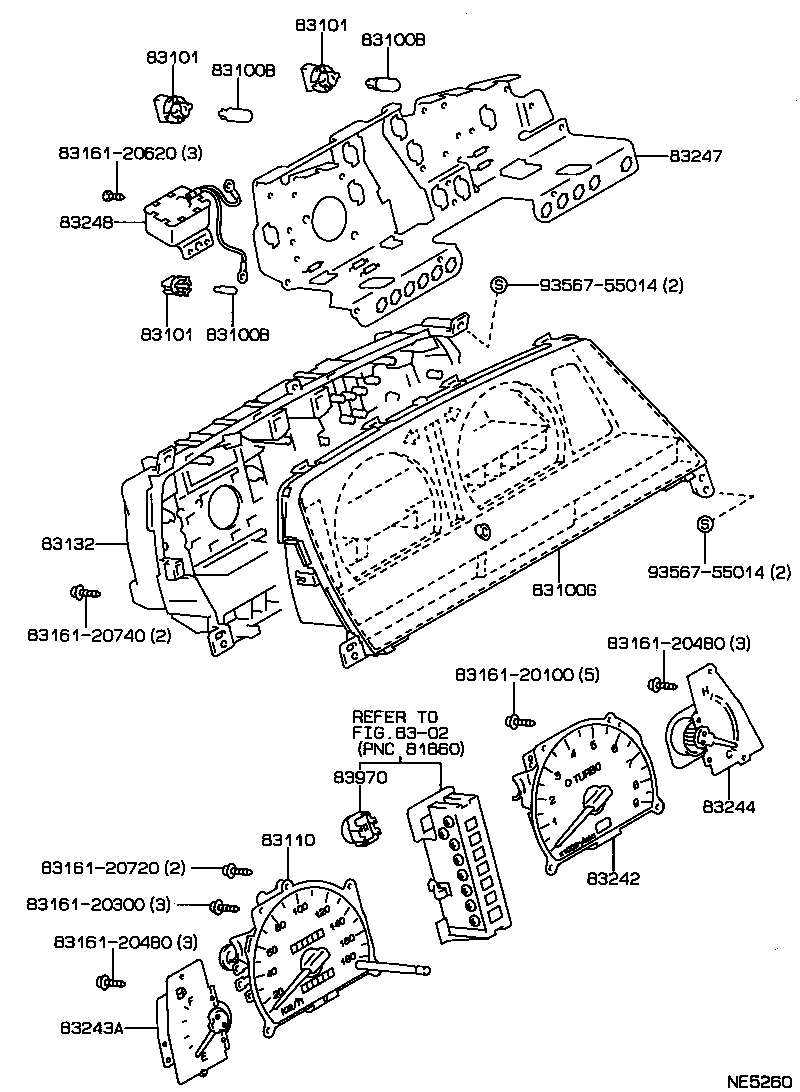

ILLUST NO. 1 OF 3(8808- )GX81,JZX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,KYO,LG
ｱﾅﾛｸﾞ,ｱﾘ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
GX81,LX80,SX80 12V 3.4W,SOCKET:83101-20040 |
8 | ||
| 90981-11018 |
GX81..TWT 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040 |
11 | ||
| 90981-11018 |
GX81..TWT 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*DS),SOCKET:83101-14040 |
12 | ||
| 83109-12040 |
JZX81..TWC;GX81..SPC,TWT 12V 1.2W ｿｹｯﾄ付き,TURN |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
GX81,LX80,SX80 12V 3.4W,SOCKET:83101-20040 |
8 | ||
| 90981-11018 |
GX81..TWT 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040 |
11 | ||
| 90981-11018 |
GX81..TWT 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*DS),SOCKET:83101-14040 |
12 | ||
| 83109-12040 |
JZX81..TWC;GX81..SPC,TWT 12V 1.2W ｿｹｯﾄ付き,TURN |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
GX81,LX80,SX80 12V 3.4W,SOCKET:83101-20040 |
8 | ||
| 90981-11018 |
GX81..TWT 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040 |
11 | ||
| 90981-11018 |
GX81..TWT 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*DS),SOCKET:83101-14040 |
12 | ||
| 83109-12040 |
JZX81..TWC;GX81..SPC,TWT 12V 1.2W ｿｹｯﾄ付き,TURN |
2 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-2A480 |
GX81..SPC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83134-2A540 |
GX81,JZX81,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX81..TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),BULB:12V 1.2W |
12 | ||
| 83101-20040 |
GX81,LX80,SX80 BULB:12V 3.4W |
8 | ||
| 83101-14040 |
GX81..TWT BULB:12V 1.2W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX81..TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),BULB:12V 1.2W |
12 | ||
| 83101-20040 |
GX81,LX80,SX80 BULB:12V 3.4W |
8 | ||
| 83101-14040 |
GX81..TWT BULB:12V 1.2W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX81..TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),BULB:12V 1.2W |
12 | ||
| 83101-20040 |
GX81,LX80,SX80 BULB:12V 3.4W |
8 | ||
| 83101-14040 |
GX81..TWT BULB:12V 1.2W |
11 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2A550 |
GX81,SX80..GD,GDG,GR,GT,LG |
1 | ||
| 83110-2A551 |
GX81,SX80..GD,GDG,GR,GT,LG |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2A380 |
GX81..SPC,TWC,TWT |
1 | ||
| 83132-2A580 |
GX81..SPC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83132-2A380 |
GX81..TWC,TWT |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-2A120 |
GX81..TWT |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-2A120 |
GX81,LX80,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-2A080 |
YX80..KYO;GX81,LX80,SX80..GD,GDG,GL,GR,GT,KYO,LG |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-2A240 |
GX81..SPC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83247-2A260 |
GX81..TWT |
1 | ||
| 83247-2A520 |
GX81..SPC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-22040 |
GX81,LX80,SX80,YX80 |
1 | ||
| 86640-22050 |
GX81..SPC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-22010 |
MX83;GX81..5F..TWT |
1 | ||
| Common parts | ||||
| 83161-20100 | ||||
| 83161-20300 | ||||
| 83161-20480 | ||||
| 83161-20620 | ||||
| 83161-20720 | ||||
| 83161-20740 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||

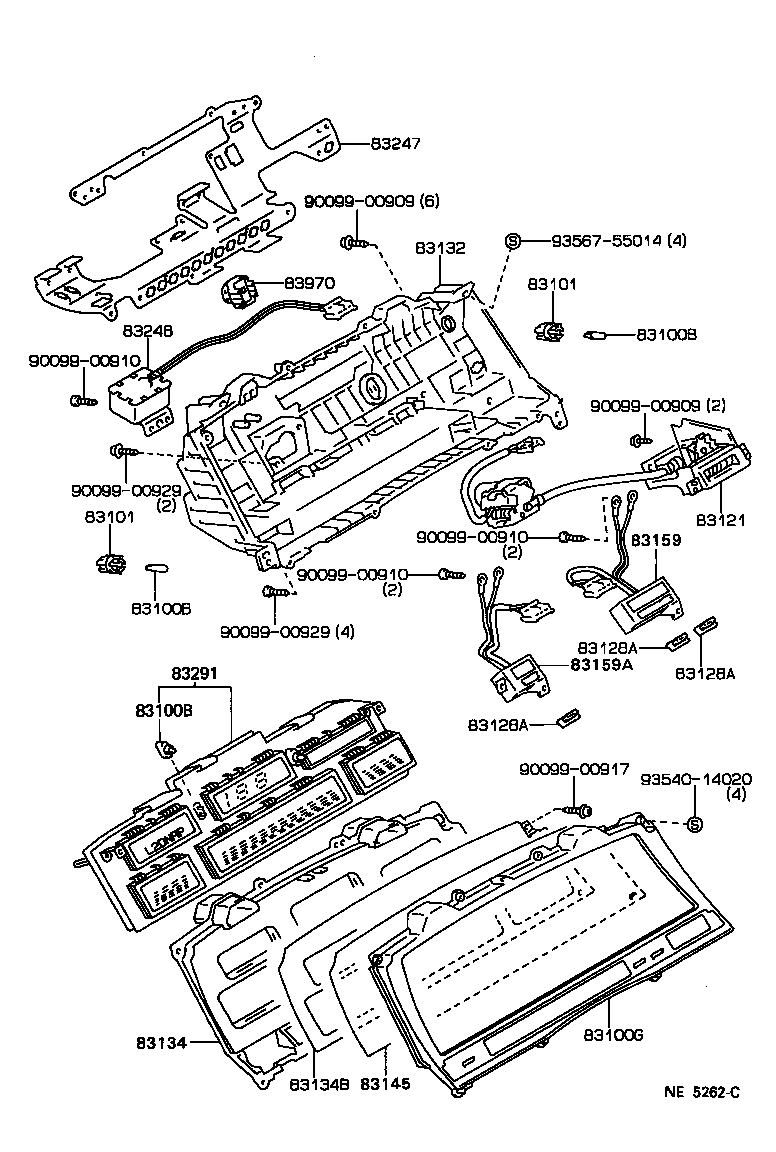

ILLUST NO. 1 OF 3(8808-9302)GD,GT
ﾃﾞｼﾞﾀﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
GX81,LX80,SX80 12V 3.4W,SOCKET:83101-20040 |
8 | ||
| 90981-11018 |
GX81..TWT 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040 |
11 | ||
| 90981-11018 |
GX81..TWT 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*DS),SOCKET:83101-14040 |
12 | ||
| 83109-12040 |
JZX81..TWC;GX81..SPC,TWT 12V 1.2W ｿｹｯﾄ付き,TURN |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
GX81,LX80,SX80 12V 3.4W,SOCKET:83101-20040 |
8 | ||
| 90981-11018 |
GX81..TWT 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040 |
11 | ||
| 90981-11018 |
GX81..TWT 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*DS),SOCKET:83101-14040 |
12 | ||
| 83109-12040 |
JZX81..TWC;GX81..SPC,TWT 12V 1.2W ｿｹｯﾄ付き,TURN |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
GX81,LX80,SX80 12V 3.4W,SOCKET:83101-20040 |
8 | ||
| 90981-11018 |
GX81..TWT 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040 |
11 | ||
| 90981-11018 |
GX81..TWT 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(*DS),SOCKET:83101-14040 |
12 | ||
| 83109-12040 |
JZX81..TWC;GX81..SPC,TWT 12V 1.2W ｿｹｯﾄ付き,TURN |
2 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-2A480 |
GX81..SPC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83134-2A540 |
GX81,JZX81,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX81..TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),BULB:12V 1.2W |
12 | ||
| 83101-20040 |
GX81,LX80,SX80 BULB:12V 3.4W |
8 | ||
| 83101-14040 |
GX81..TWT BULB:12V 1.2W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX81..TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),BULB:12V 1.2W |
12 | ||
| 83101-20040 |
GX81,LX80,SX80 BULB:12V 3.4W |
8 | ||
| 83101-14040 |
GX81..TWT BULB:12V 1.2W |
11 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-2A140 |
GX81,MX83..GDG,GT |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-2A100 |
GX81,MX83..GDG,GT |
3 | ||
| 83128A - KNOB, METER | ||||
| 83128-2A100 |
GX81,MX83..GDG,GT |
3 | ||
| 83128A - KNOB, METER | ||||
| 83128-2A100 |
GX81,MX83..GDG,GT |
3 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2A380 |
GX81..SPC,TWC,TWT |
1 | ||
| 83132-2A580 |
GX81..SPC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83132-2A380 |
GX81..TWC,TWT |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-2A520 |
JZX81..TWC;GX81,MX83..GDG,GT |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83134-2A620 |
JZX81..TWC;GX81,MX83..GDG,GT |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-2A380 |
JZX81..TWC;GX81,MX83..GDG,GT |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83125-2A040 |
JZX81..TWC;GX81,MX83..GDG,GT |
1 | ||
| 83159A - SWITCH, METER, NO.2 | ||||
| 83125-2A020 |
JZX81..TWC;GX81,MX83..GDG,GT |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-2A240 |
GX81..SPC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83247-2A260 |
GX81..TWT |
1 | ||
| 83247-2A520 |
GX81..SPC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-22040 |
GX81,LX80,SX80,YX80 |
1 | ||
| 86640-22050 |
GX81..SPC,TWT ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-22250 |
GX81..TWT |
1 | ||
| 83291-22251 |
GX81..TWT |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-22010 |
MX83;GX81..5F..TWT |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 93540-14020 | ||||
| 93567-55014 | ||||

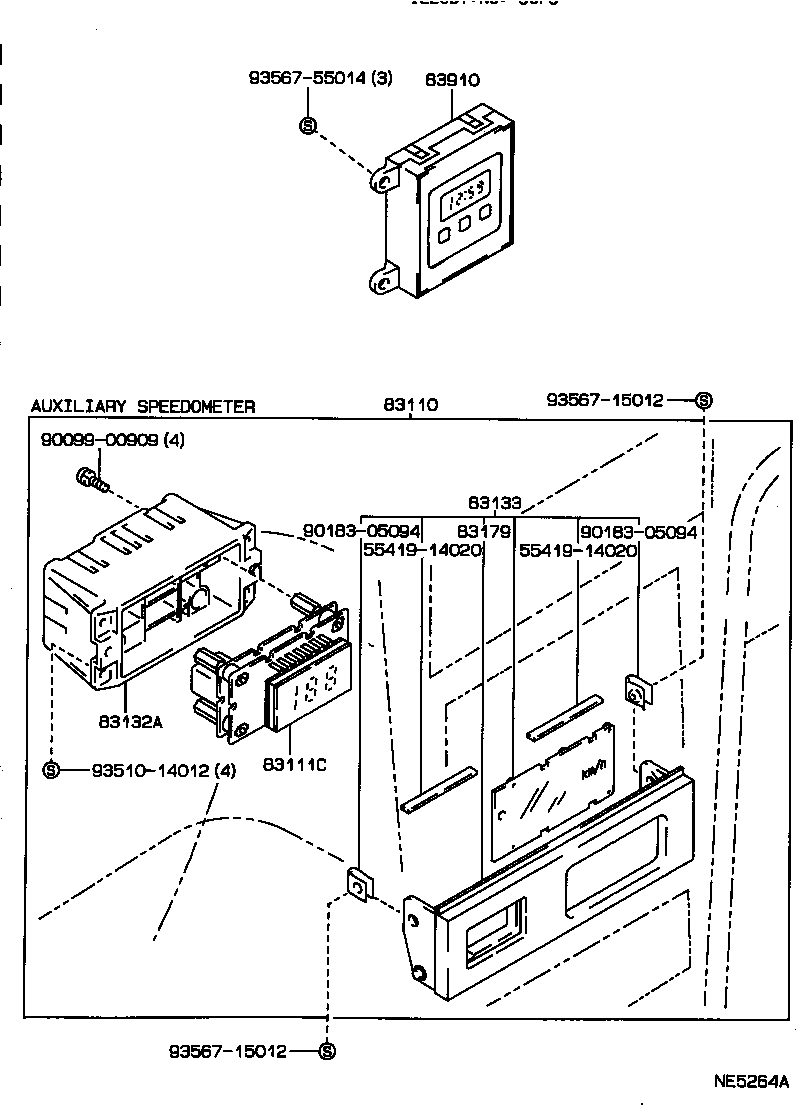

ILLUST NO. 3 OF 3(8808- )
ｸﾛﾂｸ & ﾎｼﾞﾖﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2A550 |
GX81,SX80..GD,GDG,GR,GT,LG |
1 | ||
| 83110-2A551 |
GX81,SX80..GD,GDG,GR,GT,LG |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22400 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 83910-22420 |
GX81,MX83..GD,GDG,GT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| Common parts | ||||
| 55419-14020 | ||||
| 90099-00909 | ||||
| 90183-05094 | ||||
| 93510-14012 | ||||
| 93567-15012 | ||||
| 93567-55014 | ||||
