GX81-ATMVZ (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1990
Engine 1GGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9302)1GGE,1GGTE

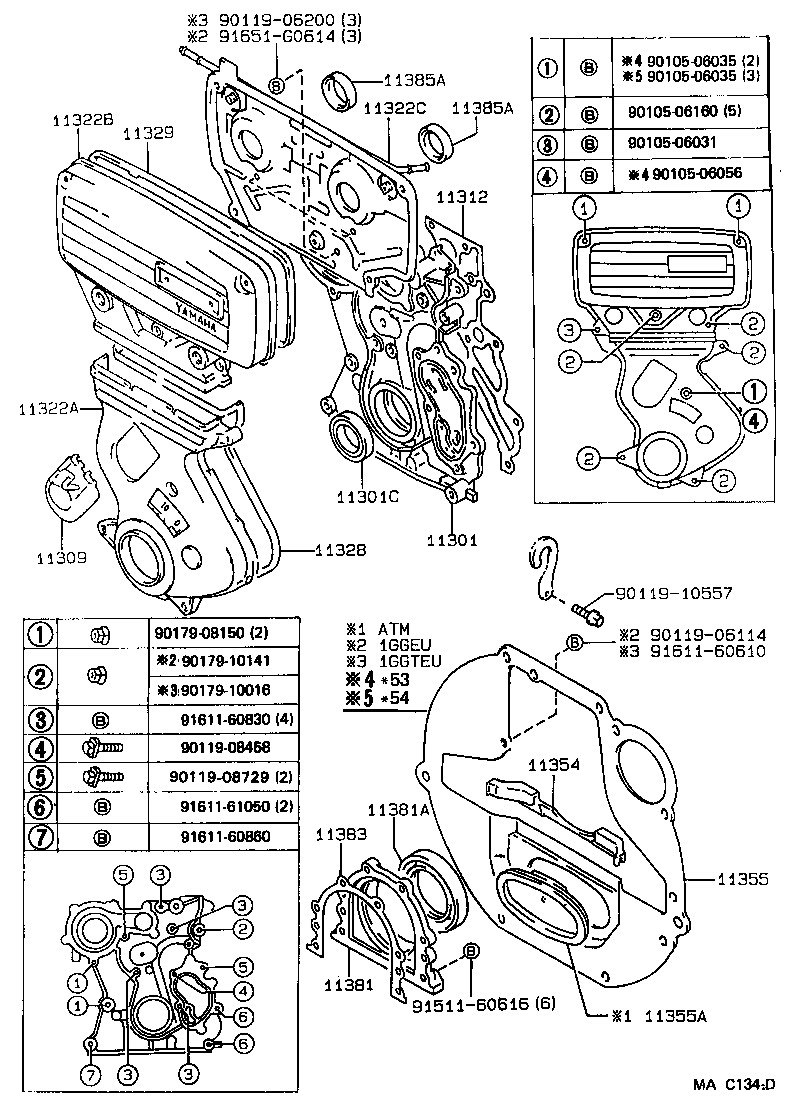

Click highlighted areas on diagram

diagram 11301 11301C 11309 11312 11322A 11322B 11322C 11328 11329 11354 11355 11355A 11381 11381A 11383 11385A 11385A 9010506031 9010506035 9010506035 9010506056 9010506160 9011906114 9011906200 9011908458 9011908729 9011910557 9017908150 9017910016 9017910141 9151160616 9161160610 9161160830 9161160860 9161161050 91651G0614
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11311-88340

1GGTE..GX81

 1
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-45003

1GFE,1GG#..GX81

 1
11309 - COVER SUB-ASSY, TIMING BELT, NO.4
11325-88300

1GFE,1GG#..GX81

 1
11312 - GASKET, FRONT END PLATE
11312-70013

1GFE,1GG#..GX81

 1
11322A - COVER, TIMING BELT, NO.1
11321-88300

1GGE,1GGTE..GX81

 1
11322B - COVER, TIMING BELT, NO.2
11322-88340

1GGTE..GX81

 1
11322C - COVER, TIMING BELT, NO.3
11323-88341

1GGTE..GX81

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-88300

1GGE,1GGTE..GX81

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-88300

1GGE,1GGTE..GX81

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-70010

1GFE,1GG#..GX81

 1
11355 - PLATE, REAR END
11355-70010

1GFE,1GGE,1GGTE..GX81..5F

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-70010

1GFE,1GG#..GX81

 1
11381A - SEAL, ENGINE REAR OIL
90311-75004

1GFE,1GG#..GX81

 1
90311-75004

1GGE,1GGTE..GX81

*54

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-88340

1GGE,1GGTE..GX81

*54

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-35008

1GG#..GX81

 2
90311-35008

1GGE,1GGTE..GX81

*54

 2
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-35008

1GG#..GX81

 2
90311-35008

1GGE,1GGTE..GX81

*54

 2
Common parts
90105-06031
90105-06035
90105-06056
90105-06160
90119-06114
90119-06200
90119-08458
90119-08729
90119-10557
90179-08150
90179-10016
90179-10141
91511-60616
91611-60610
91611-60830
91611-60860
91611-61050
91651-G0614
