GX81-ATMQK (1988)
Toyota Mark 2
(8808-9210)HT..GD,GDG,GT ; (9111-9210)LX80..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85035-22240 |
GX81,MX83..GD,GDG,GT |
1 | ||
| 85347 - PACKING, REAR WASHER | ||||
| 85347-12010 |
GX81,JZX81,MX83..GD,GDG,GT |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-22260 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) REAR WHEEL HOUSE |
1 | ||
| 85349-22260 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) ROOF SIDE INNER |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-22260 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) REAR WHEEL HOUSE |
1 | ||
| 85349-22260 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) ROOF SIDE INNER |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
GX81,JZX81,MX83..GD,GDG,GT |
1 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
GX81,JZX81,MX83..GD,GDG,GT |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
GX81,JZX81,MX83..GD,GDG,GT |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
GX81,JZX81,MX83..GD,GDG,GT |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
GX81,JZX81,MX83..GD,GDG,GT |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
GX81,JZX81,MX83..GD,GDG,GT |
5 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
GX81,JZX81,MX83..GD,GDG,GT 長さ=1000 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33639 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) 長さ=2200,NO.4 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..GD,GDG,GT NO.2 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.6 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.1 & NO.7 |
2 | ||
| 90446-07001 |
JZX81..HT..GD;GX81..HT..(GD,GDG,GT) NO.5 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33639 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) 長さ=2200,NO.4 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..GD,GDG,GT NO.2 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.6 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.1 & NO.7 |
2 | ||
| 90446-07001 |
JZX81..HT..GD;GX81..HT..(GD,GDG,GT) NO.5 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33639 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) 長さ=2200,NO.4 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..GD,GDG,GT NO.2 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.6 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.1 & NO.7 |
2 | ||
| 90446-07001 |
JZX81..HT..GD;GX81..HT..(GD,GDG,GT) NO.5 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33639 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) 長さ=2200,NO.4 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..GD,GDG,GT NO.2 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.6 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.1 & NO.7 |
2 | ||
| 90446-07001 |
JZX81..HT..GD;GX81..HT..(GD,GDG,GT) NO.5 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33639 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) 長さ=2200,NO.4 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..GD,GDG,GT NO.2 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.6 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.1 & NO.7 |
2 | ||
| 90446-07001 |
JZX81..HT..GD;GX81..HT..(GD,GDG,GT) NO.5 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33639 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) 長さ=2200,NO.4 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..GD,GDG,GT NO.2 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.6 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.1 & NO.7 |
2 | ||
| 90446-07001 |
JZX81..HT..GD;GX81..HT..(GD,GDG,GT) NO.5 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33639 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) 長さ=2200,NO.4 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..GD,GDG,GT NO.2 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.6 |
1 | ||
| 90446-07001 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) NO.1 & NO.7 |
2 | ||
| 90446-07001 |
JZX81..HT..GD;GX81..HT..(GD,GDG,GT) NO.5 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
GX81,JZX81,MX83..GD,GDG,GT 長さ=1000 |
1 | ||
| Common parts | ||||
| 82711-16130 | ||||
| 82711-16270 | ||||
| 82711-22240 | ||||
| 82711-22260 | ||||
| 82711-2A220 | ||||
| 82711-2A230 | ||||
| 82711-2A330 | ||||
| 82711-91602 | ||||
| 90179-10015 | ||||

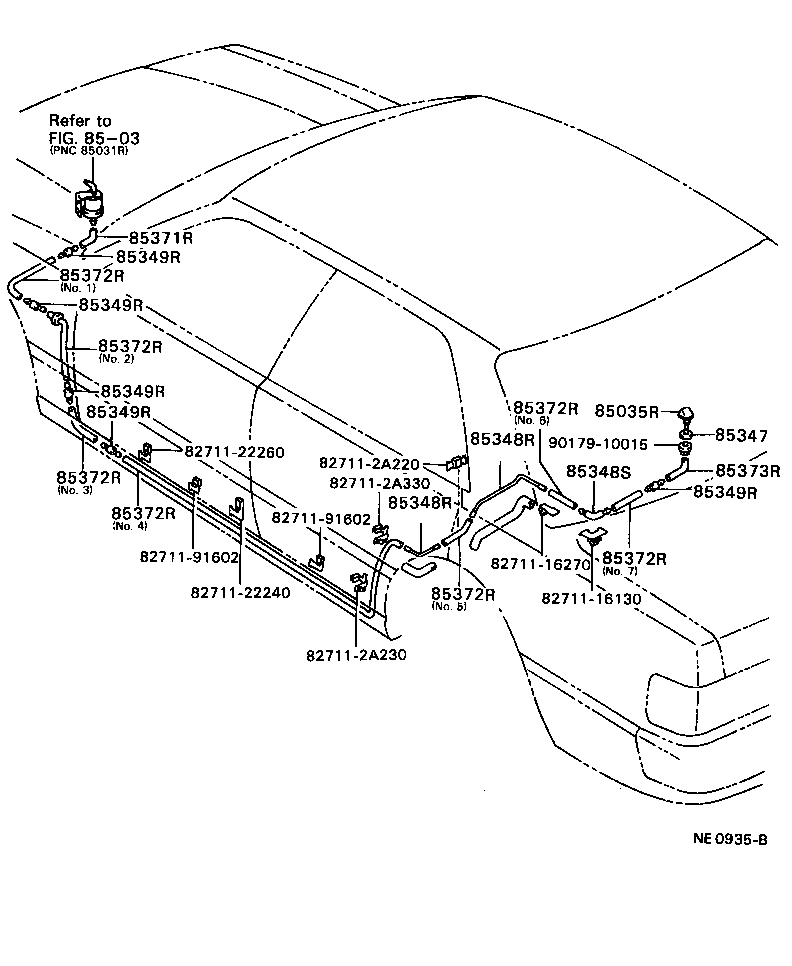

| Linked diagrams | ||||
| 8503 | ||||
