GX81-ATMQK (1988)

Toyota Mark 2

Production Aug 1988 - Oct 1992
Engine 1GFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )GD,GDG,GT

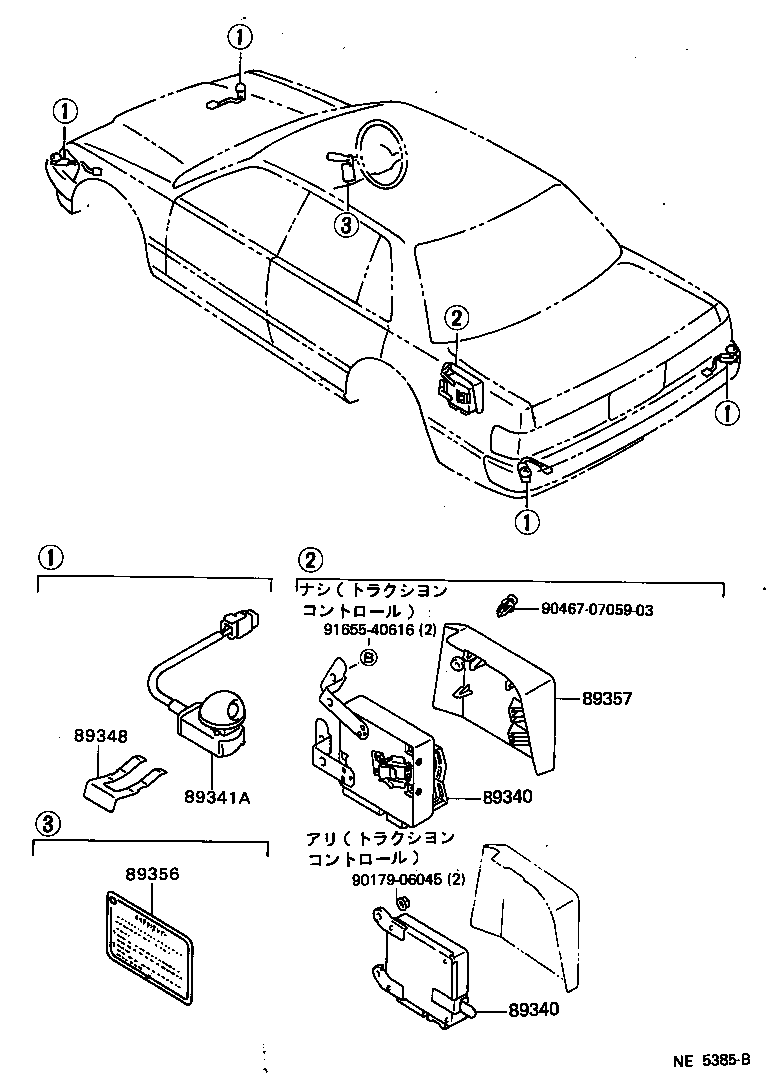

Click highlighted areas on diagram

diagram 89340 89340 89341A 89348 89356 89357 9017906045 904670705903 9165540616
Part # Description Qty Price
89340 - COMPUTER ASSY, REAR CLEARANCE WARNING
89340-22040

GX81..GD,GDG,GT

 1
89340-22020

GX81..GD,GDG,GT

 1
89340 - COMPUTER ASSY, REAR CLEARANCE WARNING
89340-22040

GX81..GD,GDG,GT

 1
89340-22020

GX81..GD,GDG,GT

 1
89341A - SENSOR, ULTRASONIC, NO.1
89341-2202003

GX81..GD,GT

MIST GRAY,177,FRONT

 2
89341-2202002

GX81..GD,GT

DARK RED MICA,3H3,FRONT

 2
89341-2202008

GX81..HT..(GD,GT)

WHITE PEARL MICA,22K,FRONT

 2
89341-2204004

GX81..GD,GT

BLUE MICA,8E3,REAR

 2
89341-2202004

GX81..GD,GT

BLUE MICA,8E3,FRONT

 2
89341-2202102

GX81..GD,GT

DARK RED MICA,3H3,FRONT

 2
89341-2202018

GX81..GD,GDG,GT

SUPER WHITE 4,050,FRONT

 2
89341-2204008

GX81..HT..(GD,GT)

WHITE PEARL MICA,22K,REAR

 2
89341-2202108

GX81..HT..(GD,GT)

WHITE PEARL MICA,22K,FRONT

 2
89341-2204003

GX81..GD,GT

MIST GRAY M,177,REAR

 2
89341-2202103

GX81..GD,GT

MIST GRAY,177,FRONT

 2
89341-2204018

GX81..GD,GDG,GT

SUPER WHITE 4,050,REAR

 2
89341-2204102

GX81..GD,GT

DARK RED MICA,3H3,REAR

 2
89341-2202104

GX81,MX83..GD,GDG,GT

BLUE MICA,8E3,FRONT

 2
89341-2202013

GX81..GD,GDG,GT

GRAY MICA M,170,FRONT

 2
89341-2204013

GX81..GD,GDG,GT

GRAY MICA M,170,REAR

 2
89341-2204002

GX81..GD,GT

DARK RED MICA,3H3,REAR

 2
89341-2202113

GX81,MX83..GD,GDG,GT

GRAY MICA METALLIC,170,FRONT

 2
89341-2204103

GX81..GD,GT

MIST GRAY METALLIC,177,REAR

 2
89341-2204113

GX81,MX83..GD,GDG,GT

GRAY MICA METALLIC,170,REAR

 2
89341-2204104

GX81,MX83..GD,GDG,GT

BLUE MICA,8E3,REAR

 2
89341-2202123

GX81,MX83..GD,GDG,GT

GREENISH SILVER M,174,FRONT

 2
89341-2202133

GX81,MX83..GD,GDG,GT

DARK BLUEISH GRAY M,183,FRONT

 2
89341-2204123

GX81,MX83..GD,GDG,GT

GREENISH SILVER M,174,REAR

 2
89341-2202118

GX81,MX83..GD,GDG,GT

SUPER WHITE 4,050,FRONT

 2
89348 - RETAINER, ULTRASONIC SENSOR, NO.1
89348-22020

GX81,JZX81,MX83..GD,GDG,GT

 4
89356 - LABEL, CLEARANCE WARNING INFORMATION
89356-22010

GX81,JZX81,MX83..GD,GDG,GT

 1
89357 - COVER, CLEARANCE COMPUTER
89357-22010

JZX81..GD;GX81..GD,GDG,GT

 1
Common parts
90179-06045
90467-0705903
91655-40616
