GX81-ATMQK (1988)
Toyota Mark 2
Production
Aug 1988
-
Oct 1992
Engine
1GFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

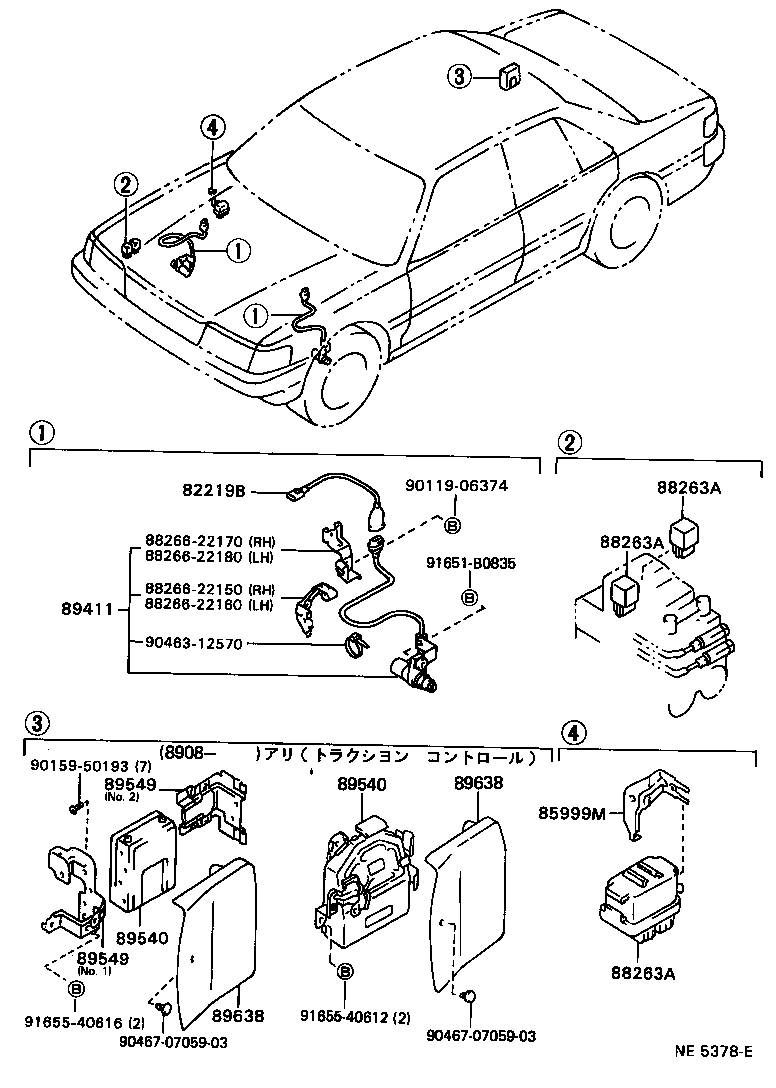

ILLUST NO. 1 OF 2(8808- )GD,GDG,GT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82219B - WIRE, SENSOR | ||||
| 82219-22070 |
GX81,MX83..GD,GDG,GT 左側 |
1 | ||
| 82219-22080 |
GX81,MX83..GD,GDG,GT 右側 |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-14110 |
GX81..GD,GDG,GT MOTOR RELAY |
1 | ||
| 88263-14120 |
GX81..GD,GDG,GT SOLENOID RELAY |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-14110 |
GX81..GD,GDG,GT MOTOR RELAY |
1 | ||
| 88263-14120 |
GX81..GD,GDG,GT SOLENOID RELAY |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-14110 |
GX81..GD,GDG,GT MOTOR RELAY |
1 | ||
| 88263-14120 |
GX81..GD,GDG,GT SOLENOID RELAY |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89542-22030 |
GX81,MX83..GD,GDG,GT 右側 |
1 | ||
| 89543-22030 |
GX81,MX83..GD,GDG,GT 左側 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89541-22020 |
GX81..5F..(GD,GT) |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89541-22020 |
GX81..5F..(GD,GT) |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 88268-22150 |
GX81..GD,GDG,GT NO.2 |
1 | ||
| 88267-22150 |
GX81..GD,GDG,GT NO.1 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 88268-22150 |
GX81..GD,GDG,GT NO.2 |
1 | ||
| 88267-22150 |
GX81..GD,GDG,GT NO.1 |
1 | ||
| 89638 - COVER, BRAKE CONTROL COMPUTER | ||||
| 89638-22010 |
GX81..GD,GDG,GT |
1 | ||
| 89638 - COVER, BRAKE CONTROL COMPUTER | ||||
| 89638-22010 |
GX81..GD,GDG,GT |
1 | ||
| Common parts | ||||
| 88266-22150 | ||||
| 88266-22160 | ||||
| 88266-22170 | ||||
| 88266-22180 | ||||
| 90119-06374 | ||||
| 90159-50193 | ||||
| 90463-12570 | ||||
| 90467-0705903 | ||||
| 91651-B0835 | ||||
| 91655-40612 | ||||
| 91655-40616 | ||||

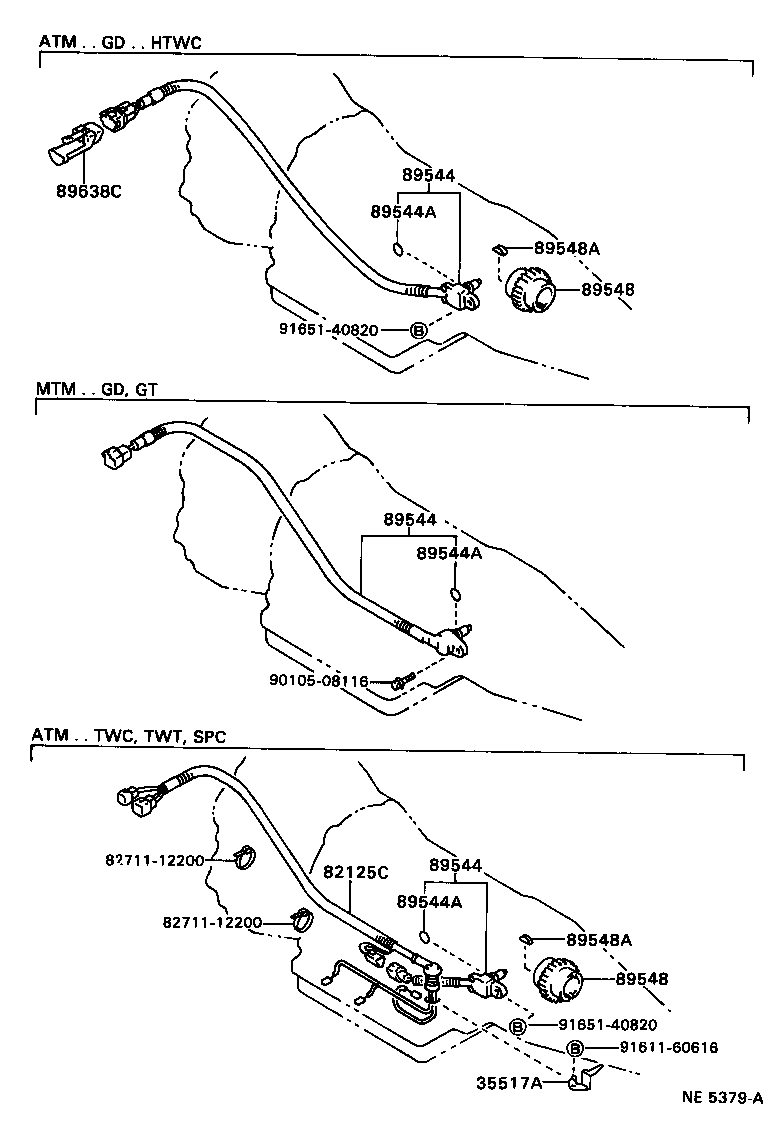

ILLUST NO. 2 OF 2(8808- )GD,GDG,GT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-22020 |
GX81..5F..(GD,GT) |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-22020 |
GX81..5F..(GD,GT) |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-22020 |
GX81..5F..(GD,GT) |
1 | ||
| 89544A - RING, O (FOR SKID CONTROL SENSOR) | ||||
| 96721-24014 |
GX81..5F..(GD,GT) |
1 | ||
| 89544A - RING, O (FOR SKID CONTROL SENSOR) | ||||
| 96721-24014 |
GX81..5F..(GD,GT) |
1 | ||
| 89544A - RING, O (FOR SKID CONTROL SENSOR) | ||||
| 96721-24014 |
GX81..5F..(GD,GT) |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90105-08116 | ||||
| 91611-60616 | ||||
| 91651-40820 | ||||
