GX81-ATMQK (1988)
Toyota Mark 2

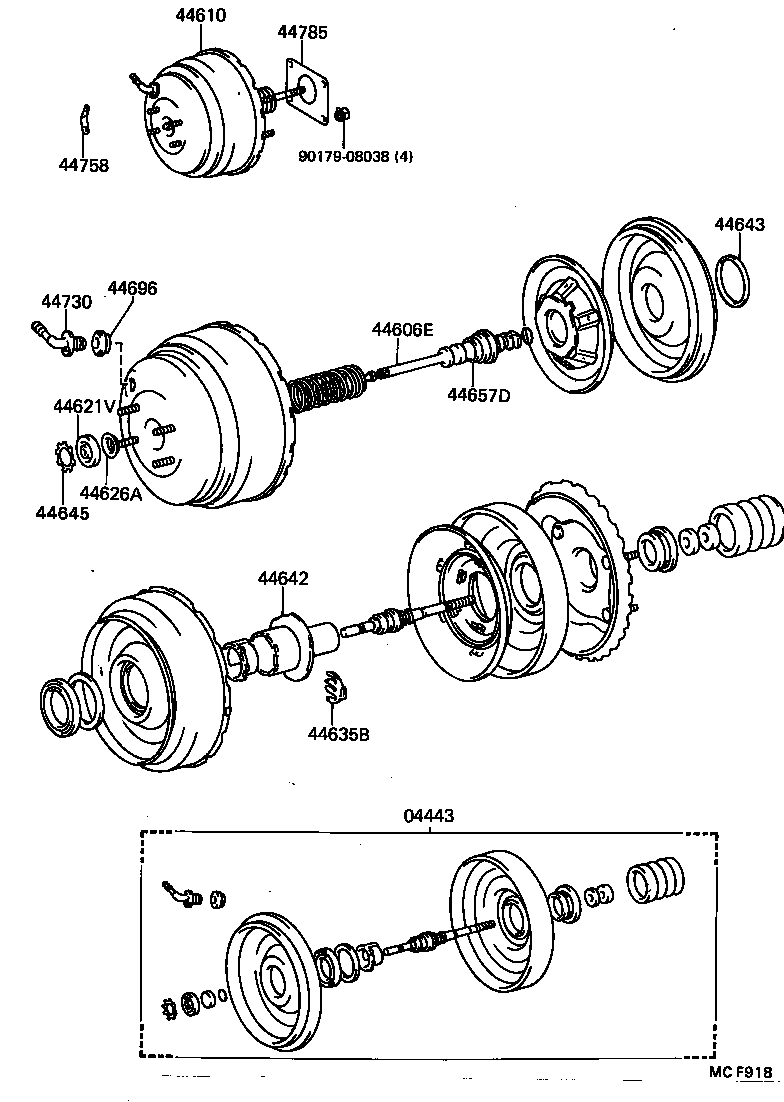

ILLUST NO. 1 OF 2(8808- )GX81..GD,GDG,GT ; (8908-9008)MX83 ; (9008- )JZX81
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-22600 |
GX81,MX83..GD,GDG |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-20800 |
GX81,MX83..GD,GDG,GT |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22680 |
GX81,MX83..GD,GDG |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-14030 |
GX81,MX83..GD,GDG,GT |
1 | ||
| 44626A - RETAINER, BOOSTER BODY SEAL | ||||
| 44626-60010 |
GX81,MX83..GD,GDG,GT |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-20800 |
GX81,MX83..GD,GDG,GT |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20800 |
GX81,MX83..GD,GDG,GT |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
GX81,MX83..GD,GDG,GT |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
GX81,MX83..GD,GDG,GT |
1 | ||
| 44657D - CASE, REACTION DISC | ||||
| 44657-30560 |
GX81,MX83..GD,GDG,GT |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
JZX81;GX81,LX80,MX83,SX80,YX80..GD,GDG,KYO |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
JZX81;GX81,MX83..GD,GDG |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22200 |
GX81,JZX81,MX83..GD,GDG |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 2 OF 2(8808-9008)GX81..TWC ; (8808- )GX81..HTWC ; (9008- )JZX81..TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
GX81,JZX81,LX80,MX83,SX80,YX80..(GD,GDG,GL,GR,GT,LG,STD)..(CI,DSL,HTWC,LPG,TD,TWC,TWT) |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
GX81,JZX81,LX80,MX83,SX80,YX80..(GD,GDG,GL,GR,GT,LG,STD)..(CI,DSL,HTWC,LPG,TD,TWC,TWT) |
4 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
JZX81..TWC;GX81,SX80..HTWC,TWC,TWT |
1 | ||
| 90404-51320 |
GX81..GD ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
JZX81..TWC;GX81,SX80..HTWC,TWC,TWT |
1 | ||
| 90404-51320 |
GX81..GD ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-22150 |
GX81,JZX81,MX83..(GD,GDG)..(HTWC,TWC) |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-22150 |
GX81,JZX81,MX83..(GD,GDG)..(HTWC,TWC) |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-22150 |
GX81,JZX81,MX83..(GD,GDG)..(HTWC,TWC) |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-22210 |
GX81,JZX81,MX83..GD,GDG,GT |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-22210 |
GX81,JZX81,MX83..GD,GDG,GT |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-22150 |
GX81..TWC |
1 | ||
| 44774-22160 |
GX81..HTWC;JZX81..TWC |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-22150 |
GX81..TWC |
1 | ||
| 44774-22160 |
GX81..HTWC;JZX81..TWC |
1 | ||
| Common parts | ||||
| 90119-06234 | ||||
