GX81-ATMQF (1988)

Toyota Mark 2

Production Aug 1988 - Oct 1992
Engine 1GGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

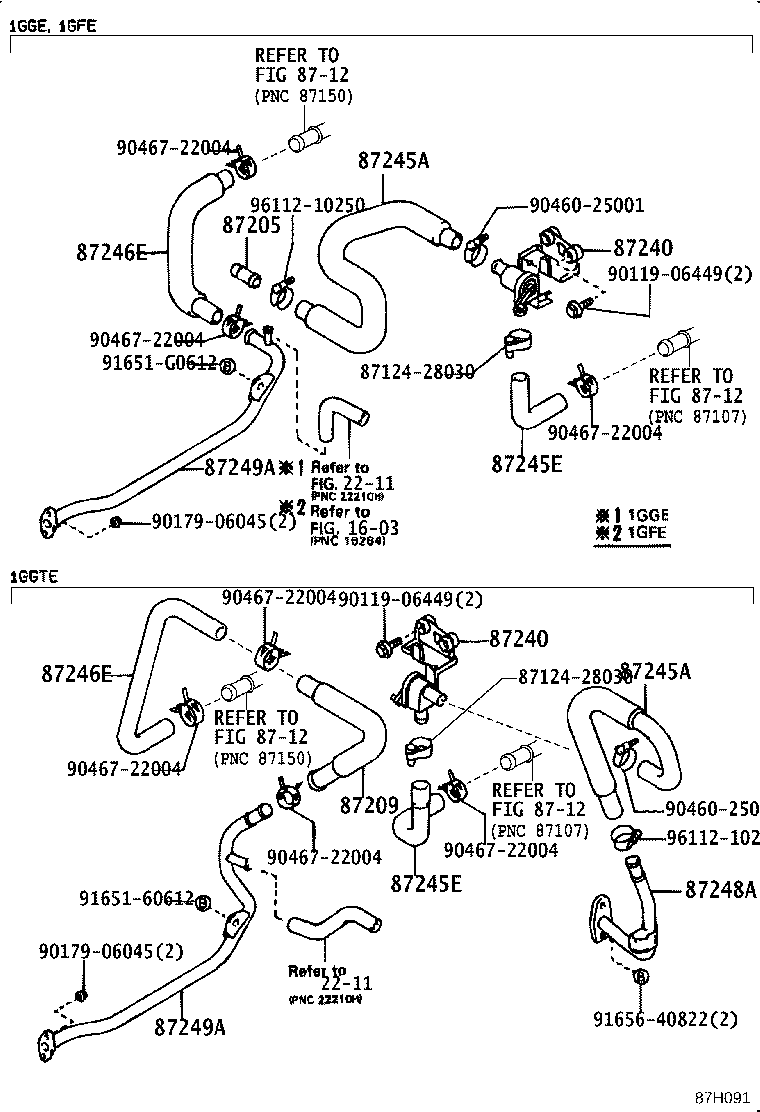

ILLUST NO. 1 OF 2(8808- )GX81..HTWC,TWC,TWT

Click highlighted areas on diagram

diagram 1603 2211 2211 8712 8712 8712 8712 8712428030 8712428030 87205 87209 87240 87240 87245A 87245A 87245E 87245E 87246E 87246E 87248A 87249A 87249A 9011906449 9011906449 9017906045 9017906045 9046025001 9046025001 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9165160612 91651G0612 9165640822 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
90406-17001

GX81..TWC

 1
87240 - VALVE ASSY, HEATER WATER
87240-22320

GX81,JZX81,MX83,SX80,YX80..CI,HTWC,LPG,TWC

 1
87240 - VALVE ASSY, HEATER WATER
87240-22320

GX81,JZX81,MX83,SX80,YX80..CI,HTWC,LPG,TWC

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2A200

GX81..HTWC,TWC

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2A200

GX81..HTWC,TWC

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2A170

GX81,JZX81,MX83,SX80,YX80..CI,HTWC,LPG,TWC

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2A170

GX81,JZX81,MX83,SX80,YX80..CI,HTWC,LPG,TWC

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-2A010

GX81..HTWC,SPC,TWC

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-2A010

GX81..HTWC,SPC,TWC

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-22271

GX81..TWC

 1
87208-22270

GX81..TWC

 1
87208-22012

GX81..TWC

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-22271

GX81..TWC

 1
87208-22270

GX81..TWC

 1
87208-22012

GX81..TWC

 1
Common parts
87124-28030
90119-06449
90179-06045
90460-25001
90467-22004
91651-60612
91651-G0612
91656-40822
96112-10250
Linked diagrams
1603
2211
8712

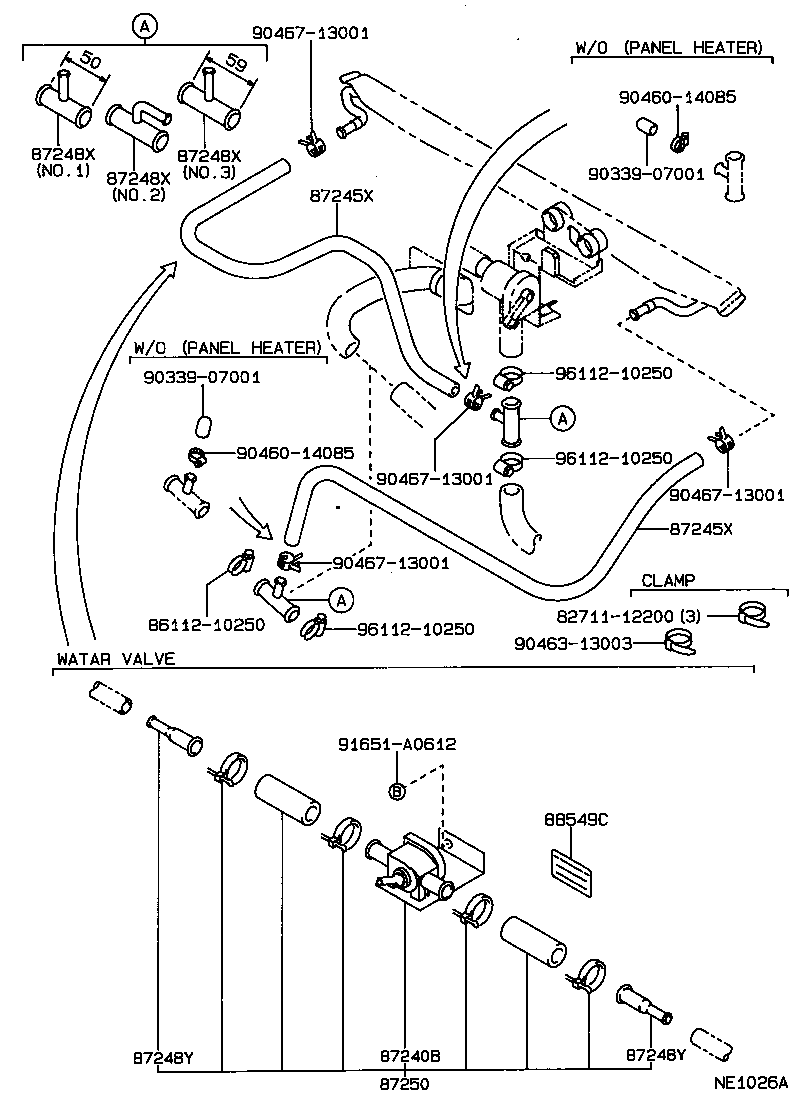

ILLUST NO. 2 OF 2(8811- )

Click highlighted areas on diagram

ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ(ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ)

diagram 8271112200 8611210250 87240B 87245X 87245X 87248X 87248X 87248X 87248Y 87248Y 87250 88549C 9033907001 9033907001 9046014085 9046014085 9046313003 9046713001 9046713001 9046713001 9046713001 91651A0612 9611210250 9611210250 9611210250
Part # Description Qty Price
87240B - VALVE ASSY, HEATER WATER, NO.2
87240-22350

GX81,LX80,MX83,SX80,YX80

 1
87245X - HOSE, HEATER WATER
90445-23006

GX81,LX80,SX80,YX80

長さ=270

 1
99556-11300

GX81,LX80,SX80,YX80

長さ=300

 1
87245X - HOSE, HEATER WATER
90445-23006

GX81,LX80,SX80,YX80

長さ=270

 1
99556-11300

GX81,LX80,SX80,YX80

長さ=300

 1
87248X - PIPE, HEATER WATER
87248-20300

GX81,LX80,SX80,YX80

NO.3

 2
87248X - PIPE, HEATER WATER
87248-20300

GX81,LX80,SX80,YX80

NO.3

 2
87248X - PIPE, HEATER WATER
87248-20300

GX81,LX80,SX80,YX80

NO.3

 2
87250 - HOSE AND VALVE ASSY
87250-22160

GX81,LX80,SX80,YX80

 1
87250-22160

LX80..GL..TD;GX81,MX83,SX80;LX80,YX80..GR,KYO

 1
88549C - PLATE, CAUTION
88549-22020

GX81,JZX81,LX80,MX83,SX80,YX80

 1
Common parts
82711-12200
86112-10250
90339-07001
90460-14085
90463-13003
90467-13001
91651-A0612
96112-10250
