GX81-ATMQF (1988)
Toyota Mark 2

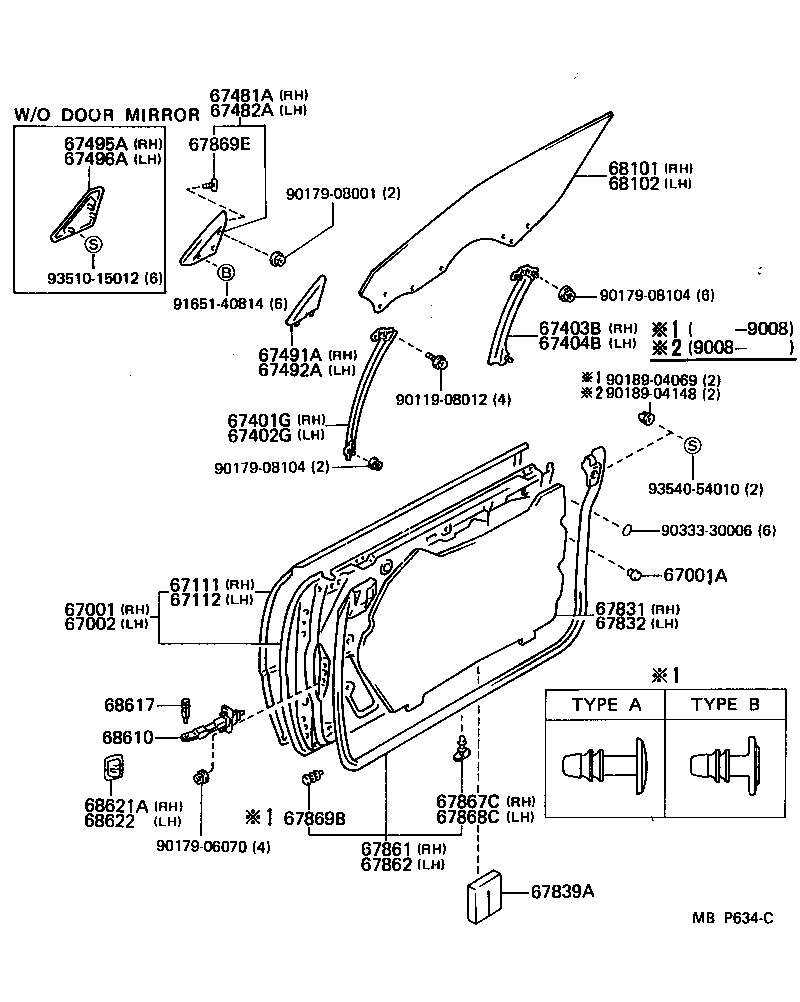

ILLUST NO. 1 OF 2(8808- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-22320 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09063 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-22330 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-22180 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-22190 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67401G - GUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT RH | ||||
| 67401-22140 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67402G - GUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT LH | ||||
| 67402-22140 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67403B - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH | ||||
| 67403-22070 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67404B - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH | ||||
| 67404-22070 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-22080 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 67481-22060 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-22050 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67482-22090 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) ｱﾘ(ｻｲﾄﾞ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-2209001 |
GX81,JZX81,LX80,MX83,SX80..HT BLACK,TRIM1#,3#,4# |
1 | ||
| 67491-2209001 |
GX81,LX80,MX83..HT BLACK,TRIM3#,4#,8# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-2209001 |
GX81,LX80,MX83..HT BLACK,TRIM3#,4#,8# |
1 | ||
| 67492-2209001 |
GX81,JZX81,LX80,MX83,SX80..HT BLACK,TRIM1#,3#,4# |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-22040 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-22040 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-22180 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-22060 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) |
1 | ||
| 67839A - COVER, FRONT DOOR SERVICE HOLE, LOWER | ||||
| 67839-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-22240 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-22240 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-22020 |
GX81,LX80,MX83..HT |
17 | ||
| 67868-20130 |
GX81,JZX81,LX80,MX83,SX80..HT |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-22020 |
GX81,LX80,MX83..HT |
17 | ||
| 67868-20130 |
GX81,JZX81,LX80,MX83,SX80..HT |
17 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-30020 |
GX81,JZX81,LX80,MX83,SX80..HT ﾀｲﾌﾟ B |
4 | ||
| 67869-22010 |
GX81,JZX81,LX80,MX83,SX80..HT ﾀｲﾌﾟ A |
2 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-22040 |
GX81,JZX81,LX80,MX83,SX80..HT |
6 | ||
| 67869-22040 |
GX81,JZX81,MX83..HT..(GD,GDG,GT) ｱﾘ(ｻｲﾄﾞｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
4 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-22350 |
GX81,JZX81,LX80,MX83,SX80..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68111-22350 |
GX81,LX80,MX83..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68111-22340 |
GX81,JZX81,LX80,MX83,SX80..HT *TT,厚さ=5.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-22340 |
GX81,JZX81,LX80,MX83,SX80..HT *TT,厚さ=5.0 |
1 | ||
| 68112-22350 |
GX81,LX80,MX83..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68112-22350 |
GX81,JZX81,LX80,MX83,SX80..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-22040 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20011 |
GX81,LX80,SX80,YX80 |
2 | ||
| Common parts | ||||
| 90119-08012 | ||||
| 90179-06070 | ||||
| 90179-08001 | ||||
| 90179-08104 | ||||
| 90189-04069 | ||||
| 90189-04148 | ||||
| 90333-30006 | ||||
| 91651-40814 | ||||
| 93510-15012 | ||||
| 93540-54010 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2A14006 |
GX81..HT..TWC SABLE,TRIM4# |
1 | ||
| 67650-2A14004 |
GX81..HT..TWC DARK BLUE,TRIM8# |
1 | ||
| 67650-2A14002 |
GX81..HT..TWC NEW MAROON,TRIM3# |
1 | ||
| 67650-2A14016 |
GX81..HT..TWC SABLE,TRIM4# |
1 | ||
| 67650-2A14102 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 67650-2A14106 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4# |
1 | ||
| 67650-2A14103 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2A14006 |
GX81..HT..TWC SABLE,TRIM4# |
1 | ||
| 67650-2A14004 |
GX81..HT..TWC DARK BLUE,TRIM8# |
1 | ||
| 67650-2A14002 |
GX81..HT..TWC NEW MAROON,TRIM3# |
1 | ||
| 67650-2A14016 |
GX81..HT..TWC SABLE,TRIM4# |
1 | ||
| 67650-2A14102 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 67650-2A14106 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4# |
1 | ||
| 67650-2A14103 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 67773-2201002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3#,右側 |
1 | ||
| 67773-2201003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 67774-2201003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 67773-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4#,右側 |
1 | ||
| 67774-2201004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8#,左側 |
1 | ||
| 67774-2201002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3#,左側 |
1 | ||
| 67773-2201004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8#,右側 |
1 | ||
| 67774-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4#,左側 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 67773-2201002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3#,右側 |
1 | ||
| 67773-2201003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 67774-2201003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 67773-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4#,右側 |
1 | ||
| 67774-2201004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8#,左側 |
1 | ||
| 67774-2201002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3#,左側 |
1 | ||
| 67773-2201004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8#,右側 |
1 | ||
| 67774-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4#,左側 |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
GX81,JZX81,LX80,MX83,SX80..HT GREEN |
7 | ||
| 67771-12040 |
GX81,LX80,MX83..HT |
9 | ||
| 67771-30090 |
GX81,LX80,MX83..HT ｲｴﾛｰ |
2 | ||
| 67771-30090 |
GX81,JZX81,LX80,SX80..HT..(GD,GR,GT,LG) ｲｴﾛｰ |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
GX81,JZX81,LX80,MX83,SX80..HT GREEN |
7 | ||
| 67771-12040 |
GX81,LX80,MX83..HT |
9 | ||
| 67771-30090 |
GX81,LX80,MX83..HT ｲｴﾛｰ |
2 | ||
| 67771-30090 |
GX81,JZX81,LX80,SX80..HT..(GD,GR,GT,LG) ｲｴﾛｰ |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2C48006 |
GX81..HT..TWC SABLE,TRIM4# |
1 | ||
| 67620-2C48004 |
GX81..HT..TWC DARK BLUE,TRIM8# |
1 | ||
| 67620-2C48002 |
GX81..HT..TWC NEW MAROON,TRIM3# |
1 | ||
| 67620-2C48016 |
GX81..HT..TWC SABLE,TRIM4# |
1 | ||
| 67620-2C48106 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4# |
1 | ||
| 67620-2C48102 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 67620-2C48103 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2C48006 |
GX81..HT..TWC SABLE,TRIM4# |
1 | ||
| 67620-2C48004 |
GX81..HT..TWC DARK BLUE,TRIM8# |
1 | ||
| 67620-2C48002 |
GX81..HT..TWC NEW MAROON,TRIM3# |
1 | ||
| 67620-2C48016 |
GX81..HT..TWC SABLE,TRIM4# |
1 | ||
| 67620-2C48106 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4# |
1 | ||
| 67620-2C48102 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 67620-2C48103 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
GX81,JZX81,LX80,MX83,SX80..HT GREEN |
7 | ||
| 67771-12040 |
GX81,LX80,MX83..HT |
9 | ||
| 67771-30090 |
GX81,JZX81,LX80,MX83,SX80..HT ｲｴﾛｰ |
2 | ||
| 67771-12040 |
GX81..HT..TWC GHREEN |
7 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
GX81,JZX81,LX80,MX83,SX80..HT GREEN |
7 | ||
| 67771-12040 |
GX81,LX80,MX83..HT |
9 | ||
| 67771-30090 |
GX81,JZX81,LX80,MX83,SX80..HT ｲｴﾛｰ |
2 | ||
| 67771-12040 |
GX81..HT..TWC GHREEN |
7 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2215004 |
GX81,MX83..HT..(SPC,TWC,TWT) DARK BLUE,TRIM8# |
1 | ||
| 67770-2215002 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) NEW MAROON,TRIM3# |
1 | ||
| 67770-2215003 |
GX81,JZX81,MX83..HT..(TWC,TWT) MEDIUM GRAY,TRIM1# |
1 | ||
| 67770-2215006 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) SABLE,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2215004 |
GX81,MX83..HT..(SPC,TWC,TWT) DARK BLUE,TRIM8# |
1 | ||
| 67770-2215002 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) NEW MAROON,TRIM3# |
1 | ||
| 67770-2215003 |
GX81,JZX81,MX83..HT..(TWC,TWT) MEDIUM GRAY,TRIM1# |
1 | ||
| 67770-2215006 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) SABLE,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2215004 |
GX81,MX83..HT..(SPC,TWC,TWT) DARK BLUE,TRIM8# |
1 | ||
| 67770-2215002 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) NEW MAROON,TRIM3# |
1 | ||
| 67770-2215003 |
GX81,JZX81,MX83..HT..(TWC,TWT) MEDIUM GRAY,TRIM1# |
1 | ||
| 67770-2215006 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) SABLE,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2214004 |
GX81,MX83..HT..(SPC,TWC,TWT) DARK BLUE,TRIM8# |
1 | ||
| 67780-2214002 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) NEW MAROON,TRIM3# |
1 | ||
| 67780-2214003 |
GX81,JZX81,MX83..HT..(TWC,TWT) MEDIUM GRAY,TRIM1# |
1 | ||
| 67780-2214006 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) SABLE,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2214004 |
GX81,MX83..HT..(SPC,TWC,TWT) DARK BLUE,TRIM8# |
1 | ||
| 67780-2214002 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) NEW MAROON,TRIM3# |
1 | ||
| 67780-2214003 |
GX81,JZX81,MX83..HT..(TWC,TWT) MEDIUM GRAY,TRIM1# |
1 | ||
| 67780-2214006 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) SABLE,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2214004 |
GX81,MX83..HT..(SPC,TWC,TWT) DARK BLUE,TRIM8# |
1 | ||
| 67780-2214002 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) NEW MAROON,TRIM3# |
1 | ||
| 67780-2214003 |
GX81,JZX81,MX83..HT..(TWC,TWT) MEDIUM GRAY,TRIM1# |
1 | ||
| 67780-2214006 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) SABLE,TRIM4# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-22140 |
GX81,JZX81,LX80,MX83,SX80..HT 右側 |
1 | ||
| 68220-22060 |
GX81,JZX81,LX80,MX83,SX80..HT 左側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-22140 |
GX81,JZX81,LX80,MX83,SX80..HT 右側 |
1 | ||
| 68220-22060 |
GX81,JZX81,LX80,MX83,SX80..HT 左側 |
1 | ||
| Common parts | ||||
| 67771-22040 | ||||
| 67772-22010 | ||||
| 90168-40025 | ||||
| 90168-40048 | ||||
| 90168-60015 | ||||
| 90189-06120 | ||||
| 90189-06125 | ||||
| 90468-05052 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
