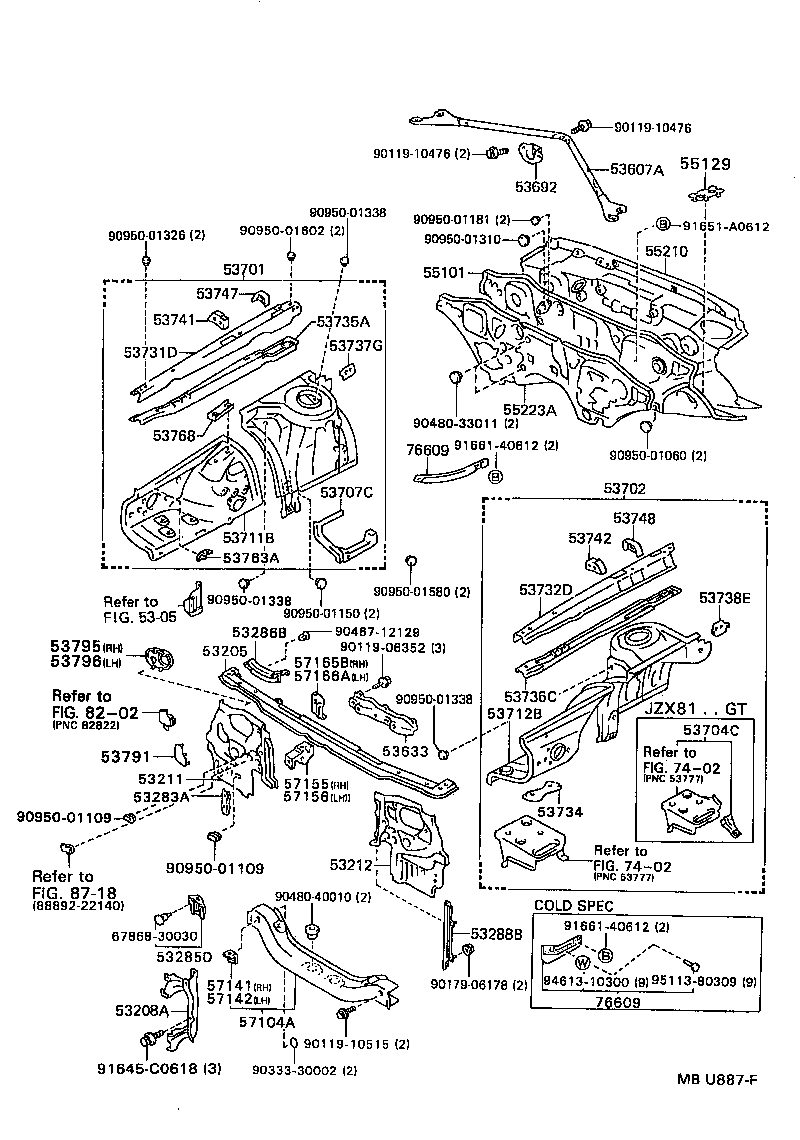

Toyota Mark 2 GX81 FRONT FENDER APRON & DASH PANEL

Part #	Description	Period	Qty
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-22110	JZX81..TWC;GX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-22100	GX81,LX80,MX83..HT	08/1988 - 08/1990	1
53211 - SUPPORT, RADIATOR, RH
53211-22320	JZX81..TWC;GX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53212 - SUPPORT, RADIATOR, LH
53212-22210	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53285D - COVER, FRONT BUMPER ARM HOLE
53285-22030	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	2
53633 - SHIELD, HOOD LOCK CONTROL CABLE
53633-22060	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-22560	GX81..GD,GT W(*66)	08/1988 - 08/1989	1
53701-22550	JZX81..GD;GX81,SX80..GD,GL,GR,GT,LG,STD	08/1988 - 12/1995	1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-22610	GX81,MX83,SX80,YX80;JZX81,LX80..(GD,GDG,GL)..(DSL,TWC)	08/1988 - 02/1993	1
53707C - EXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH
53707-22010	SX80..KYO;GX81,JZX81,LX80,MX83,YX80..GD,GDG,GL,GR,GT,KYO	08/1988 - 12/1995	1
53711B - APRON, FRONT FENDER, FRONT RH
53711-22410	GX81..GD,GT W(*66)	08/1988 - 12/1995	1
53711-22400	JZX81..GD;GX81,SX80..GD,GL,GR,GT,LG,STD	08/1988 - 12/1995	1
53712B - APRON, FRONT FENDER, FRONT LH
53712-22340	JZX81..TWC;GX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-22080	GX81,LX80,MX83,SX80,YX80	08/1988 - 08/1990	1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-22070	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53734 - PATCH, FRONT FENDER APRON, NO.4
53733-22070	LX80..GL..DSL;GX81,JZX81,MX83,SX80,YX80	08/1988 - 02/1993	1
53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53735-22060	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53736-22050	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53737G - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-22040	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53738E - PLATE, FRONT SPRING SUPPORT, LH
53738-22040	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53741 - PLATE, FRONT FENDER APRON WIND GUIDE, RH
53741-22020	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53742 - PLATE, FRONT FENDER APRON WIND GUIDE, LH
53742-22020	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53747 - PLATE, AIR SEALED, RH
53747-22010	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53748 - PLATE, AIR SEALED, LH
53748-22010	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53763A - BRACKET, AIR CLEANER INLET MOUNTING
53763-22010	GX81,JZX81,MX83,SX80	08/1988 - 12/1995	1
53768 - PLATE, IGNITION COIL MOUNTING
53768-22030	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
53795 - COVER, HEADLAMP WIRE HARNESS HOLE, RH
53795-22040	GX81,LX80;SX80..GL,GR,STD	08/1988 - 09/1988	1
53796 - COVER, HEADLAMP WIRE HARNESS HOLE, LH
53796-22030	GX81,LX80;SX80..GL,GR,STD	08/1988 - 09/1988	1
55101 - PANEL SUB-ASSY, DASH
55101-2A050	GX81,JZX81,MX83..HTWC,SPC,TWC	08/1988 - 12/1995	1
55210 - INSULATOR ASSY, DASH PANEL
55210-22260	GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG,STD	08/1988 - 08/1990	1
55223A - INSULATOR, DASH PANEL, OUTER
55223-22060	GX81,JZX81,MX83..GD,GDG,GT	08/1988 - 12/1995	1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-22160	YX80..(3FC,5F)..GL;GX81,LX80,MX83,SX80;JZX81,YX80..GD,GDG,KYO	08/1988 - 12/1995	1
57141 - SUPPORT, FRONT BUMPER ARM, RH
57141-22020	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57142 - SUPPORT, FRONT BUMPER ARM, RH
57141-22020	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57155-22090	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57156-22070	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 02/1993	1
57165B - REINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH
57165-22040	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57166A - GUSSET, FLOOR MEMBER, LH
57166-22040	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
76609 - MUDGUARD SUB-ASSY, FRONT SIDE MEMBER
76609-22010	GX81,JZX81,LX80,MX83,SX80,YX80..ATM	08/1988 - 12/1995	1
76609 - MUDGUARD SUB-ASSY, FRONT SIDE MEMBER
76609-22010	GX81,JZX81,LX80,MX83,SX80,YX80..ATM	08/1988 - 12/1995	1
Common parts
67868-30030
90119-06352
90119-10476
90119-10515
90179-06178
90333-30002
90467-12129
90480-33011
90480-40010
90950-01060
90950-01109
90950-01150
90950-01181
90950-01310
90950-01326
90950-01338
90950-01580
90950-01602
91645-C0618
91651-A0612
91661-40612
94613-10300
95113-80309
Linked diagrams
5305
7402
8202
8718

GX81-ATMQF (1988)

(8808- )
